Technical Specifications

Engine & Performance

• Engine Model: 4D34T Turbocharged Diesel

• Power Output: 45HP (33.6kW) @ 2200 RPM

• Cooling System: Parallel-flow radiator configuration

• Fuel Tank Capacity: 65L (10+ hours continuous operation)

• Travel Speed: 25 km/h (road transport ready)

Hydraulic System

• Main Pump: Gear pump with 35L/min flow rate

• Operating Pressure: 18MPa

• Control System: Pilot-operated joysticks with ergonomic design

• Attachment Interface: Hydraulic quick-coupler standard on both front and rear

Dimensions & Weight

• Overall Length: 4,980mm

• Overall Width: 1,860mm (fits standard transport trailers)

• Overall Height: 2,450mm

• Wheelbase: 2,250mm

• Operating Weight: 3,500kg

• Ground Clearance: 280mm

Operational Advantages

1. Dual-Function Efficiency

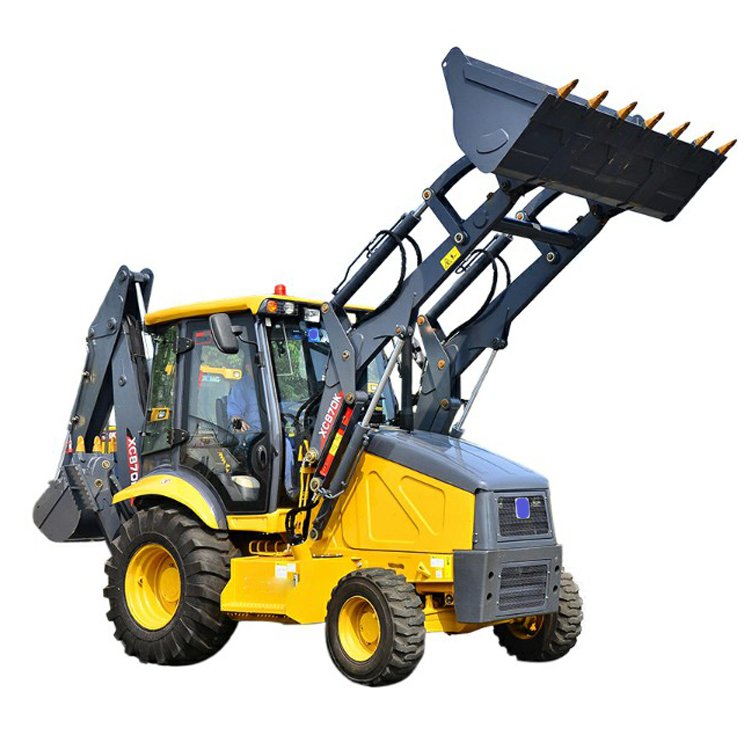

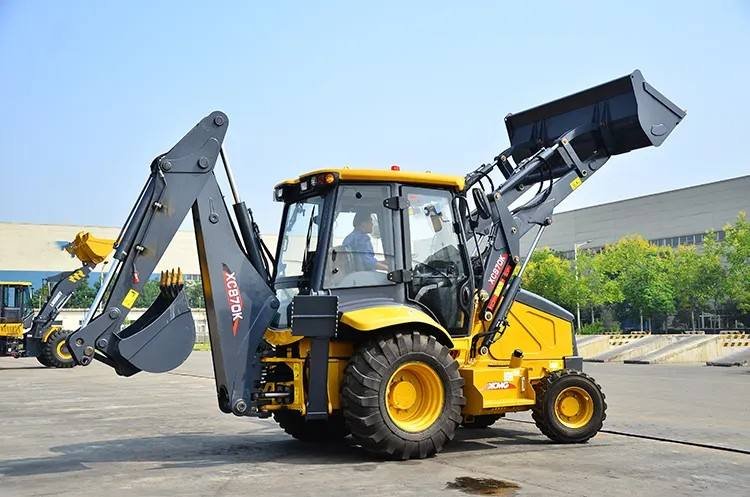

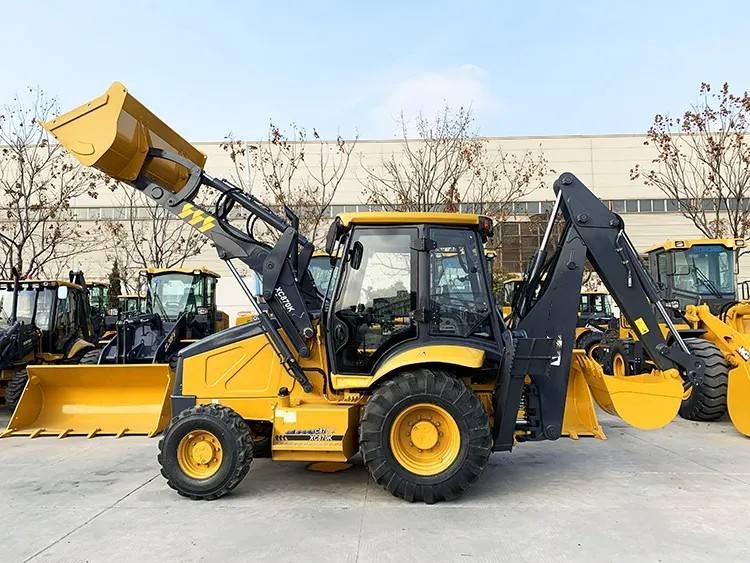

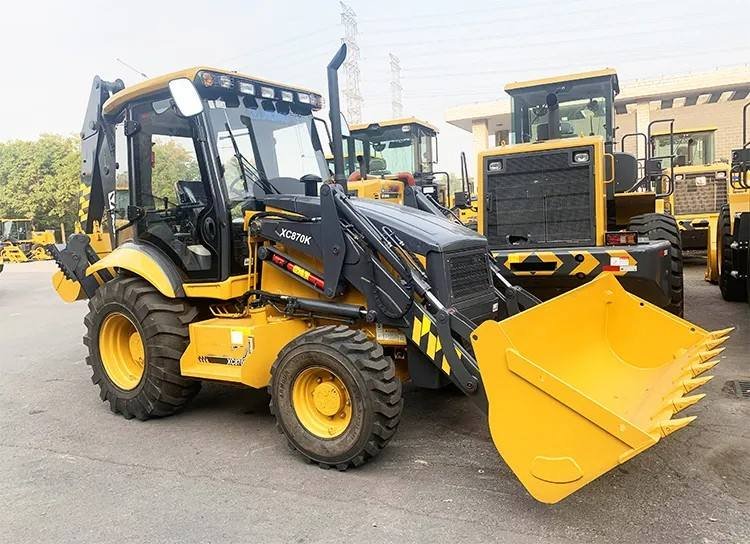

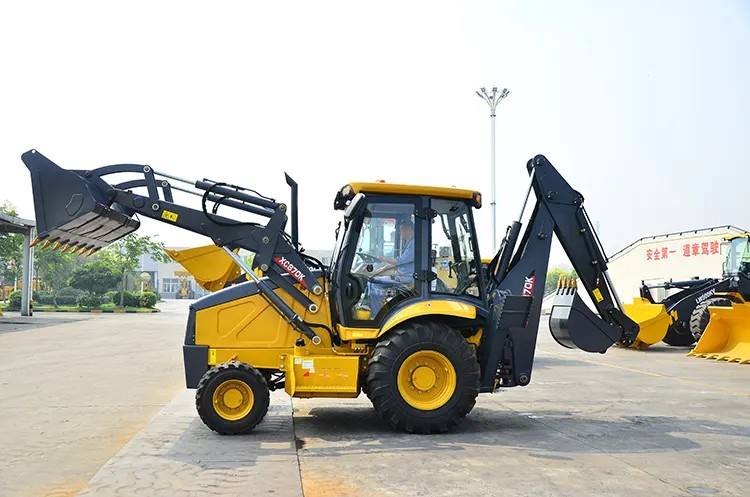

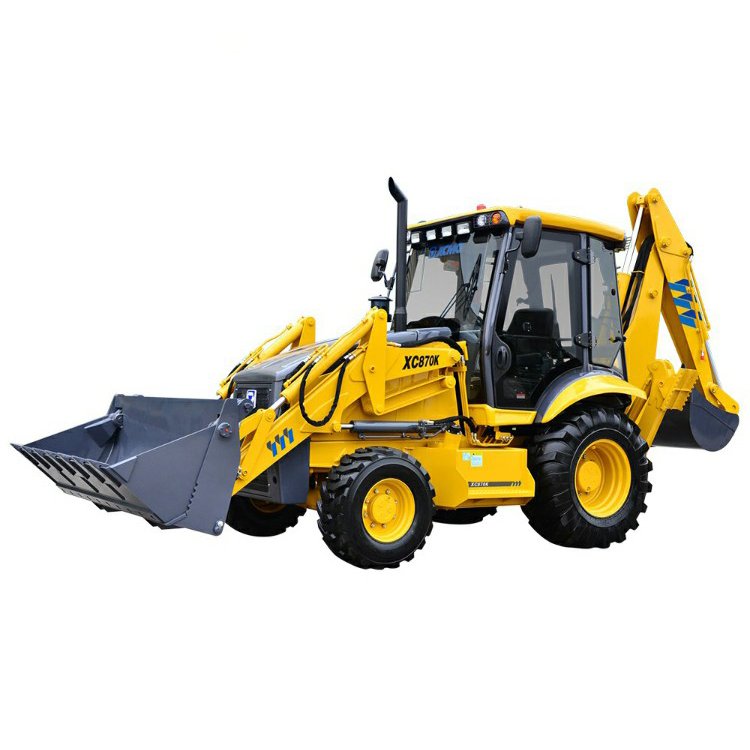

The XC870K combines front loader and backhoe capabilities in one machine, eliminating equipment switching delays. Complete tasks from material loading to trenching without changing machines - ideal for road maintenance crews and small construction teams.

2. African Terrain Adaptation

✅ Dust Protection System: Dual-stage air filtration prevents engine contamination in dusty environments
✅ Reinforced Undercarriage: Heavy-duty pins and bushings withstand continuous operation on rough terrain
✅ Enhanced Cooling: Parallel-flow radiator maintains optimal temperature in 45°C+ conditions
✅ Corrosion Protection: Undercarriage coated with anti-rust treatment for rainy season durability

3. Attachment Versatility

The hydraulic quick-coupler system allows rapid switching between:

• Standard Bucket (0.35m³) - optimized for soil and gravel

• Auger Attachment (300mm diameter) - for fence posts and small foundations

• Hydraulic Breaker (80mm chisel) - for concrete breaking and rock excavation

• Grapple Attachment - for brush clearing and debris handling

Reliability & Support Package

Comprehensive Warranty Coverage

• Engine & Transmission: 24 months unlimited hours

• Hydraulic Components: 24 months including seals and pumps

• Structural Elements: 36 months on frame and boom welding

Operator Support System

• Training Materials: Digital operation manuals in English, French, and Portuguese

• Maintenance Videos: WhatsApp-delivered instructional videos for routine servicing

• Spare Parts Network: Critical components stocked in Lagos, Accra, and Nairobi warehouses

• Technical Support: Direct WhatsApp line to engineering team for troubleshooting

Deployment Timeline

1. Initial Contact: WhatsApp technical requirements to William Du (+86 186 6977 8647)

2. Site Assessment: Receive machine suitability report within 24 hours

3. Pre-Delivery Inspection: Video confirmation of machine testing before shipment

4. Delivery: Factory to site in 30 days (standard African ports)

Current Production Status: 15 units in final assembly phase with July 2024 build dates

Contact: William Du
Verified Supplier For: Rural road construction projects in Nigeria, Ghana, and Kenya
WhatsApp/WeChat: +86 186 6977 8647
