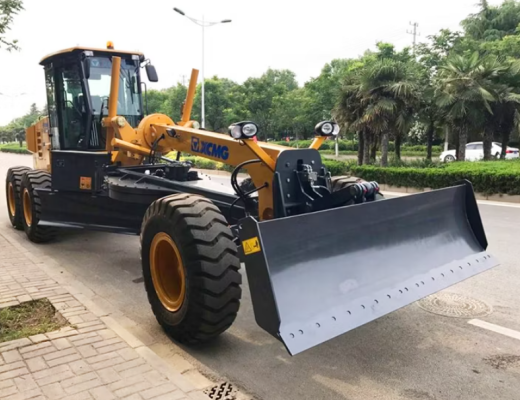

XCMG Brand New GR215 Motor Grader with Front Blade and Rear Ripper
No.: KL251210WJX4
Vehicle Type: Motor Grader
Brand Name: XCMG
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details

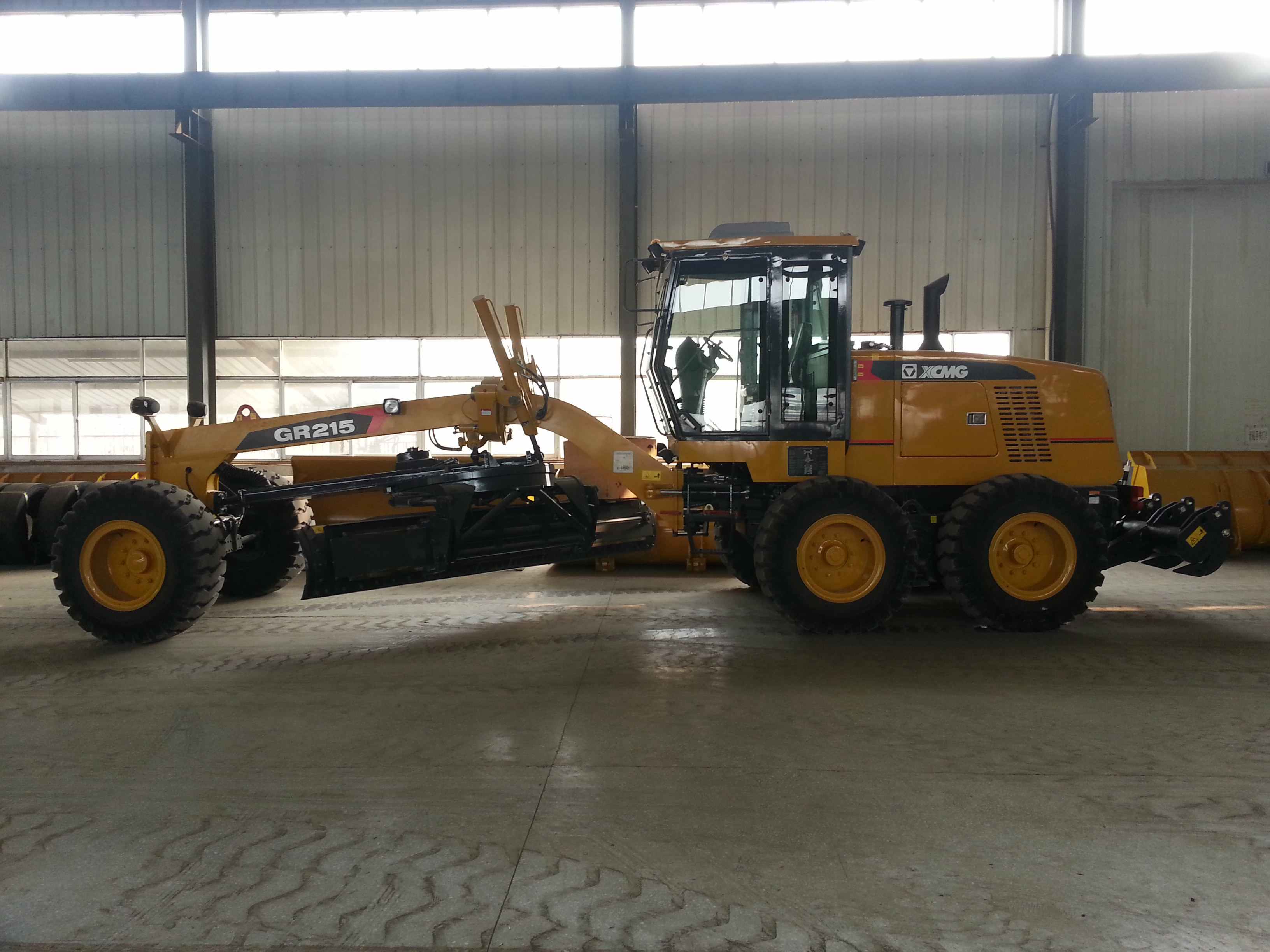

XCMG Brand New GR215 Motor Grader
Key Features:
✅Powerful & Efficient Performance:Equipped with a reliable and fuel-efficient turbocharged engine, delivering substantial horsepower (approx. 215HP) for demanding grading tasks.
✅Versatile Grading & Earthmoving Solution:

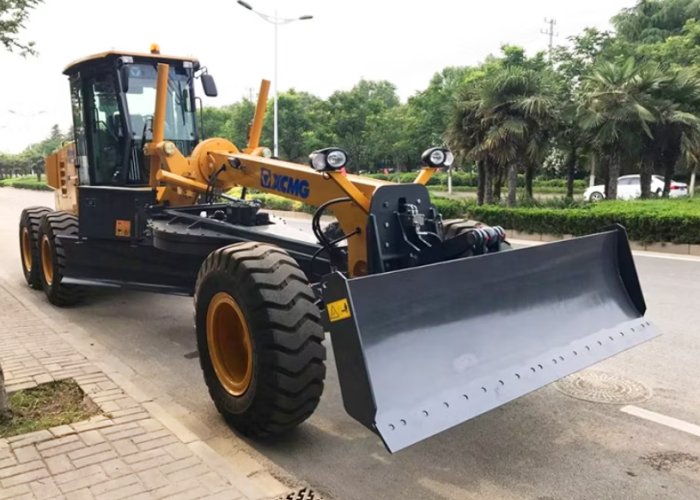

Front Mounting Blade: The primary moldboard is designed for excellent material roll and spread, ideal for precision grading, slope finishing, ditching, and road surface maintenance.

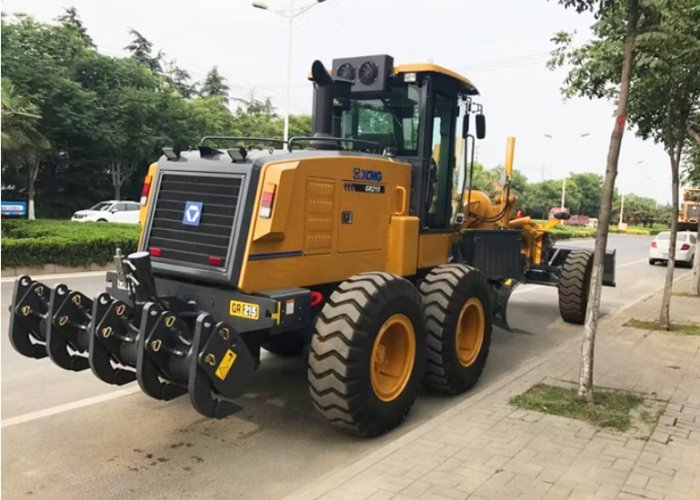

Rear Scarifier/Ripper: The integrated rear ripper is perfect for breaking up compacted soil, asphalt, or frozen ground, allowing for efficient material loosening before grading. This combination makes the grader a highly versatile all-in-one machine.
✅Operator-Centric Design: Intuitive control layout and adjustable suspension seat minimize operator fatigue during long working hours, ensuring safety and comfort.
✅Durable & Reliable Construction: Built with a heavy-duty integral frame and high-strength steel components to withstand tough working conditions and ensure long-term durability.
XCMG Brand New GR215 Motor Grader
XCMG Brand New GR215 Motor Grader
XCMG Brand New GR215 Motor Grader
Specifications:
| Item | GR215 | Unit | |
| Overall dimension(standard) | 8970×2625×3420 | mm | |
| Total weight(standard) | 16500 | kg | |
| Tires specification | 17.5-25 | ||
| Ground clearance (front axle) | 430 | mm | |
| Tread | 2156 | mm | |
| Space of front and rear axles | 6219 | mm | |
| Space of middle and rear wheels | 1538 | mm | |
| Engine model | 6CTA8.3-C215 | ||
| Rated power/speed | 160/2200 | kW/rpm | |
| Forward velocity | 5、8、11、19、23、38 | km/h | |
| Reverse speed | 5、11、23 | km/h | |
| Tractive effort f=0.75 | ≥85 | kN | |
| Maximum grade ability | ≥25 | % | |
| Inflation pressure of tires | 260 | kPa | |
| Working system pressure | 16 | MPa | |
| Transmission pressure | 1.3-1.8 | Mpa | |
| Maximum steering angle of front wheels | ±50 | ° | |
| Maximum inclination angle of front wheels | ±17 | ° | |
| Maximum swing angle of front axle | ±15 | ° | |
| Maximum swing angle of balance box | front15,rear15 | ° | |
| Maximum steering angle of frame | ±27 | ° | |
| Minimum turning radius | 7.3 | m | |
| Blade | Maximum lifting height | 450 | mm |
| Maximum shoveling depth | 500 | mm | |
| Maximum lateral inclination angle | 90 | ° | |
| Cutting angle | 28-70 | ° | |
| Slewing angle | 360 | ° | |
| Length× chord height | 3965×610 | mm | |
The XCMG GR215 Motor Grader is a high-performance, versatile, and robust earthmoving machine, proudly engineered and manufactured in China. Designed to meet the rigorous demands of modern construction, roadwork, and site development projects, it combines powerful functionality, operational efficiency, and durable construction.
Contact us for pricing and configuration options！
Contact: Stacy
Phone/WhatsApp/Wechat: +86 17657099215
Email: Sales5@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
You May Like:

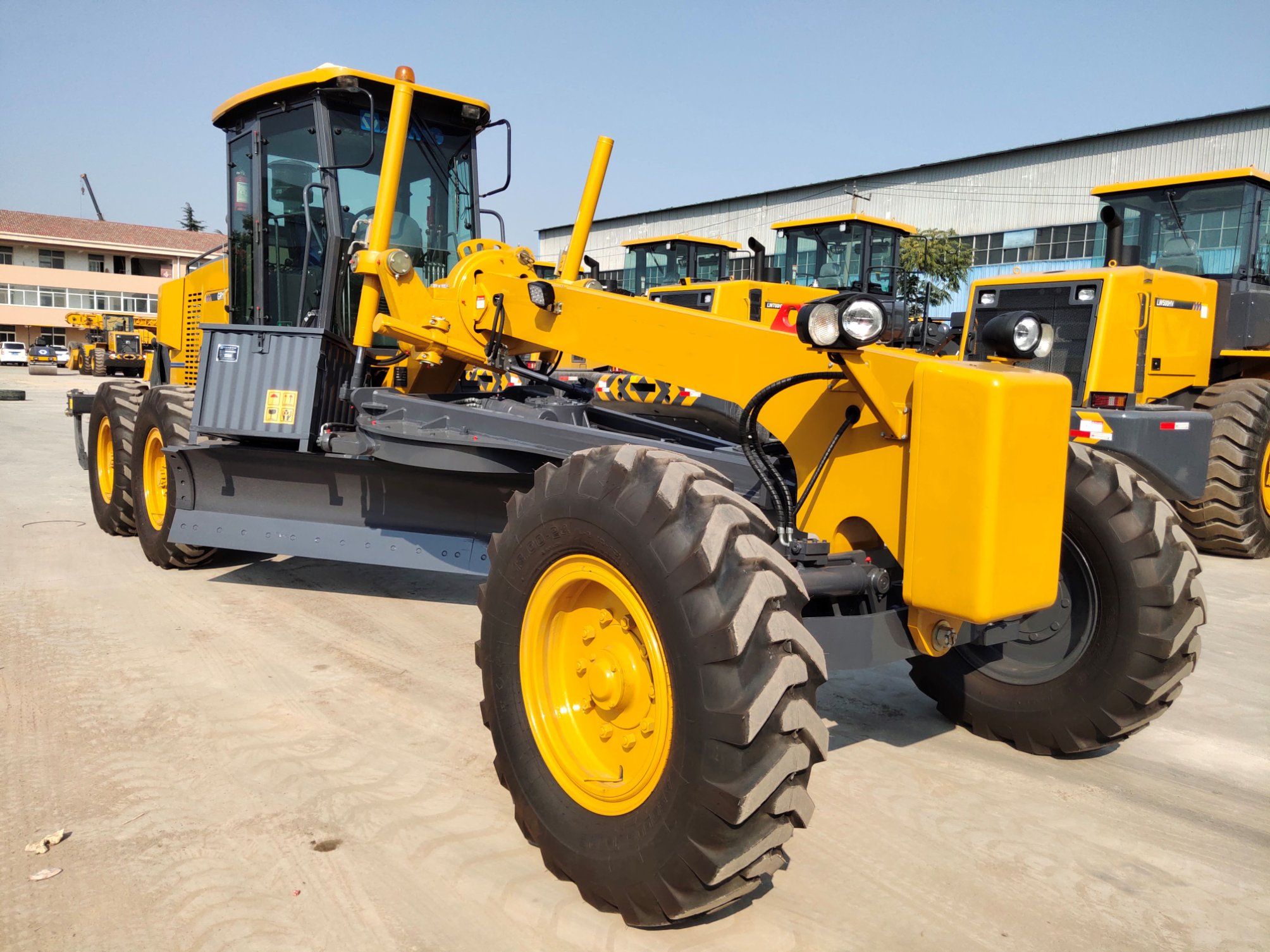

Official XCMG GR135 135HP Small Motor Grader – New China-Made Road Construction Machine for Grading, Land Leveling & Snow Removal
