XCMG 14t Compactor XD143 Tandem Vibratory Road Roller for Sale
No.: KL260410WJX3
Vehicle Type: Road Roller
Brand Name: XCMG
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details

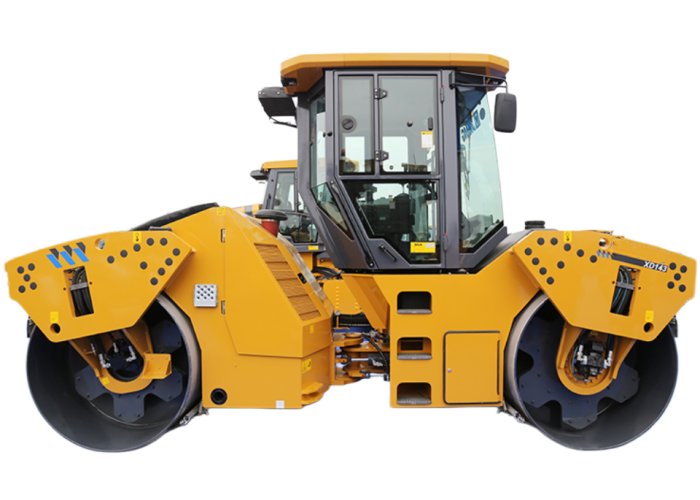

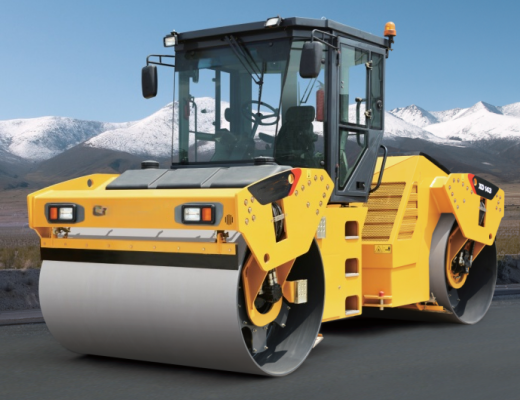

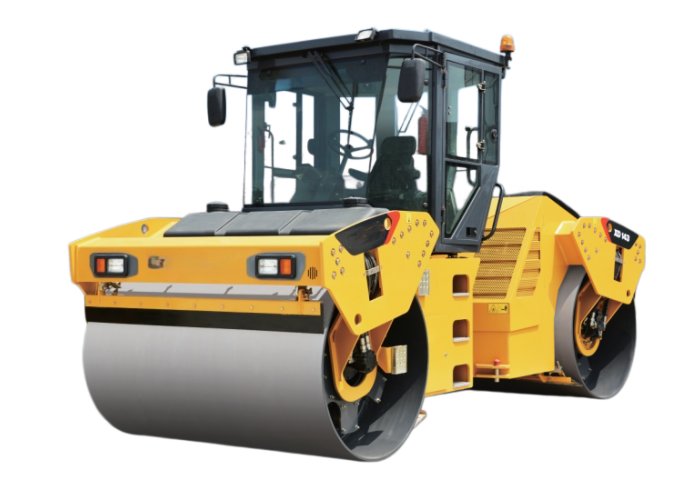

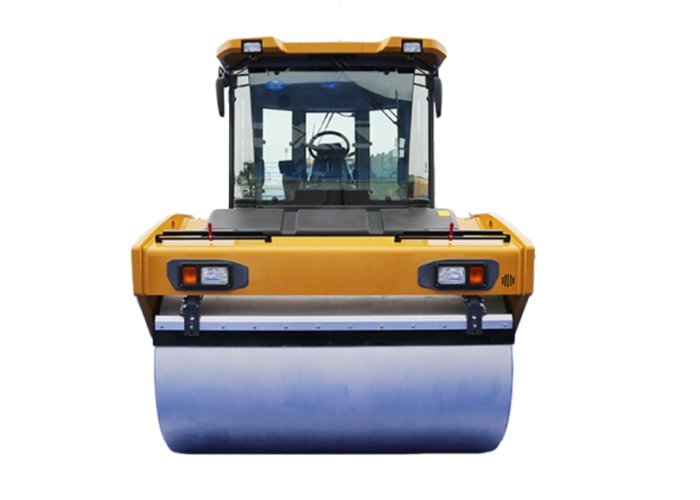

XCMG 14t Compactor XD143 Tandem Vibratory Road Roller for Sale
Key Features:
✅14t operating weight and tandem vibratory design provide strong compaction force for high-density results.
✅High-frequency vibration system enhances compaction efficiency, suitable for fast-paced construction projects.
✅Durable steel frame and wear-resistant components ensure long service life and low maintenance costs.
✅Ergonomic operator cab with clear instrument panel and comfortable seating reduces working fatigue.
✅Flexible steering and adjustable vibration parameters adapt to different construction scenarios and materials.
✅Energy-saving engine meets environmental standards while maintaining powerful performance and low fuel consumption.
XCMG 14t Compactor XD143 Tandem Vibratory Road Roller for Sale
XCMG 14t Compactor XD143 Tandem Vibratory Road Roller for Sale
Specifications:
| Type | Unit | XD143 |
| Overall dimension | mm | 5140x2290x3070 |
| Operating weight | kg | 14000 |
| Load applied on front drum | kg | 7000 |
| Load applied on rear drum | kg | 7000 |
| Speed range | Km/h | GearⅠ 0-6/GearⅡ 0-8/GearⅢ 0-12 |
| Theoretical Gradeability | % | 35 |
| Min.turning radius(Inner/outer) | mm | 4470/6600 |
| Max. crab-walking distance | mm | ±160 |
| Swing angle | ° | ±8 |
| Turning angle | ° | ±35 |
| Static linear load | N/cm | 330/330 |
| Nominal amplitude | mm | 0.30/0.80 |
| Vibration frequency | Hz | 50/67 |
| Exiting force(H/F) | kN | 110/170 |
| Model | DEUTZ BF04M1013EC | |
| Type | Inline 4-Cylinder, Turbocharged, Intercooled, Water-Cooled | |
| Rated power | kW | 118 |
| Rated speed | r/min | 2300 |
| System voltage | V | 24 |
| Steering system | MPa | 17.5 |
| Oilfling pressure | MPa | 2.4 |
| Drive system | MPa | 40 |
| Vibration system | MPa | 33 |
| Wheel | L/Wheel | 40 |
| Hydraulic oil tank | L | 80 |
| Engine lubricating oil | L | 16 |
| Fue tank | L | 240 |
| Water tank | L | 1000 |
The high-quality 14t XD143 Tandem Vibratory Road Roller is a professional compaction equipment engineered for superior performance in road construction and infrastructure projects. Combining tandem vibratory technology with a 14-ton weight capacity, it delivers efficient and uniform compaction for various materials, ensuring stable and durable pavement surfaces.
Application:
Highway and urban road construction, asphalt and concrete pavement compaction.
Road base, subgrade compaction for infrastructure and municipal engineering projects.
Airport runway, parking lot, and square paving compaction works.
Road maintenance and reconstruction, gravel and soil compaction tasks.
Contact us for pricing and configuration options！
Contact: Stacy
Phone/WhatsApp/Wechat: +86 17657099215
Email: Sales5@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
