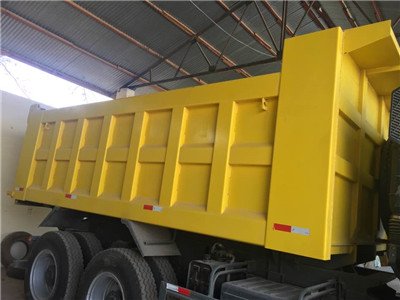

Sinotruk howo 10 wheel 336hp 6x4 dump truck

No.: Kevin210524

Vehicle Type: Dump Truck

Brand Name: SINOTRUK

Sinotruk Trucks

Person in charge: Marketing Director: Mr Kevin Jiang

Cel: 0086 176 6971 7518

Whatsapp: 8617669717518

E-mail: sales17@chinatruck.cc

FREE GET QUOTE

Details




Drive type: 6x4

Cab: HW76 flat roof cab with one sleeper bed,with A/C



Engine: Weichai brand  WD615.69

Type: 6-cylinder in-line with water cooling, supercharging & intercooling

Displacement: 9.726L

Engine output: 336hp /2200 rpm

Max. torque: 1350 NM /1300-1600rpm



Transmission (gear box): HW19710, 10 speed transmission

Clutch: D430 Diaphragm type

Steering: ZF8118

Front axle: HF9 drum type, 9tons

Rear axle: HC16 double reduction

Ratio=5.73

Fuel tank: 300L

Tire: 12.00R20, 10+1spare



Kerb. mass: 12270kg

Total mass: 25000kg

Rated payload: 12600kg

Max. speed (km/h): 75

Max. gradeability(%): >50

Approach/departure angle: 19/23 degree

Overall dimension(mm): 8545×2496×3170 (3386)

Wheel base (mm): 3825+1350

Front/rear overhang (mm): 1500/1870

Front /rear wheel track(mm): 2022/1850

Minimum ground clearance(mm): 314



Dump body dimension(mm): 5600x2300x1200

Capacity: 15.5 cbm

Thickness of dump body (mm): floor 8, side & back 6

Lifting type: reinforced “T” type (front lifting is optional)
