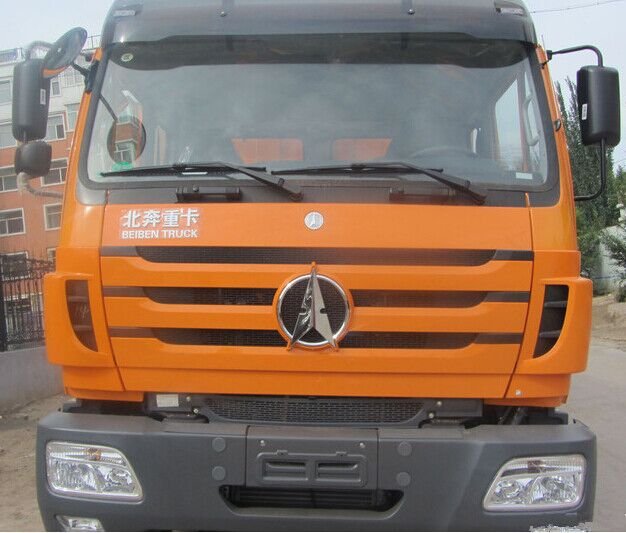

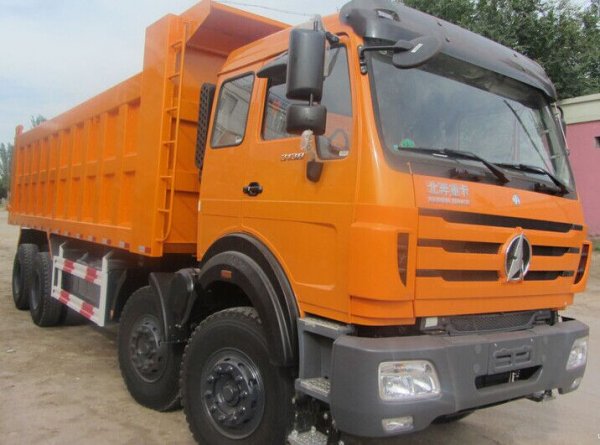

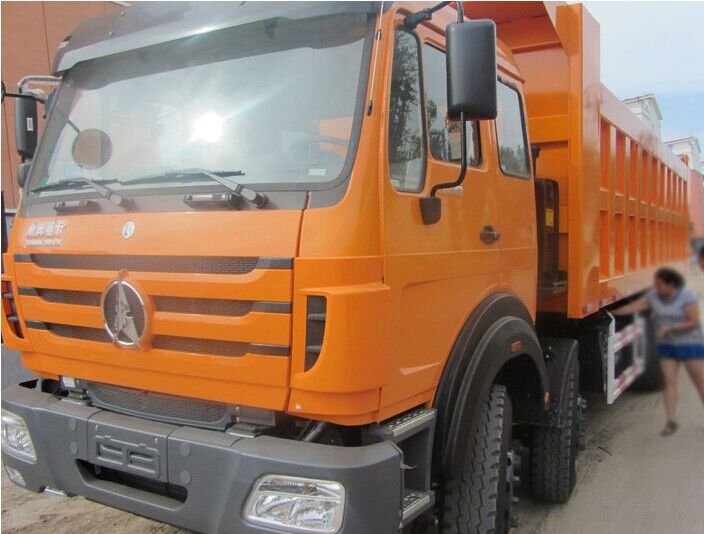

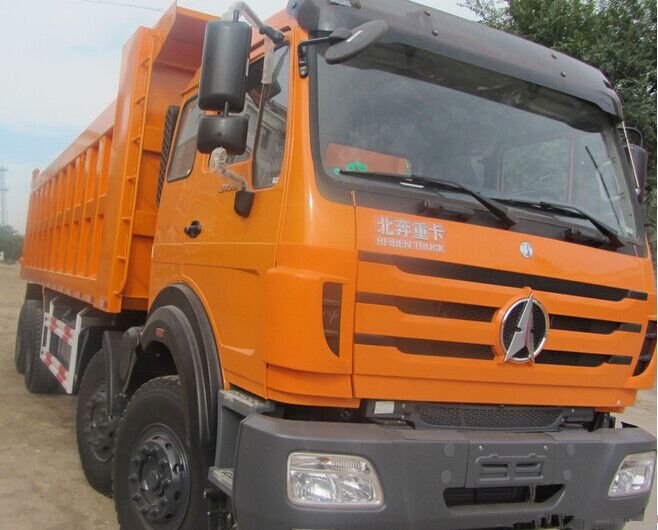

Heavy Duty Beiben NG80B 375HP 8*4 Tipper Lorry
No.:
Vehicle Type: Dump Truck
Brand Name: BEIBEN
Person in charge: Aria Dong
Cel: 8617667810120
Whatsapp: 86153364889276
E-mail: sales12@chinatruck.cc
FREE GET QUOTE
Details
Beiben NG80B heavy dump truck with 8X4 drive configuration, equipped with 375 horsepower powerful engine. 7-meter cargo box meets large volume transportation demands. Reinforced chassis and reliable transmission system deliver outstanding load-bearing capacity. Ideal for mining, construction muck and bulk material haulage. Sturdy structure, stable performance, perfect for harsh working conditions.
Specifications:
| Basic Information | Chassis Model | ND3310DD5J6Z08 |
| Drive type | 8x4 | |
| Driving mode | Left Hand Driving | |
| Horsepower(ps) | 375 | |
| Dimension | Length Estimated(mm) | 10375 |
| Width Estimated (mm) | 2550 | |
| Height Estimated (mm) | 3484 | |
| Wheelbase Estimated(mm) | 1950+3450+1350 | |
| Upper body | Dump body size (mm) | 10375X2500X3484 |
| Bucket capacity (cubic meters) | 25.875cbm | |
| Thickness of body steel (mm) | Floor 8 mm; side 6 mm | |
| Tipping system | Front tipping system | |
| Engine | Brand | WEICHAI |
| Model | WP10H375E50 | |
| Emission standard | Euro 5 | |
| Axles | Front axle(kg) | 7500 |
| Rear axle(kg) | 13000 | |
| Transmission | 12JSD180T+QH50 | |
| Suspension | Front and rear reinforced multi springs | |
| Tyre | 12.00R20（10+1) Pieces | |
| Tank capacity | 300L | |
| Tank Material | Iron tank | |
| Cab | NG80B | |
