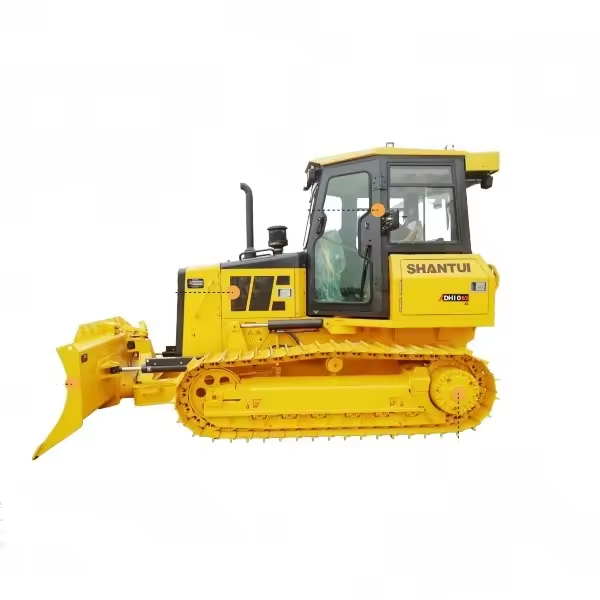

SHANTUI DH10-B2 Hydrostatic Crawler Dozer with 2.32cbm Power Angle Tilt Blade
No.:
Vehicle Type: Bulldozer
Brand Name:
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
DH10-C2 XL and DH10-C2 LGP Dozers
The DH10-C2 series dozers are high-performance earthmoving machines designed for various construction and land development applications. The DH10-C2 XL (Extended version) and DH10-C2 LGP (Super-wetland version) offer distinct features tailored to specific working conditions.
Product Highlights
Robust Design: Both models feature a reliable QSF3.8 engine with a rated power of 86 kW at 2200 rpm, ensuring strong performance in demanding environments.
Versatile Applications: Suitable for a wide range of tasks, including land clearing, grading, and heavy-duty excavation.
Enhanced Ground Pressure Management: The DH10-C2 LGP is specifically designed for low ground pressure applications, making it ideal for super-wetland conditions.
Flexible Configuration: The extended version (XL) offers a larger working area, while the LGP version provides enhanced stability and reduced ground pressure.
Product Parameters
| Parameter Name | Unit | DH10-C2 XL (Extended version) | DH10-C2 LGP (Super-wetland version) |
|---|---|---|---|
| Performance Parameters | |||
| Operating Weight | kg/lb | 9680 kg / 21341 lb (With traction frame) | 10140 kg / 22355 lb (With traction frame) |
| Ground Pressure | kPa | 44.4 | 34 |
| Engine | |||
| Engine Model | - | QSF3.8 | QSF3.8 |
| Rated Power/Rated Speed | kW/rpm | 86/2200 | 86/2200 |
| Overall Dimensions | |||
| Overall Dimensions of Machine | mm | 444228602885 | 444232002885 |
| Driving Performance | |||
| Forward Speed | km/h (mph) | 0~9 km/h (5.6 mph) | 0~9 km/h (5.6 mph) |
| Reversing Speed | km/h (mph) | 0~9 km/h (5.6 mph) | 0~9 km/h (5.6 mph) |
| Chassis System | |||
| Center Distance of Track | mm | 1650 | 1790 |
| Width of Track Shoes | mm | 460 | 630 |
| Ground Length | mm | 2320 | 2320 |
| Tank Capacity | |||
| Fuel Tank | L | 197 | 197 |
| Working Device | |||
| Blade Type | - | PAT | PAT |
| Digging Depth | mm | 450 | 450 |
| Ripper Type | - | Three-tooth ripper | Three-tooth ripper |
| Ripping Depth | mm | 340 | 340 |
Applications
Construction Sites: Ideal for land clearing, grading, and excavation tasks.
Wetland and Soft Ground Projects: The LGP version is specifically designed for low ground pressure applications, making it suitable for super-wetland conditions.
Infrastructure Development: Efficient in handling heavy-duty earthmoving tasks.
Contact Us
Interested in these models? Contact us for pricing and configuration options.
Contact: William
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc
DH10-C2 XL and DH10-C2 LGP Dozers
The DH10-C2 series dozers are high-performance earthmoving machines designed for various construction and land development applications. The DH10-C2 XL (Extended version) and DH10-C2 LGP (Super-wetland version) offer distinct features tailored to specific working conditions.
Product Highlights
Robust Design: Both models feature a reliable QSF3.8 engine with a rated power of 86 kW at 2200 rpm, ensuring strong performance in demanding environments.
Versatile Applications: Suitable for a wide range of tasks, including land clearing, grading, and heavy-duty excavation.
Enhanced Ground Pressure Management: The DH10-C2 LGP is specifically designed for low ground pressure applications, making it ideal for super-wetland conditions.
Flexible Configuration: The extended version (XL) offers a larger working area, while the LGP version provides enhanced stability and reduced ground pressure.
Product Parameters
Parameter Name Unit DH10-C2 XL (Extended version) DH10-C2 LGP (Super-wetland version) Performance Parameters Operating Weight kg/lb 9680 kg / 21341 lb (With traction frame) 10140 kg / 22355 lb (With traction frame) Ground Pressure kPa 44.4 34 Engine Engine Model - QSF3.8 QSF3.8 Rated Power/Rated Speed kW/rpm 86/2200 86/2200 Overall Dimensions Overall Dimensions of Machine mm 444228602885 444232002885 Driving Performance Forward Speed km/h (mph) 0~9 km/h (5.6 mph) 0~9 km/h (5.6 mph) Reversing Speed km/h (mph) 0~9 km/h (5.6 mph) 0~9 km/h (5.6 mph) Chassis System Center Distance of Track mm 1650 1790 Width of Track Shoes mm 460 630 Ground Length mm 2320 2320 Tank Capacity Fuel Tank L 197 197 Working Device Blade Type - PAT PAT Digging Depth mm 450 450 Ripper Type - Three-tooth ripper Three-tooth ripper Ripping Depth mm 340 340 Applications
Construction Sites: Ideal for land clearing, grading, and excavation tasks.
Wetland and Soft Ground Projects: The LGP version is specifically designed for low ground pressure applications, making it suitable for super-wetland conditions.
Infrastructure Development: Efficient in handling heavy-duty earthmoving tasks.
Contact Us
Interested in these models? Contact us for pricing and configuration options.
Contact: William
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc
