Technical Specifications

Engine & Power System

• Engine Model: Weichai WP4.100-3G1

• Rated Power: 100HP (73.5kW) @ 2200 RPM

• Cooling System: Heavy-duty radiator with anti-corrosion treatment

• Fuel System: Water-separating fuel filter with moisture alarm

• Emission Standard: China Stage III compliant

Undercarriage System

• Track Shoe Width: 630mm (LGP configuration)

• Ground Pressure: 12.5 kPa (loaded condition)

• Track Frame: Reinforced sealed rollers with double-lip seals

• Track Tension: Hydraulic automatic adjustment system

• Ground Clearance: 420mm (highest in class for wetland obstacles)

Working Equipment

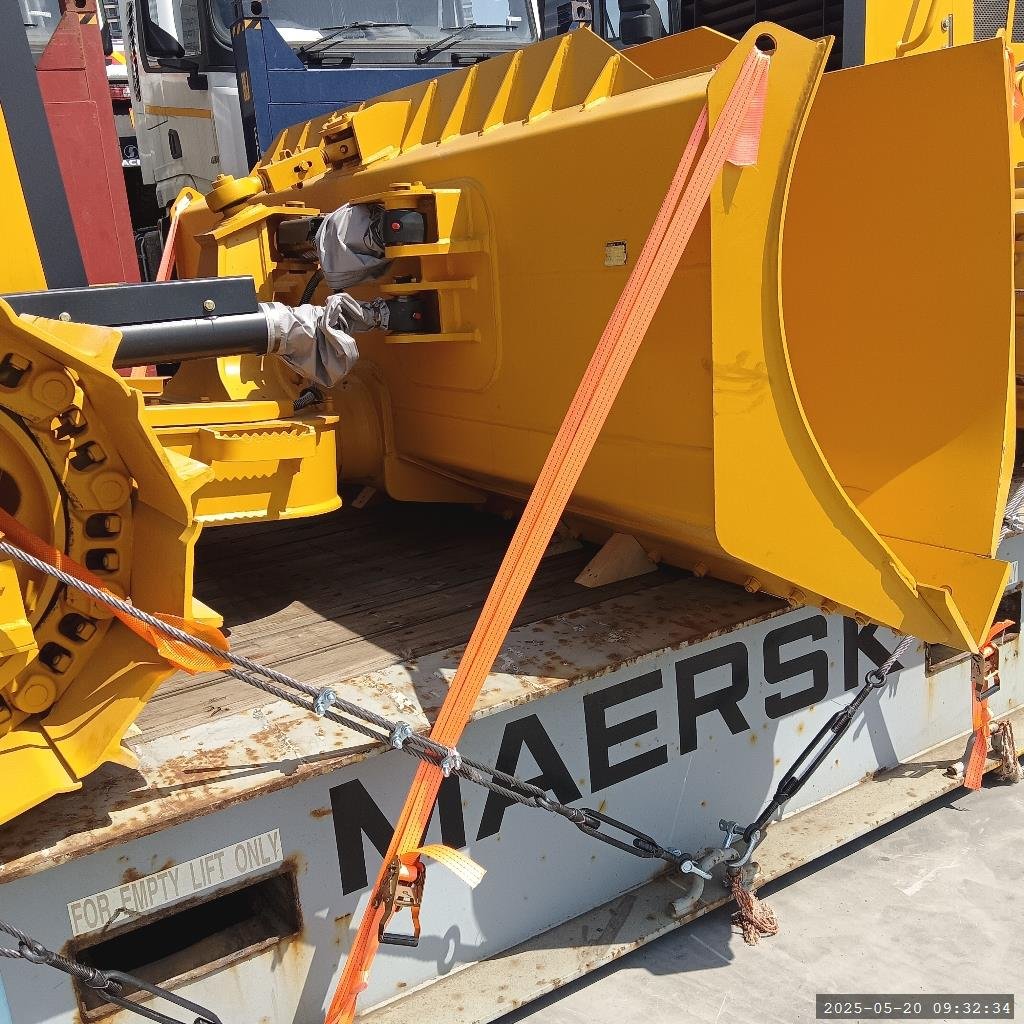

• Blade Type: Wetland-special U-blade with mud deflectors

• Blade Capacity: 2.8m³ (heaped)

• Blade Lift Height: 650mm above ground

• Blade Penetration: 520mm below ground

• Hydraulic System: 3-pump system with 22MPa working pressure

Dimensions & Weight

• Overall Length: 4,850mm (with blade)

• Overall Width: 2,680mm (track width)

• Overall Height: 2,980mm

• Operating Weight: 10,800kg

• Transport Weight: 9,600kg (blade removed)

Operational Advantages

1. True Wetland Performance

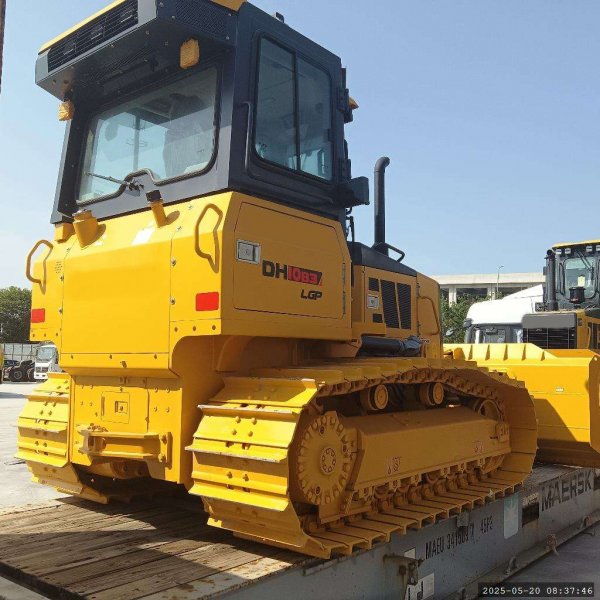

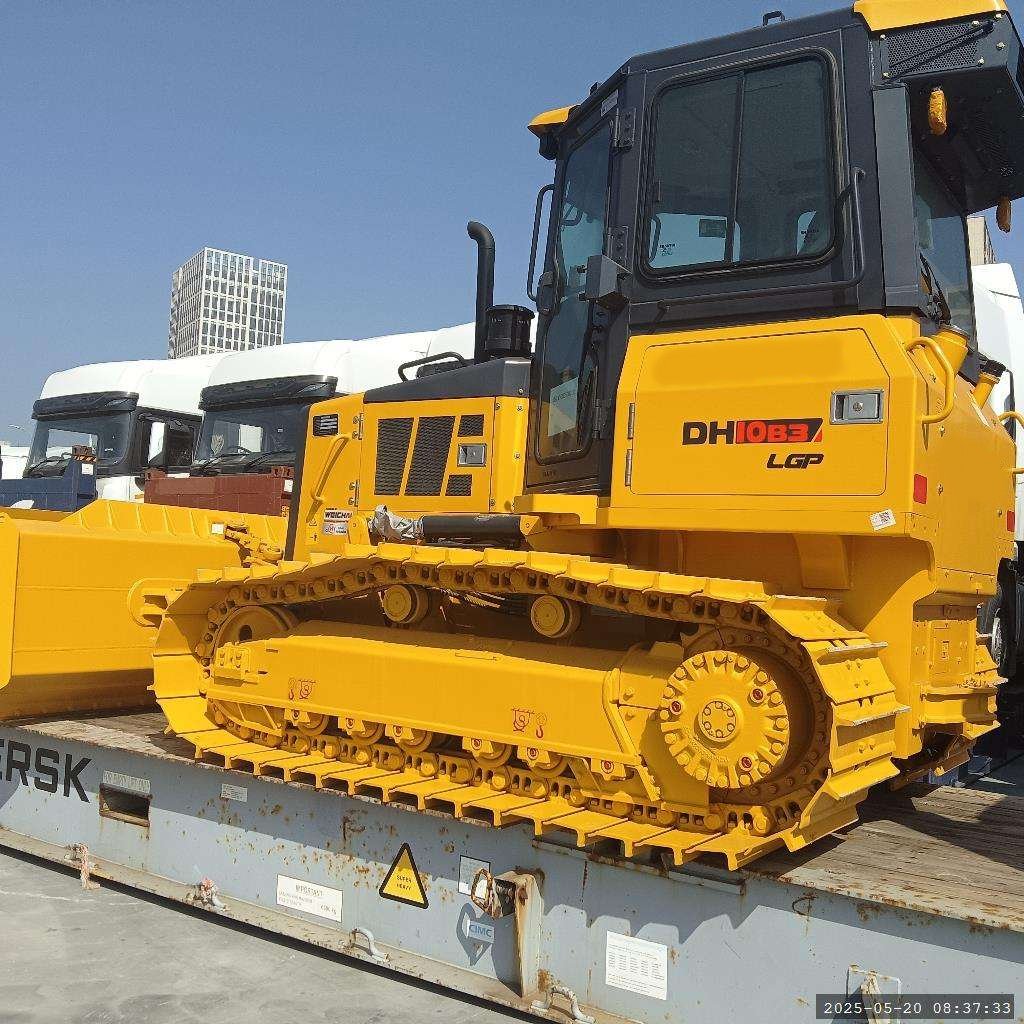

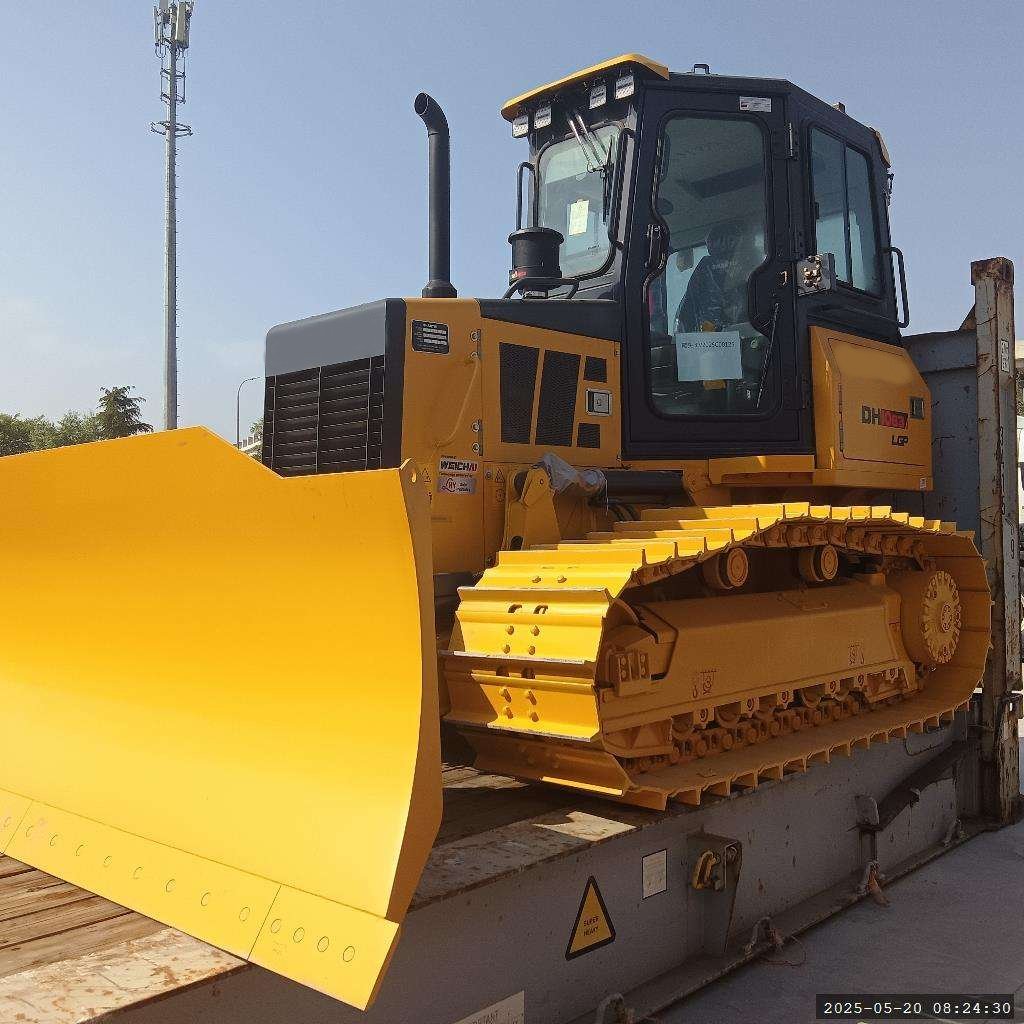

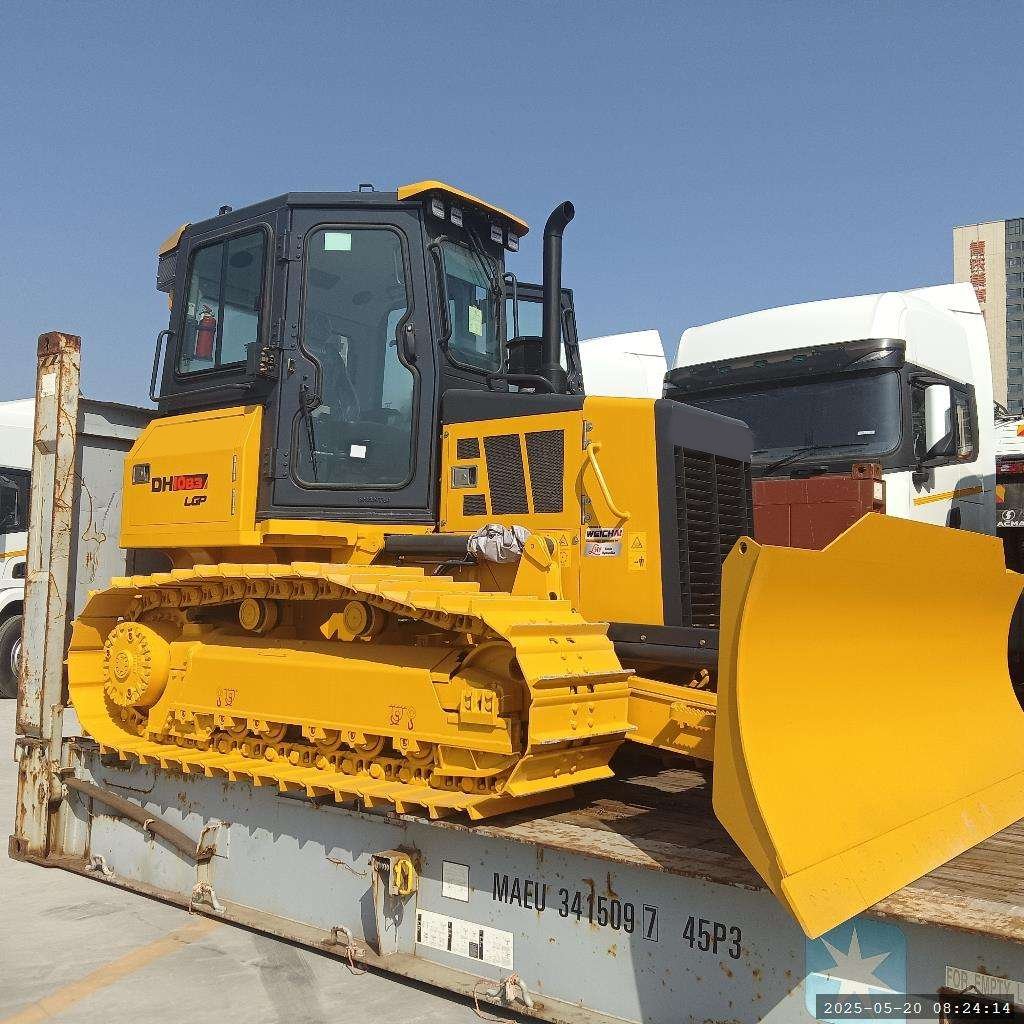

The DH10-B3 LGP's 630mm track shoes distribute weight over 38% more surface area than standard dozers, enabling operation in terrain with 85kPa bearing capacity - conditions where conventional equipment would sink. Field-tested in Mekong Delta rice fields with 1.2m water depth and soft clay base.

2. Moisture Protection Systems

✅ Engine Compartment: Positive pressure ventilation system prevents moisture ingress
✅ Electrical System: IP67-rated connectors and sealed junction boxes
✅ Hydraulic System: Breath filters with desiccant moisture traps
✅ Undercarriage: Zinc-rich coating on all structural components with cathodic protection

3. Specialized Applications

• Rice Cultivation: Precise field leveling with ±2cm accuracy for optimal water management

• Swamp Drainage: Construct drainage channels without equipment entrapment

• Delta Land Reclamation: Build causeways in soft coastal areas before permanent infrastructure

• Flood Control: Create emergency levees during monsoon seasons with rapid deployment

Reliability & Support Package

Comprehensive Warranty Coverage

• Engine & Transmission: 18 months unlimited hours

• Hydraulic Components: 18 months including pumps and cylinders

• Track System: 24 months on rollers, idlers, and track frames

• Structural Elements: 30 months on frame and blade mounting points

Field Support System

• Swamp Operation Manual: Detailed procedures for waterlogged terrain operations

• Maintenance Training: On-site technician training for moisture-prone environments

• Spare Parts Kit: Critical wetland-specific components included (track tension cylinders, mud scraper blades, water separator filters)

• Remote Assistance: WhatsApp video support for troubleshooting in remote areas

Deployment Timeline

1. Terrain Assessment: WhatsApp soil conditions and water depth photos to William Du (+86 186 6977 8647)

2. Configuration Confirmation: Receive customized operation manual within 24 hours

3. Pre-Shipment Testing: Video documentation of machine operating in simulated wetland conditions

4. Delivery & Setup: Factory to site delivery within 35 days including terrain-specific commissioning

Current Production Status: 7 units in final assembly phase with September 2024 build dates

Contact: William Du
Verified Supplier For: Delta region projects in Vietnam, Bangladesh, Nigeria, and Egypt
WhatsApp/WeChat: +86 186 6977 8647
