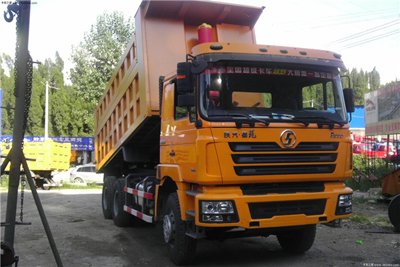

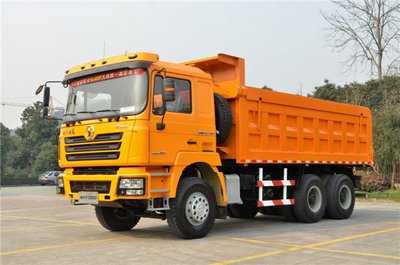

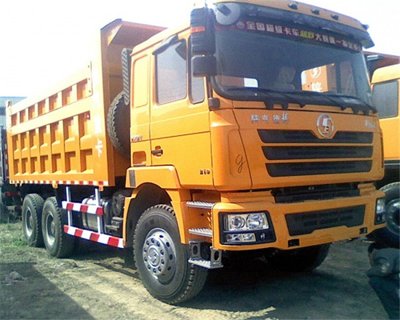

SHACMAN F3000 Tipper 6x4 10 tires Dump Truck
No.: Jim-05
Vehicle Type: Dump Truck
Brand Name: SHACMAN
Person in charge: Jim yao
Cel: 0086 176 6971 7509
Whatsapp: 8617669717509
E-mail: sales29@chinatruck.cc
FREE GET QUOTE
Details
SHACMAN Weichai engine F3000 6x4 Dump Truck
Traction type | LHD | |
Drive System | 6x4 | |
Cabin | F3000 Flat Cabin, one sleeper, Air Conditioner | |
Engine | Brand | WEICHAI |
Model | WP10.340E32 EGR | |
Rated power | 340hp | |
Engine displacement | 9.726 liters | |
Gearbox | FAST 10 Speeds (10JSD140) | |
Clutch | Ф430 Diaphragm type | |
Steering | ZF technology | |
Axle | Front | 7.5 Ton Man axle |
Rear | 16 Ton MAN double reduction axle, ratio:5.92 | |
Max. running speed (km/h) | 77 | |
Tire | 12.00R20(10+1) | |
Fuel tank | ||
Kerb weight (kg) | 12100 | |
Total mass (kg) | 25000 | |
Wheel base (mm) | 3575+1400 | |
Overhang (mm) (front/rear) | 1525/1530 | |
Track (mm) (front/rear) | 1939/1860 | |
Approach / departure angle(°) | 20/20 | |
Dimensions（L*W*H）(mm) | Overall | 8130x2490x3450 |
Dump body(bucket) | 5400x2300x1500(18cbm) | |
Thickness (mm) | Bottom 8 ,front | |
Hydraulic lifting system | Middle/Front lifting | |
