Compatible Models

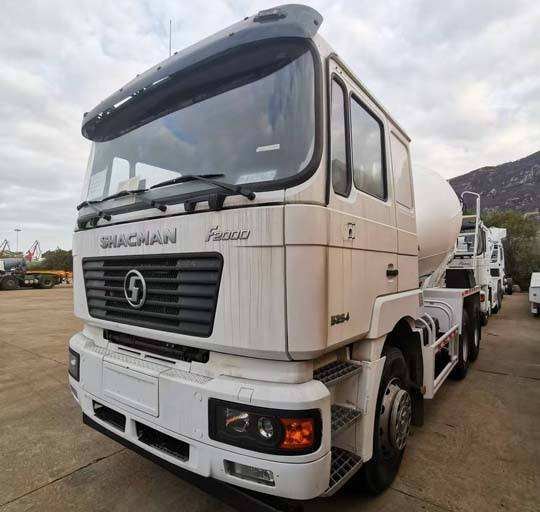

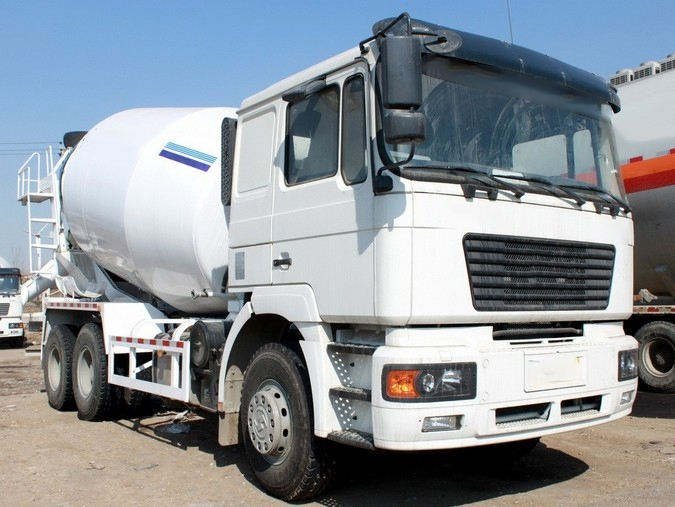

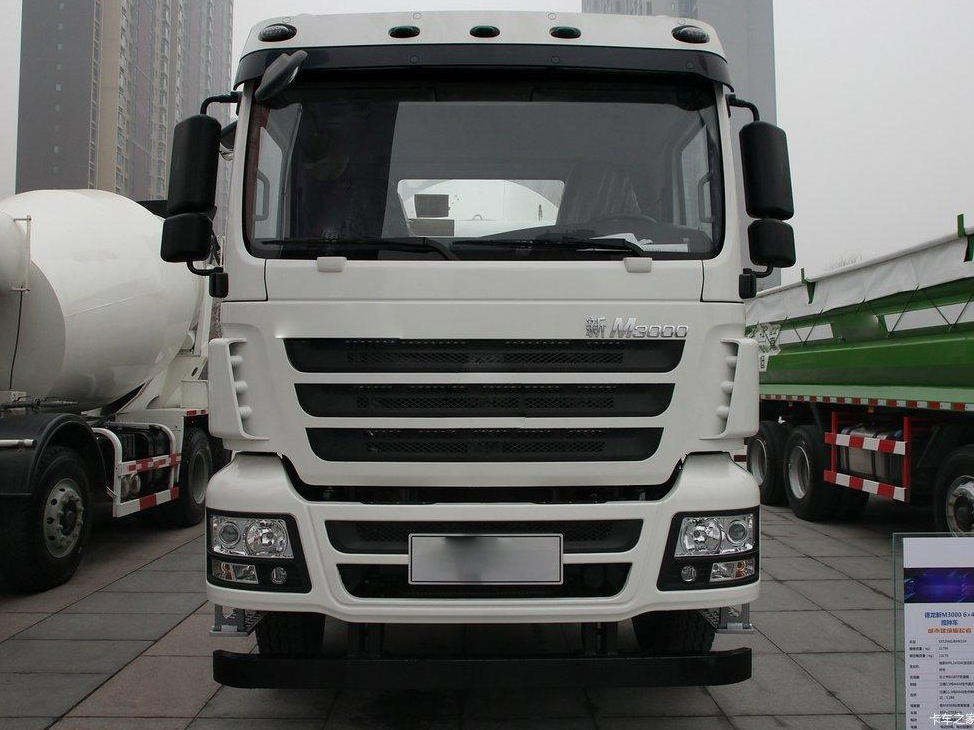

SHACMAN 6×4 8 m³ Concrete Mixer Truck (Algeria Market Specification Only)
Key Parameter 1: Geometric drum volume 18.75 m³, mixing volume 8 m³
Key Parameter 2: Engine 250 kW (340 hp) Weichai WP10.340E32 Euro II
Key Parameter 3: Discharge speed 0.8 m³/min, residual < 1 %

Technical Specifications
Chassis model: SX5255GJBDR384
Drive: 6×4
Wheelbase: 4 000 mm + 1 350 mm
Overall size: 9 420 × 2 500 × 3 900 mm
Curb weight: 12 800 kg
GVW: 25 000 kg
Front axle: MAN 9.5 t
Rear axle: MAN 16 t double-reduction 5.262
Transmission: FAST 9 F & 1 R manual
Tyres: 12.00R20 (11 units incl. spare)
Engine: Weichai WP10.340E32, 250 kW (340 hp), 9 726 cc, Euro II
Max speed: 98 km/h
Steering: power-assisted ZF8098
Fuel tank: 400 L aluminium
Drum geometric volume: 18.75 m³
Mixing volume: 8 m³
Filling rate: 63 %
Drum tilt: 13°
Rotation speed: 0–14 rpm
Hydraulic pump: Italian PMP P90, 400 bar
Hydraulic motor: Italian PMP M90, 400 bar
Reducer: Italian PMP 7.1, 70 000 Nm output torque
Water tank: 350 L pressurised
Wash system: pneumatic + spray nozzles
Discharge residual: < 1 %

Product Description
This Algeria-dedicated SHACMAN 6×4 8 m³ concrete mixer truck is engineered for high-temperature, low-infrastructure job sites such as solar-pad pours, power-tower foundations and highway paving across the Sahara.

Core System 1 – Desert-Rated Power-Train: 340 hp Weichai Euro-II engine de-rated for 50 °C ambient; twin-stage air filter and 400 L aluminium tank give 900 km range between refills; MAN 16 t rear axle with 5.262 ratio climbs 30 % grades fully loaded.

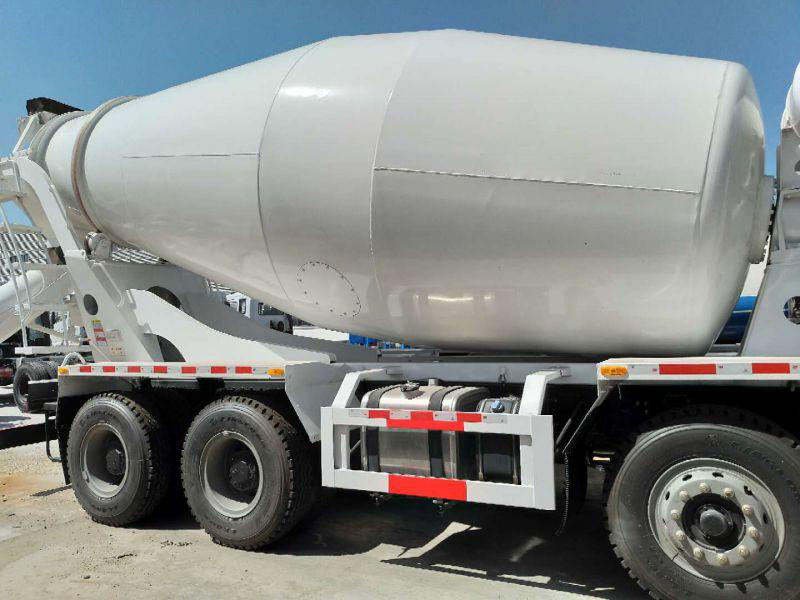

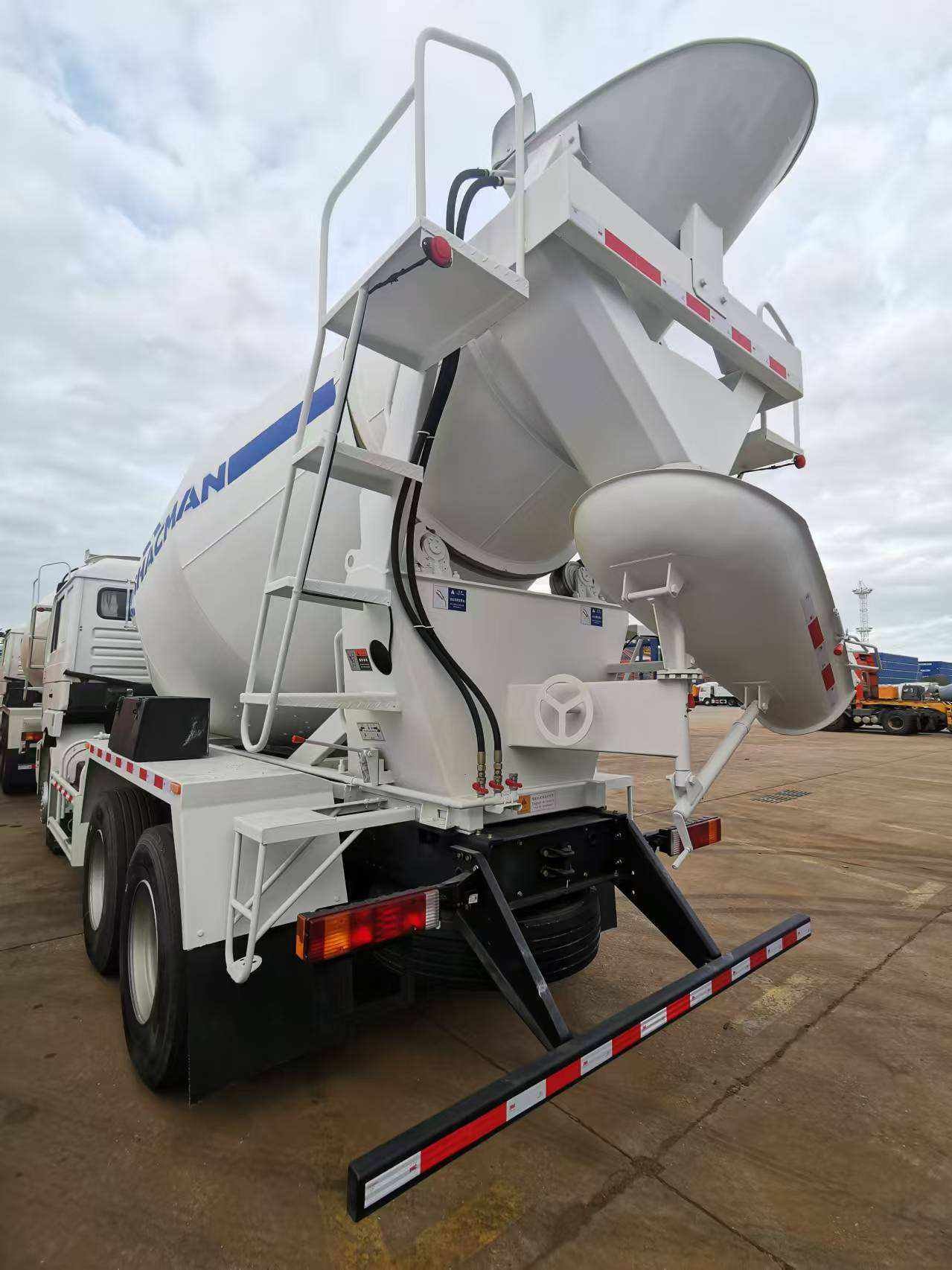

Core System 2 – Italian PMP Drum Package: 18.75 m³ geometric, 8 m³ mixing volume; 0.131 reduction ratio and 70 000 Nm output torque maintain 0–14 rpm at idle; double-spiral blades give 1.2 m³/min in-feed and 0.8 m³/min discharge with < 1 % residual, cutting Algerian pour time by 15 %.

Core System 3 – Algeria Parts & Support Kit: shipment includes 12-month wear-pack (pump seals, blades, air/oil/fuel filters, 12.00R20 tyre set); Algiers warehouse keeps PMP pump/motor/reducer units in stock; 24 h French/Arabic hotline and mobile service vans within 200 km radius.

Local Compliance: certified by Algerian Ministry of Public Works (Cert. No. SHACMAN-8M³-2024-DG-TP), fitted with NF P98-754 emergency stop and retro-reflective markings. This configuration is not sold in China or other export markets—produced only for authorised Algerian distributors.

Service Guarantees
Easy Returns – 30 days unused, original packaging; < 10 h drum rotation attracts 15 % restocking fee.
Global Delivery – FOB/CIF to Algiers, Oran, Annaba; inland haulage arranged.
Service Excellence – 8 authorised service centres; 24/7 French/Arabic hotline; 72 h on-site pledge.
Quality Assurance – 12 month / 2 000 h full-machine warranty; optional Algerian extension covers drum-blade wear.

Commercial Contact
International Sales Division – Algeria Market
William: +86 186 6977 8647 (WhatsApp / WeChat)

Shipping Terms
Production lead time: 20–25 days after deposit
Port of loading: Tianjin / Qingdao, China
Destination support: customs clearance, port handling, on-site commissioning within 200 km of major cities
MOQ: 1 unit retail, 3 units dealer
Payment: 30 % T/T deposit, 70 % before shipment; L/C at sight for approved contractors
