Shacman 6×4 15-20 Ton Heavy-Duty Cargo Truck with Rear Hydraulic Lift Platform for Sale
Key Features
• Powerful & Efficient – 300 HP Euro-4 diesel (9726 ml), reinforced clutch, 9-speed manual, top speed 99 km/h
• Robust Chassis – 11 380 kg curb weight, 4375 + 1400 mm wheelbase, 7500/13 000 kg axle loading
• Large Cargo Box – 7400 × 2326 × 2700 mm (46 m³) roofing-iron floor & sides, optional dropside or stake extensions

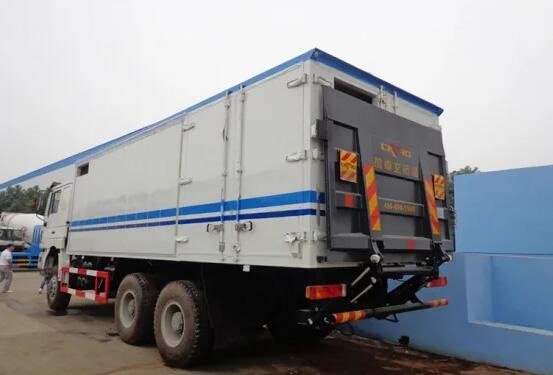

• Hydraulic Rear Platform – 2300 × 1800 mm carbon-steel deck, 1.5 t safe working load, close-coupled control panel
• High Mobility – 18° approach, 11° departure, 12.00R20 tyres (10 + 1 spare), air brakes with ABS
• Warranty & Support – One-year coverage on engine, gearbox and axles; technical modification and remote support available
Specifications
复制
| Item | Parameter |
|---|---|
| Overall Dimensions | 10 100 × 2 490 × 3 720 mm |
| Wheelbase | 4 375 + 1 400 mm |
| Curb Weight | 11 380 kg |
| Gross Vehicle Weight | 31 000 kg |
| Payload | 15–20 t |
| Front/Rear Axle Load | 7 500 / 13 000 kg |
| Engine | 300 HP Euro-4, 4-cylinder, 9 726 cm³ |
| Gearbox | 9F + 1R, synchromesh |
| Clutch | Reinforced diaphragm, Ø 430 mm |
| Brakes | Full air, dual-circuit, ABS |
| Steering | Hydraulic power assist |
| Tyres | 12.00R20, 10 + 1 spare |
| Fuel Tank | 400 L aluminium |
| Cab | Single-row, HVAC, radio, sleeper option |
| Cargo Box | 7 400 × 2 326 × 2 700 mm, 46 m³ |
| Rear Lift Platform | 2 300 × 1 800 mm, 1.5 t SWL, hydraulic control |
| Approach/Departure Angle | 18° / 11° |
| Max Speed | 99 km/h (governed) |
| Colour | Optional (white, blue, red, orange) |
| Logo & Decals | Custom branding available |
Typical Applications
• Palletised freight and container cargo
• Farm machinery and construction equipment loading
• Retail distribution, e-commerce logistics
• Municipal & industrial parts transport
Optional Upgrades
• Tarpaulin or hard-top cover
• Side-board extensions to 600 mm
• On-board 5 t crane or forklift tail-lift
• GPS fleet management and camera system
• 20 ft or 40 ft container locks
Contact us for pricing and configuration options!
