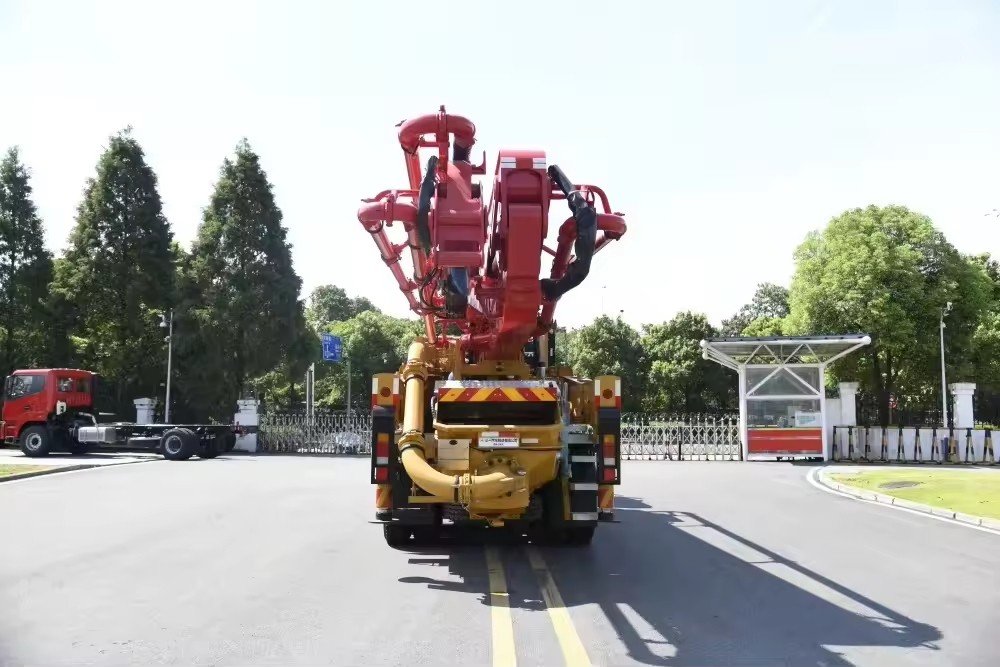

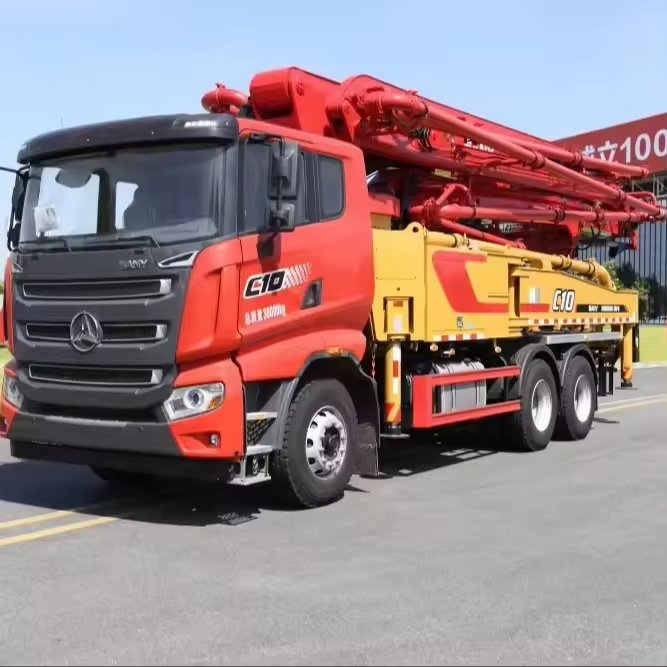

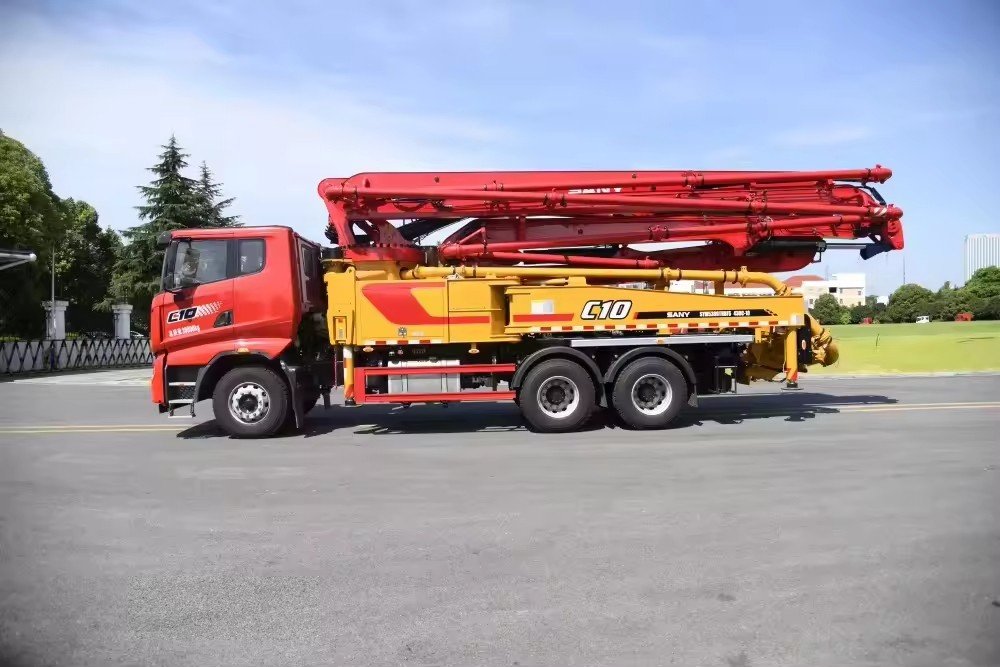

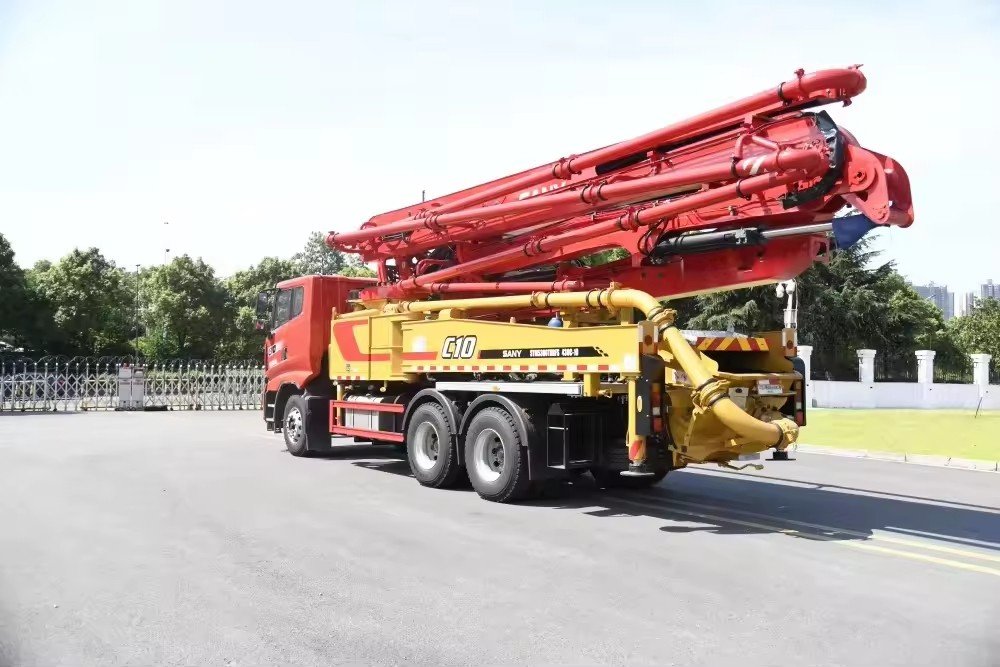

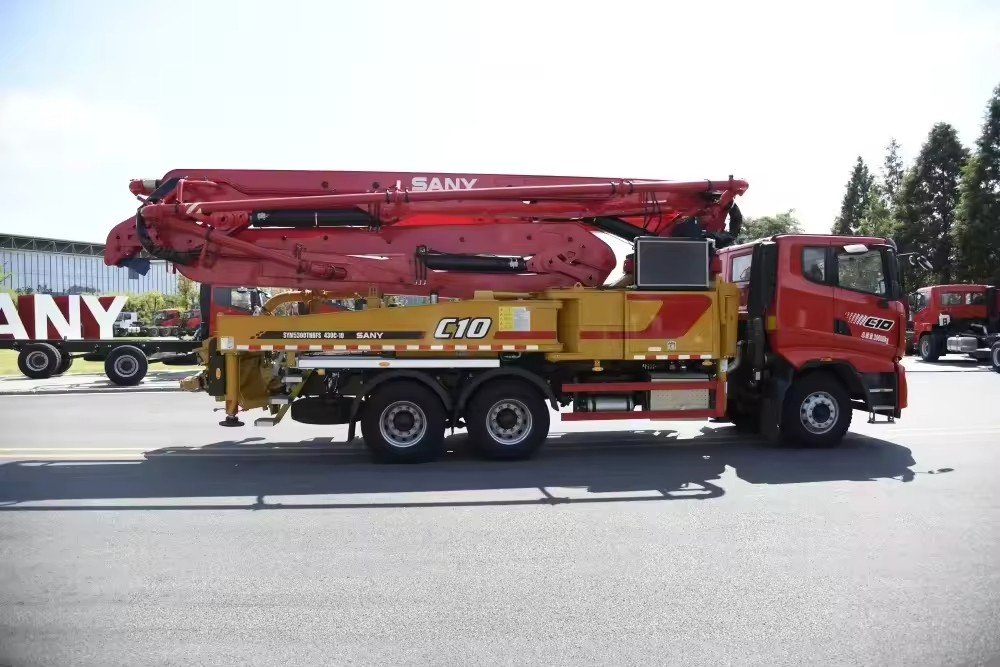

SANY SYM5300THBFS 430C-10B 43M Concrete Pump Truck with SITRAK Chasis
No.:
Vehicle Type: Concrete Pump Truck
Brand Name: SANY
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Product Description – SANY SYM5300THBFS 430C-10B 43 m Concrete Pump Truck
| Parameter | Value |
|---|---|
| Model | SYM5300THBFS 430C-10B |
| Chassis | SITRAK 6×4, 290 000 kg GVW |
| Engine | D09C6-340E0, 244 kW @ 1 900 rpm (National VI / EPA Tier 4) |
| Displacement | 8.7 L, 6-cyl inline |
| Concrete output | 160 m³/h (low) / 96 m³/h (high) |
| Pumping pressure | 8 MPa (low) / 13 MPa (high) |
| Boom | 5-section RZ fold, 42.5 m vertical, 37.7 m horizontal |
| Reach depth | 27 m (min) |
| Unfolded reach | 11 m |
| Rotation | 360° continuous |
| Delivery cylinder | Φ230 × 1 600 mm |
| Hydraulic system | Open-circuit, 32 MPa |
| Fuel tank | 400 L |
| Water tank | 700 L |
| Overall dimensions | 11 705 × 2 550 × 3 970 mm |
| Total weight | 29 000 kg |
Key Benefits
Energy-saving: 25 % higher pump efficiency, 10 % lower fuel consumption
Smart diagnostics: monitors 200+ parameters, cuts troubleshooting time by 70 %
Wear-resistant: ultra-high-strength steel parts & hardened pipes
Easy service: side-hinged hoods, grouped lube points
Global Shipping
Door-to-door delivery to Africa, Middle East, Latin America within 25–35 days.
