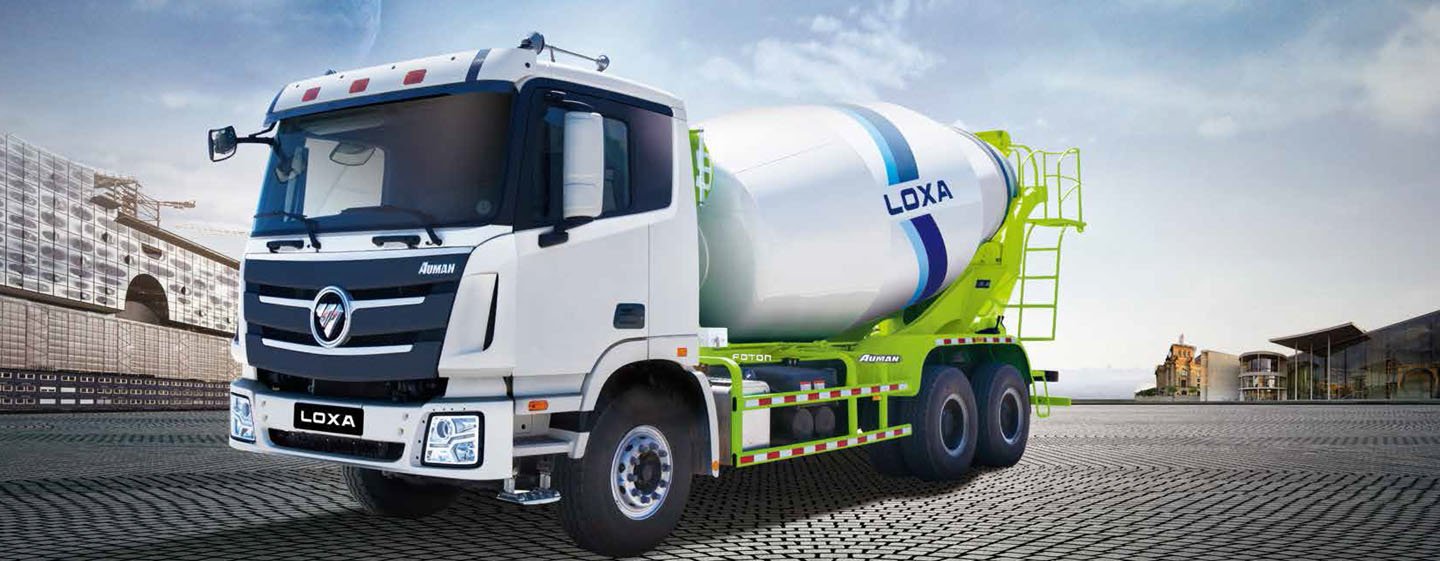

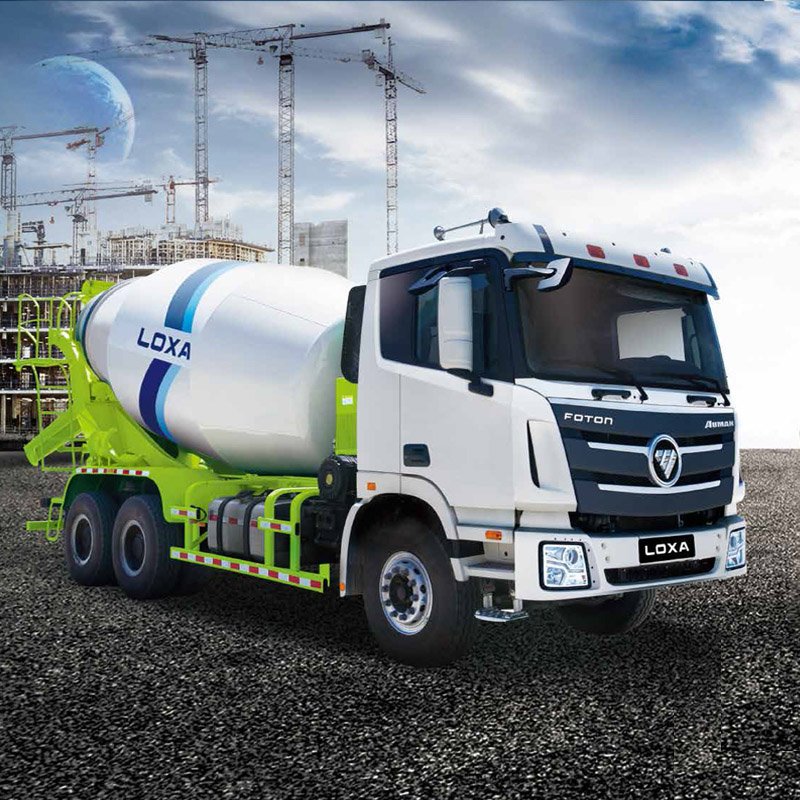

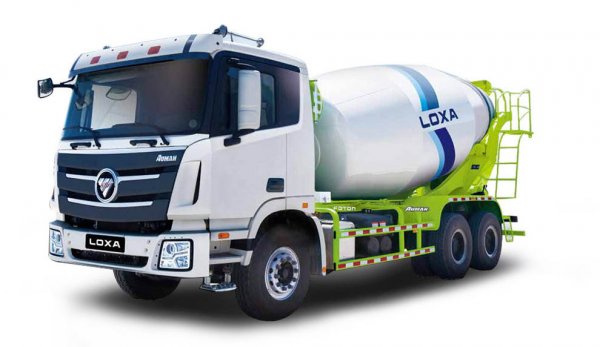

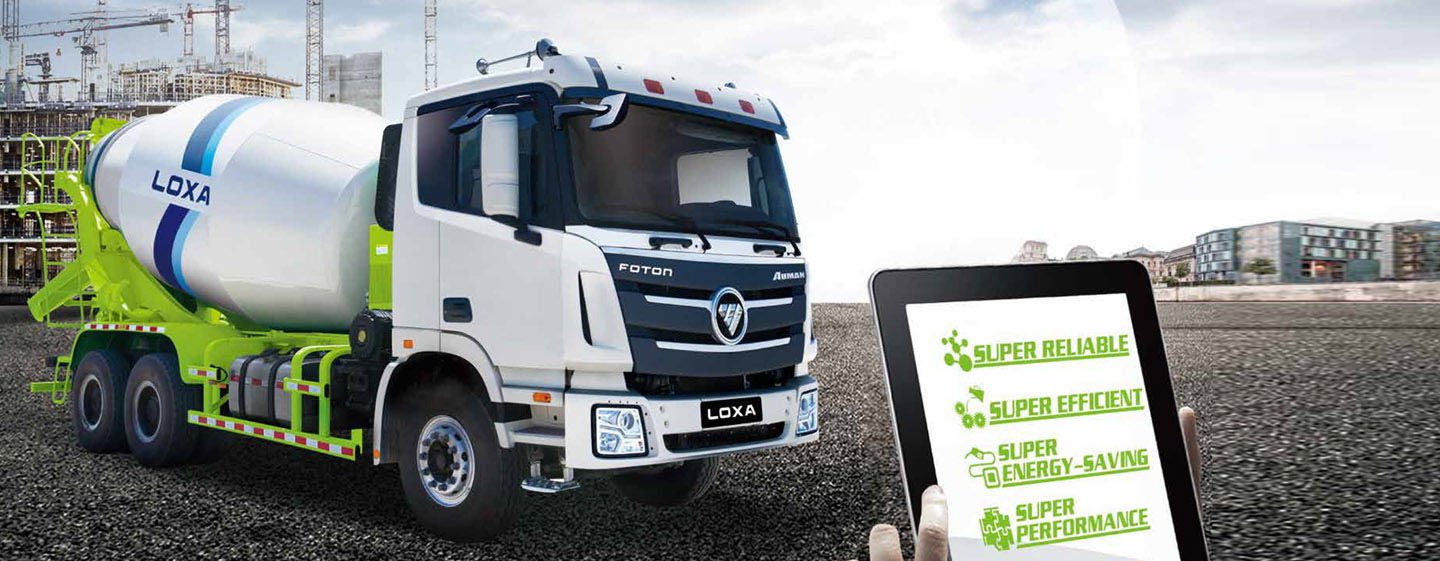

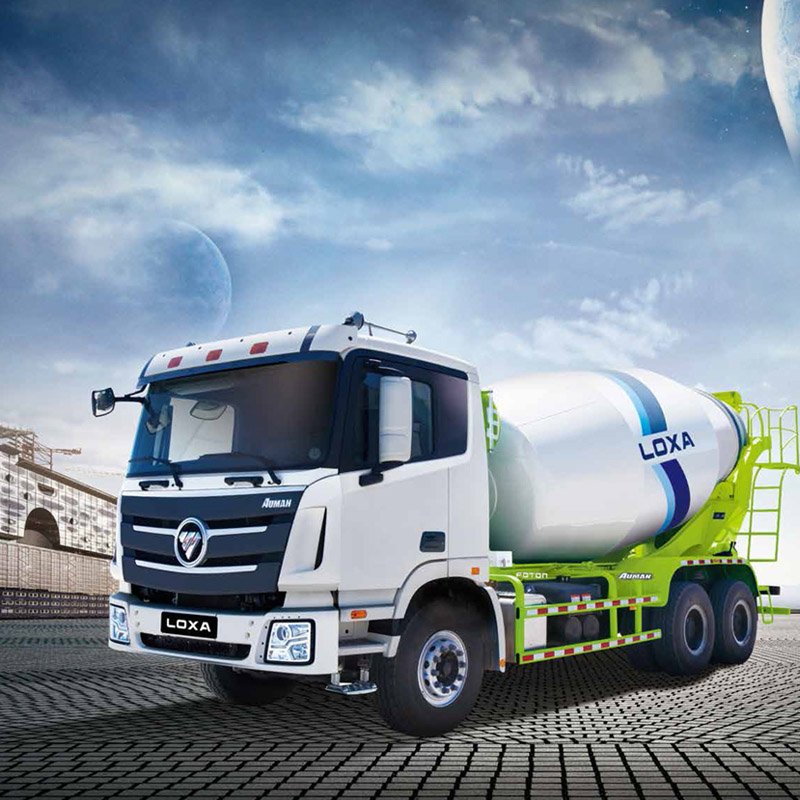

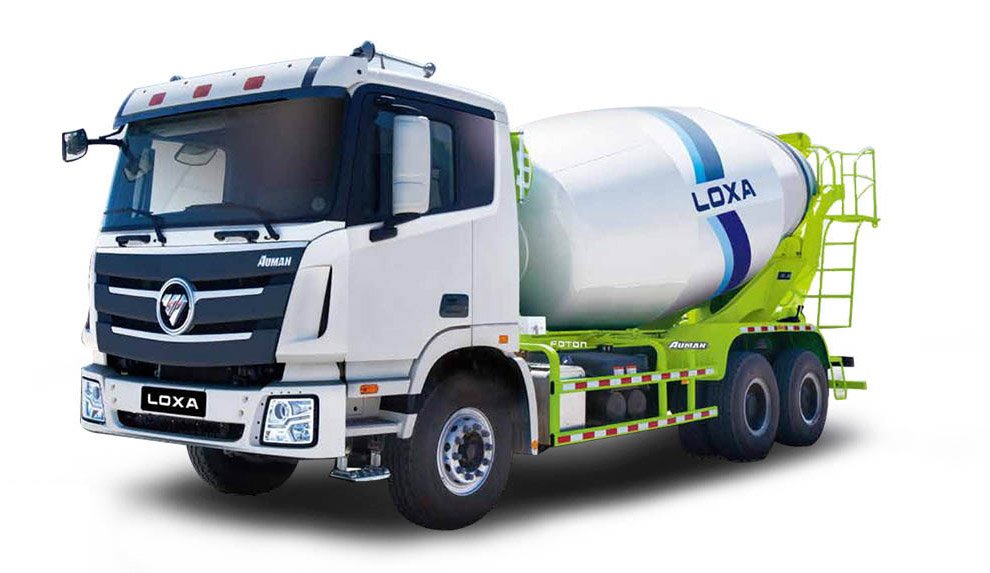

Foton LOXA L9 6×4 Mixer Truck
No.:
Vehicle Type: Concrete Pump Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Technical Specifications
Core Parameters
| Foton LOXA L9 6×4 Mixer Truck Specification | |||
| Dimensions parameters | Vehicle dimensions(L×W×H) | 9020x2495x3920 | |
| Chassis dimensions(L×W×H) | 8380x2495x3280 | ||
| Drum geometric dimensions(L×diameter) | 5312×2300 | ||
| Wheelbase | 3575+1350 | ||
| Weight parameters | GCW(kg) | 34 | |
| Vehiclecurb weight(kg) | 14.21 | ||
| Chassis curb weight(kg) | 9.5 | ||
| Main performance parameters | Work performance | Feeding speed | 3 |
| Feeding height (mm) | 3725 | ||
| Discharge speed(m3/min) | 2 | ||
| Discharge channel rotation range(° ) | 180 | ||
| Mortar density relative error(%) | ≤0.8 | ||
| Aggregate denisty relative tolerance(%) | ≤5 | ||
| Collapsing slump(mm) | 20 | ||
| Residual rate(%) | ≤0.8 | ||
| Non-spill climb%（full load） | 0.06 | ||
| Basic configuration | Body and electricity | Cab | H4-2490 /Standard roof |
| Power train | Engine | ISGe4-350 | |
| Gearbox | 9JSD200TA | ||
| Chassis | Frame | 225/320x90x(8+7) | |
| Suspension | front 9/rear 12 | ||
| Tire | 315/80 R22.5 20PR | ||
•
Vehicle Dimensions: 9020×2495×3920 mm
•
Chassis Dimensions: 8380×2495×3280 mm
•
Drum Capacity: 8m³ (Ø2300×5312 mm)
•
Wheelbase: 3575+1350 mm
•
Gross Weight: 34,000 kg
•
Curb Weight: 14,210 kg
•
Engine: ISGe4-350 (350HP/257kW)
•
Transmission: 9-speed manual (9JSD200TA)
Performance Metrics
•
Residual Rate: ≤0.8%
•
Discharge Speed: 2m³/min
•
Feeding Height: 3725 mm
•
Rotation Range: 180°
•
Slump Control: 20mm adjustable
•
Max Gradient: 6% (fully loaded)
Chassis Components
•
Frame: 225/320×90×(8+7) high-strength steel
•
Suspension: Front 9-leaf / Rear 12-leaf springs
•
Tires: 315/80 R22.5 20PR
•
Cab: H4-2490 flat roof
Key Features
Efficiency & Precision
•
Low Residual Design: Optimized drum blades minimize concrete waste
•
Hydraulic Drive System: Maintenance-free operation with smooth torque delivery
•
Digital Slump Control: 20mm precision adjustment for mix consistency
Durability & Power
•
Reinforced Frame: Supports 34-ton GCW on rough terrain
•
ISGe4-350 Engine: Turbocharged diesel with ≤28L/100km fuel efficiency
•
All-Terrain Tires: 20-ply rating for construction sites
Operational Flexibility
•
180° Rotation: Maneuvers in tight urban construction sites
•
Rapid Discharge: 2m³/min output for high-volume projects
•
Cold-Climate Kit: Optional heated hydraulics for sub-zero operations
Applications
•
High-Rise Construction: Continuous concrete supply for skyscrapers
•
Infrastructure Projects: Bridges, tunnels, and dam construction
•
Precast Factories: Large-volume component production
•
Roadworks: Pavement pouring and curb installation
After-Sales Support
•
Warranty: 3-year chassis / 2-year drum coverage
•
Global Service: 100+ certified workshops
•
24/7 Support: Technical hotline for emergency troubleshooting
Contact Sales
Global Manager: William
Direct Contact:
•
Phone/WhatsApp: +86 186 6977 8647
•
Email: Sales22@chinatruck.cc
Order Information
Standard Configuration ($78,500)
•
8m³ mixing drum
•
Manual slump control
•
Basic discharge system
Premium Upgrade (+$12,000)
•
Auto-slump adjustment system
•
GPS fleet tracking
•
Remote drum diagnostics
Arctic Package (+$9,500)
•
Engine block heater
•
Hydraulic fluid warmers
•
Cold-start battery system
