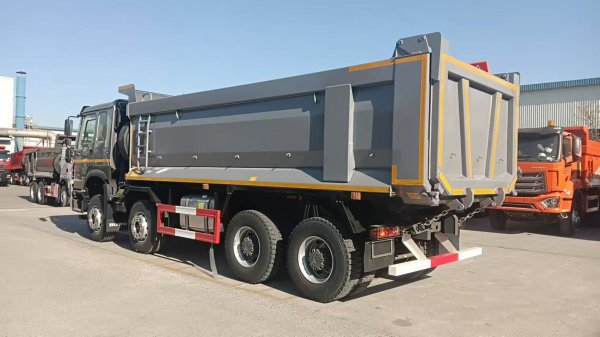

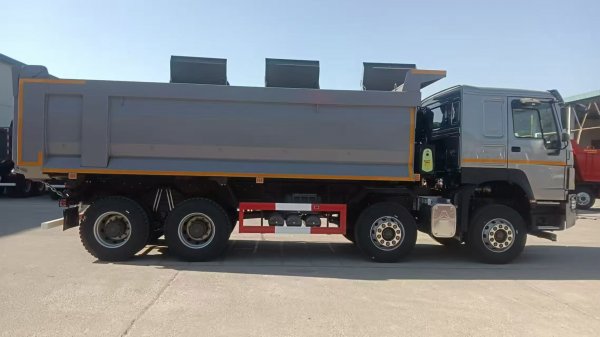

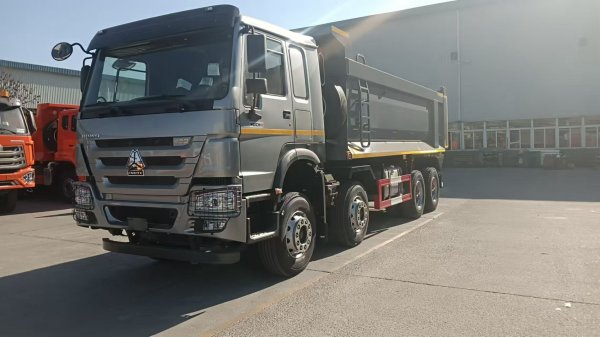

NEW SINOTRUK HOWO TX 8X4 DUMP TRUCK Dump Truck Euro2
No.: jack08
Vehicle Type: Dump Truck Algeria
Brand Name: SINOTRUK
Person in charge: Jack Wang
Cel: 0086 15192585839
Whatsapp: 8615192585839
E-mail: sales21@chinatruck.cc
FREE GET QUOTE
Details
Basic Information | Model | ZZ3317V326GB1 |
Drive type | 8x4 | |
Driving mode | Left Hand Driving | |
Horsepower(ps) | 400 | |
Dimension | Length Estimated(mm) | 10500 |
Width Estimated (mm) | 2500 | |
Height Estimated (mm) | 3450 | |
Frame(mm) | 8+8/300 | |
Upper body | Dump body size (mm) | 6500X2300X1500 |
Thickness of body steel (mm) | Floor 8 mm; side 6 mm | |
Engine | Brand | WEICHAI |
Model | WP10.400E201 | |
Emission standard | Euro Ⅱ | |
| Axles | Front axle(kg) | VGD95 |
Rear axle(kg) | MCP16ZG (double reduction) | |
Ratio | 5.26 | |
Transmission | HW19709XST+HW50 | |
Suspension | Front and rear multi leaf spring | |
Tyre | 13R22.5 | |
Rim | With cover | |
Tank capacity | 400L | |
Tank Material | Iron | |
Electrics | 24V | |
Color | Customized | |
