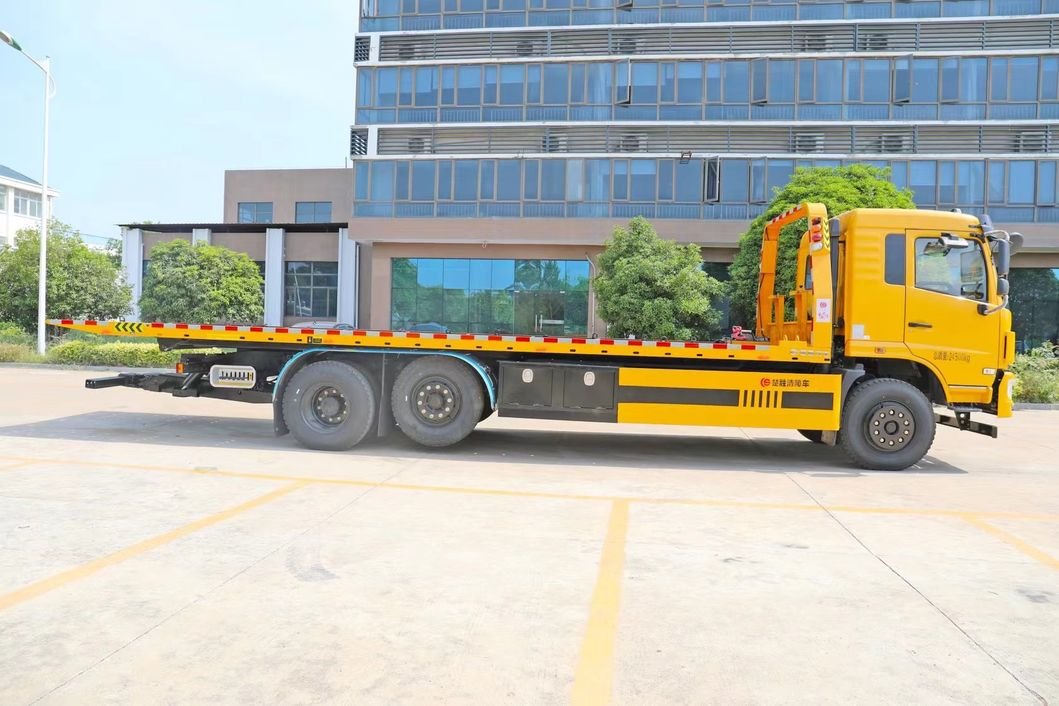

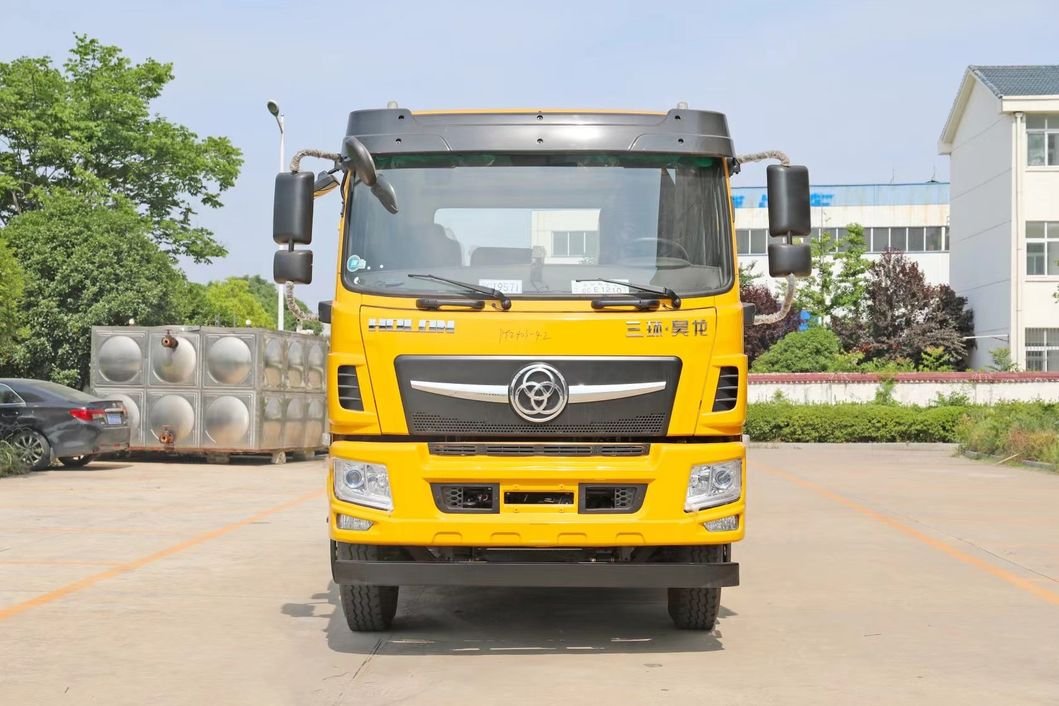

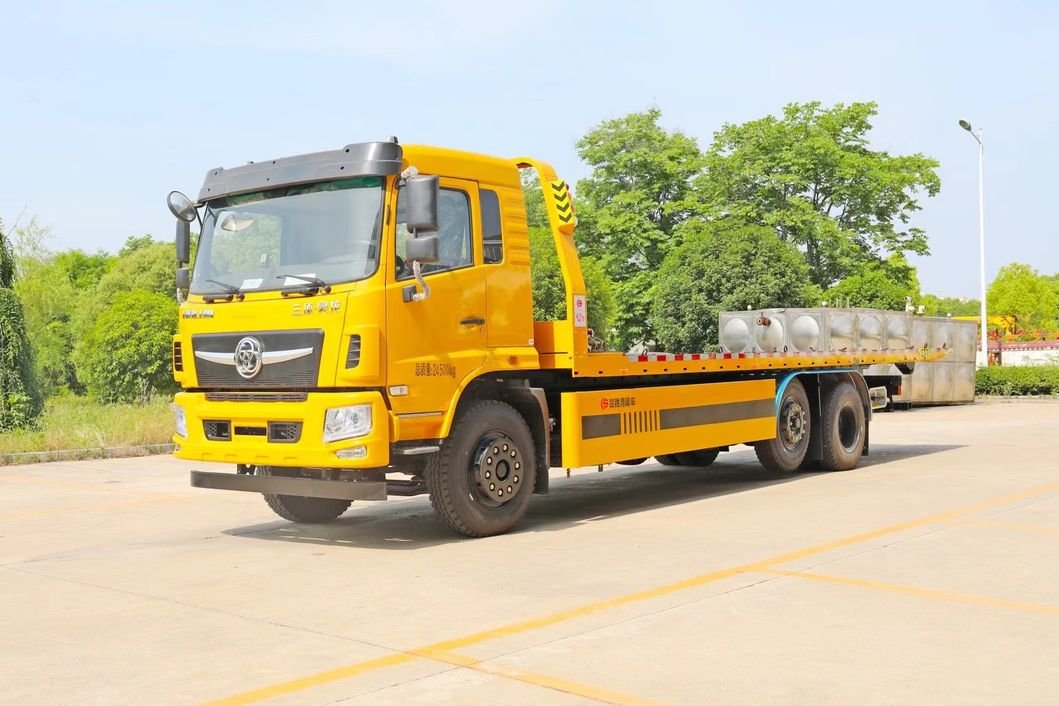

Kailai Tri-Ring Euro II-VI 6×2 Flatbed Tow Wrecker - 162-199kW, 7-9×2.5m Deck, 10T Load, 30m Winch, ≤10° Slope, Global Export
No.:
Vehicle Type: Road Wrecker
Brand Name: KAILAI
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Kailai Tri-Ring Euro II-VI 6×2 Flatbed Tow Wrecker - 162-199kW, 7-9×2.5m Deck, 10T Load, 30m Winch, ≤10° Slope, Global Export
Key Features
6×2 flatbed wrecker: 7-9×2.5m deck, 10T rated load, ≤10° min slope, 4,650mm working range, 8mm bottom plate
Euro II-VI power: Yuchai/Yunnei 162-199kW (4-6L), 8-speed manual, F4 half-high roof cab, Bluetooth, laminated glass, electric doors/windows, central locking, airbag seat
Heavy-duty chassis: 280×65(8+5)mm frame, 9/7+10+8 leaf springs, 4.875 ratio, 10.00R20-18 tyres, drum brakes with ABS
Hydraulic flatbed: hydraulic power gooseneck, 30m winch, 8m/min rope speed, 8.37t max lift, dual-circuit air brake, spring parking
Global specs: 24V dual 140Ah batteries, triangular warning sign, tool kit, A/C, side-mounted spare tyre
Kailai 12-month warranty, CCC/ISO9001, fast 20-day production, DDP sea/air worldwide
Specifications Summary
| Item | Specification |
|---|---|
| Model | CSC5247TQZPSTQ6 |
| Drive | 6×2, LHD/RHD optional |
| GVW | 24,500kg |
| Curb weight | 12,200–13,500kg |
| Dimensions | 9,490/9,820/10,150/11,240×2,550×2,950/3,000mm |
| Wheelbase | 4,000+1,250 / 5,000+1,250mm |
| Engine | 162–199kW Euro II-VI (Yuchai/Yunnei 4-6L) |
| Gearbox | 8-speed manual |
| Front axle | 5,000kg drum |
| Rear axle | 10,000kg drum, 4.875 ratio |
| Flatbed | 7-9×2.5m, 10T load, 30m winch, 8m/min speed |
| Electrical | 24V, dual 140Ah batteries |
| Warranty | 12 months |
Usage & Safety
Pre-start check oil, air, hydraulic levels; confirm winch is stowed and deck locked before driving.
Never exceed 10T deck load; use balance valve to prevent sudden drop during unloading.
Clean hydraulic filter every 500 cycles; grease deck rollers weekly.
Contact us for pricing and configuration options！
Contact: William
Phone/WhatsApp/WeChat: +86 18669778647
Email: Sales22@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
