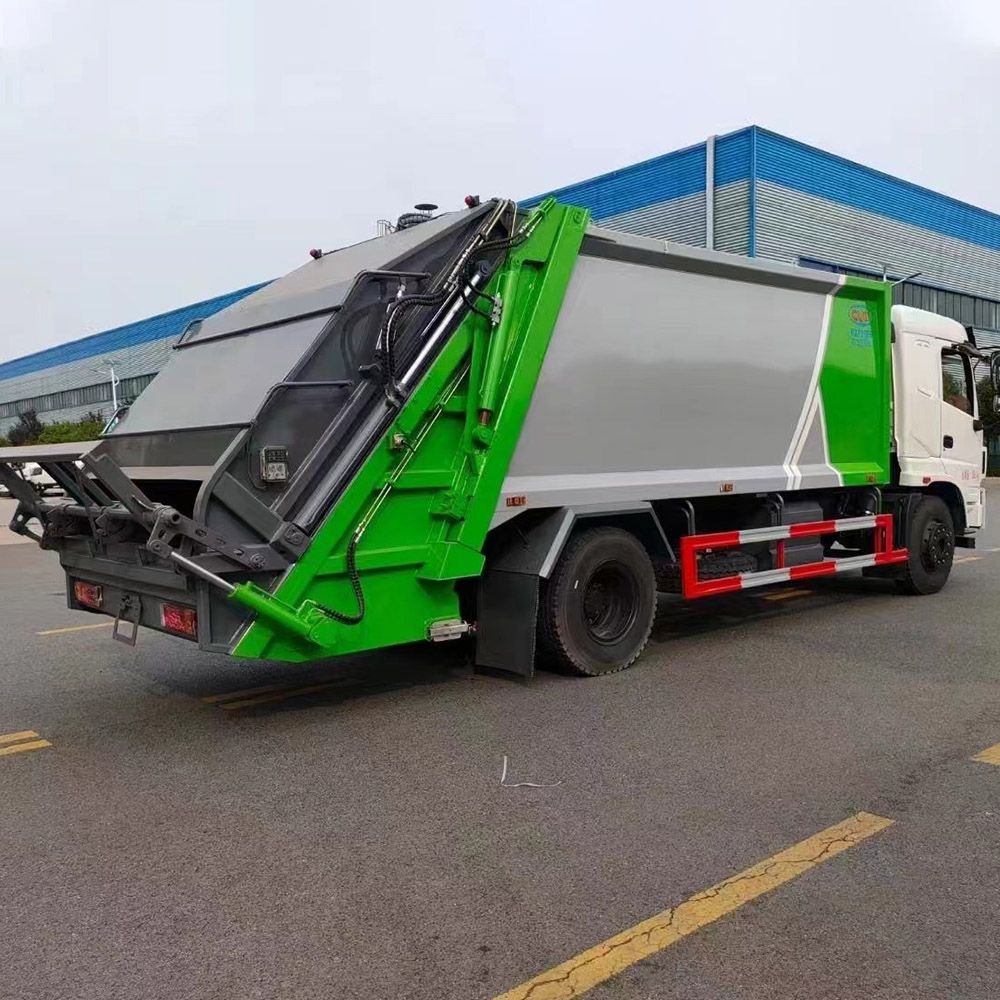

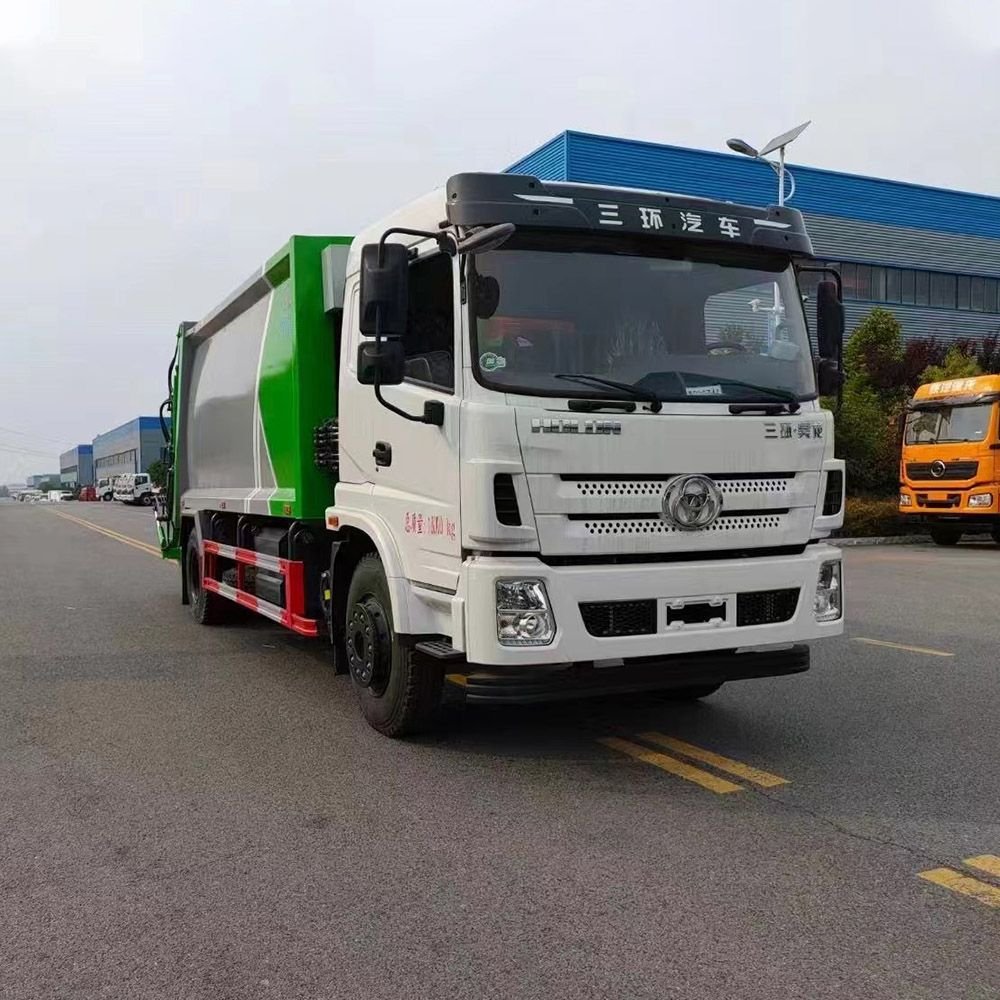

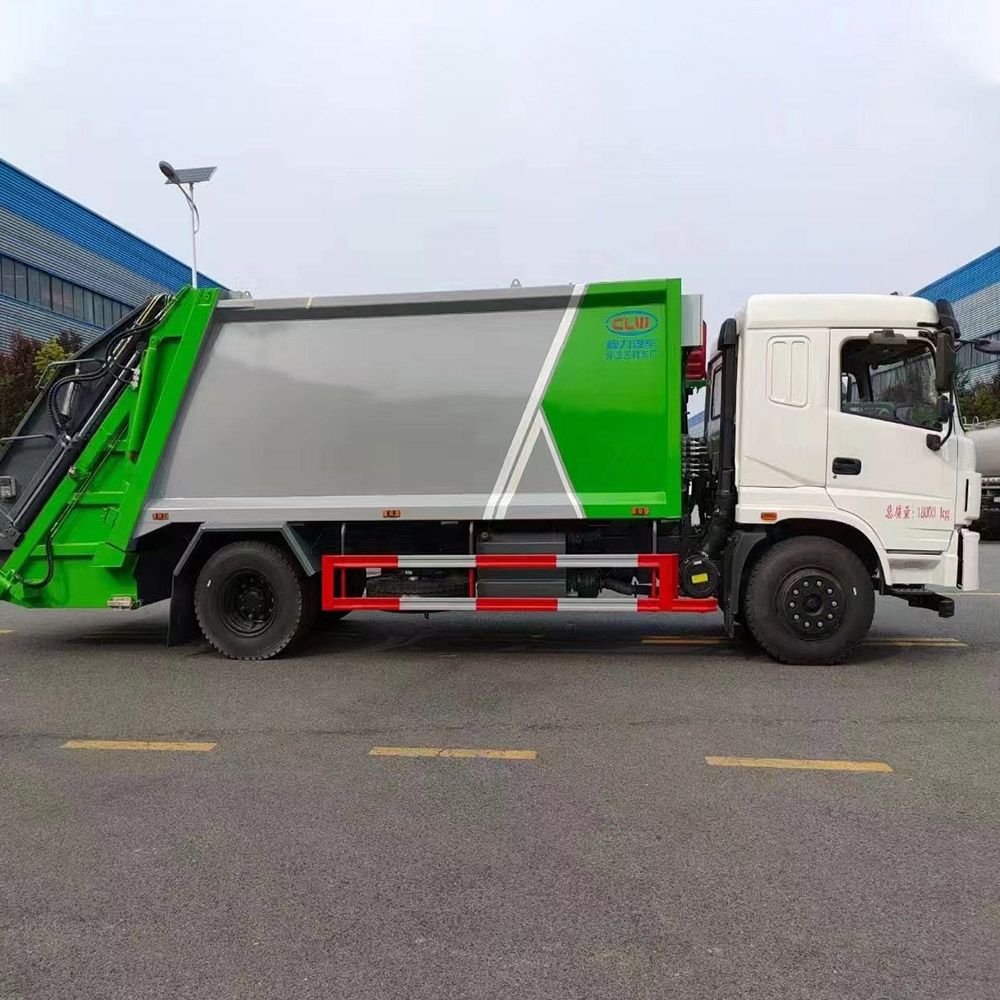

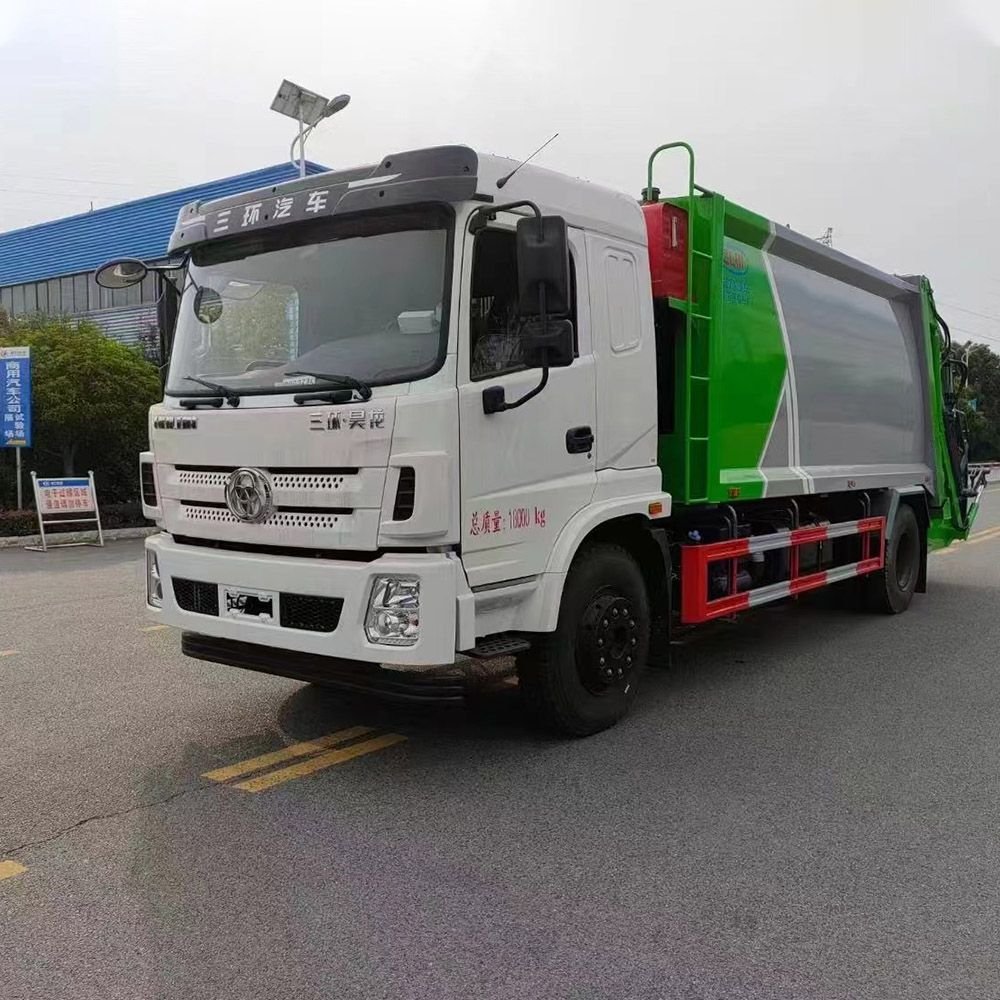

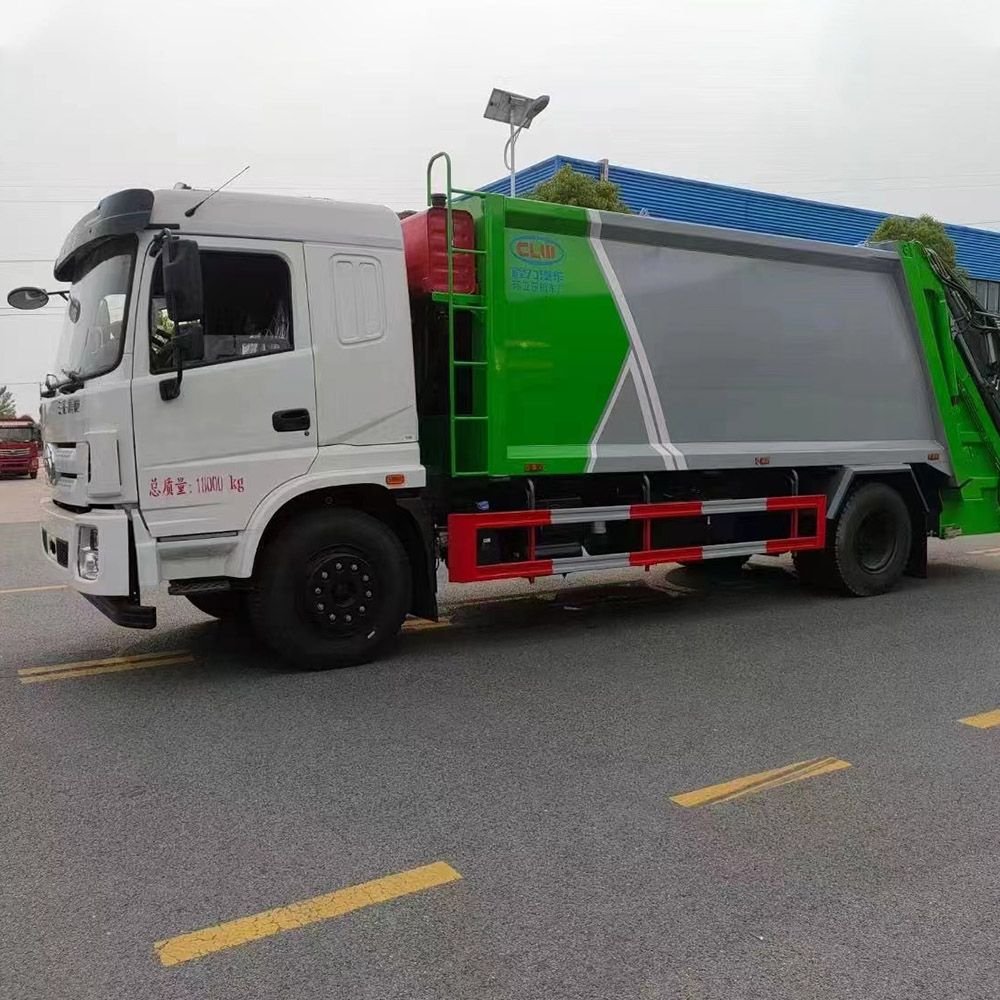

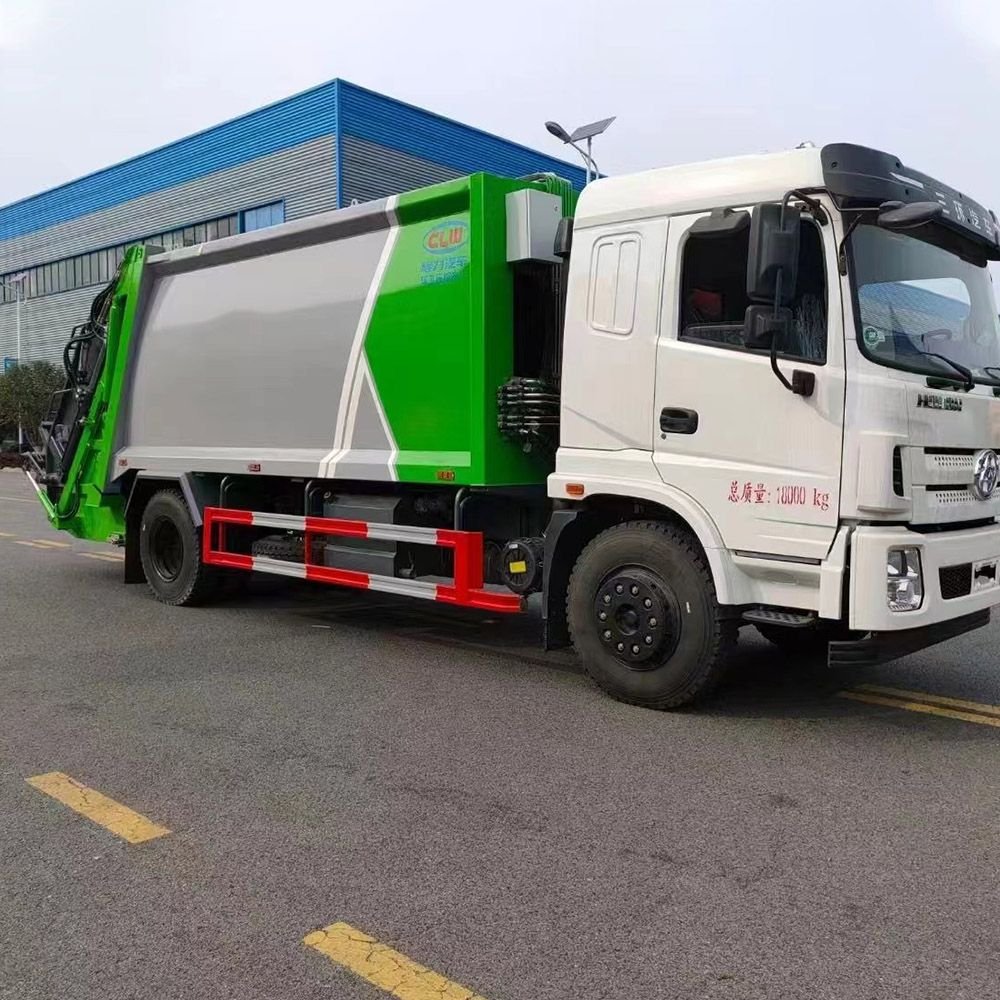

Kailai Tri-Ring 4×2 15m³ Euro-VI Compactor Garbage Truck - 180kW Yuchai/Weichai, 8-Gear, Full-Hydraulic, PLC One-Button, Global Export
No.:
Vehicle Type: Garbage Truck
Brand Name: KAILAI
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Kailai Tri-Ring 4×2 15m³ Euro-VI Compactor Garbage Truck - 180kW Yuchai/Weichai, 8-Gear, Full-Hydraulic, PLC One-Button, Global Export
Key Features
15m³ sealed bin: wall 4mm, floor 5mm, compression density 0.6-0.8t/m³, cycle ≤30s, unload ≤60s
Euro-VI power: Yuchai/Weichai 162-180kW (4-6L), 8-speed manual, T280 flat-top cab, wide bumper, roof box, multifunction wheel
Heavy-duty chassis: 250×80×(6.5+5)mm frame, 9/10+8 leaf springs, 4.444 ratio, 10.00R20-18 tyres, drum brakes with ABS
Full-hydraulic system: Wanye pump, Zhongmei multi-way valve, Boli cylinders, back-pressure & balance valves, no sewage leakage
Siemens PLC: one-button auto + manual dual operation boxes (cab & rear left/right), LED work lamp
Global specs: 24V dual 100Ah batteries, spring parking brake, triangular warning sign, tool kit, side-mounted spare tyre
Kailai 12-month warranty, CCC/ISO9001, BV tank test, fast 20-day production, DDP sea/air worldwide
Specifications Summary
复制
| Item | Specification |
|---|---|
| Model | CL5186ZYS6BHQ |
| Drive | 4×2, LHD/RHD optional |
| GVW | 18,000kg |
| Curb weight | 10,700–11,750kg |
| Dimensions | 8940/9230/9550/9880×2550×3290mm |
| Wheelbase | 4500/4700/5000mm |
| Engine | 162–180kW Euro-VI (Yuchai/Weichai) |
| Gearbox | 8-speed manual |
| Front axle | 4,500kg drum |
| Rear axle | 10,000kg drum, 4.444 ratio |
| Tank volume | 15m³ |
| Compression cycle | ≤30s |
| Unload time | ≤60s |
| Lift mechanism | Rear 240L bin flip |
| Operation | Siemens PLC, one-button + manual dual boxes |
| Warranty | 12 months |
Usage & Safety
Pre-start check oil, air, hydraulic levels; confirm bin is empty before compression.
Never exceed 0.8t/m³ density; use balance valve to prevent sudden drop during unloading.
Clean sewage tanks after each shift; grease bin runners weekly.
Contact us for pricing and configuration options！
