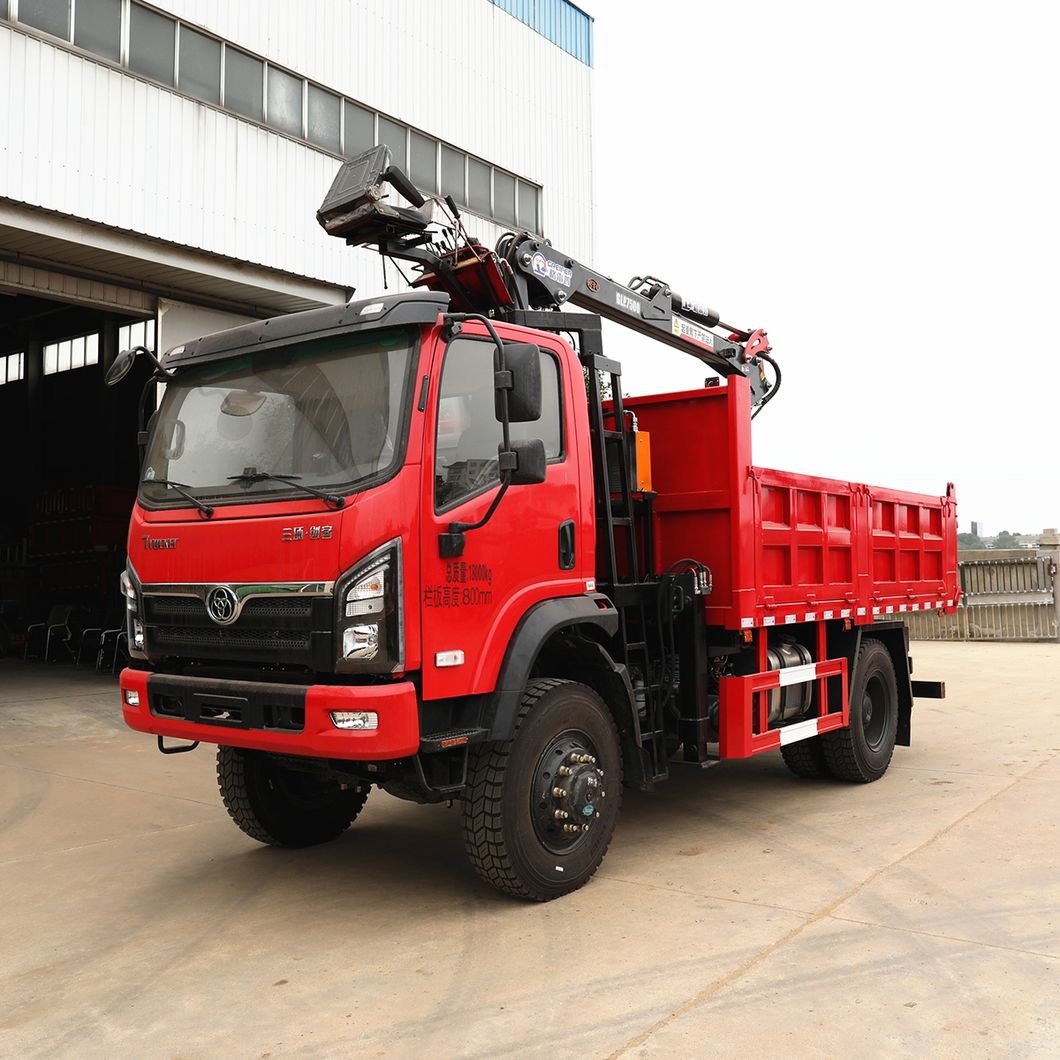

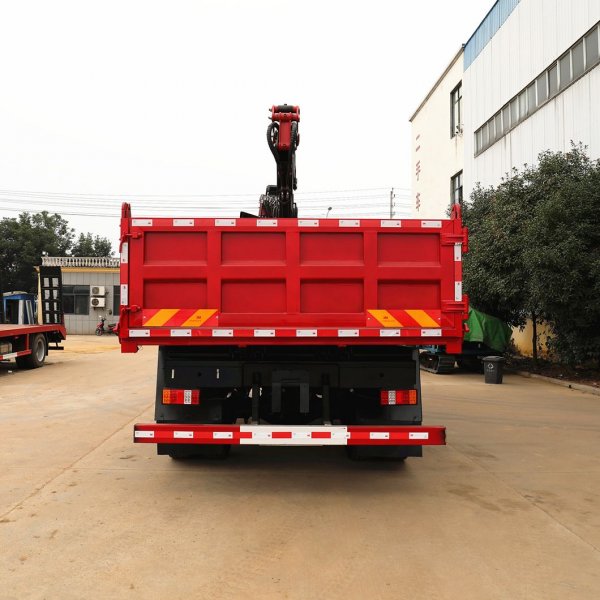

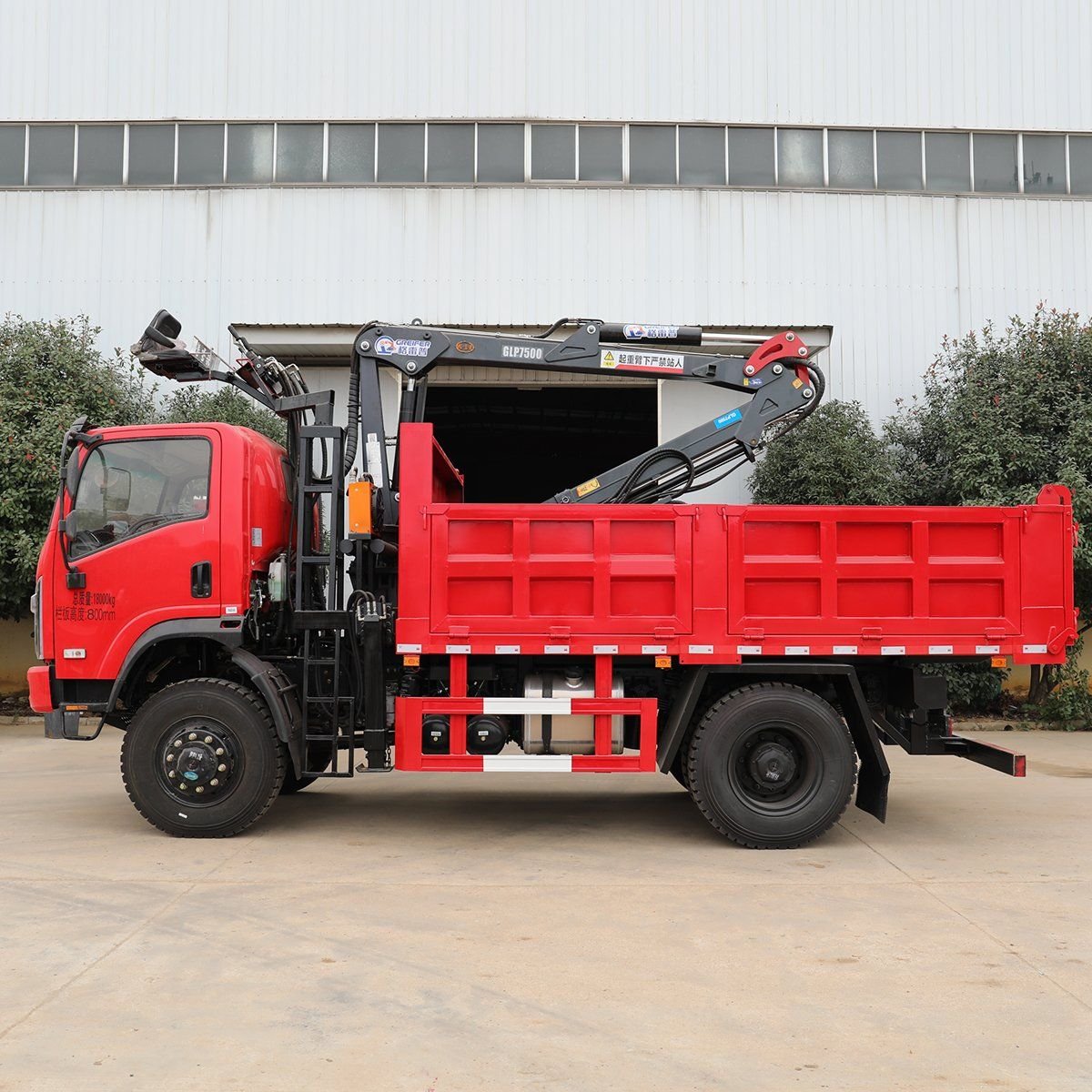

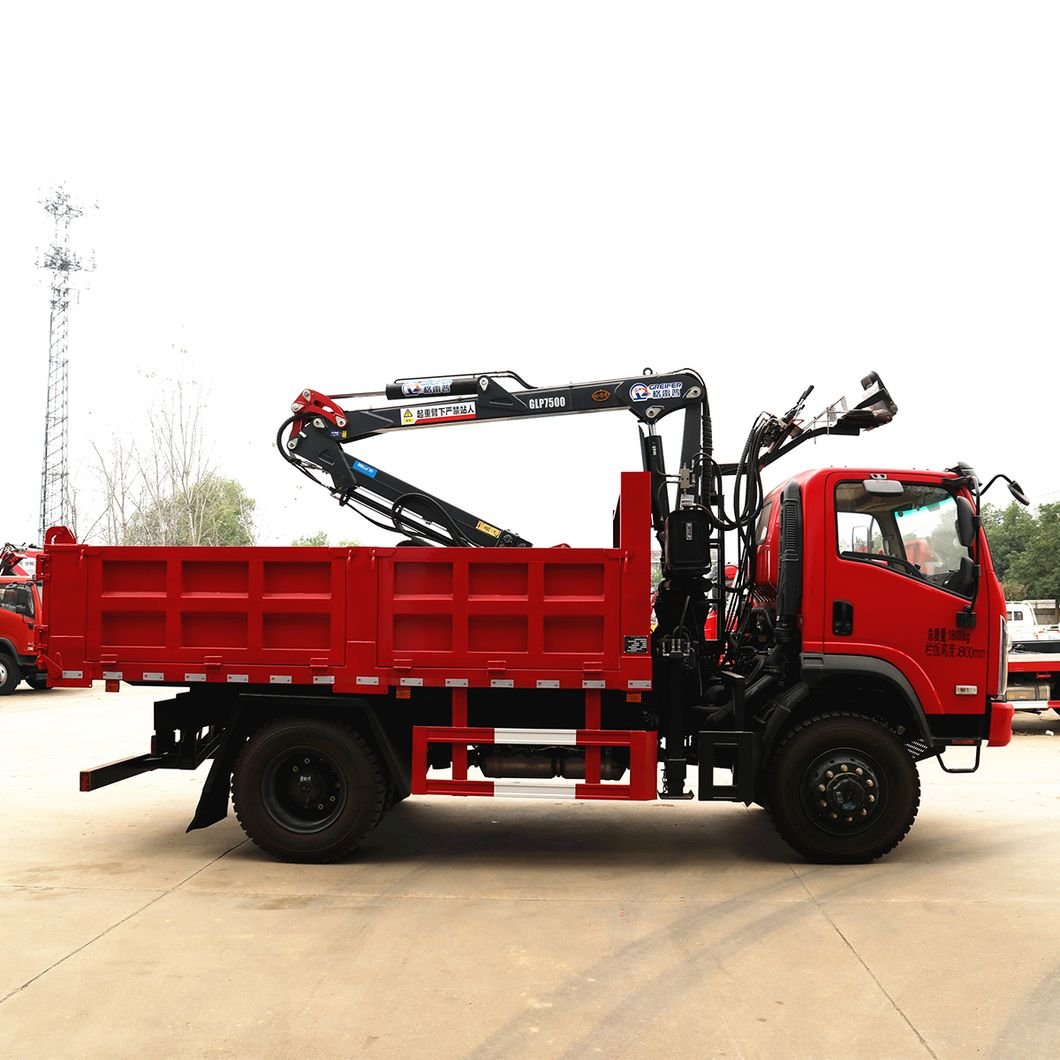

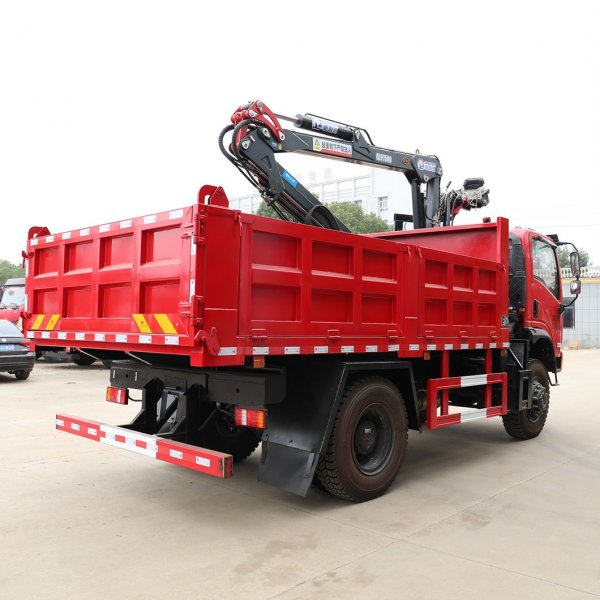

Kailai Tri-Ring 4×4 Off-Road Grab Garbage Truck - Euro VI 118-182kW, 10-Gear, 16t Rear Axle, Sewer Sludge Grab, Self-Unload Bin, Global Export
No.:
Vehicle Type: Garbage Truck
Brand Name: KAILAI
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Kailai Tri-Ring 4×4 Off-Road Grab Garbage Truck - Euro VI 118-182kW, 10-Gear, 16t Rear Axle, Sewer Sludge Grab, Self-Unload Bin, Global Export
Key Features
4×4 all-wheel drive, 10.00R20-18 off-road tyres, 30% grade ability - tackles steep, potholed, narrow, soft roads
Euro VI power: Yuchai 118-182kW (3.6-5.1L), 10-speed manual, T3 flat-roof cab, Bluetooth, laminated glass, electric doors/windows, central locking, LED DRL
Heavy-duty chassis: 290×65(8+6)mm frame, 6+4/10+8 leaf springs, 6.73 ratio, drum brakes with ABS
Grab system: hydraulic 360° rotating grab, ≤60s lift/lower, self-unload bin, metal rolling wheels
Global specs: 24V dual 100Ah batteries, spring parking brake, triangular warning sign, tool kit, A/C
Kailai 12-month warranty, CCC/ISO9001, fast 20-day production, DDP sea/air worldwide
Specifications Summary
| Item | Specification |
|---|---|
| Model | STQ2181ZZDE6 |
| Drive | 4×4, LHD/RHD optional |
| GVW | 18,000kg |
| Curb weight | 9,500kg |
| Dimensions | 7400×2550×3850mm |
| Wheelbase | 3950mm |
| Engine | 118-182kW Euro II-VI (Yuchai 3.6-5.1L) |
| Gearbox | 10-speed manual |
| Front axle | 6,500kg drum |
| Rear axle | 16,000kg drum, 6.73 ratio |
| Grab bin | Hydraulic 360° rotating, ≤60s cycle |
| Electrical | 24V, dual 100Ah batteries |
| Warranty | 12 months |
Usage & Safety
Pre-start check oil, air, hydraulic levels; confirm grab is stowed before driving.
Never exceed grab weight limit; use balance valve to prevent sudden drop during unloading.
Clean hydraulic filter every 500 cycles; grease grab rollers weekly.
Contact us for pricing and configuration options！
Contact: William
Phone/WhatsApp/WeChat: +86 18669778647
Email: Sales22@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
