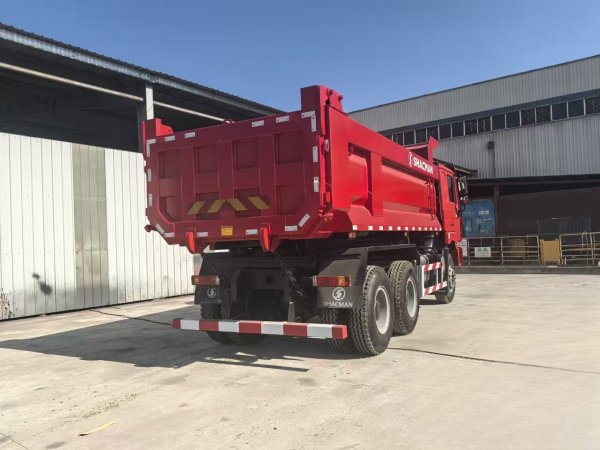

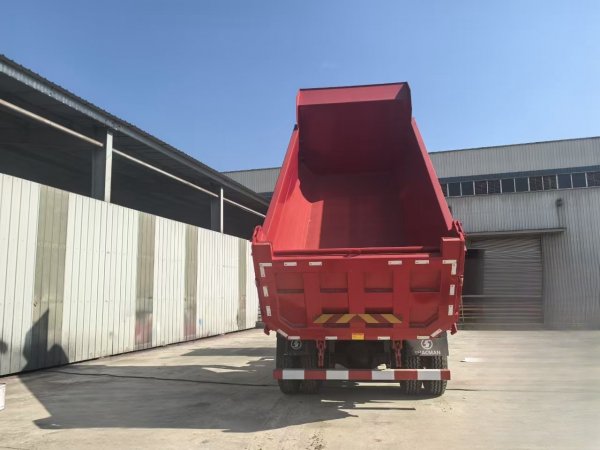

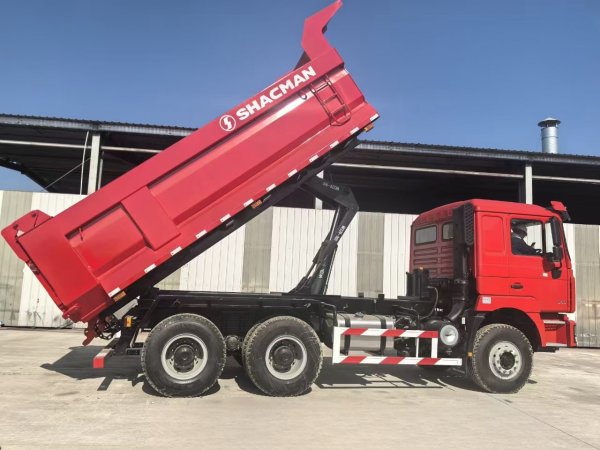

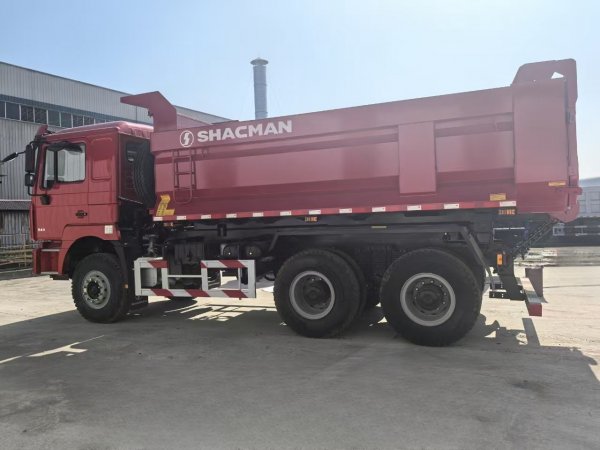

HIGH QUALITY SHACMAN HEAVY DUTY TRUCK 6X4 10 WHEELS 30 TONS 18CUBS F2000 DUMP TRUCKS
No.: jack07
Vehicle Type: Dump Truck
Brand Name: SHACMAN
Person in charge: Jack Wang
Cel: 0086 15192585839
Whatsapp: 8615192585839
E-mail: sales21@chinatruck.cc
FREE GET QUOTE
Details
Basic Information | Model | SX3255JM384 |
Drive type | 6x4 | |
Driving mode | Left Hand Driving | |
Horsepower(ps) | 290 | |
Dimension | Length Estimated(mm) | 8500 |
Width Estimated (mm) | 2500 | |
Height Estimated (mm) | 3450 | |
Frame(mm) | 850x300(8+7) | |
Wheelbase(mm) | 3775+1400 | |
Rear hang(mm) | 825 | |
Upper body | Dump body size (mm) | 5200X2300X1350 |
Bucket capacity (cubic meters) | 16.146cbm | |
Thickness of body steel (mm) | Floor 8 mm; side 4 mm | |
Tipping system | Middle tipping system | |
Engine | Brand | WEICHAI |
Model | WP10.290E32 | |
Emission standard | Euro Ⅱ | |
Axles | Brand | MAN |
Front axle(kg) | 7500 | |
Rear axle(kg) | 16000 STR (double reduction) | |
Ratio | 5.73 | |
Transmission | 9JS135+QH50 | |
Suspension | Front and rear multi leaf spring | |
Tyre | 12R22.5（10+1) Pieces | |
Rim | With cover | |
Tank capacity | 380L | |
Tank Material | Iron | |
Electrics | 24V | |
Color | Customized | |
Others | Hydraulic main seat, elastic headrest, four-point hydraulic suspension, 13 ordinary rearview mirrors, hot zone air conditioning, Jacksell technology compressor, manual window shaker, manual sunroof, manual flip, telescopic shaft control, domestic six-channel ABS, ordinary air filter, copper water tank, fiberglass bumper, front lower protection, driving recorder, 165Ah maintenance-free battery, cruise control system, speed limit 90km/h, seat belt unfastened reminder, reflective vest, SHACMAN logo, full English logo | |
