FAW 4×2 90 km/h Euro-II 120 HP Manual 5-Speed 2 t/2.7 t Axles 200 kg Payload 14 m RHD Folding-Arm High-Lifting Platform Aerial Work Truck for Zambia for Sale
No.:
Vehicle Type: Aerial Work Truck
Brand Name: FAW
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details

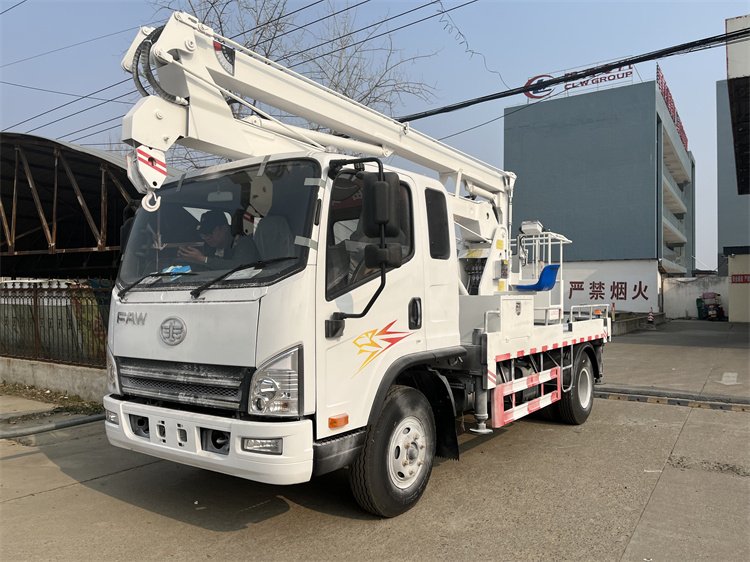

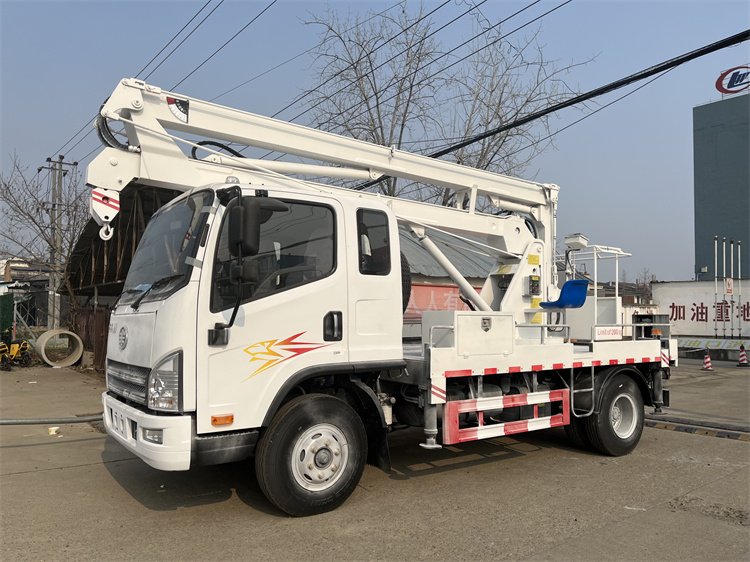

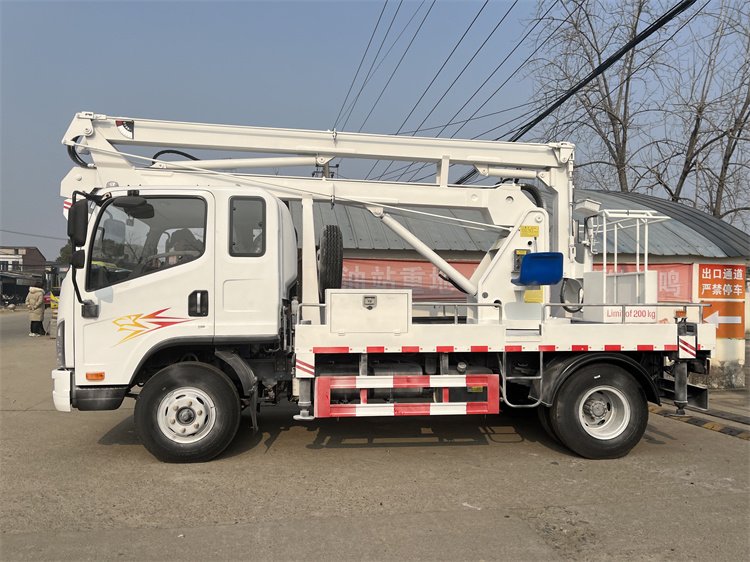

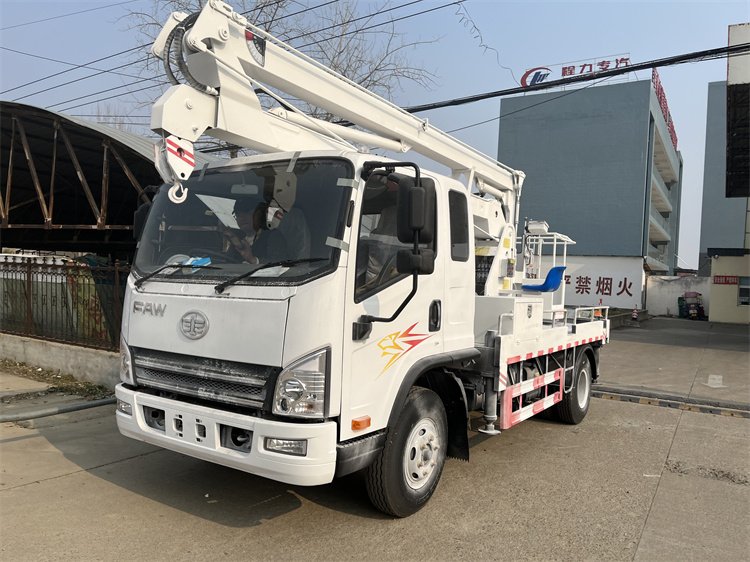

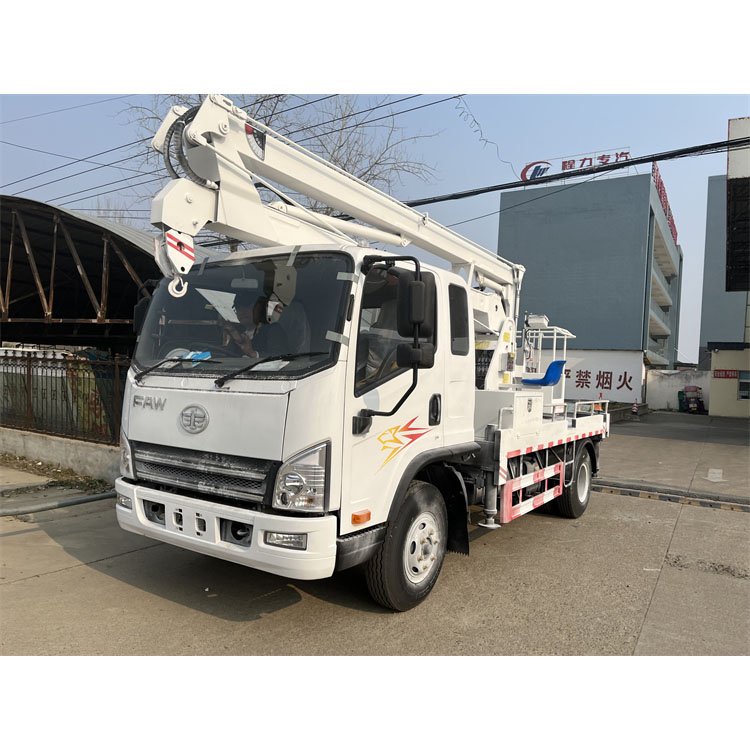

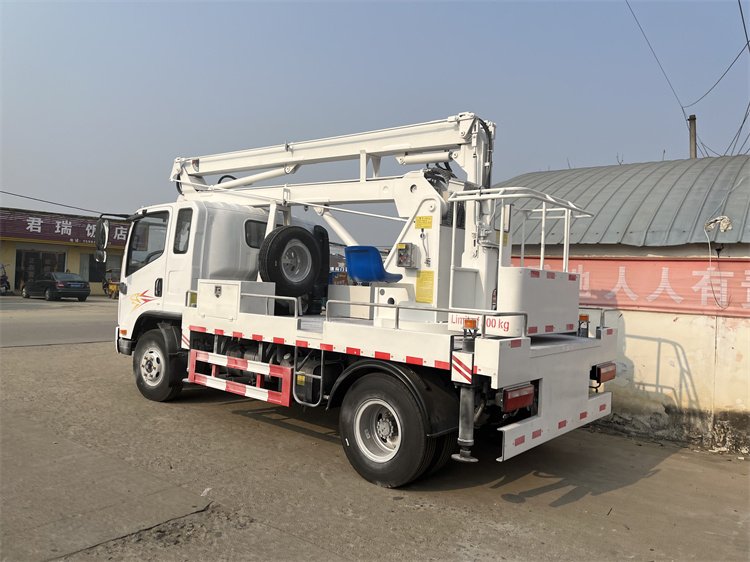

FAW 4×2 90 km/h Euro-II 120 HP 5-speed manual 2 t/2.7 t axles 200 kg payload 14 m RHD folding-arm high-lifting platform aerial work truck—factory-built with 360° continuous rotation and 7400×2250×3150 mm overall size for Zambia.
Key Features
• 14 m Working Height – folding-arm hydraulic lift, 200 kg cage capacity
• 360° Continuous Rotation – slewing bearing, hydraulic motor drive
• Euro-II Power – FAW CA498E3-12, 120 HP, 2892 ml, 90 km/h max
• 5-Speed Manual – CA 5-speed with overdrive, reliable uphill drive
• 2 t/2.7 t Axles – leaf-spring suspension, 7.00R16 tyres (6+1)
• RHD Cab – single row, A/C, electric mirrors, 24 V electrics
• Safety – front V + rear H outriggers, individual adjustment, emergency manual pump
• Fast Delivery – 15-20 working days, 12-month warranty
Specifications
复制
| Item | Value |
|---|---|
| Drive | 4×2 RHD |
| Engine | FAW CA498E3-12, 120 HP, Euro-II |
| Gearbox | 5-speed manual |
| Front Axle | 2 t |
| Rear Axle | 2.7 t |
| Cage Load | 200 kg |
| Max Speed | 90 km/h |
| Boom Form | Folding-arm hydraulic |
| Working Height | 14 m |
| Rotation | 360° continuous |
| Outriggers | Front V + rear H, individual control |
| Overall Size | 7400×2250×3150 mm |
| Wheelbase | 3260 mm |
| Tyres | 7.00R16, 6+1 |
| Electric System | 24 V |
| Production Cycle | 15-20 days |
| Warranty | 12 months |
Optional Heights
• 16 m, 18 m, 20 m, 22 m boom lengths available on same chassis
Contact us for pricing and configuration options!
