FOTON 20m Aerial Work Platform Telescopic Boom Lift Truck For Sale
No.: KL260417WJX3
Vehicle Type: Aerial Work Truck
Brand Name: FOTON
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details

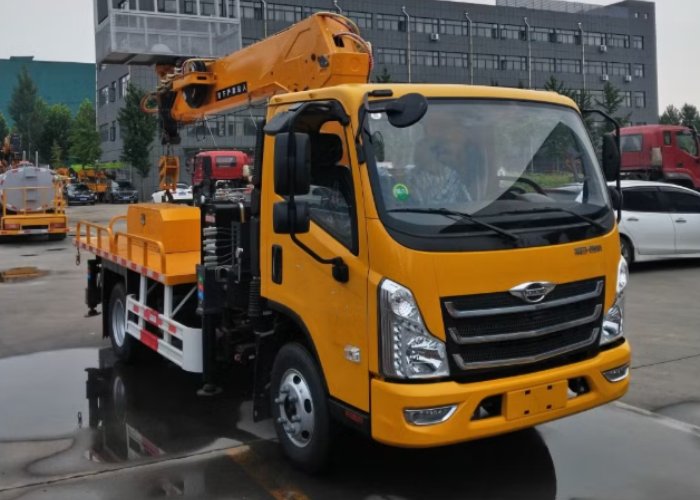

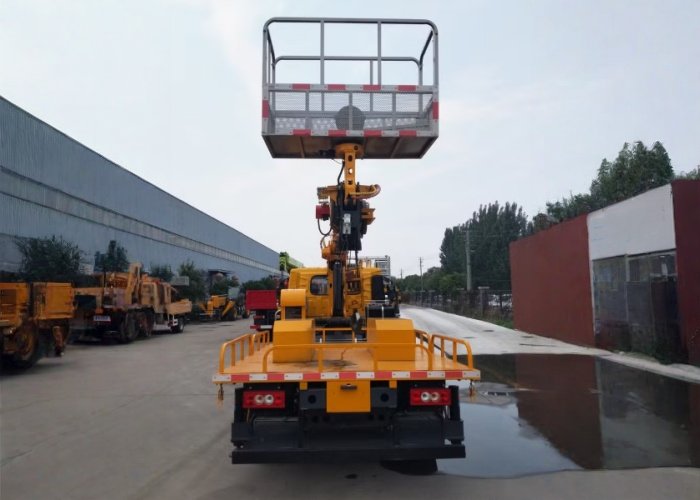

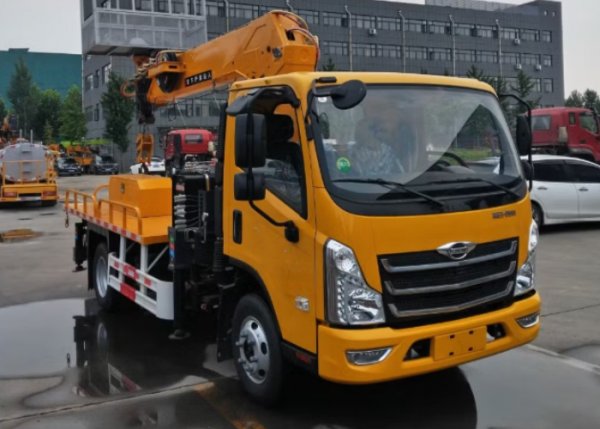

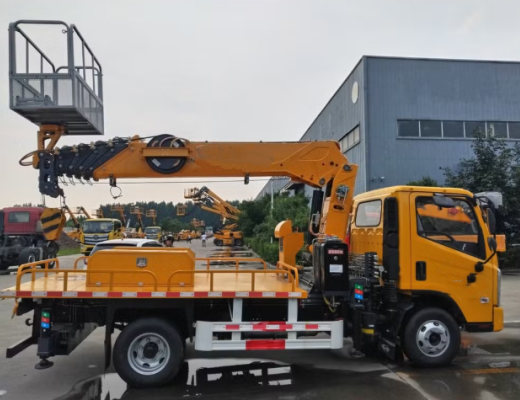

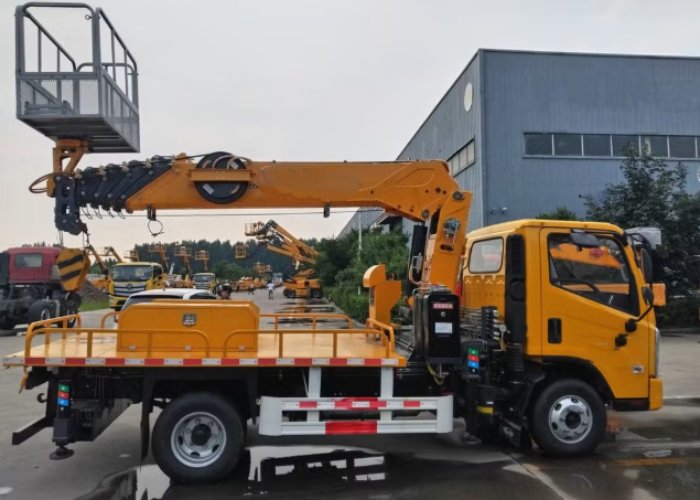

FOTON 20m Aerial Work Platform Telescopic Boom Lift Truck For Sale
Key Features:
✅20m Maximum Working Height: Meets the requirements for most mid-to-high-altitude tasks, such as street light maintenance, building exterior work, and power line repairs.
✅Telescopic Boom Design: Offers extended horizontal reach and flexible operation, allowing workers to access hard-to-reach areas with precision.
✅Safe Working Platform: Equipped with guardrails, safety locks, and a control system for stable lifting, tilting, and rotating operations to protect operators.
✅Hydraulic Control System: Provides smooth, responsive operation of the boom and platform, with adjustable speed for different working conditions.
✅Compact Structure & Easy Transportation: Designed to fit standard road dimensions, making it easy to move between different job sites quickly.
FOTON 20m Aerial Work Platform Telescopic Boom Lift Truck For Sale
FOTON 20m Aerial Work Platform Telescopic Boom Lift Truck For Sale
FOTON 20m Aerial Work Platform Telescopic Boom Lift Truck For Sale
Specifications:
| Vehicle | Aerial Work Platform Truck |
| Chassis brand | FOTON |
| Overall dimension(L*W*H) | 5995×2200×3500mm |
| Gross weight | 4495kg |
| Curb weight | 4365kg |
| Drive module | 4x2 |
| Driver seat position | Left Hand Driving |
| Wheelbase | 3360 mm |
| Tire size | 7.00R16 |
| Front/Rear Axle | 3t / 5.5t |
| Engine brand | Yunnei |
| Fuel | Diesel |
| Engine horsepower | 160hp |
| Transmission | WLY 8-speed transmission |
| Maximum Working Height | 20m |
| Maximum Working Radius | 14m |
| Platform Rated Load | 200kgs |
| Boom Swing Angle | 360° |
| Platform Dimensions | 1500mm×700mm×1100mm |
| Maximum Lifting Capacity | 4000kg |
| Main Winch | 4T |
| Maximum Lifting Height | 17m |
| Flatbed Dimensions | 3200x2200mm |
| Boom Structure | 6-section Boom, 5-section Synchronous Telescoping, Steel Wire Rope Extension with Backup Steel Wire Rope |
| Operation System | Domestic Well-known Electronic Control System, Equipped with Wireless Remote Control (Three-way Operation) |
| Hydraulic System | Electro-hydraulic Proportional Valve (Stepless Speed Regulation) |
| Safety Devices | Upper/Lower Vehicle Interlock, Limit Protection, Bidirectional Hydraulic Balance Valve |
The FOTON 20m Aerial Work Platform Telescopic Boom Lift Truck is a reliable, high-performance aerial work solution built for safe and efficient high-altitude operations. Mounted on a sturdy FOTON chassis, this telescopic boom lift truck delivers a maximum working height of 20 meters, making it ideal for various maintenance, installation, and construction tasks.
Applications:
Street light and traffic signal maintenance
Power line and communication equipment installation and repair
Building exterior cleaning, painting, and maintenance
Construction and installation of high-altitude equipment
Bridge inspection and maintenance
Event setup and aerial installation for outdoor projects
Contact us for pricing and configuration options！
