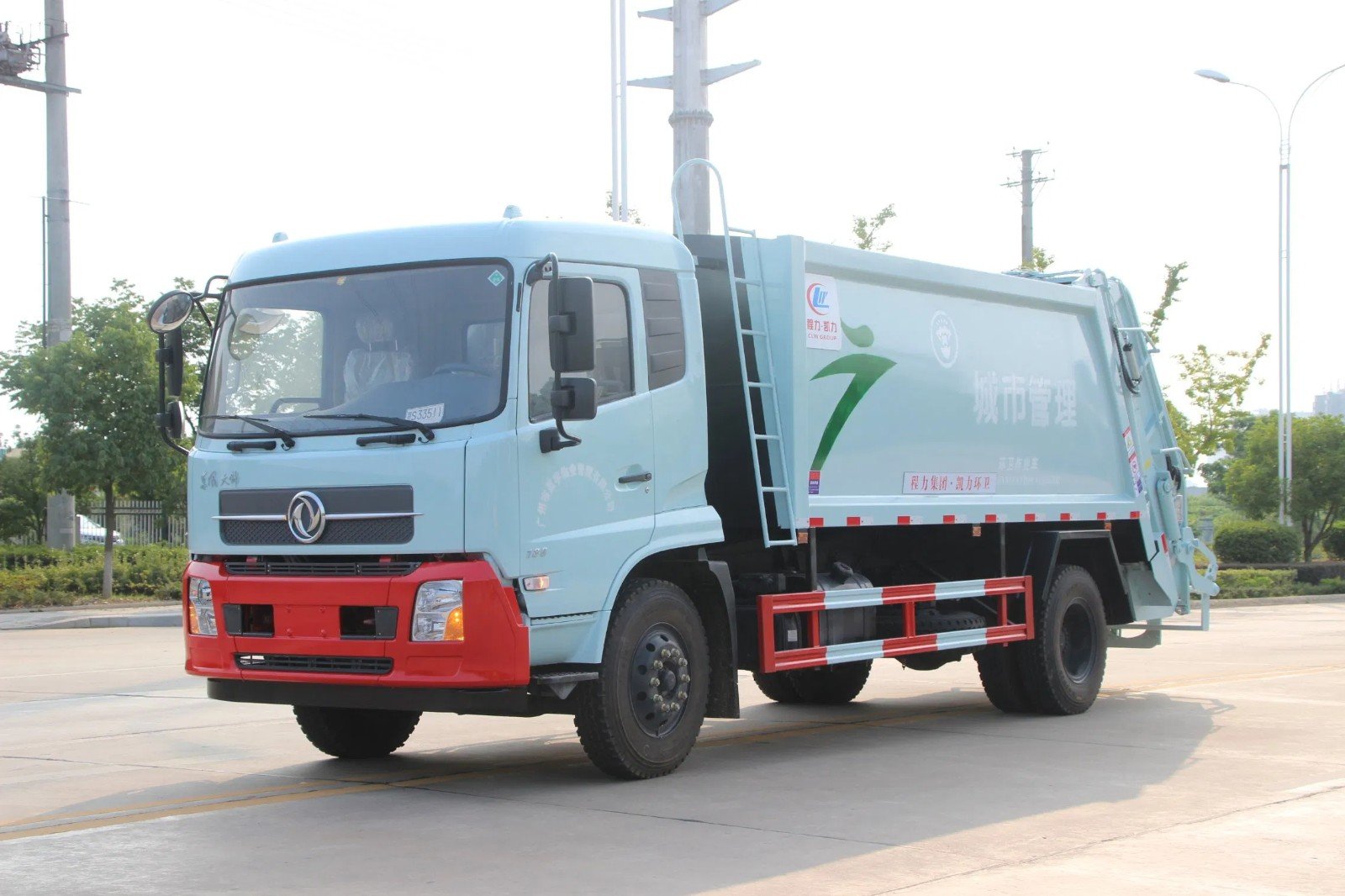

Factory-Supply 4×2 12 000 L Refuse Collector – Compressed Garbage Compactor Truck for Sale
Key Features
• High Compression – 12 t crushing force, 1/3–1/4 volume reduction doubles payload vs. traditional trucks
• Leak-Proof Body – 4 mm carbon-steel tank, fully welded seams, integral sewage sump prevents roadside spills

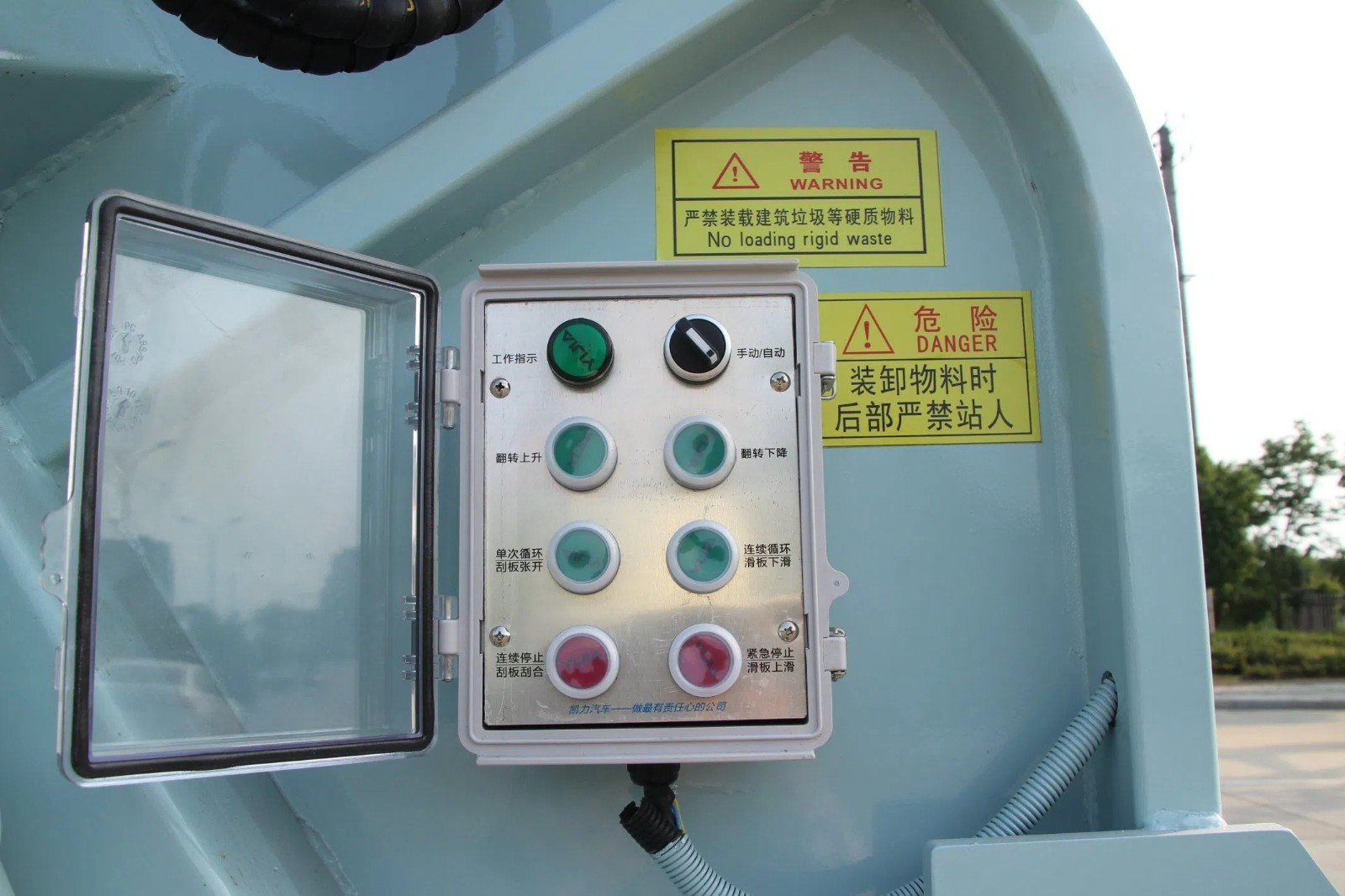

• One-Operator Control – Dual PLC panels (rear + cab), automatic loading / compressing / ejecting, cycle ≤14–18 s
• Rear Bin Lifter – Standard 120 L / 240 L / 660 L bin tipper; optional skip-loader or bucket system
• 12 m³ Capacity – 12 000 L net volume, rear-loading, hydraulic ejector plate for clean discharge
• Dongfeng Reliability – 190 HP Euro-II engine, 6-speed manual, 90 km/h max, 15 955 kg G.V.W.
• Safety & Comfort – A/C cab, dual-circuit air brakes, spring parking, exhaust-valve auxiliary brake
Specifications
| Item | Parameter |
|---|---|
| Overall Dimension | 8 000 × 2 500 × 3 250 mm |
| Gross Vehicle Weight | 15 955 kg |
| Curb Weight | 9 700 kg |
| Payload (waste) | 6 100 kg |
| Wheelbase | 4 500 mm |
| Front / Rear Axle Load | 5 000 kg / 10 000 kg |
| Engine | Dongfeng 190 HP, 6-cyl, Euro-II |
| Gearbox | 6 fwd + 1 rev |
| Max Speed | 90 km/h |
| Tyres | 10.00R20, 6 + 1 spare |
| Cabin | Left-hand drive, A/C, 2 seats |
| Garbage Bin | 12 m³ (12 000 L) |
| Tank Material | 4 mm carbon steel, leakage-proof |
| Compression Ratio | 1/3–1/4 |
| Crushing Force | 12 t |
| Control | Dual PLC panels (cab & rear) |
| Cycle Time | ≤14–18 s |
| Loading Method | Rear bin lifter (120/240/660 L) |
| Discharge | Hydraulic ejector plate |
| Sewage Tank | 150 L integral |
| Colour | Customer choice |
| Logo | Custom decals available |
Typical Applications
• Municipal solid-waste collection routes
• Commercial district refuse removal
• Industrial & construction debris transfer
• University campus and hospital waste management
Optional Upgrades
• 16 m³ or 20 m³ tank upgrade
• 240 HP Euro-5 engine
• Stainless-steel 304 body for corrosive waste
• Rear camera & ultrasonic sensor
• Remote-control wireless operation
Contact us for pricing and configuration options!
