Chinese Truck Brake Shoe Cross-Reference Catalog for Commercial Vehicles for Sale
No.:
Vehicle Type: China truck parts
Brand Name: SINOTRUK
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Commercial Vehicle Brake Spider Specifications Catalog
Cross-Reference Guide for Chinese & International Truck Models

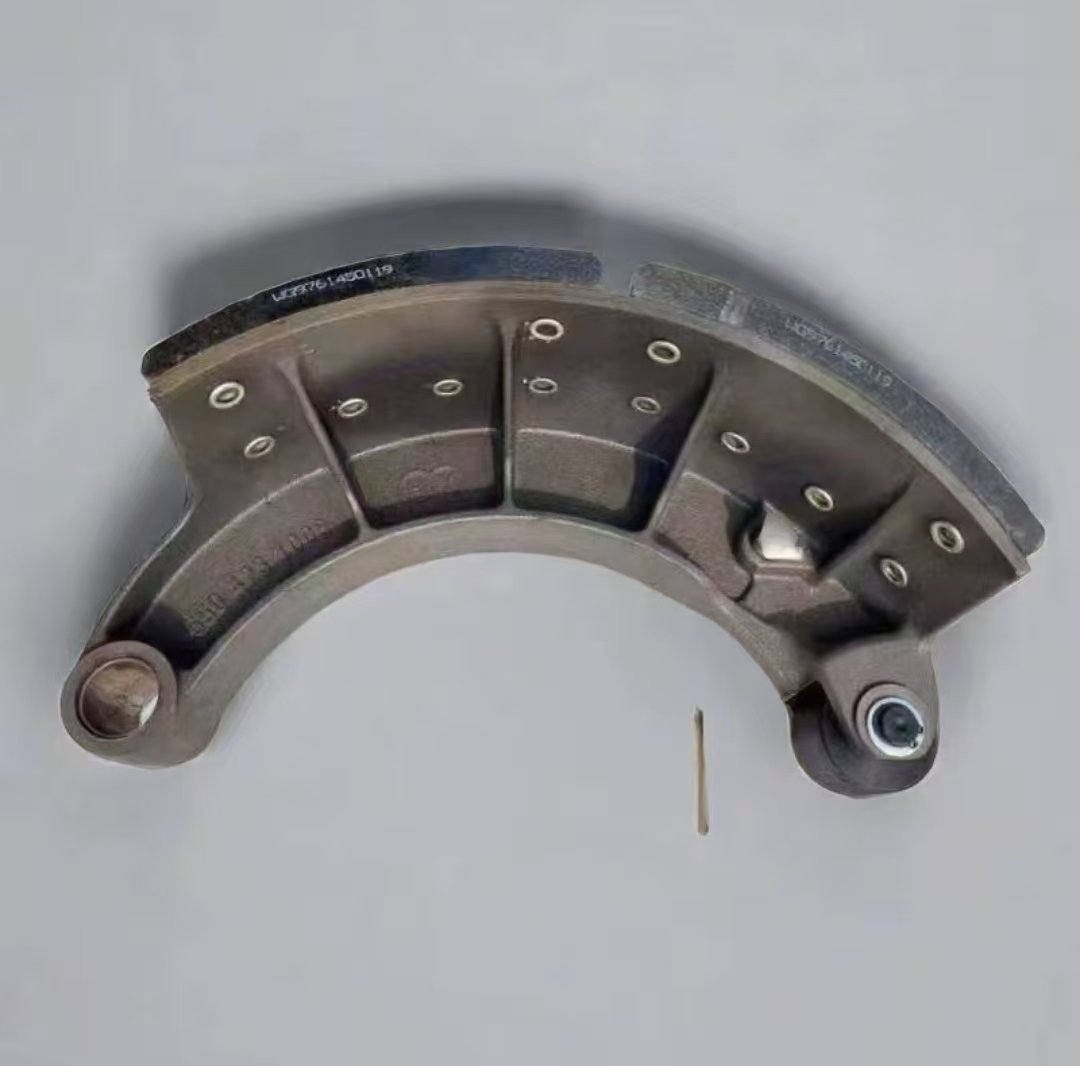

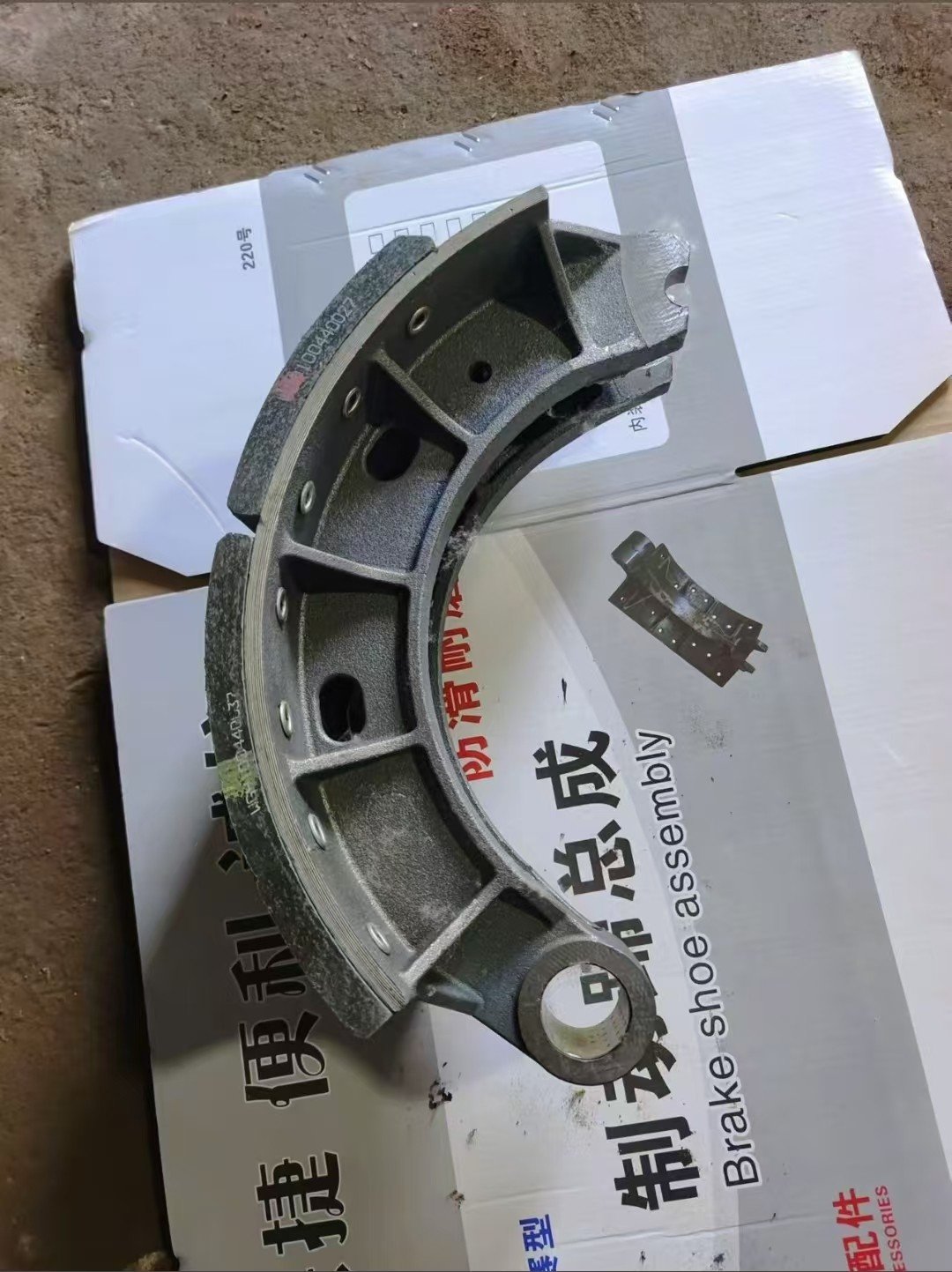

Chinese Truck Brake Shoe Cross-Reference Catalog for Commercial Vehicles for Sale
Key Features
• Brake-Shoe Focus – Interchange data for leading (front) and trailing (rear) brake shoes across 80+ models
• Exact Dimensions – Outer arc (A), width (B), thickness, rivet/bolt holes (T) plus OEM casting numbers
• Universal Coverage – Fuhua 13T/16T, Steyr, Jiefang CA, Dongfeng EQ, Aowei, BPW200/220, Volvo 175/200, Meritor, Shaanxi Delong, Howo A7, Hino, Isuzu, Mitsubishi, King Long Bus and more
• OEM Equivalents – Direct interchange numbers for BPW 0490 100 320, Meritor BPW-3720, Fuhua 13T/16T, American 4515/4551, Volvo 175/200
• Annual Updates – Supplied in editable Excel and printable PDF, revised yearly
• CAD & Custom Linings – 2D/3D drawings and custom friction material (FF, GG, HH ratings) for mining or special trailers
• Rapid Global Delivery – Digital instant download or physical binder via DHL/FedEx
Specifications
复制
| Vehicle/Series | A (Outer Arc) mm | B (Width) mm | Thickness mm | T (Rivet/Bolt Holes) | Notes / OEM Equivalent |
|---|---|---|---|---|---|
| Fuhua 13T Left | 194 | 178 | 17.5 | 16 | Fuhua 4515L brake shoe |
| Fuhua 13T Right | 189 | 178 | 18.5 | 16 | Fuhua 4515R brake shoe |
| Fuhua 16T Left | 194 | 220 | 17.5 | 16 | Fuhua 4551L brake shoe |
| Fuhua 16T Right | 189 | 220 | 18.5 | 16 | Fuhua 4551R brake shoe |
| Steyr Rear | 186 | 185 | 14.5 | 8 | Steyr 185×8 brake shoe |
| Jiefang CA-6120 Front | 187 | 135 | 14.5 | 6 | CA-6120 135×6 brake shoe |
| Jiefang CA-6120 Rear | 192 | 200 | 14.5 | 12 | CA-6120 200×12 brake shoe |
| Dongfeng EQ-153 Front | 182 | 130 | 14.5 | 6 | EQ-153 130×6 brake shoe |
| Dongfeng EQ-153 Rear | 194 | 180 | 17.5 | 9 | EQ-153 180×9 brake shoe |
| BPW200 | 204 | 200 | 17.6 | 10 | BPW 200×10 rivet shoe |
| BPW220 | 204 | 220 | 17.6 | 10 | BPW 220×10 rivet shoe |
| Volvo 175 | 178 | 175 | 18 | 14 | Volvo 175×14 brake shoe |
| Volvo 200 | 178 | 200 | 18 | 14 | Volvo 200×14 brake shoe |
| Shaanxi Delong Front | 218 | 160 | 16.8 | 10 | Delong 160×10 brake shoe |
| Shaanxi Delong Rear | 218 | 220 | 16.8 | 10 | Delong 220×10 brake shoe |
| Howo A7 Rear | 186 | 220 | 14.5 | 14 | Howo A7 220×14 brake shoe |
| Hino Mixer Rear | 196 | 216 | 16 | 12 | Hino 216×12 brake shoe |
| Isuzu Mixer Rear | 193 | 220 | 16 | 17 | Isuzu 220×17 brake shoe |
| Mitsubishi FV415-R | 196 | 220 | 16 | 16 | Mitsubishi 220×16 brake shoe |
| King Long Bus 6112 Rear | 192 | 220 | 14.5 | 15 | King Long 220×15 brake shoe |
(Complete 80+ model Excel table included)
Friction Material Options
• FF (Standard) – 0.45–0.55 µ
• GG (Heavy-Duty) – 0.55–0.65 µ
• HH (Severe-Service) – 0.65–0.75 µ
File Formats
• Excel (.xlsx) – sortable, editable
• PDF – printable A4/US Letter
• CAD – STEP & DWG on request
Contact us for pricing and configuration options!
Contact: william
Phone/WhatsApp/WeChat: +86 18669778647
Email: Sales22@chinatruck.cc
