SD16 Dozer

The SD16 Dozer is a powerful and versatile earthmoving machine designed for a variety of heavy-duty applications. It features a robust design, high-performance engine, and advanced operating capabilities, making it suitable for demanding construction and land development projects.

Product Highlights

High Performance: Equipped with a reliable engine (Shangchai SC11CB184G2B1 or Weichai WD10G178E25) that delivers strong power and efficiency.

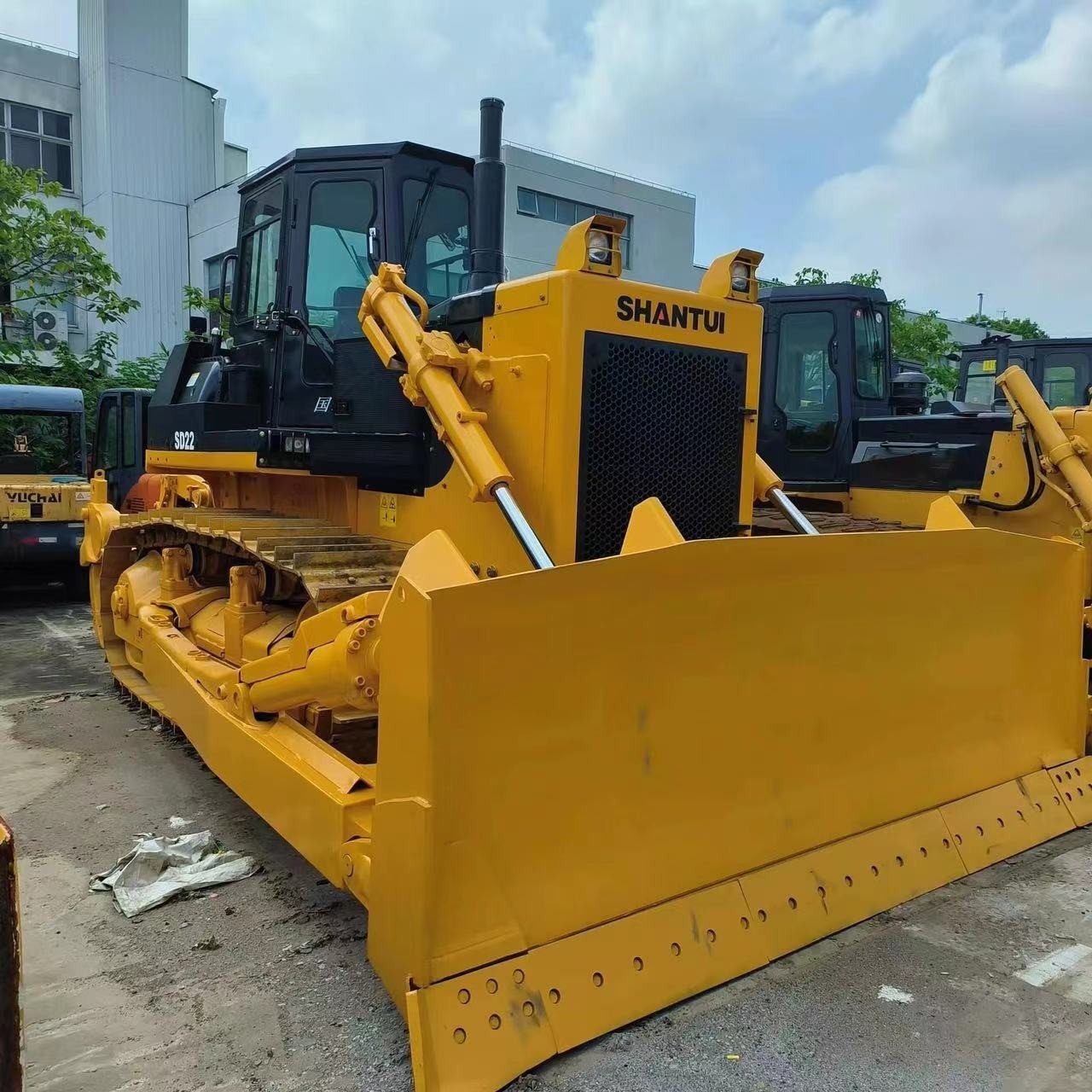

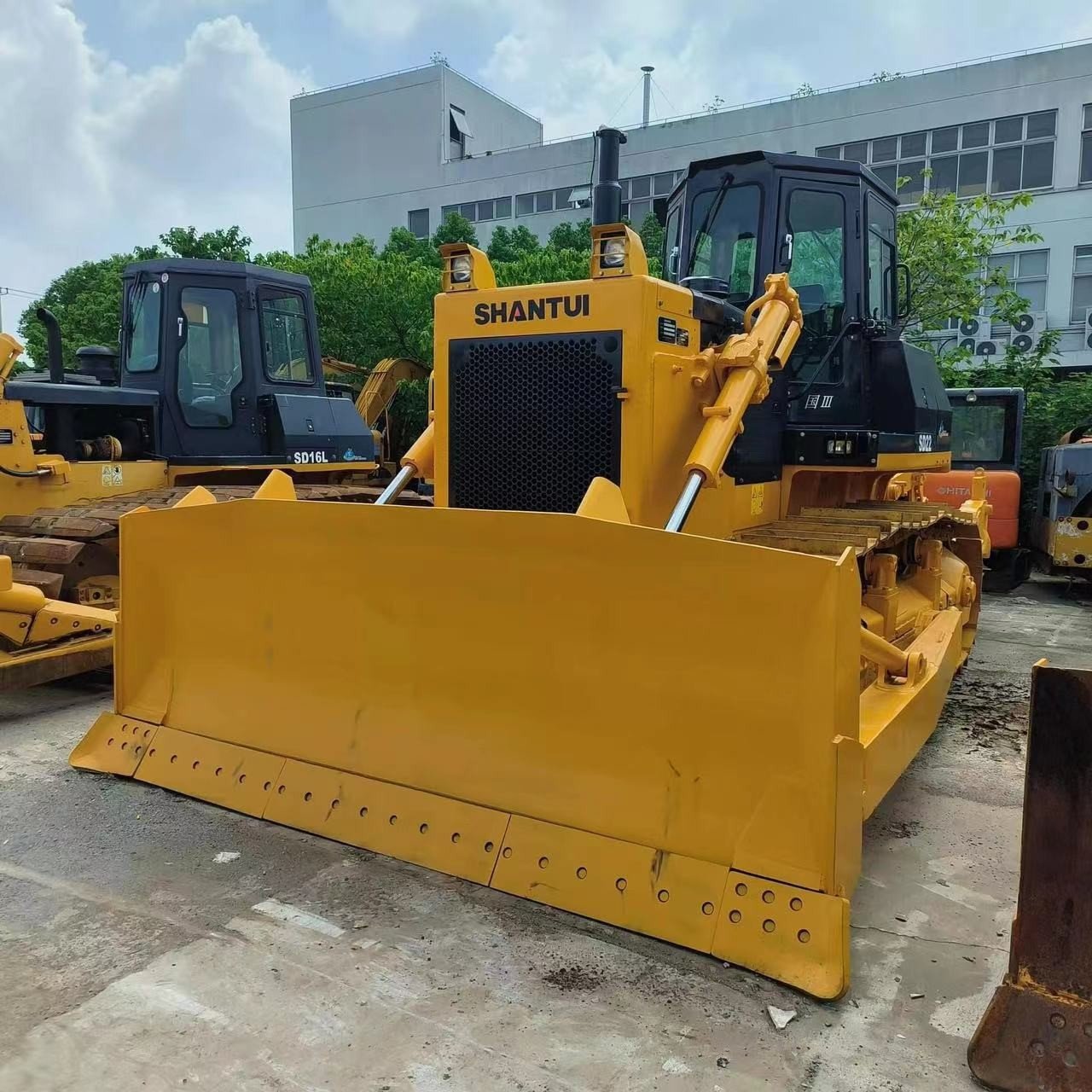

Versatile Blade Options: Available with straight tilt blade, U blade, and angle blade, each designed for specific tasks.
Enhanced Traction and Stability: Wide track gauge and optimized ground pressure ensure excellent stability and traction on various terrains.

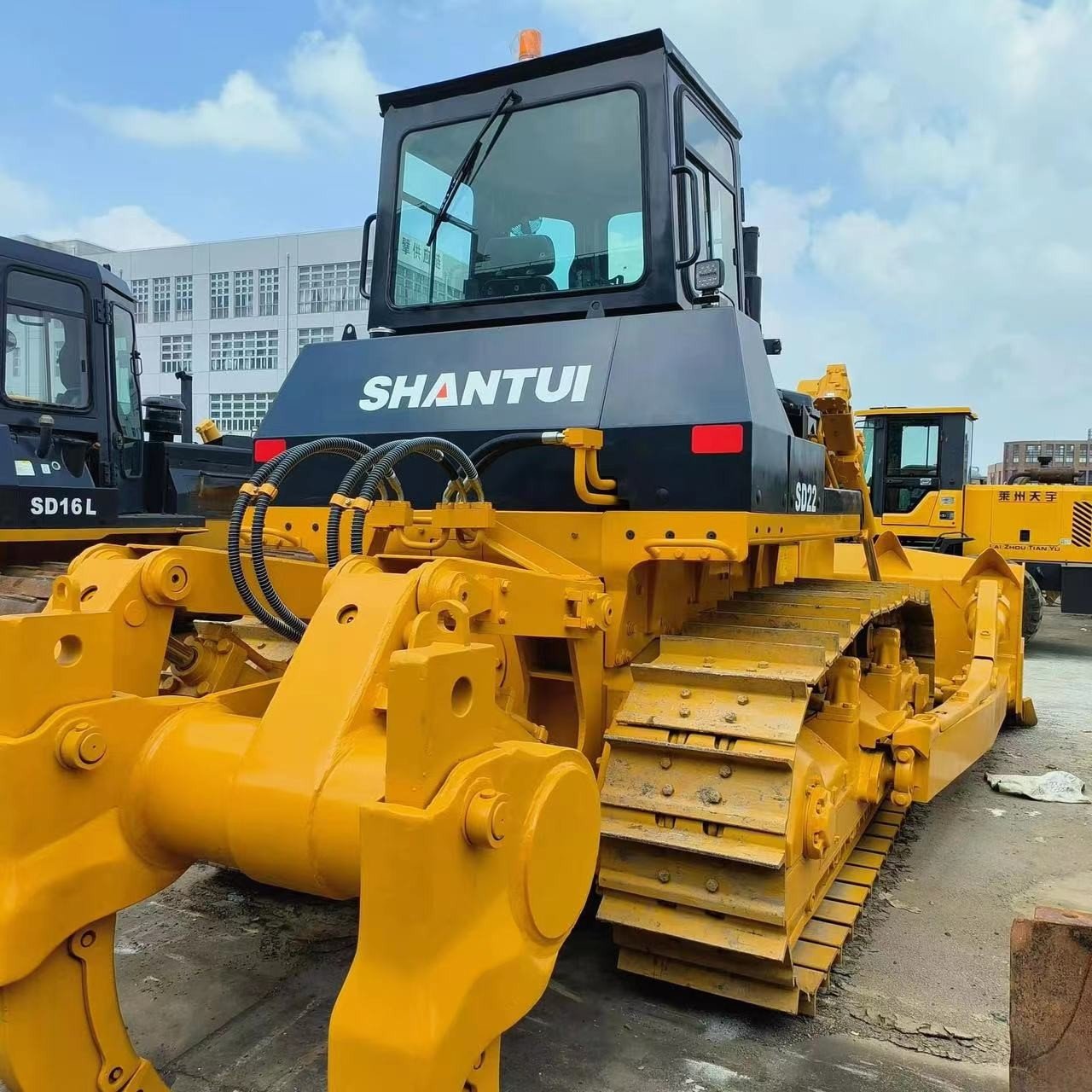

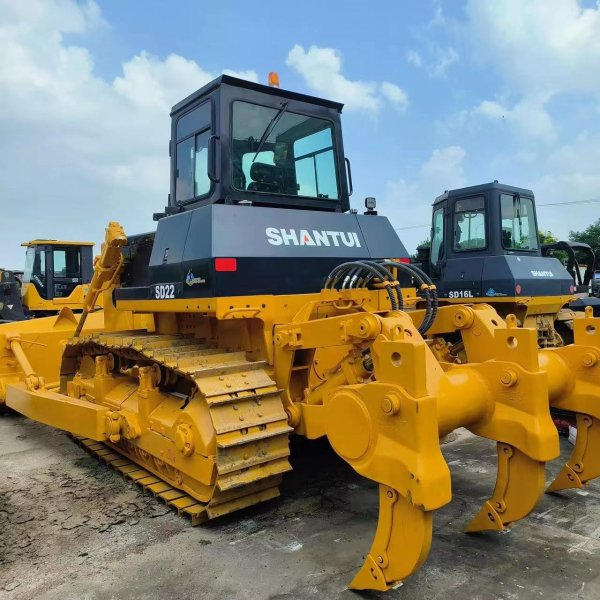

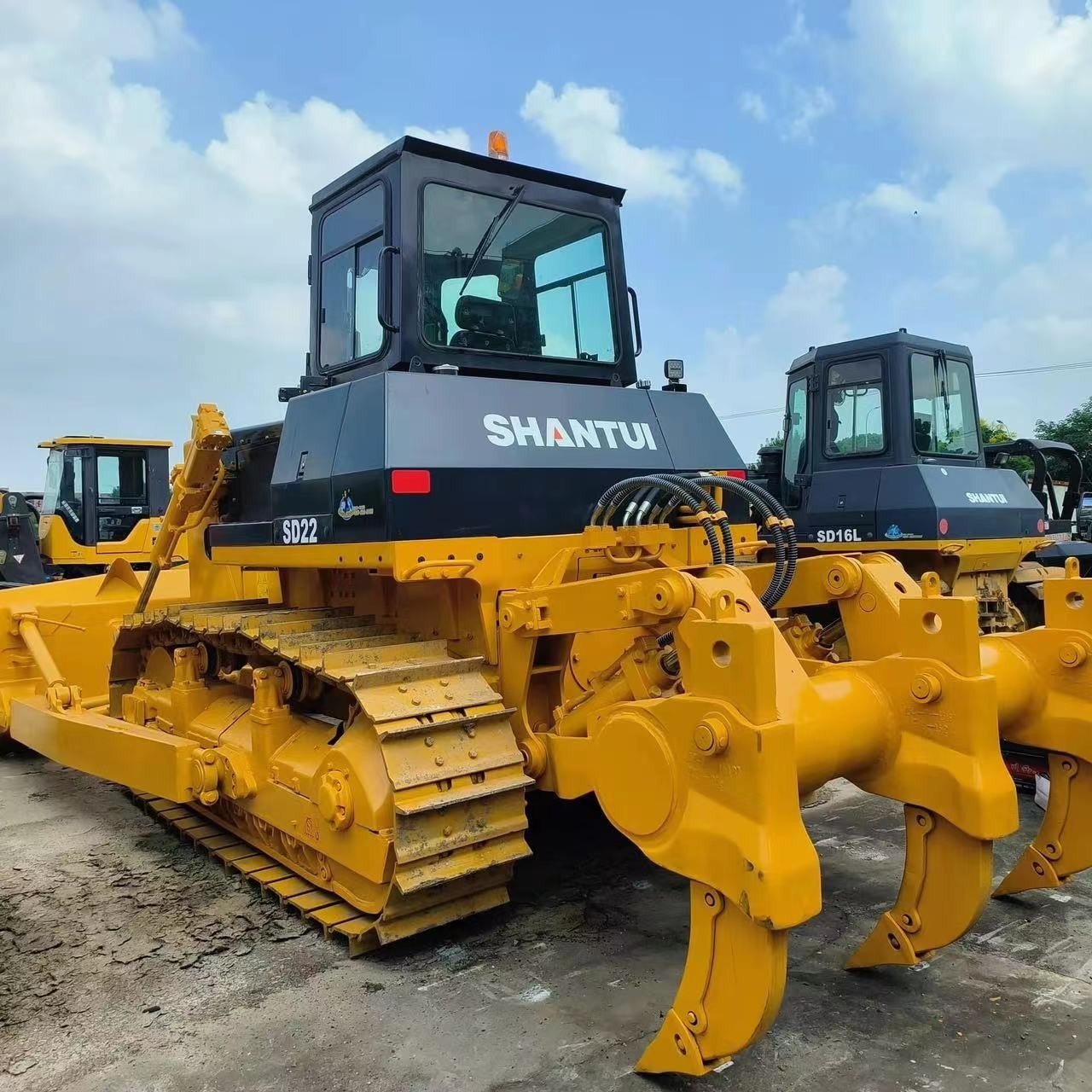

Powerful Ripping Capability: Equipped with a three-shank ripper for effective soil and rock breaking.
Easy Maintenance: Designed for easy access to critical components, ensuring quick and efficient maintenance.

Product Parameters

表格

复制

Item	Unit	SD16
Dimensions
L×W×H (Ripper not included)	mm	5140×3388×3032
Operating Weight	t	17 (Ripper not included)
Engine	-	Shangchai SC11CB184G2B1 / Weichai WD10G178E25
Rated Power	kW/rpm	135/1850 (Shangchai) / 110/1850 (Weichai)
Gradeability	°	30
Blade Type	-	Straight tilt blade / U blade / Angle blade
Blade Width	mm	Straight tilt blade 3388×1149 / U blade 3556×1120 / Angle blade 3970×1040
Dozing Capacity	m³	Straight tilt blade 4.5 / U blade 5 / Angle blade 4.3
Max Drop Below Ground of Blade	mm	540
Lift Height of Blade	mm	1095
Ripper Type	-	Three-shank ripper
Ripping Depth of Ripper	mm	572
Lifting Height of Ripper	mm	592
Number of Carriers (each side)	-	2

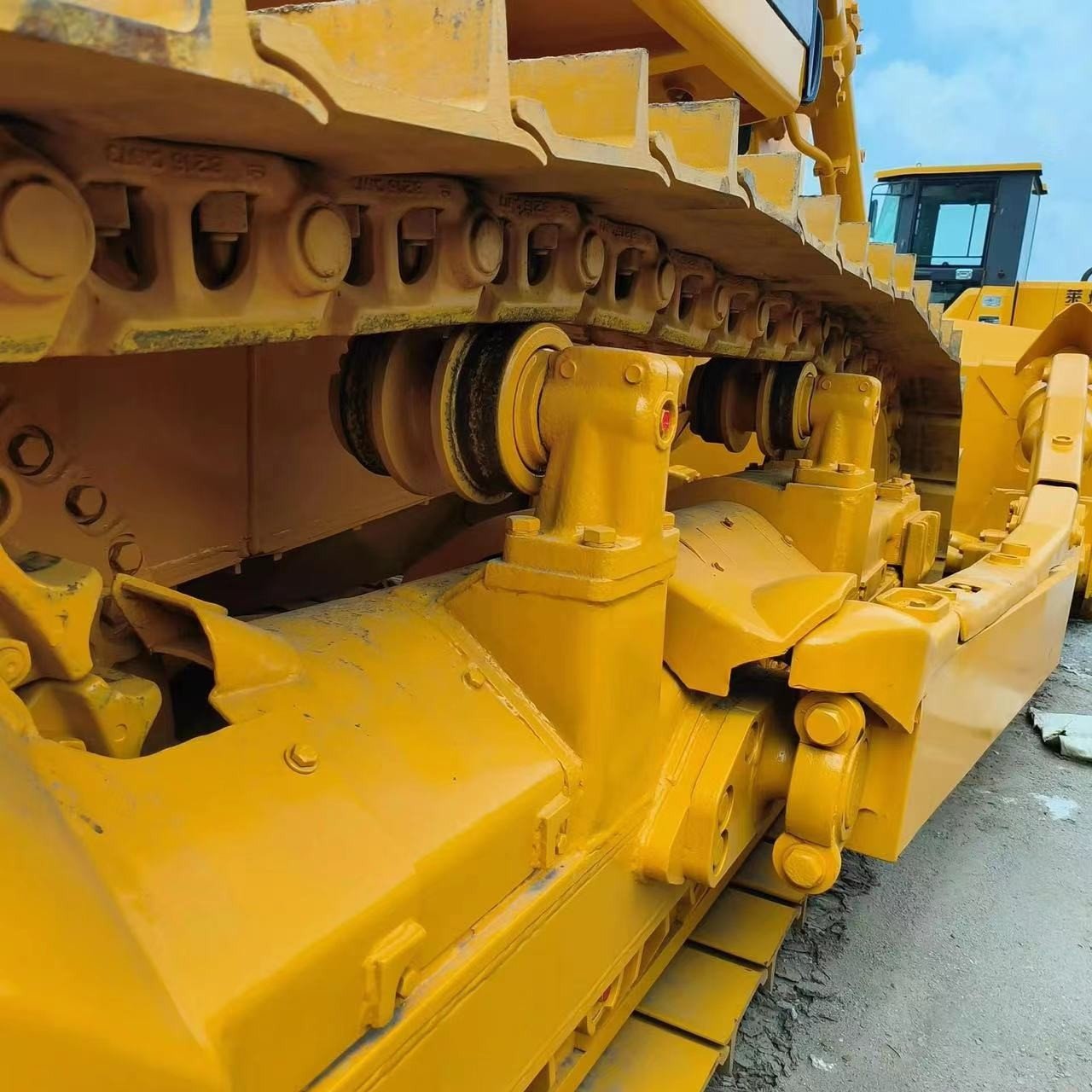

Number of Track Rollers (each side)	-	6
Number of Track Shoes (each side)	-	37
Width of Track Shoe	mm	510
Track Gauge	mm	1880
Ground Length and Ground Pressure	mm/MPA	2430 / 0.067
Pitch	mm	203.2
Forward Speed	km/h	0-3.29 / 0-5.82 / 0-9.63
Reverse Speed	km/h	0-4.28 / 0-7.59 / 0-12.53

Applications

Construction Sites: Ideal for land clearing, grading, and heavy-duty excavation tasks.
Infrastructure Development: Suitable for road construction, pipeline laying, and other large-scale projects.
Mining Operations: Effective for site preparation and material handling in mining environments.
Land Reclamation: Perfect for reclaiming and leveling land in various terrains.
