China Sino HOWO 6*4 Skip Loader Rubbish Transfer Vehicles 12cbm 12, 000liters Swing Arm Garbage Truck Waste Collector Truck
No.:
Vehicle Type: Garbage Truck
Brand Name: SINOTRUK
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details

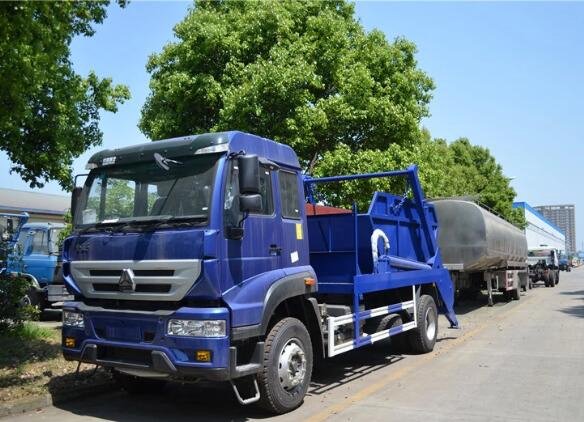

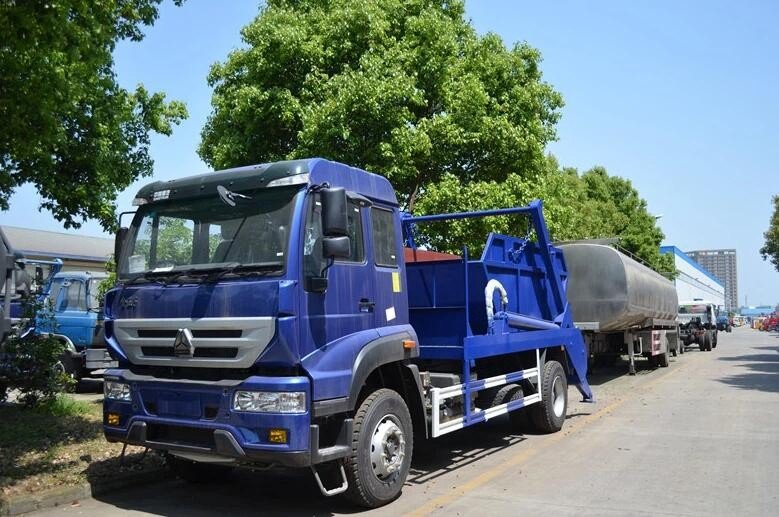

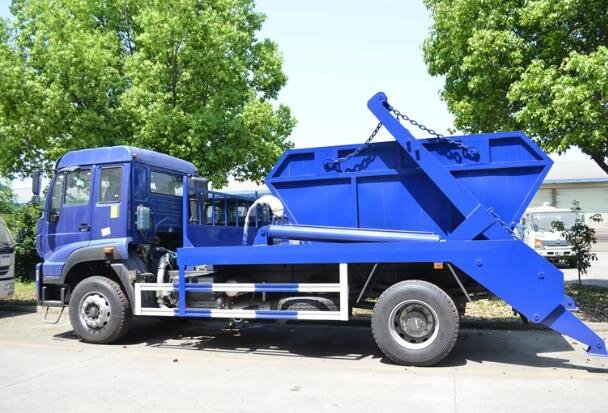

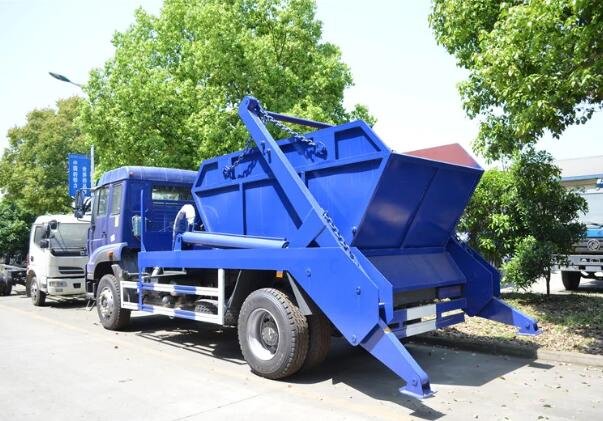

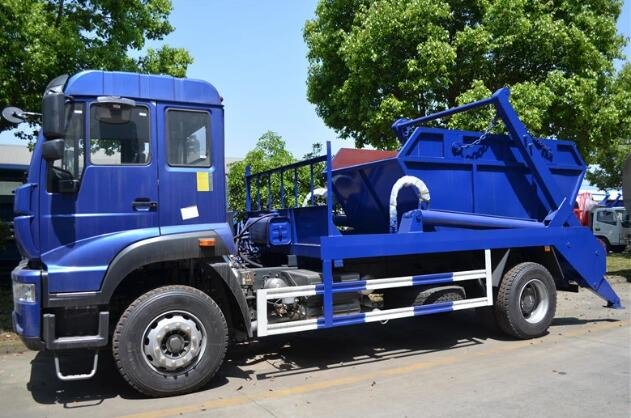

China Sino HOWO 6×4 Skip-Loader Swing-Arm Garbage Truck 12 m³ Waste Collector for Sale
Key Features
• Proven HOWO 6×4 Chassis – 290 HP WD615.87 engine, HW19710 10-speed gearbox, ZF8098 steering
• High-Strength Skip Frame – Carbon-steel box section, 30 000 kg yield, shot-blast & epoxy primer
• Hyva Lifting Gear – Twin under-slung cylinders, 18 t lift capacity, 50° dump angle, self-lock safety hooks
• 12 m³ Swing-Arm Hopper – 4 mm carbon steel, trapezoid or boat-shape, above/under-ground options
• Dual Stabilisers – Hydraulic rear legs, ground-contact pressure 2 × 8 t, automatic levelling
• Multi-Bin Compatible – Handles 4–15 m³ bins, quick-change chain set, remote-control valve bank
• All-Weather Operation – 24 V electrics, 300 L aluminium fuel tank, Euro-2 emission, 75 km/h max
Specifications
| Item | Parameter |
|---|---|
| Overall Dimension | 9 010 × 2 500 × 3 450 mm |
| Wheelbase | 4 350 + 1 350 mm |
| Gross Vehicle Weight | 25 000 kg |
| Front Axle Load | 9 000 kg |
| Rear Axles Load | 2 × 16 000 kg |
| Engine | Sino WD615.87, 290 HP, 9.726 L, Euro-2 |
| Gearbox | HW19710, 10 fwd + 2 rev |
| Max Speed | 75 km/h |
| Tyres | 12.00R20, 10 + 1 |
| Steering | ZF8098 hydraulic |
| Brakes | Dual-circuit air, spring parking, exhaust auxiliary |
| Fuel Tank | 300 L aluminium |
| Electrics | 24 V, 2 × 165 Ah batteries |
| Skip Hopper | 12 m³, 4 mm carbon steel, swing-arm type |
| Lifting System | Hyva twin cylinders, 18 t capacity |
| Dump Angle | 50° |
| Stabilisers | Double hydraulic rear legs |
| Control | Manual + optional remote wireless |
| Cycle Time | <30 s (lift & dump) |
| Colour | Customer choice |
| Logo | Custom decals available |
Typical Applications
• Municipal solid-waste transfer stations
• Construction & demolition debris removal
• Industrial scrap and recyclable collection
• City centre skip-bin service
Optional Upgrades
• 15 m³ hopper for light waste
• 340 HP Euro-5 engine
• Remote-control wireless operation
• Stainless-steel hopper for corrosive loads
• Container lock system for ISO skips
Contact us for pricing and configuration options!
Contact: william
Phone/WhatsApp/WeChat: +86 18669778647
Email: Sales22@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
