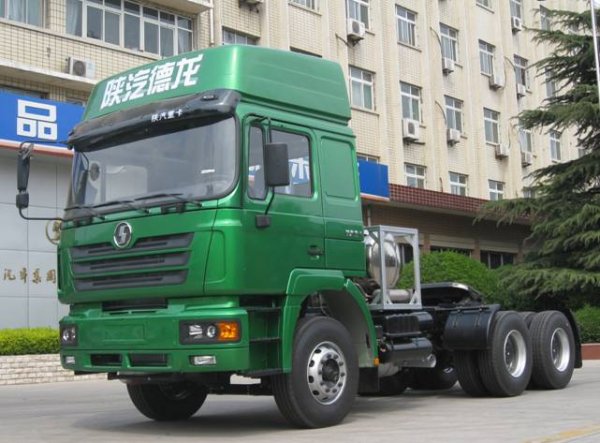

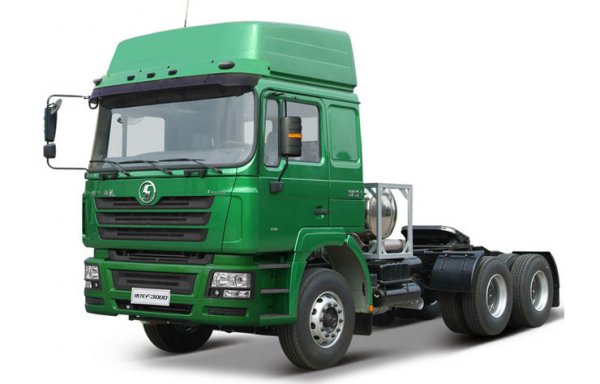

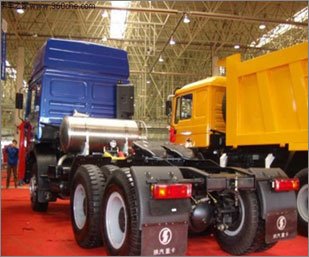

SHACMAN 6x4 LNG tractor truck
No.: Kevin-8-21-2
Vehicle Type: LNG Truck
Brand Name: SHACMAN
Person in charge: Kevin Jiang
Cel: 0086 176 6971 7518
Whatsapp: 8617669717518
E-mail: sales17@chinatruck.cc
FREE GET QUOTE
Details
shacman lng tractor truck
| Model | SX4255NT384TL |
| Drive type | 6×4 |
| Weight | |
| Complete kerb mass (kg) | 9650 |
| GCW(kg) | 25000 |
| Dimensions | |
| Max.length(mm) | 7475 |
| Max.width(mm) | 2490 |
| Max.height(mm) | 3730 |
| Front/Rear Overhang (chassis) | 1525/800 |
| Wheel base(mm) | 3800+1350 |
| Track width(mm) | 2036/1800 |
| Performance | |
| Max.speed (km/h) | 93 |
| Min.turning circle(m) | 17 |
| Min.ground clearance(mm) | 314 |
| Approach / Departure angle (°) | 20/60 |
| Max.gradeability(%) | 34 |
| Engine | |
| Brand | WEI CHAI |
| Model | WP10NG300E30 |
| Power(kw/HP) | 300 |
| Max.Torque (N.m )/rpm | 1230/1400-1600 |
| Displacement (L) | 9.726 |
| Emmission Standards | Euro III |
| Transmission | |
| Brand | FAST |
| Model | 9JS135 |
| Control type | Manual |
| Gear Shift | 9-forward and 1-reverse speeds |
| Clutch | |
| Type | Single plate, diaphragm spring type |
| Diameter (mm) | φ430 |
| Action | mechanical pull type, self adjusting air assisted clutch |
| Brakes | |
| Type | Disc |
| Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel |
| Auxiliary brake | WEVB |
| Option | ABS |
| Steering | |
| Type | Integral recirculating ball-type hydraulic power sreering |
| Option | ZF8098 |
| Chassis | |
| Type | Ladder structure, widened and cross-section variable |
| Suspension | |
| Front Suspension | semi-elliptic springs with shock absorbers |
| Rear Suspension | Inverted leaf spring stabilizator suspension |
| Axles | |
| Brand | HANDE |
| Front axle | 7500kg |
| Rear axle | 13000kg(each) Double reduction driving axle with inter-wheel differential and differential lock. |
| Ratio | 4.8 |
| Option | |
| Tyres | |
| Type (Standard) | 12.00-20 |
| Option | 12.00R20/11.00-20/11.00R20/12R22.5 |
| Fueltank | |
| Tank capacity (L) | 450 |
| Material | Dedicated high vacuum heat insulation tank |
| Electrics | |
| Type | 24V |
| Starter | 5.58kw(24V) |
| Generator | 1.54kw(28V 55A) |
| Battery | 2×135Ah |
| Cab | |
| Type | F3000 Lengthened High Roof |
| Equipments | Mechanical clerestory, 4 point air suspension, A/C, air suspension driver seat with handle and seatbelts, single berth, USB for MP3 format document playing, mini-ice box |
| Others | whole-enclosed mudguard |
