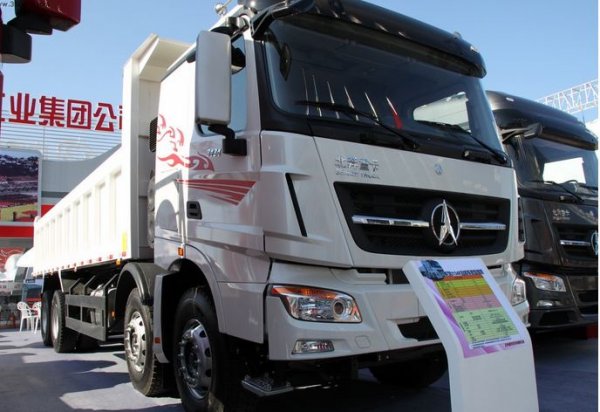

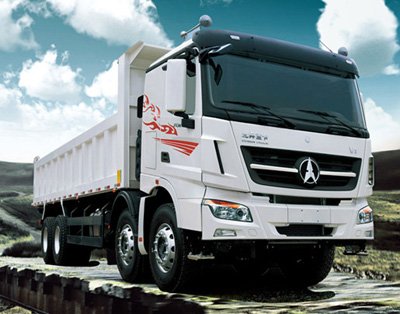

North Benz V3 8x4 340hp Dump Truck



Announcement Type

ND33100D37J7

Drive Type

8x4

Wheelbase

1950+3700+1450mm

Overall length

10650 mm

Overall width

2500mm

Overall height

3484mm

Total mass

31000 (Kg)

Curb weight

15070 (Kg)

Track

Front track: 2045/2045mm    Rear track:1872/1872mm

Front / rear overhang

1515/1835,1515/2035(mm)

Rated load

15735 (kg)

Max speed

90 km/h

Approach angle

16 degrees

Departure angle

32 degrees









Engine

Engine Model: Weichai WP10.340E32,

Number of cylinders:6,

Fuel type: Diesel fuel

Displacement:9.726L

Emission standards: Euro III

Horsepower:340hp

Maximum output power:250KW



Transmission



Transmission Type: Fast Gear 12JS160T

shift modes: manual

Is there Synchronizer: Yes

Reverse gear:2
Forward gear number:12



Chassis



Axle load: 6500/6500/18000 (and loading axis)
Number of axes: 4
Spring: 12/12/13

Tire

Number of tires:12+1(spare tire)

Tire Size: 12.00 R20

Tank

Fuel tank capacity:300L

Tank Material: aluminum

Body

Inner size(mm):7000x2300x1500

Thickness of body steel(mm): floor 8 side & back 4

Tipping type: Front tipping type( in the front body with HYVA  tipping system HOLLAND technology)
