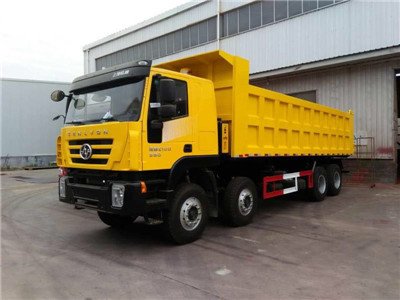

Brand new genlyon 12 wheel dump truck
No.: bella19
Vehicle Type: Dump Truck
Brand Name: SAIC-IVECO HONGYAN
Person in charge: Kobe Zhang
Cel: 0086 176 6971 7516
Whatsapp: 8617669717516
E-mail: sales30@chinatruck.cc
FREE GET QUOTE
Details
Brand | IVECO_HONGAYN （8*4） |
Type | Dump Truck |
Model | (Drive forms 8x4) LHD |
Appearance Dimension：Length (mm) | 9845 |
Appearance Dimension：Width(mm) | 2500 |
Appearance Dimension：Height (mm) | 3510 |
★ Engine | CURSOR-9 340HP,EURO-3 |
Gear Box | 12JSD180T FROM FULLER technology |
Steering | ZF technology full hydraulic power assisted |
Clutch | 420mm type single plate power boosted. |
★ CAB | IVECO-STRALIS CABIN |
Kerb Weight (kg) | 14930 |
Front axle load (kg) | 6500 |
★ Rear axle load (kg) | full cast reinforcement double reduce rear axle, no welding. 16T |
Fuel type | Diesel |
Fuel tank capacity | 400L |
Exhaust standard | Euro 3 |
Number of axle | 4 |
Wheel base (mm) | 1800+3275+1400mm |
Number of tires | 13unints |
Type of tire | 12.00R20 Radial tire |
★ Longitudinal beam | 317mm Double 8mm+8mm, |
lift cylinder system
| Hyva tipping system(Holland technology) front tipping |
Dimensions of lorry body | 6700*2300*1500（mm） |
Thickness of body steel | Floor 8 mm side 6mm |
