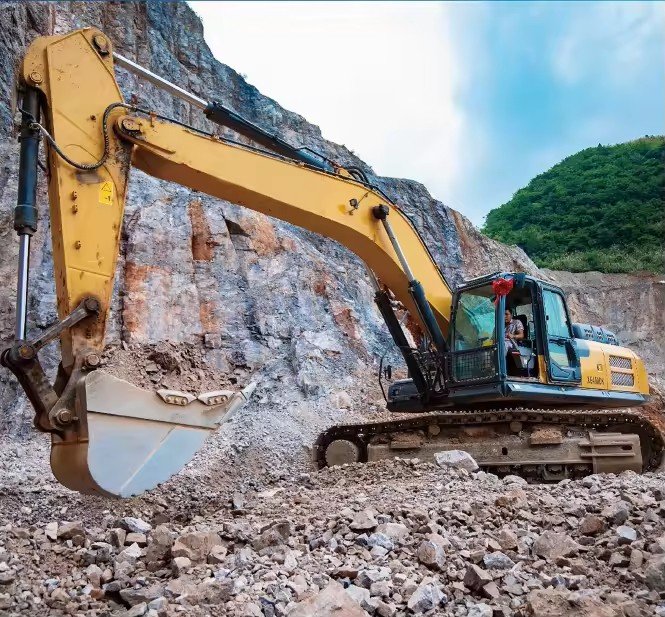

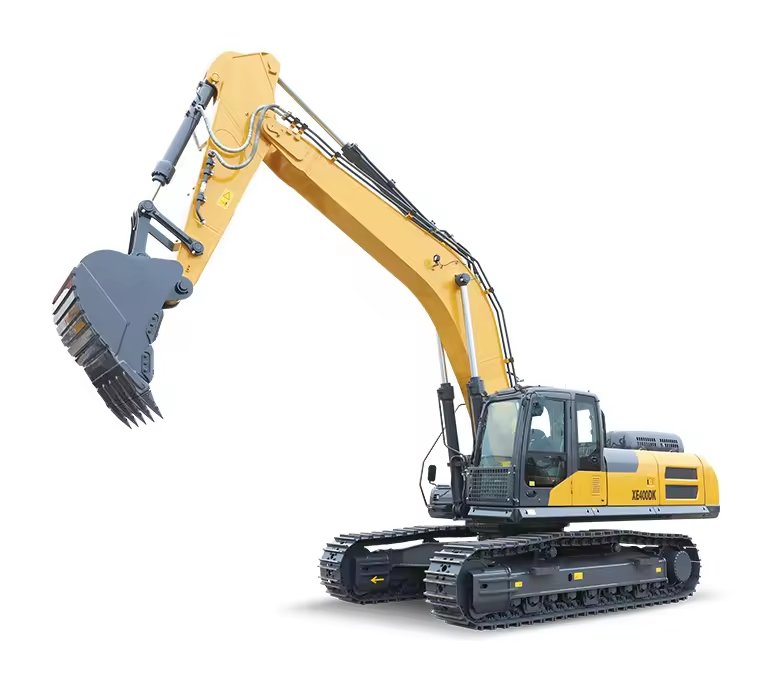

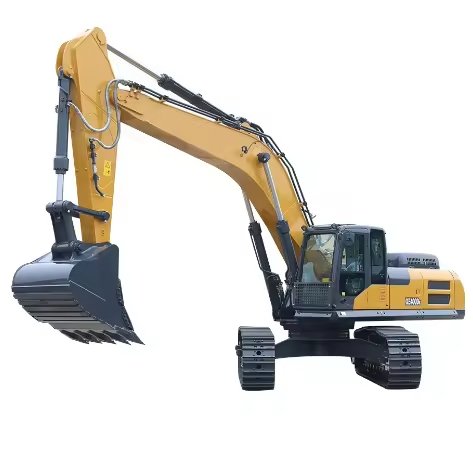

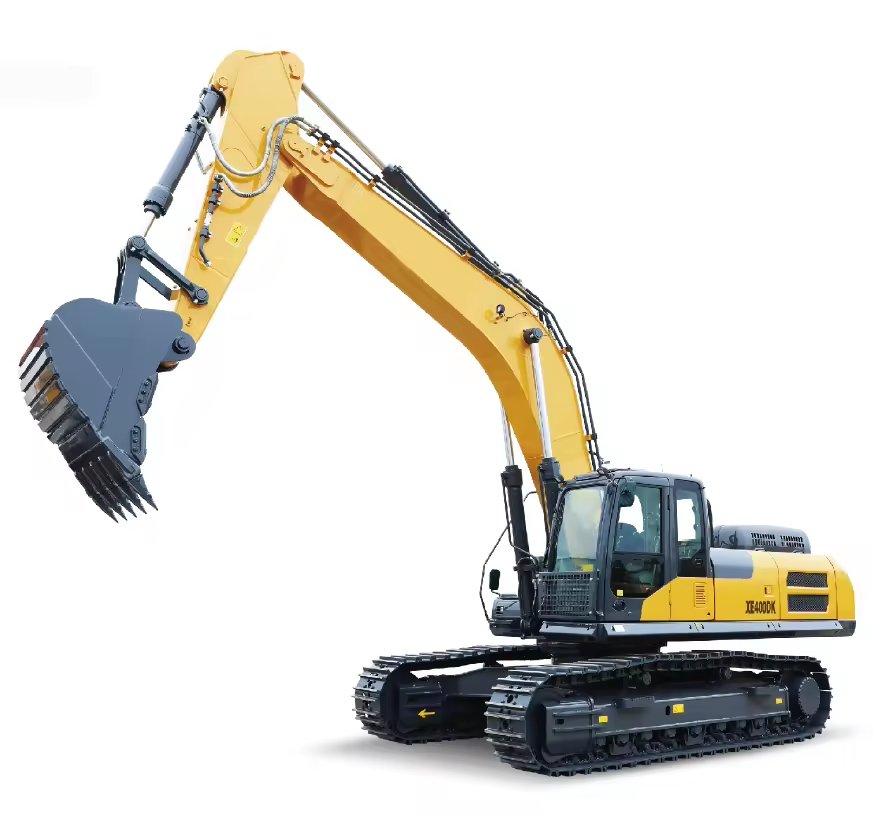

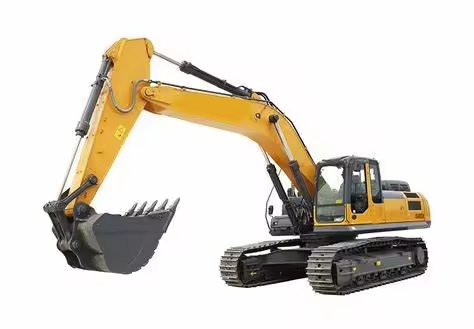

XE400DK Excavator

The XE400DK Excavator is a high-performance heavy-duty machine designed for a wide range of construction, mining, and earthmoving applications. It features a powerful engine, robust hydraulic system, and advanced operating capabilities, making it an ideal choice for demanding projects.

Product Highlights

Powerful Engine: Equipped with a reliable QSL9 engine, delivering strong performance and efficiency.
High Digging Forces: Exceptional bucket and arm digging forces ensure efficient excavation and material handling.
Excellent Mobility: High travel speed, swing speed, and gradeability make it suitable for various terrains and working conditions.
Optimized Hydraulic System: High-rated flow and pressure ensure smooth operation and increased productivity.
Spacious and Comfortable Cab: Designed for operator comfort, with easy access to controls and excellent visibility.

Product Parameters

复制

Item	Unit	XE400DK
Model	-	XE400DK
Operating Weight	kg	39400
Bucket Capacity	m³	2
Engine	-	-
Model Engine	-	QSL9
Injection	-	√
Four Strokes	-	√
Water Cooling	-	√
Turbo-charging	-	√
No. of Cylinders	-	6
Rated Power/Speed	kW/rpm	222/2100
Maximum Torque/Speed	N.m/rpm	1424/1200~1600
Displacement	L	8.9
Main Performance	-	-
Travel Speed	km/h	5.6/3.3
Swing Speed	r/min	9.6
Gradeability	°	35
Ground Pressure	kPa	68
Bucket Digging Force	kN	310
Arm Digging Force	kN	227
Maximum Tractive Force	kN	330
Hydraulic System	-	-
Rated Flow of Main Pump	L/min	2×370
Travel System Pressure	MPa	34.3
Swing System Pressure	MPa	26.5
Pilot System Pressure	MPa	3.9
Oil Capacity	-	-
Fuel Tank Capacity	L	660
Hydraulic Tank Capacity	L	350
Engine Oil Capacity	L	30
Appearance Size	-	-
Overall Length	mm	11300
Overall Width	mm	3340
Overall Height	mm	3760
Width of Platform	mm	3200
Total Width of Chassis	mm	3340
Track Shoe Width	mm	600
Wheel Base of Crawler	mm	4255
Track Gauge	mm	2740
Counterweight Clearance	mm	1272
Min. Ground Clearance	mm	550
Working Range	-	-
Max. Digging Height	mm	9946
Max. Dumping Height	mm	6890
Max. Digging Depth	mm	6660
Max. Vertical Wall Digging Depth	mm	4725
Max. Digging Radius	mm	10385

Applications

Construction Sites: Ideal for excavation, grading, and heavy-duty earthmoving tasks.
Mining Operations: Suitable for material handling and site preparation in mining environments.
Infrastructure Development: Efficient in road construction, pipeline laying, and other large-scale projects.
Land Reclamation: Perfect for reclaiming and leveling land in various terrains.
