Steering Component Sourcing: The Wholesaler’s Margin Logic & The Buyer’s Survival Guide

Steering parts are high-frequency "wear-and-tear" items. For the wholesaler, they are cash-flow engines. For the buyer, they are the insurance policy against uneven tire wear and catastrophic loss of control.

1. Kingpins: Tapered vs. Straight – The "Kit" Strategy

Wholesaler Insight: Never stock kingpins in isolation. To maximize profit and minimize claims, you must sell Kingpin Repair Kits.

• The Hardcore Trap: Cheap kits come with low-grade thrust bearings. If the bearing collapses under a 40-ton load, your reputation collapses with it. Ensure your kits feature heavy-duty thrust bearings and reamable bushings.

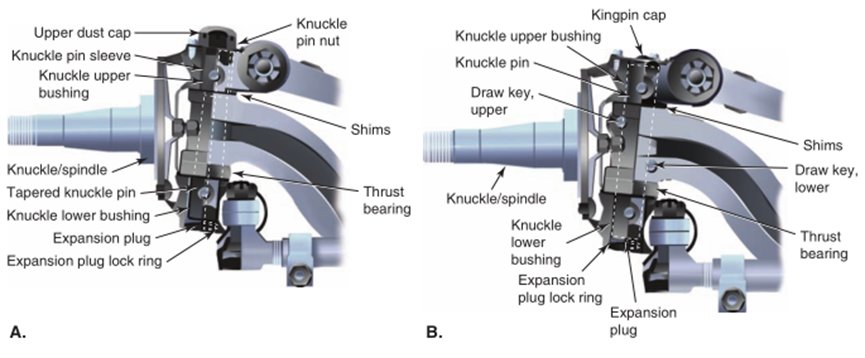

  Pro-Buyer Tip: Check Figure 25-7. If your axle has a sloped seat, you need the Tapered Kingpin (A). If you install a straight pin in a tapered seat, the resulting "wobble" will destroy your axle beam within weeks.




2. Ball Joints: Forged vs. Hollow Casting

Wholesaler Insight: The market is flooded with "hollow" ball joints made of cast iron to save weight and cost.

• The Sales Hook: Sell Forged Steel joints with metal-to-metal bases. Tell your customers: "Plastic seat inserts fail in hot, dusty African or Mideast environments." A forged joint is a premium sell with higher margins.

  Pro-Buyer Tip: Look at the threads. Genuine OEM-grade ball joints have Rolled Threads, which are smooth and shiny. Low-end parts have Cut Threads (rougher with visible burrs), which act as stress-risers and are prone to snapping under heavy steering torque.

3. Ackermann Arms: The Geometry Gambit

The Ackermann arm (or Tie-Rod Arm) determines the steering angle of both wheels.

• Wholesaler Risk: Never "substitute" an arm because it looks similar. If the tilt angle is off by even 1 degree, the truck will suffer from severe tire scrubbing (scuffing). You will lose customers when they realize they just burned through a $400 tire because of your $50 part.

  Pro-Buyer Tip: These must be Drop-Forged and Tempered Steel. If you see tiny holes (porosity) on the surface, it’s a cheap casting. Cast arms are brittle; they don't bend—they snap.

4. Tie-Rod Assemblies: The "Toe-In" Revenue Stream

This is the most adjusted part of the steering system.

• Wholesaler Inventory: You must stock Tie-Rod Ends in a 1:1 ratio (Left-hand vs. Right-hand threads). If you run out of one side, the whole assembly is useless to your customer.

• The "Clamp" Detail: High-quality wholesalers check the quality of the Tie-Rod Clamps. If the clamp bolt is Grade 8.8 or lower, it won't hold the adjustment. Sell Grade 10.9 or higher.

  Pro-Buyer Tip: The reverse-thread design (one side LH, one side RH) is for adjusting Toe-in. When you rotate the tube, you change the length. Hardcore Warning: Always tighten the clamps after adjustment. A loose tie-rod tube in rough terrain is a death sentence for your steering control.

Hardcore Sourcing Matrix (2026 Edition)

Strategic Advice for the 2026 Global Market

With the ongoing Red Sea crisis and logistics diversions around the Cape of Good Hope, the cost of heavy forged steel is rising.

• To the Wholesaler: Your profit is no longer in "being the cheapest." It is in "Availability & Accuracy." A buyer in Tanzania or Algeria will pay a 20% premium for an Ackermann arm they know won't cause tire-wear issues.

• To the Pro-Buyer: Avoid "unbranded" steering parts. The risk-to-reward ratio is too high. Stick to OEM-aligned manufacturers (like those supplying Sinotruk or Shacman).

In the steering business, an expert doesn't just save money—they save lives and tires.
