The Pulse of Heavy-Duty Power: A Technical Guide to High-Pressure Common Rail (HPCR) Systems

In the modern era of commercial transport, the High-Pressure Common Rail (HPCR) system stands as the definitive technology for diesel efficiency. Unlike older mechanical systems, the HPCR architecture separates the generation of fuel pressure from the injection timing, allowing for unprecedented control over the combustion process.

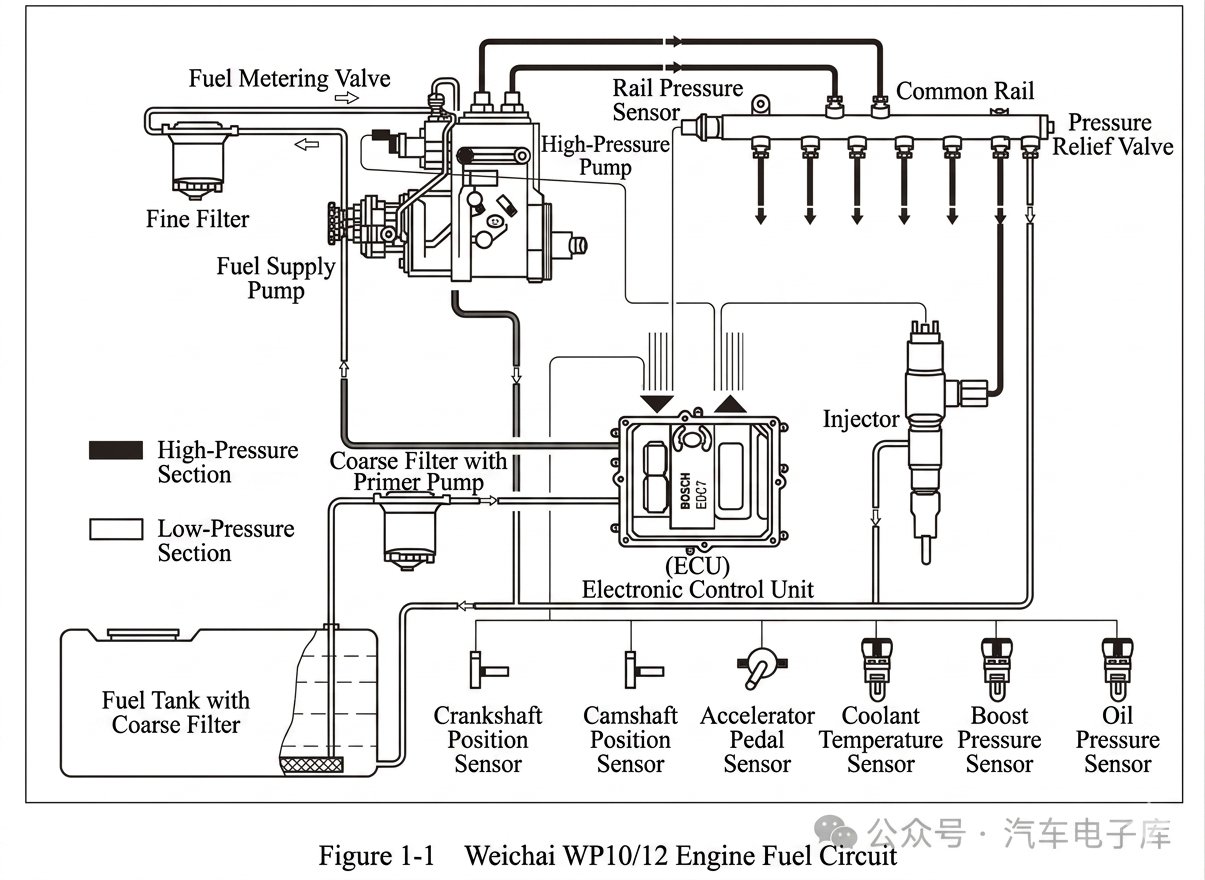

1. Structural Anatomy of the Fuel Circuit

The reliability of a HPCR system depends on the seamless transition between the low-pressure and high-pressure circuits.

Low-Pressure Path: Fuel flows from the Tank through a Primary Filter (to remove large debris and water). It then passes through the ECU (Electronic Control Unit). This is a critical design feature: the fuel acts as a coolant for the ECU's internal electronics before reaching the Supply Pump. After being pushed through a Secondary (Fine) Filter, the fuel finally enters the High-Pressure Pump.
High-Pressure Path: Once the High-Pressure Pump pressurizes the fuel, it is stored in the Common Rail. This rail serves as a high-pressure accumulator, providing a constant and stable supply to each Injector. Under the ECU's command, these injectors fire multiple times per cycle (pilot, main, and post-injection) to optimize power and emissions.

2. Control Principles: How Rail Pressure is Managed

Achieving the perfect "mist" for combustion requires the rail pressure to be adjusted in real-time according to the engine's load and speed.

Closed-Loop Regulation: The system maintains a baseline low-pressure of approximately 0.9 MPa via a relief valve. The high-level regulation is handled by the Fuel Metering Unit (MeUN), located between the low-pressure circuit and the high-pressure pump.
PWM Duty Cycle: The ECU monitors the Rail Pressure Sensor and sends a Pulse Width Modulation (PWM) signal to the Metering Unit. By adjusting the "Duty Cycle," the ECU throttles how much fuel enters the high-pressure pumping chambers. This ensures the actual pressure in the rail always converges toward the target setpoint.
Air Elimination: To prevent airlocks—which can cause erratic pressure and engine stalling—the system includes a Zero Fuel Orifice. This small opening allows air to be bled back into the return line, maintaining hydraulic integrity.

3. Maintenance Insight: Beyond the Fuel Lines

As environmental regulations (such as Euro IV, V, and VI) evolve, the HPCR system works in tight coordination with other electronic modules:

SCR Integration: In engines like the Weichai WP12 or Cummins ISG, the precision of the fuel system directly impacts the efficiency of the Selective Catalytic Reduction (SCR) system. Poor injection quality leads to incomplete combustion, which can clog the DPF (Diesel Particulate Filter) and overload the urea dosing system.
Diagnostic Priorities: When troubleshooting a common rail engine, the Fuel Metering Unit is often the "hidden" culprit. Corrosion at the connectors or a sticky plunger can cause fluctuating rail pressure, leading to "Limp Mode" or hard starts.
