SINOTRUK SITRAK C7H HOWO T7 T5G WG9716582245 Truck Parts Fuel Combination Instrument Hot Sale
No.:
Vehicle Type: Sinotruk Truck Parts
Brand Name: SINOTRUK
Person in charge: William Du
Cel: 8619050562894
Whatsapp: 8619050562894
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Product Description

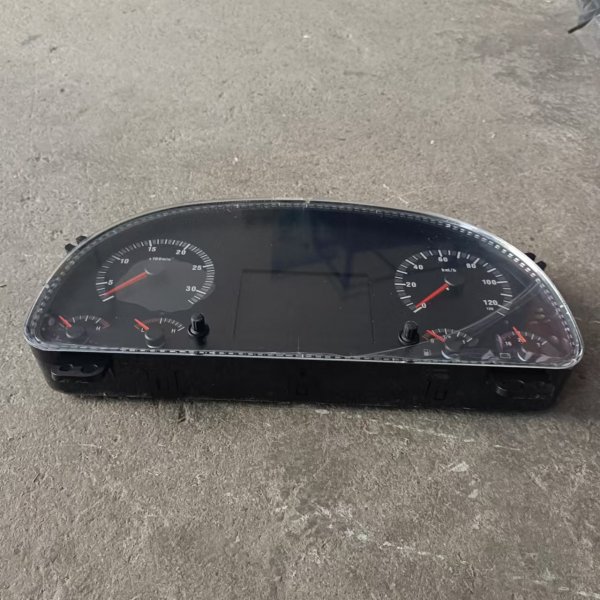

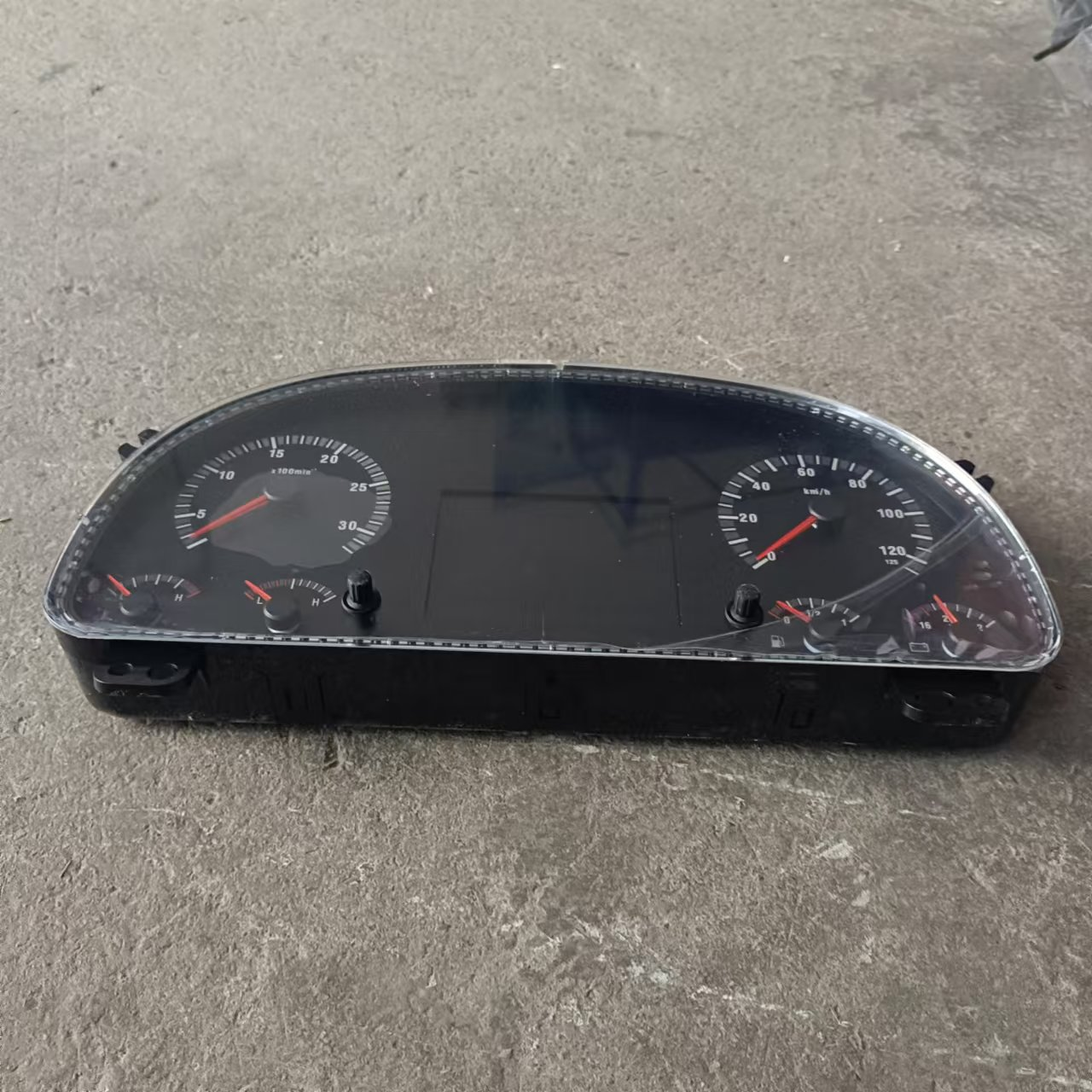

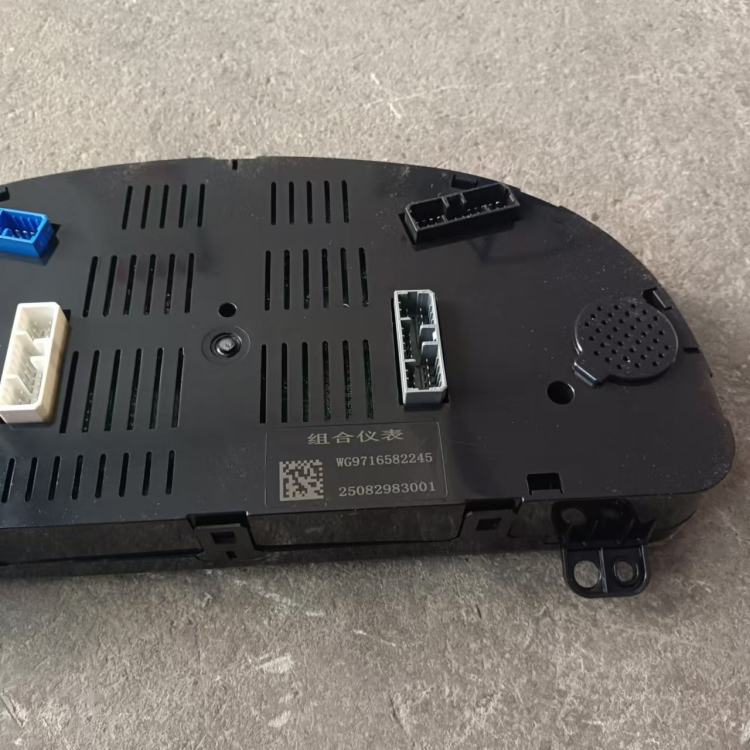

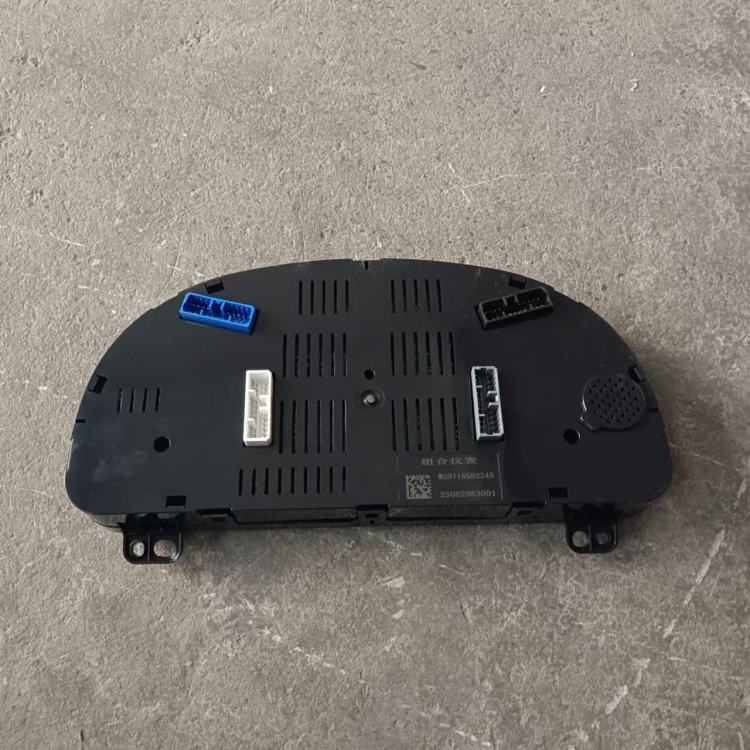

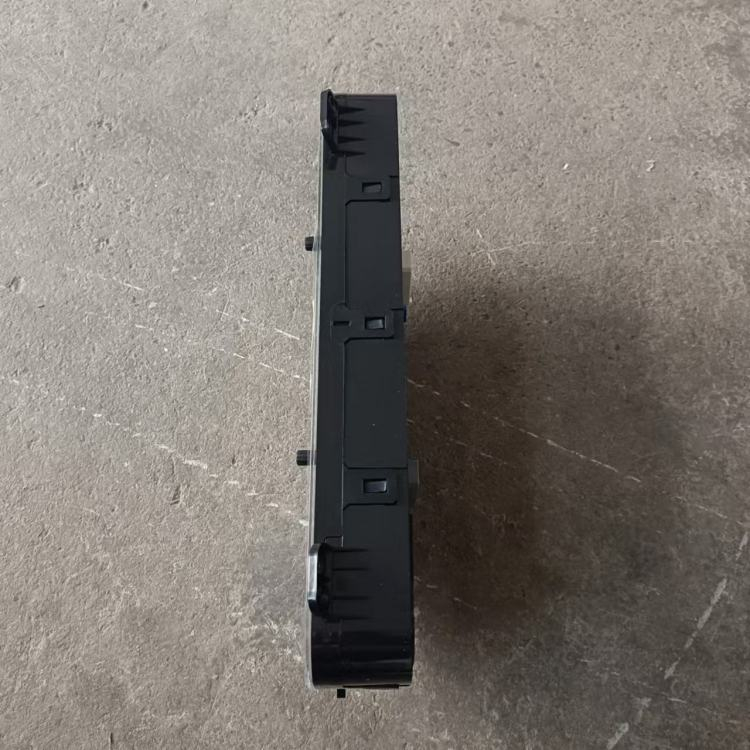

WG9716582245 Fuel Combination Instrument is installed in the cab dashboard system of SINOTRUK SITRAK and HOWO heavy trucks. It provides real-time monitoring of fuel level, speed, engine status, air pressure signals, and fault warning indicators, ensuring safe operation of commercial vehicles under long-distance transport and heavy-load conditions.
Circuit board aging, CAN communication failure, connector oxidation, display malfunction, or internal sensor signal errors may cause inaccurate readings, flickering display, warning lamp failure, or complete dashboard blackout.
This instrument cluster is widely used in export fleet maintenance, commercial truck electrical repair, engineering vehicle overhaul, and heavy truck aftermarket service.
Product Overview
This fuel combination instrument is commonly used on SINOTRUK SITRAK C7H, HOWO T7H, HOWO T5G, and related heavy-duty cab platforms equipped with electronic dashboard systems for logistics trucks, tractor trucks, and engineering vehicles.
Technical Parameters
| Parameter | Specification |
|---|---|
| OEM No | WG9716582245 |
| Product Name | Fuel Combination Instrument |
| Type | Electronic Instrument Cluster |
| Display Type | Analog + Digital Combination |
| Material | ABS Housing + PCB Electronics |
| Voltage | 24V |
| Communication | CAN Bus System |
| Installation Position | Cab Dashboard |
| Function | Fuel / Speed / Air Pressure / Warning Display |
| Application System | Heavy Truck Electrical System |
| Weight | Approx. 1–2 KG |
| Packing | Export Carton + Foam Protection |
| Application | Truck Cab Instrument System |
Fitment Models
SINOTRUK SITRAK C7H Tractor Truck
SINOTRUK HOWO T7H Tractor Truck
SINOTRUK HOWO T7 Cargo Truck
SINOTRUK HOWO T5G Cargo Truck
SITRAK C7H Engineering Truck
| Brand | Model | Engine | Fitment |
|---|---|---|---|
| SINOTRUK | SITRAK C7H Tractor Truck | MC11 | Direct Fit |
| SINOTRUK | HOWO T7H Tractor Truck | MC13 | Direct Fit |
| SINOTRUK | HOWO T7 Cargo Truck | MC11 | Direct Fit |
| SINOTRUK | HOWO T5G Cargo Truck | MC07 | Direct Fit |
| SINOTRUK | SITRAK Engineering Truck | MC11 | Can Be Adapted |
Fitment Verification
Please verify before purchase:
VIN
OEM No
Dashboard generation
Connector plug type
CAN communication version
Voltage stability
Cab model
Instrument panel shape
Air pressure signal type
Serial plate
OEM Cross Verification (Only SINOTRUK / SHACMAN / FAW / Weichai)
Direct Fit
SITRAK C7H electronic dashboard systems
HOWO T7H instrument cluster platforms
HOWO T5G cab electronic systems
Can Be Adapted
HOWO T7 early generation dashboards after CAN verification
SITRAK retrofit systems depending on plug compatibility
Similar But Not Compatible
Mechanical-only instrument clusters
Different CAN protocol versions
New generation full digital TFT clusters
Non-SINOTRUK cab platforms
Common Field Failure Case
Case 1
Vehicle: SITRAK C7H Tractor Truck
Mileage: 620,000 KM
Problem: Fuel gauge reading fluctuates and warning lights flicker
Root Cause: Internal PCB signal instability due to vibration fatigue
Solution: Replaced WG9716582245 fuel combination instrument
Loss / Benefit: Restored stable dashboard display and improved driver safety awareness
Case 2
Vehicle: HOWO T7H Cargo Truck
Mileage: 750,000 KM
Problem: Complete dashboard blackout during night driving
Root Cause: Connector oxidation caused CAN communication failure
Solution: Installed OE-standard instrument cluster and renewed wiring connector
Loss / Benefit: Restored full vehicle monitoring system and reduced downtime risk
Case 3
Vehicle: Export Fleet Project
Mileage: Fleet Operation
Problem: Wrong instrument version supplied (different CAN protocol)
Root Cause: Mixed SITRAK and HOWO dashboard generations
Solution: Verified OEM number and communication protocol before shipment
Loss / Benefit: Avoided installation failure and repeat export freight cost
Wrong Part & Export Transport Risk Control
| Risk | Customer Concern | Practical Solution |
|---|---|---|
| Wrong OEM No | Dashboard mismatch | Confirm WG9716582245 |
| Wrong CAN Version | No signal | Verify communication protocol |
| Wrong Connector | Installation failure | Confirm plug type |
| Wrong Display Type | Incompatible cluster | Verify analog/digital version |
| PCB Damage | No display | Anti-vibration packaging |
| Moisture Damage | Signal failure | Sealed moisture-proof packing |
| Screen Breakage | Visual failure | Foam + reinforced carton |
| Wrong Cab Platform | Cannot install | Verify cab model |
Supplier Stability & Procurement Value
Stable supply of WG9716582245 helps:
Reduce wrong dashboard delivery risk
Lower fleet downtime
Improve vehicle monitoring accuracy
Reduce repeated electrical repairs
Reduce export logistics cost
Improve fleet operational reliability
Support stable wholesale procurement
Ensure consistent export supply chain
Related Truck Parts
Directly Associated Parts
WG9716582301 Cab Wiring Harness
WG9716582211 Fuel Combination Instrument
WG9716582011 BCU Controller
Same System Parts
WG9925771010 Combination Switch
WG9716580025 Dashboard Panel
WG9716582301 Electrical Junction Box
Frequently Ordered Together
Dashboard mounting frame
CAN communication cable
Fuse box assembly
Instrument panel seal strip
Often Forgotten Parts
Mounting screws
Rubber vibration pads
Connector lock clip
Ground wire terminal
