Product Description

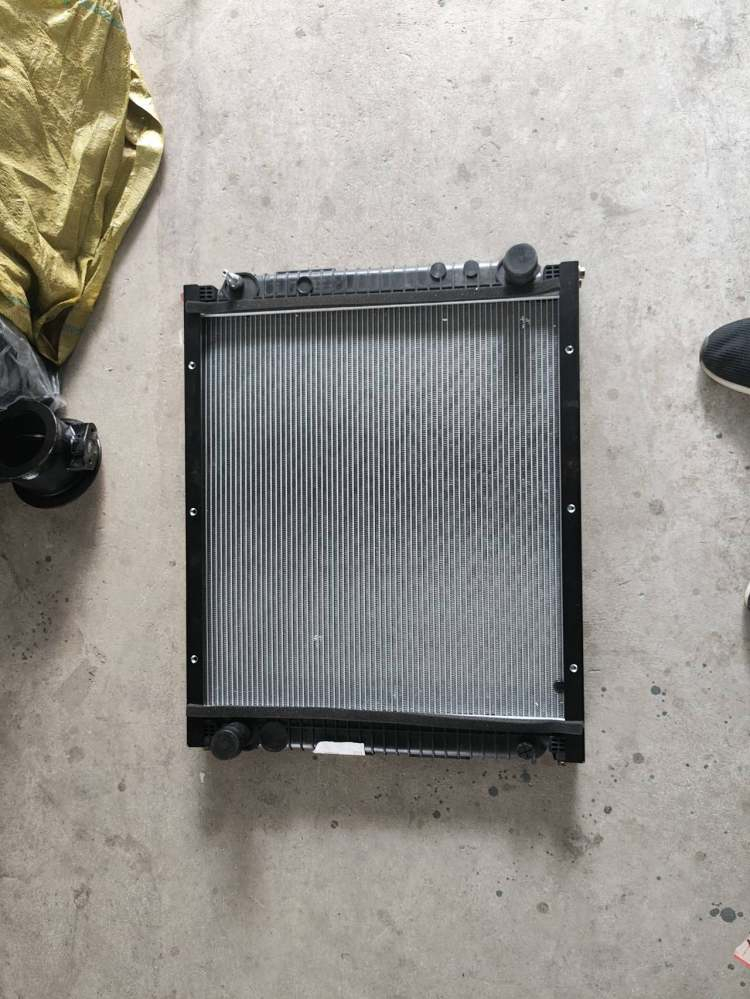

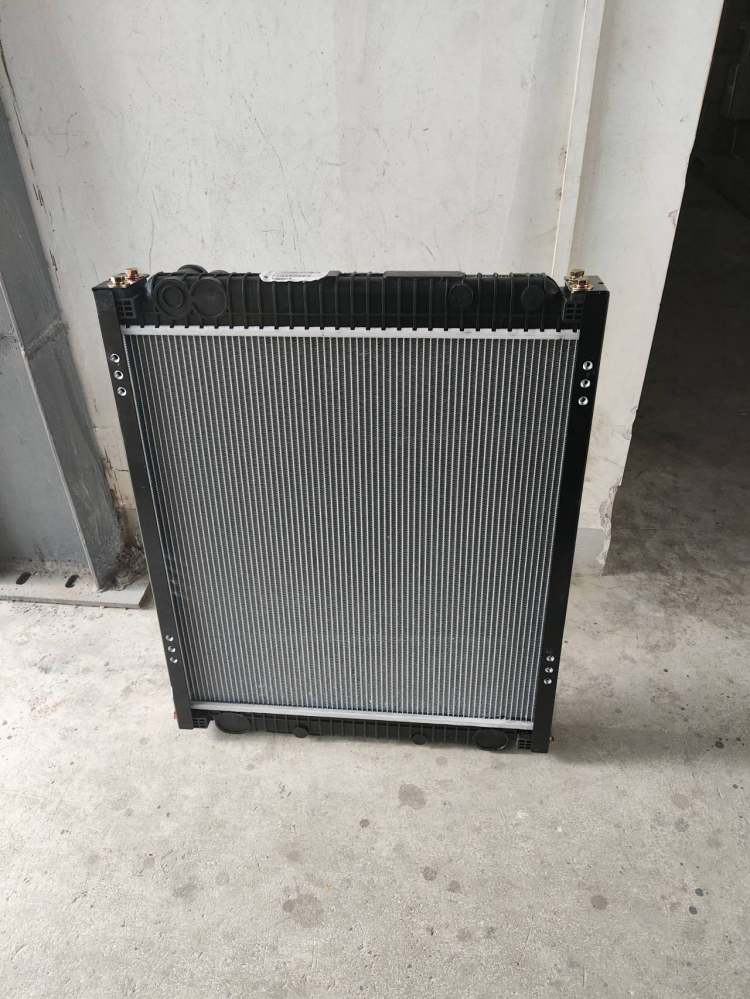

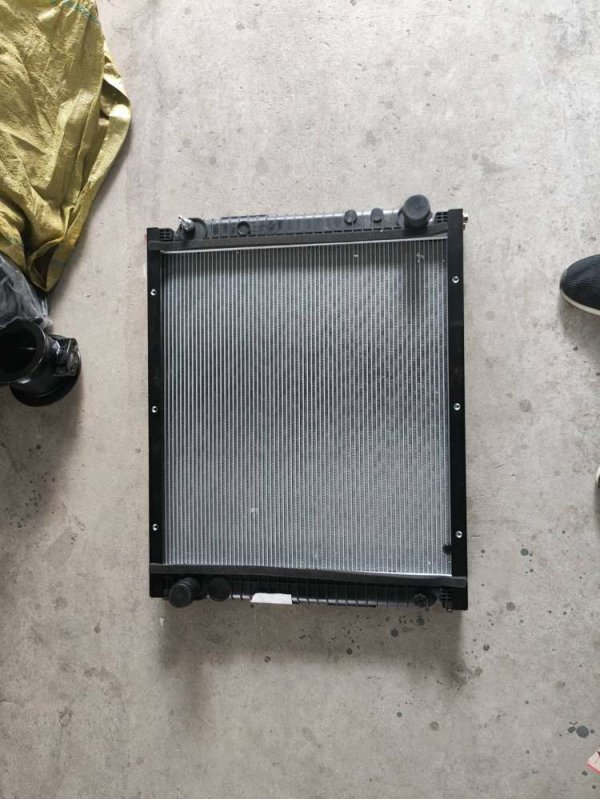

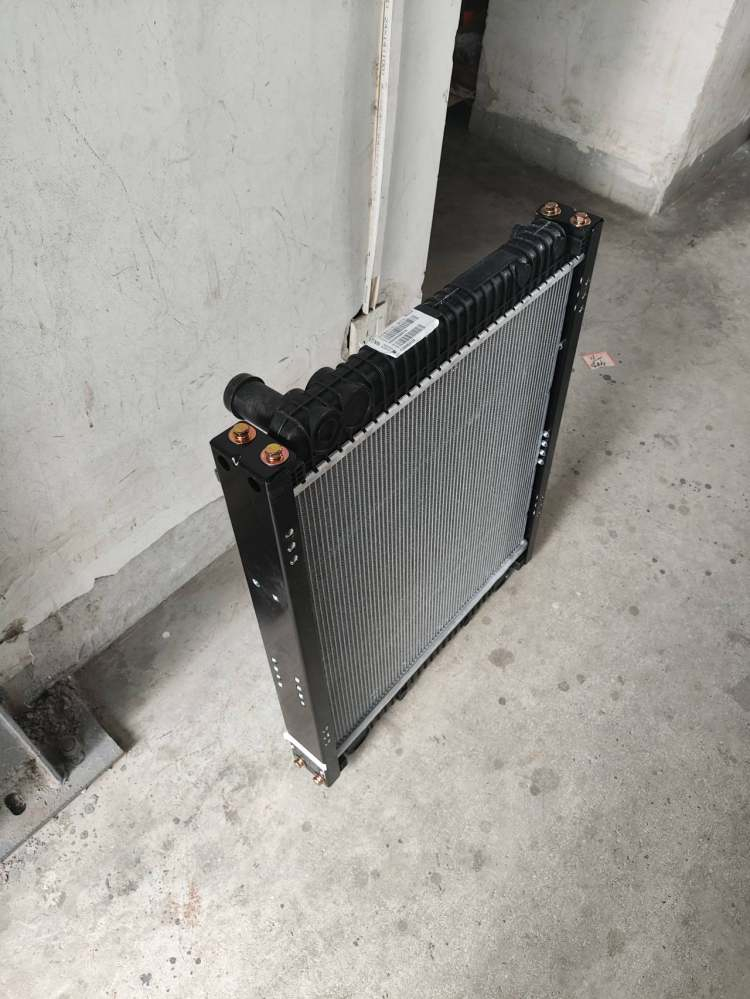

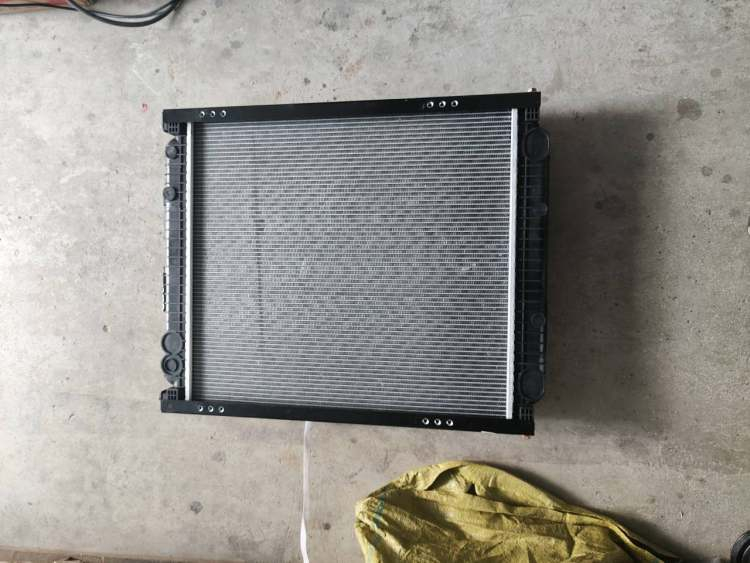

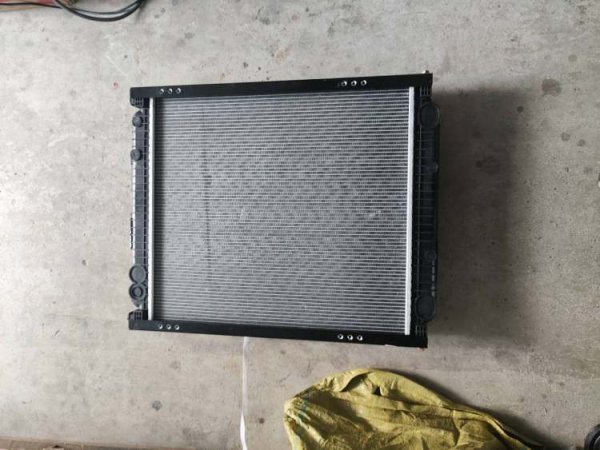

FG9804533120 Cooling Module Assembly is a front-mounted integrated thermal management system for SINOTRUK HOWO platform vehicles. It combines engine radiator, intercooler, and air-conditioning condenser into one compact module to manage engine temperature, boost intake air cooling efficiency, and support cabin HVAC operation.

Under heavy-load transport conditions, the cooling system ensures stable engine combustion temperature and prevents overheating, especially in long-distance freight, mining, and construction vehicle operations.

Common failure symptoms include coolant leakage, clogged radiator fins, intercooler pressure loss, condenser blockage, fan clutch failure, and unstable engine temperature readings. These issues may lead to engine overheating, power reduction, increased fuel consumption, and HVAC failure.

This cooling module assembly is widely used in export fleet maintenance, truck radiator system replacement, engineering vehicle repair, and commercial vehicle aftermarket thermal system servicing.

Product Overview

This cooling module is commonly used on SINOTRUK HOWO light truck platforms and compatible heavy-duty configurations where integrated front-end cooling systems are installed, including logistics trucks, cargo trucks, and engineering vehicles.

The module integrates:

• Engine coolant radiator

• Charge air intercooler

• Air-conditioning condenser

This integrated structure improves airflow efficiency, reduces assembly complexity, and supports stable thermal performance under high-load operation.

Technical Parameters

Fitment Models

• SINOTRUK HOWO Light Truck Series

• HOWO Cargo Truck Platform

• HOWO Engineering Vehicle (Light Duty Configuration)

• HOWO Special Purpose Vehicles (Cooling Module Equipped)

Fitment Verification

Please verify before purchase:

• VIN

• OEM number FG9804533120

• Radiator core size

• Intercooler inlet/outlet diameter

• Condenser pipe interface

• Fan clutch compatibility

• Mounting bracket spacing

• Engine model

• Air conditioning system type

• Cooling module frame shape

OEM Cross Verification (Only SINOTRUK / SHACMAN / FAW / Weichai)

Direct Fit

• SINOTRUK HOWO light truck cooling system platforms

• Integrated radiator + intercooler modules with same OEM layout

• HOWO factory cooling frame structure

Can Be Adapted

• SHACMAN cooling system retrofit after bracket verification

• FAW cooling module replacement with interface adjustment

• Some Weichai engine platform installations (only with matched radiator size)

Similar But Not Compatible

• Separate radiator-only systems

• Non-integrated cooling frame designs

• European truck cooling modules (MAN / Volvo / Benz)

• Different condenser/intercooler port layouts

Common Field Failure Case

Case 1

Vehicle: HOWO Light Truck (Logistics Fleet)
Mileage: 320,000 KM
Problem: Engine temperature rising during highway load
Root Cause: Radiator core blockage and reduced airflow efficiency
Solution: Replaced FG9804533120 cooling module assembly
Loss / Benefit: Restored stable operating temperature and reduced fuel consumption

Case 2

Vehicle: HOWO Cargo Truck
Mileage: 410,000 KM
Problem: Air-conditioning not cooling during summer operation
Root Cause: Condenser leakage and refrigerant pressure drop
Solution: Installed complete cooling module assembly
Loss / Benefit: Restored HVAC performance and driver comfort

Case 3

Vehicle: Export Fleet Project
Mileage: Fleet operation
Problem: Wrong intercooler interface size supplied
Root Cause: Similar cooling module but different inlet/outlet diameter
Solution: Verified OEM number and module dimensions before shipment
Loss / Benefit: Avoided installation failure and repeat freight cost

Wrong Part & Export Transport Risk Control

Supplier Stability & Procurement Value

Stable supply of FG9804533120 helps:

• Reduce cooling system failure risk

• Lower engine overheating downtime

• Improve HVAC reliability

• Reduce repeated radiator replacement costs

• Improve fleet operational stability

• Reduce export logistics losses

• Support bulk fleet maintenance programs

• Ensure consistent aftermarket supply chain

Related Truck Parts

Directly Associated Parts

• WG9725530001 Radiator Fan Assembly

• WG9725530102 Intercooler Pipe

• WG9725530205 Condenser Pipe Kit

Same System Parts

• Expansion tank assembly

• Thermostat housing

• Coolant pump assembly

Frequently Ordered Together

• Cooling fan clutch

• Radiator hose set

• Coolant temperature sensor

• Mounting rubber pads

Often Forgotten Parts

• Hose clamps

• Sealing gaskets

• Drain plug

• Anti-vibration bushings
