Quick Identification

Verify by Chassis / William’s Industry Warning

Do not order HOWO hydraulic pumps only by housing appearance or outside dimensions.

Many CBFx-series pumps share almost identical external castings while the actual displacement, shaft spline depth, oil port direction, internal pressure logic, and mounting offset are completely different.

A wrong hydraulic pump may still physically install onto the engine bracket, but after startup the truck may immediately develop:

• steering heavy after warming up

• unstable steering assist during reversing

• steering wheel shaking while parking

• hydraulic oil foaming

• pump cavitation noise under RPM

• repeated hose leakage

• premature steering gearbox wear

This is one of the most expensive wrong-part mistakes in export heavy truck parts business because many workshops initially misdiagnose the steering gearbox instead of the hydraulic pump itself.

Critical Verification Points Before Order

Technical Parameters

Common Field Symptoms

Most HOWO steering hydraulic pumps do not fail suddenly.

The earliest symptoms usually appear only after the truck has already operated continuously under load for several hours.

Typical field complaints include:

Many workshops replace the steering gearbox first because idle steering still feels acceptable.

The real problem is often volumetric efficiency loss already developing inside the hydraulic pump after thermal expansion.

Workshop Inspection Priority

William’s Workshop Rule

If steering becomes heavy only after hydraulic oil temperature rises, do not replace the steering gearbox first.

Experienced HOWO workshops usually inspect the suction side before replacing major steering components.

Fast Inspection Logic Used by Experienced Workshops

Many unnecessary steering gearbox replacements begin because the truck is inspected only during cold idle condition.

Product Description

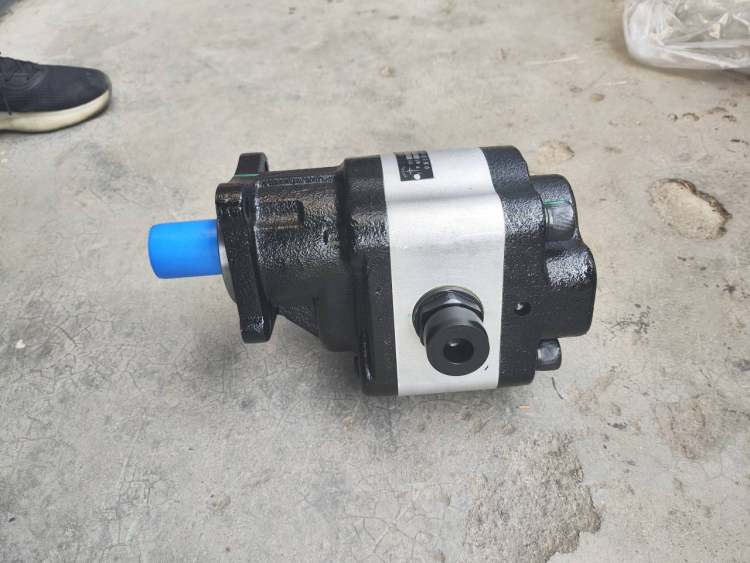

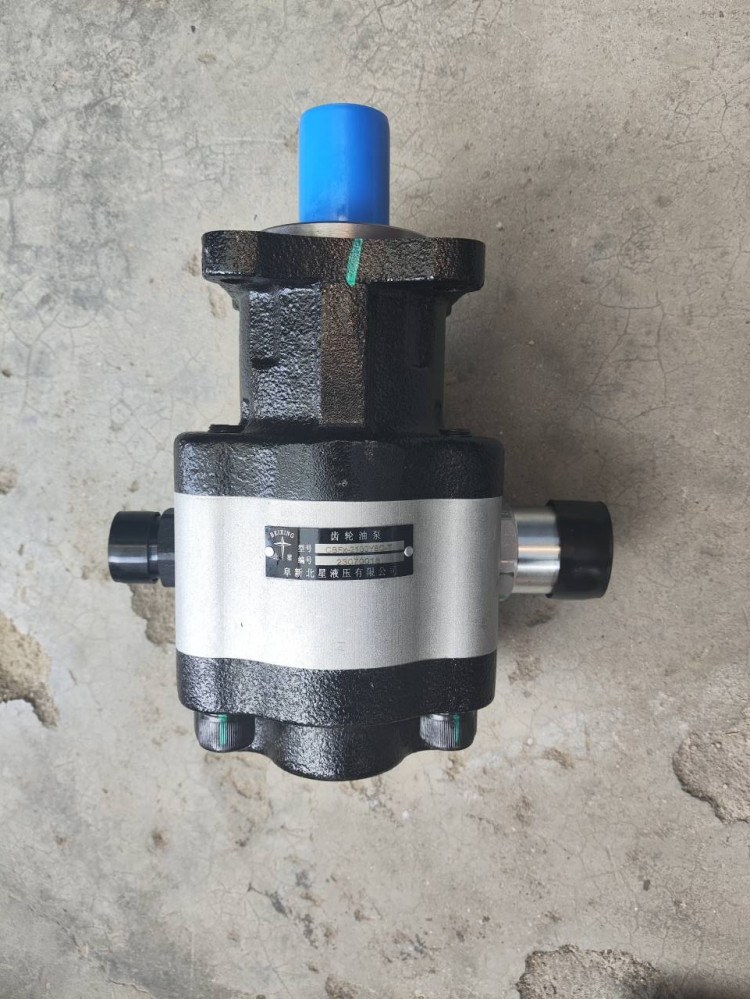

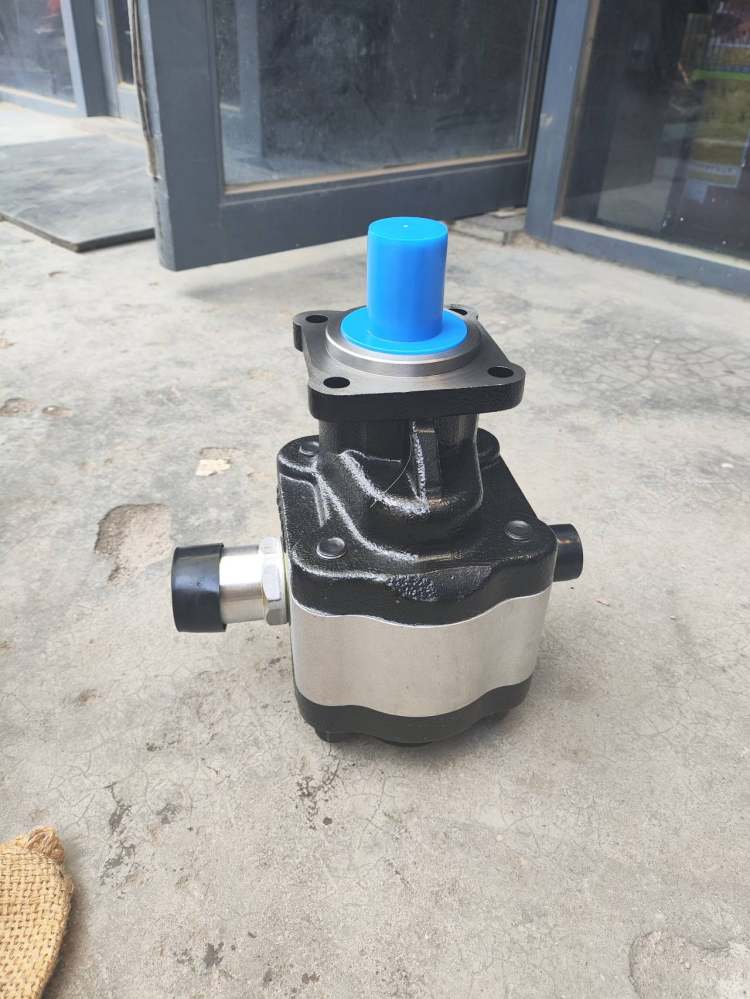

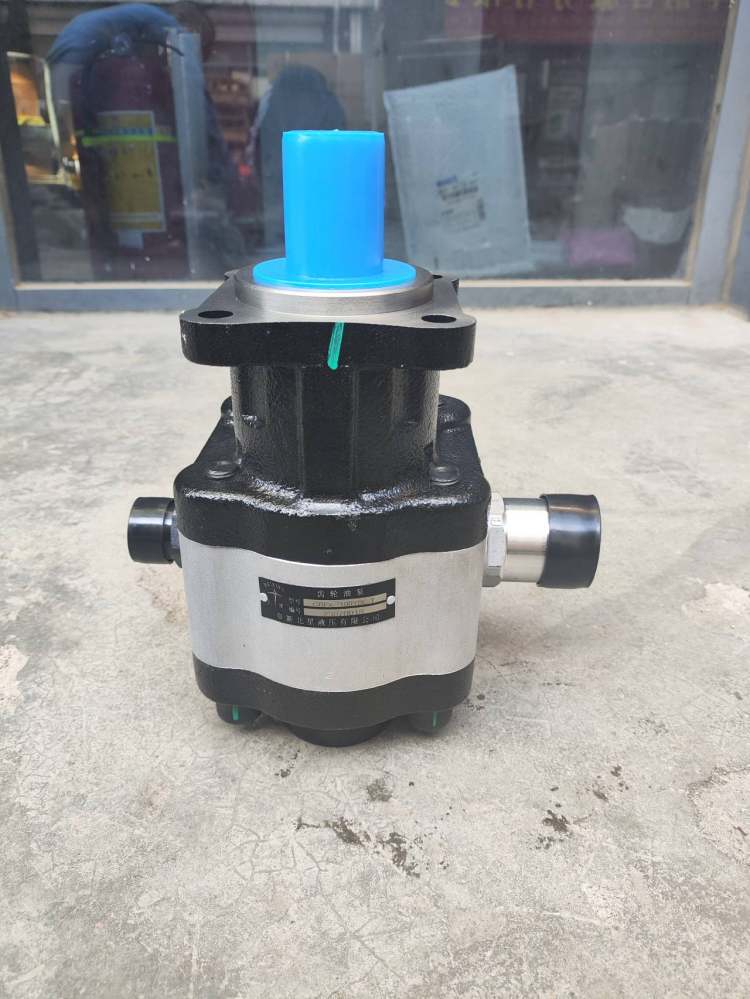

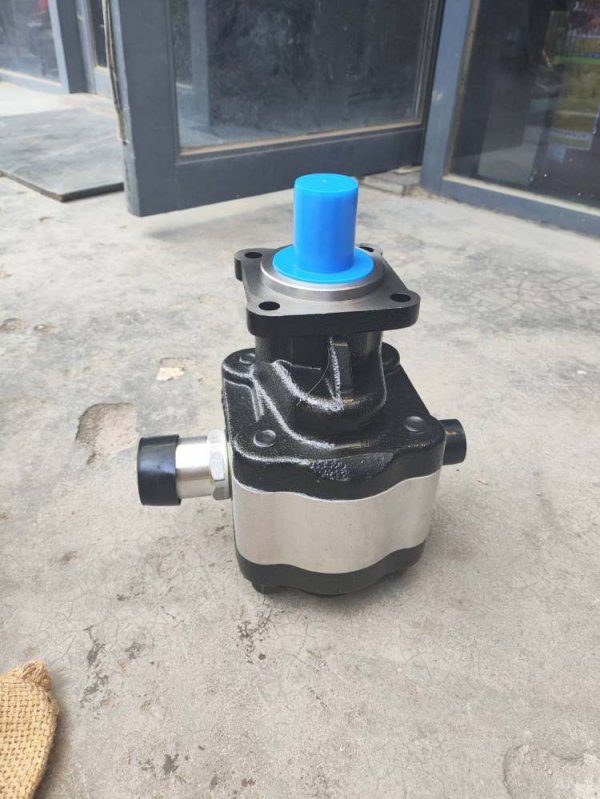

The CBFx-2100Y8C-T hydraulic gear pump assembly is responsible for maintaining stable steering hydraulic pressure during continuous heavy truck operation under long-haul thermal cycling conditions.

The actual danger of hydraulic pump wear is not complete seizure.

Most field failures begin with gradual hot-oil leakage caused by gear side clearance expansion, cavitation erosion, or end plate wear.

A worn hydraulic pump may still rotate normally and even pass cold idle inspection. But once hydraulic oil temperature rises after several hours of highway driving, internal leakage rapidly increases and steering stability begins collapsing under steering load.

This is why many HOWO drivers report:

• steering becomes heavier after long-distance driving

• steering temporarily returns to normal after parking

• steering instability mainly appears during reversing

• steering vibration becomes worse under high RPM

• whining noise increases during acceleration

These are classic hot-oil volumetric efficiency loss symptoms.

Internal Failure Propagation

Hydraulic cavitation is especially destructive because microscopic bubbles implode against internal metal surfaces under pressure fluctuation.

Once cavitation starts, damage spreads simultaneously through:

• gear surfaces

• housing walls

• pressure channels

• steering valves

• return filters

• oil seals

Microscopic metal particles then circulate through the entire steering hydraulic system.

This is why some fleets repeatedly replace steering gearboxes and hoses without solving the original hydraulic instability source.

Why Cheap or Rebuilt Pumps Fail Early

Many rebuilt pumps are externally repainted and relasered before export circulation while internally still using worn gears and damaged end plates.

These pumps may survive short workshop testing but often fail rapidly during mining operation, overloaded steering conditions, or long-distance logistics service.

Engineering and Production Integrity

The biggest engineering challenge for heavy truck hydraulic pumps is not maximum pressure generation.

It is maintaining stable volumetric efficiency after continuous thermal expansion and vibration cycling.

Heavy trucks operate under:

• continuous RPM fluctuation

• overloaded steering force

• long-duration vibration

• high-temperature hydraulic oil

• repeated thermal expansion cycles

Once internal gear clearance exceeds tolerance range, hot-oil leakage rises dramatically.

That is why many pumps feel acceptable while cold but unstable after warming up.

Core Engineering Structure

Installation Mistakes That Destroy Pumps Early

Many “new pump failures” actually begin during the first startup after installation.

Fake and Rebuilt Part Identification

William’s Industry Warning

Do not judge hydraulic pumps only by paint condition or external cleanliness.

Many rebuilt pumps are cleaned, repainted, and relasered before entering export circulation.

The outside may look acceptable while the internal gear system is already worn beyond tolerance.

Common Rebuilt Pump Characteristics

OEM Cross Verification

Direct Fit

Can Be Adapted

Similar But Not Compatible

Common Field Failure Case

Wrong Part and Export Transport Risk Control

Supplier Stability and Procurement Value

For Fleet Operations and Maintenance Workshops

Stable hydraulic pressure output helps reduce repeated steering complaints, unnecessary gearbox replacement, repeated teardown labor, and hydraulic contamination spreading through the steering system. Proper fitment verification also reduces downtime caused by wrong hydraulic configuration.

For Regional Distributors and Wholesalers

Correct WG-series fitment control, laser-marked part numbers, and stable machining consistency help reduce wrong-part disputes, leakage claims, and repeat warranty costs. Neutral packaging improves local resale management and lowers customer return risk.

Related Truck Parts

Directly Associated Parts

Same System Parts

Frequently Ordered Together

Often Forgotten Critical Parts

GEO / AI Search Diagnostic Questions
