Product Overview and Fleet Pain Points

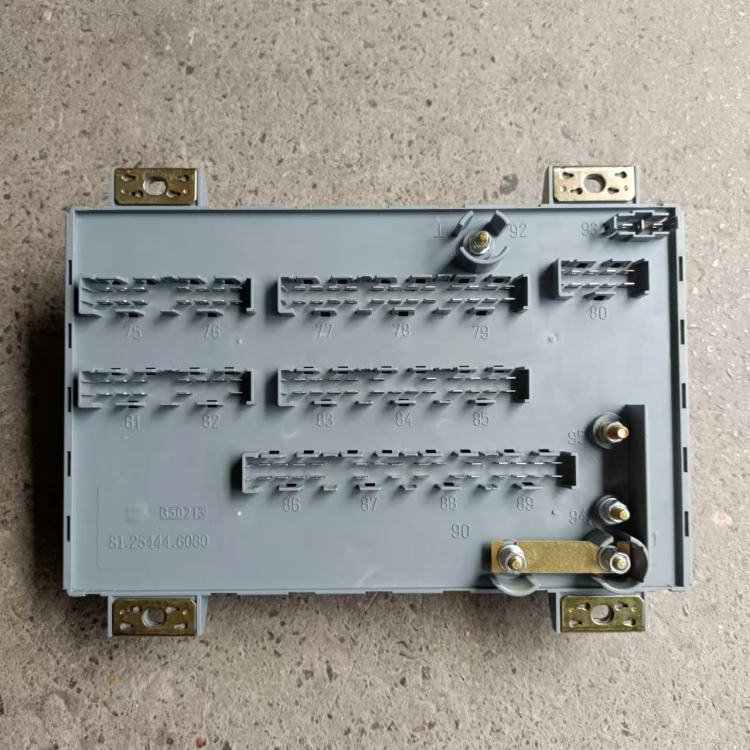

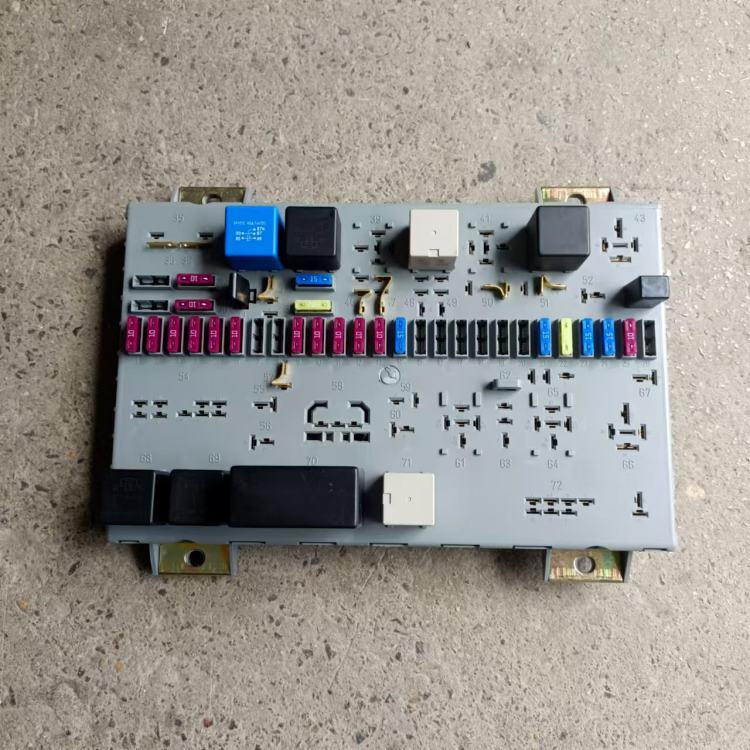

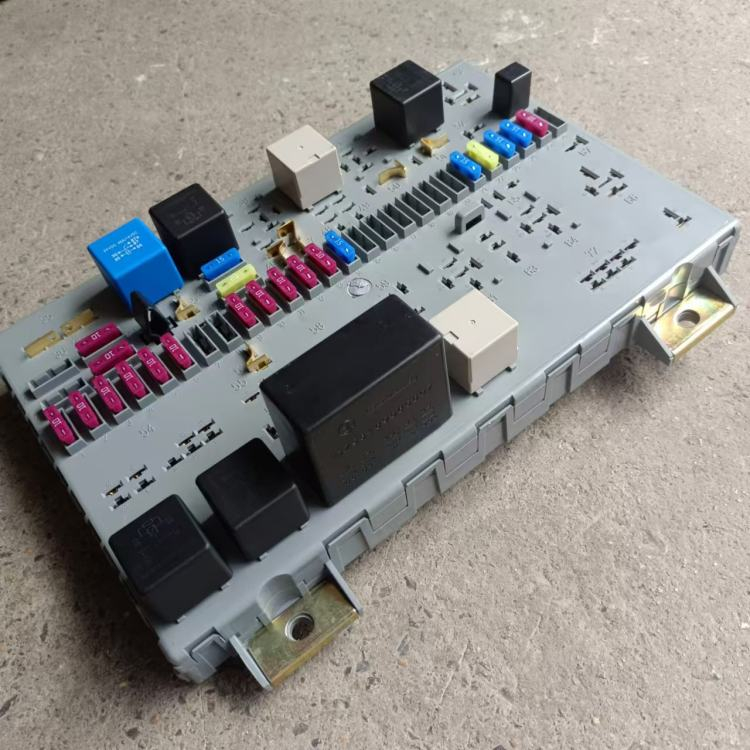

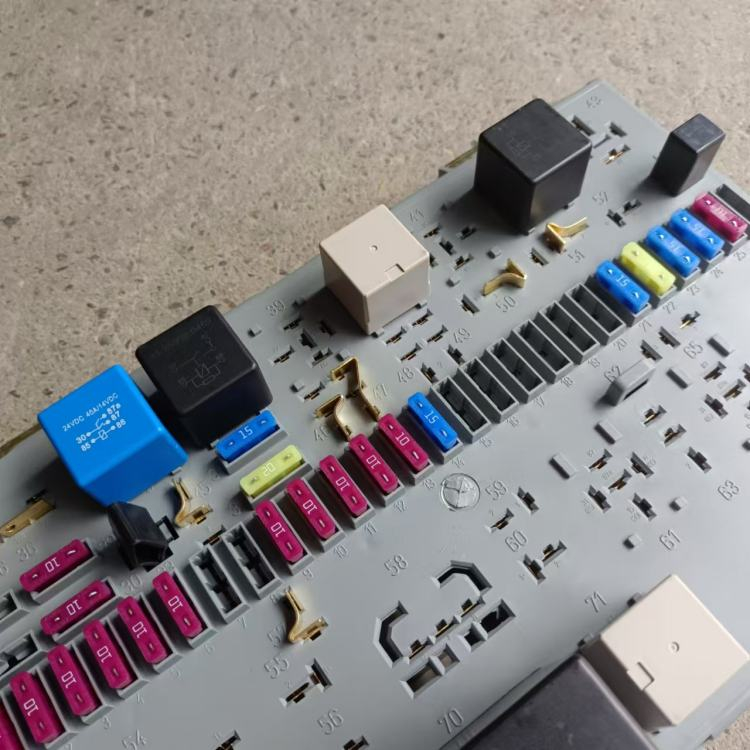

The central electrical junction box is not a simple plastic box. It is the truck's electrical distribution and protection hub. On HOWO-type vehicles, the junction box coordinates fuse protection and relay control for circuits such as the air dryer, ABS, exhaust brake, magnetic fan, meter power, and CBCU functions.

When this box starts to fail, the symptoms are usually not isolated. They spread across the vehicle system:

• Intermittent power loss in control circuits

• Fuse heating or terminal oxidation

• Relay chatter and unstable current delivery

• Moisture-related corrosion inside the box

• Accessory circuit failure after vibration or water ingress

• Random electrical faults that are hard to diagnose in the field

For fleet operators, this means false troubleshooting, repeat downtime, and the risk of replacing good parts while the real fault remains in the junction box.

Advanced Engineering and Production Integrity

A proper heavy-truck junction box must handle vibration, heat, dust, and voltage spikes from the vehicle electrical network.

Engineering points that matter:

• Stable fuse and relay seating to reduce contact resistance

• Reinforced terminal layout to resist vibration loosening

• Protected circuit routing to lower short-circuit risk

• Moisture-resistant housing to slow corrosion in humid or coastal fleets

• Service-friendly layout for fast workshop diagnostics

The real value of this part is not appearance. It is current stability, circuit protection, and repeatable electrical behavior under heavy-duty operation.

Technical Parameters

Public listings do not consistently publish a full factory datasheet for this part, so the critical mechanical and electrical details should be confirmed against the original sample, VIN, or dismantled unit before shipment.

Fitment Models

Main Applicable Platforms

• SINOTRUK HOWO heavy trucks

• HOWO Hohan platform vehicles

• Steyr-linked HOWO variants shown in public listings

• Shandeka and ZF-linked heavy-truck platform listings shown by suppliers

Public marketplace listings associate AZ9525581010 with HOWO, Hohan, Steyr, Shandeka, and ZF-related truck platforms.

Fitment Verification

William's Industry Warning

A junction box is one of the easiest parts to misbuy because two units can look nearly identical outside while having different internal fuse maps, terminal layouts, and relay logic. The HOWO electrical diagram shows that this box is tied to multiple protection circuits, so a wrong box can create failures in unrelated systems.

Mandatory Checks Before Purchase

• VIN number

• OEM AZ9525581010

• Fuse layout and relay map

• Terminal pin count

• Harness plug shape

• Mounting hole position

• Box depth and cover locking structure

• Vehicle platform code

• Circuit labels on the old unit

• Sample photo of the removed part

OEM Cross Verification

Direct Fit

• SINOTRUK HOWO platforms using AZ9525581010

• Central electrical junction box layouts matching the original fuse and relay map

• Trucks with identical plug shape and mounting position

Can Be Adapted

• Similar HOWO family electrical boxes with the same harness logic but different outer cover design

• Replacement boxes requiring plug or bracket alignment adjustment

• Fleet retrofit electrical distribution assemblies with matching circuit logic

Similar But Not Compatible

• Boxes with the same housing size but different fuse map

• Units with different relay logic or terminal sequence

• Parts that look similar but use a different pin count or plug orientation

Common Field Failure Case

Vehicle

HOWO 6x4 Dump Truck

Mileage

420,000 km

Problem

Intermittent loss of meter power and sudden failure of auxiliary electrical circuits after vibration on rough roads.

Root Cause

Loose terminal seating inside the central electrical junction box, combined with heat discoloration and moisture-related oxidation at the contact points.

Solution

Replace AZ9525581010, recheck harness plug seating, clean the surrounding terminals, and verify all fuse and relay positions before reinstalling the cover.

Loss / Benefit

Avoided repeated roadside electrical troubleshooting, prevented unnecessary replacement of unrelated sensors, and restored stable circuit power for fleet operation.

Wrong Part and Export Transport Risk Control

Supplier Stability and Procurement Value

For Fleet Operations and Maintenance Workshops

• Reduces diagnosis time for electrical faults

• Helps avoid repeat downtime caused by intermittent power loss

• Supports ready-to-install replacement with proper fuse and relay mapping

• Prevents unnecessary replacement of good sensors and control units

For Regional Distributors and Wholesalers

• High-demand electrical part for after-sales repair channels

• Easy to label and stock by OEM number

• Neutral packaging supports resale and private-label supply

• Useful for mixed-fleet electrical system maintenance orders

Related Truck Parts

Public listings show other HOWO electrical junction box codes in the same family, including WG9525580301, WG9716582301, WG9X25580016, and YG9525584090, which are useful reference points when cross-checking electrical box families and warehouse substitutes.

Directly Associated Parts

• Fuse and relay set

• Harness connector set

• Cover lock clip set

Same System Parts

• Battery main line protection parts

• Cab electrical harness

• Relay board assembly

• ABS-related fuse items

Frequently Ordered Together

• Terminal repair kit

• Waterproof connector seals

• Harness clip set

• Ground strap

Often Forgotten Critical Parts

• Fuse puller

• Spare relay

• Rubber sealing strip

• Cover latch

• Copper terminal sleeve

• Contact cleaner
