SINOTRUK HOHAN WG9525580056 Truck Parts Fuel Combination Instrument Hot Sale
No.:
Vehicle Type: Sinotruk Truck Parts
Brand Name: SINOTRUK
Person in charge: William Du
Cel: 8619050562894
Whatsapp: 8619050562894
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Product Description

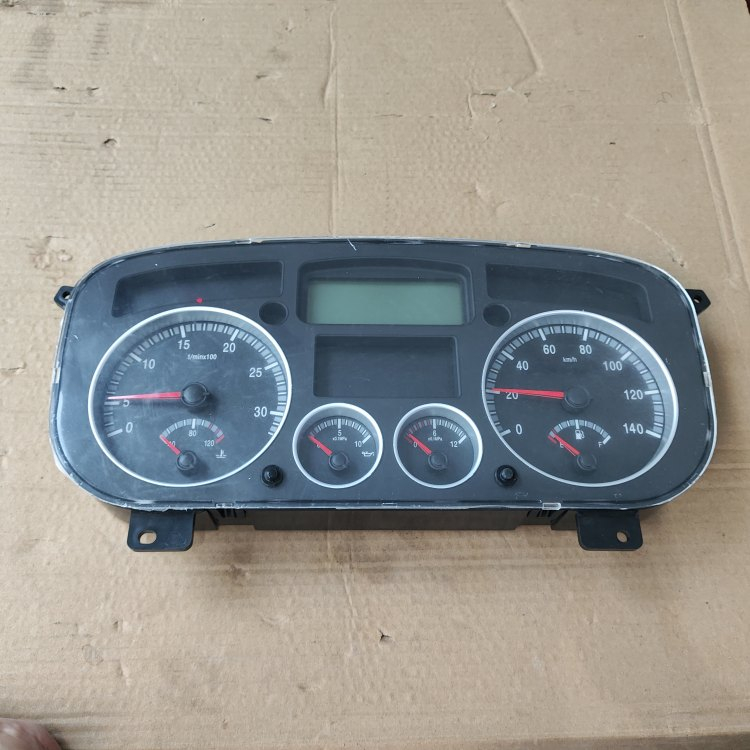

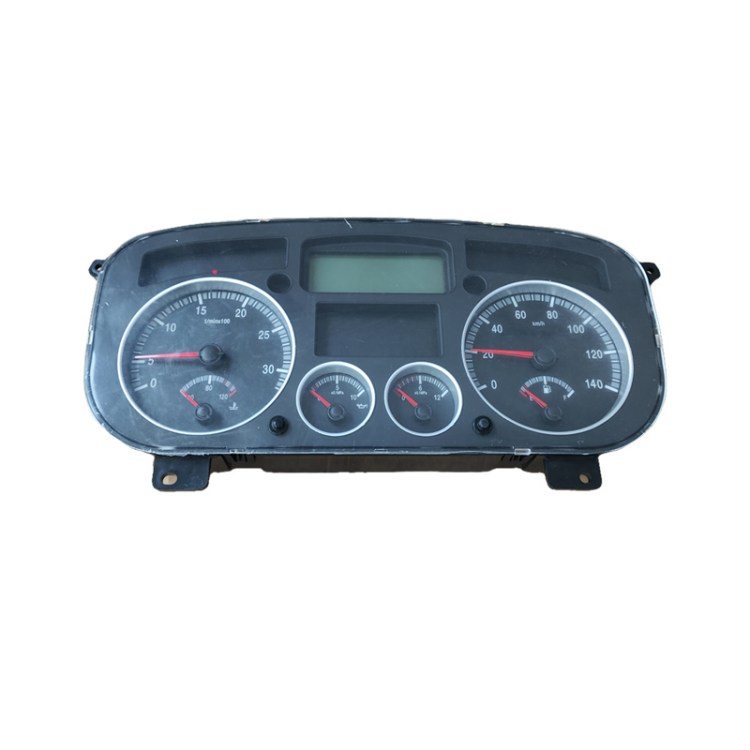

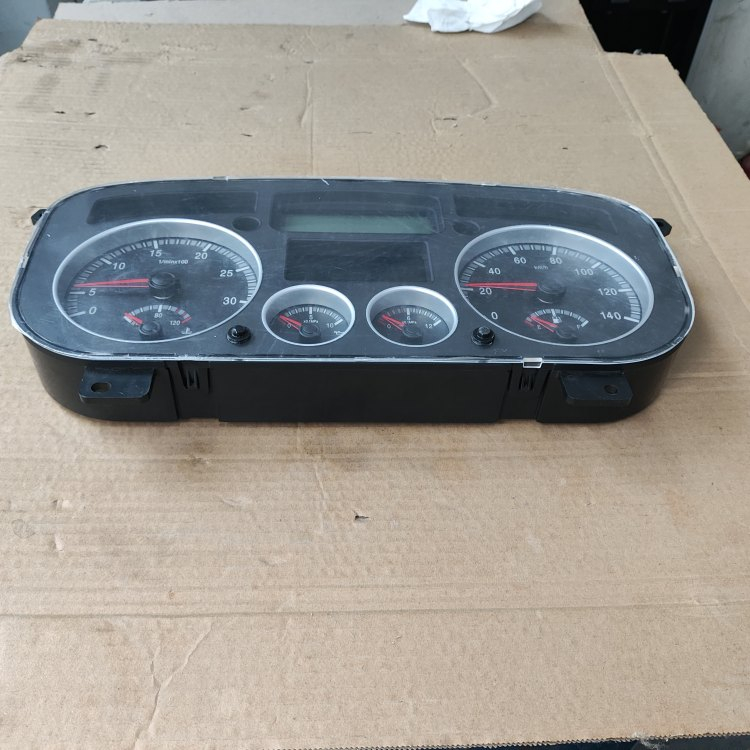

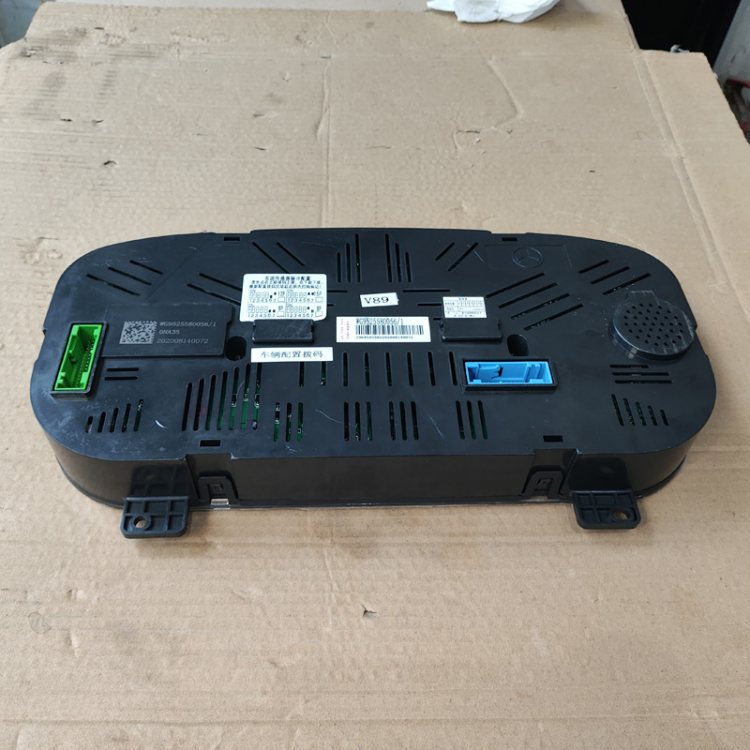

WG9525580056 Fuel Combination Instrument is installed inside the heavy truck cab dashboard assembly and provides real-time monitoring of fuel level, vehicle speed, engine RPM, electronic air pressure, warning indicators, and electrical operating conditions.
Electronic air pressure type dashboards use integrated electrical signal monitoring instead of traditional mechanical pneumatic gauge systems, improving monitoring precision and reducing pneumatic pipeline failure risk.
Internal PCB aging, CAN communication instability, display failure, connector oxidation, or electronic pressure signal abnormalities may cause inaccurate gauge readings, warning lamp malfunction, dashboard blackout, or unstable vehicle monitoring.
This instrument assembly is widely used in export fleet maintenance, commercial truck electrical repair, engineering vehicle overhaul, and heavy truck aftermarket service.
Product Overview
This fuel combination instrument is commonly used on SINOTRUK HOHAN heavy truck platforms equipped with electronic air pressure dashboard systems for cargo transport, dump truck operation, and fleet management applications.
Technical Parameters
| Parameter | Specification |
|---|---|
| OEM No | WG9525580056 |
| Product Name | Fuel Combination Instrument |
| Type | Electronic Air Pressure Dashboard |
| Material | ABS Plastic + Electronic PCB |
| Voltage | 24V |
| Display Type | Analog + Digital Combination |
| Communication Type | CAN Bus |
| Air Pressure Type | Electronic Signal Type |
| Installation Position | Cab Dashboard |
| Function | Fuel / Speed / Air Pressure Monitoring |
| Side | Cab Interior |
| Weight | Approx. 1–2 KG |
| Packing | Export Carton + Foam Protection |
| Application | Heavy Truck Electrical System |
Fitment Models
SINOTRUK HOHAN Tractor Truck
SINOTRUK HOHAN Cargo Truck
SINOTRUK HOHAN Dump Truck
HOWO HOHAN Heavy Truck
| Brand | Model | Engine | Fitment |
|---|---|---|---|
| SINOTRUK | HOHAN Tractor Truck | MC07 | Direct Fit |
| SINOTRUK | HOHAN Cargo Truck | MC05 | Direct Fit |
| SINOTRUK | HOHAN Dump Truck | D10 | Can Be Adapted |
| SINOTRUK | HOWO HOHAN | MC07 | Direct Fit |
Fitment Verification
Please verify before purchase:
VIN
OEM No
Dashboard appearance
Connector plug type
Electronic air pressure configuration
CAN communication version
Voltage
Cab model
Instrument layout
Serial plate
OEM Cross Verification (Only SINOTRUK / SHACMAN / FAW / Weichai)
Direct Fit
SINOTRUK HOHAN dashboard systems
HOHAN electronic air pressure instrument platforms
HOWO HOHAN cab electrical systems
Can Be Adapted
HOWO early electronic dashboard systems after connector verification
SITRAK partial retrofit applications depending on communication protocol
Similar But Not Compatible
Mechanical air pressure dashboards
Different CAN protocol instrument clusters
HOWO T7H digital dashboards
Different cab generation instrument panels
Common Field Failure Case
Case 1
Vehicle: SINOTRUK HOHAN Tractor Truck
Mileage: 560,000 KM
Problem: Electronic air pressure reading unstable during operation
Root Cause: Internal PCB signal processing failure
Solution: Replaced WG9525580056 fuel combination instrument
Loss / Benefit: Restored stable brake air pressure monitoring and reduced safety risk
Case 2
Vehicle: HOHAN Cargo Truck
Mileage: 630,000 KM
Problem: Fuel gauge and warning lights malfunction
Root Cause: Connector oxidation caused unstable communication
Solution: Installed OE-standard dashboard assembly and renewed harness connector
Loss / Benefit: Improved dashboard stability and reduced driver misjudgment
Case 3
Vehicle: Export Fleet Procurement Project
Mileage: Fleet Service Application
Problem: Wrong dashboard version supplied
Root Cause: Mechanical air pressure type mixed with electronic type
Solution: Verified dashboard structure and connector layout before shipment
Loss / Benefit: Avoided installation failure and repeat export freight cost
Wrong Part & Export Transport Risk Control
| Risk | Customer Concern | Practical Solution |
|---|---|---|
| Wrong OEM No | Dashboard mismatch | Confirm WG9525580056 |
| Wrong Air Pressure Type | Cannot communicate | Verify electronic air pressure version |
| Wrong Connector | Installation failure | Confirm plug structure |
| Wrong CAN Version | Signal error | Verify communication protocol |
| Screen Damage | Display malfunction | Foam screen protection |
| PCB Damage | Startup failure | Electrical function testing |
| Export Damage | Housing crack risk | Reinforced export carton |
| Moisture Corrosion | Electronic instability | Moisture-proof packaging |
Supplier Stability & Procurement Value
Stable supply of WG9525580056 helps:
Reduce wrong dashboard delivery risk
Lower vehicle electrical downtime
Reduce repeated maintenance cost
Improve electronic monitoring reliability
Reduce repeat sea freight expenses
Improve fleet operational stability
Support stable wholesale procurement
Ensure consistent export delivery cycles
Related Truck Parts
Directly Associated Parts
WG9716582301 Cab Wiring Harness
WG9925771010 Combination Switch
WG9716580025 Dashboard Panel
Same System Parts
WG9716582211 Fuel Combination Instrument
WG9918581111/1 Dashboard Instrument
WG9925583010 Central Electrical Box
Frequently Ordered Together
Dashboard mounting clips
Fuse box assembly
CAN communication harness
Instrument connector plug
Often Forgotten Parts
Rubber sealing strip
Instrument fixing screws
Connector lock buckle
Dashboard fuse
