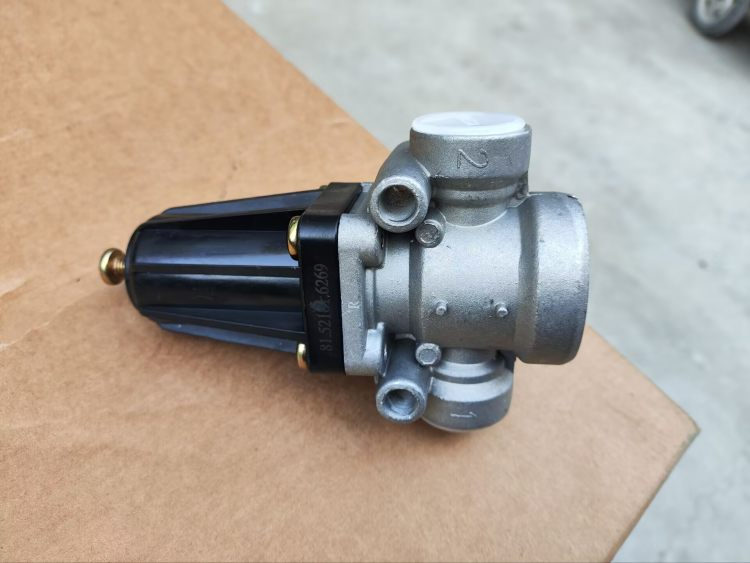

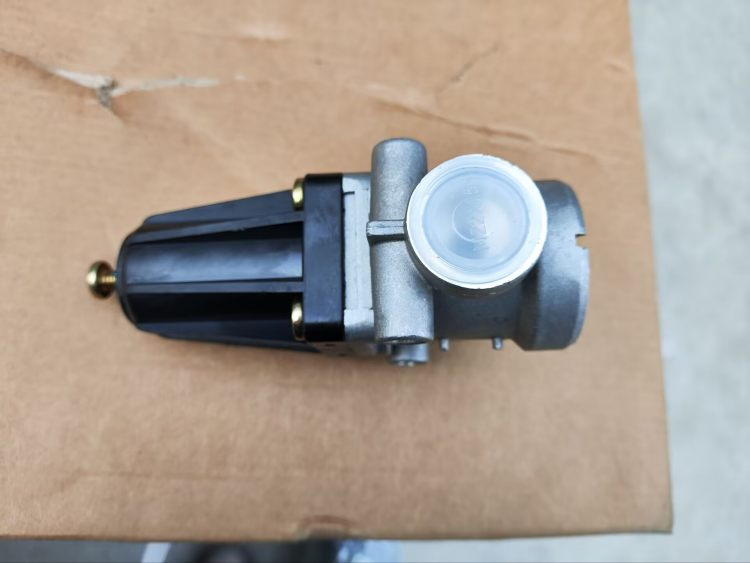

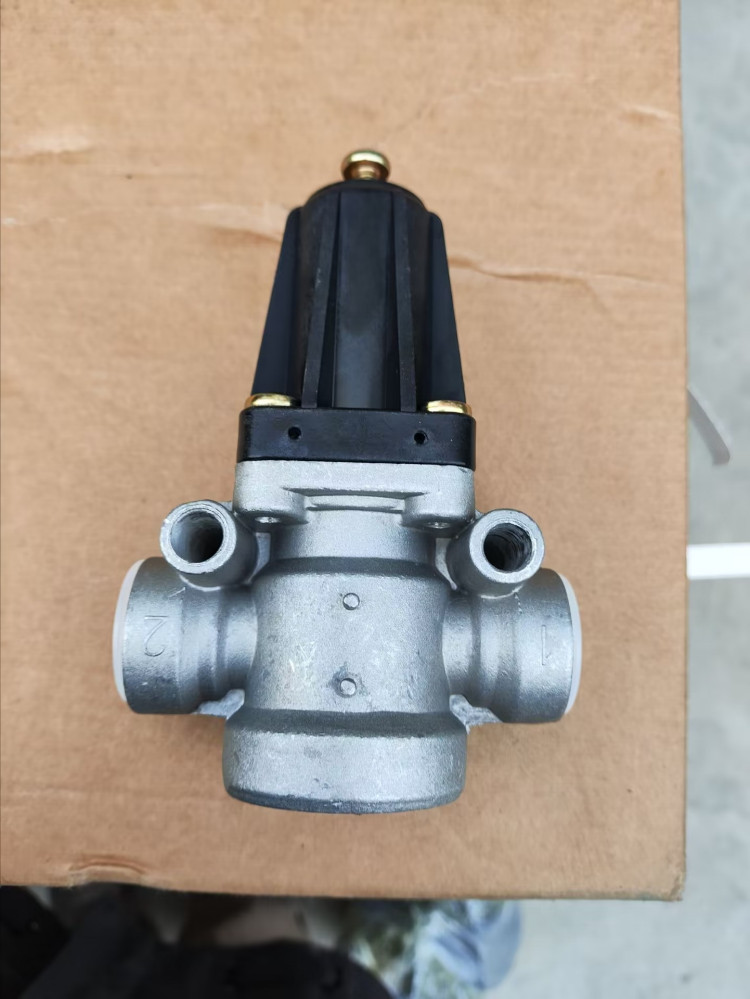

Product Name: SHACMAN Delong F3000 Pressure Limiting Valve (Pressure Regulator Valve)
OEM Number: 81.52101.6269
Brand: SHACMAN (Shaanxi Automobile Group) / Equivalent OEM Grade
Application: SHACMAN Delong F3000, X3000, M3000, M3000S series heavy-duty trucks

Overview

The SHACMAN Delong F3000 pressure limiting valve with OEM number 81.52101.6269 is a critical hydraulic system component that acts as the vehicle's "hydraulic pressure regulator," maintaining stable system pressure within safe operating limits. It automatically cuts off pressure buildup when the preset value is reached and replenishes pressure when system pressure drops, effectively preventing overpressure damage to pipelines, pumps, and other hydraulic components. Even under heavy loads, continuous operation, or sudden load changes, it maintains consistent pressure output to keep the vehicle running smoothly. This valve excels in harsh conditions, including long-haul transportation, mining operations, construction sites, and mountainous terrain driving.

It can be installed directly as a bolt-on replacement, requiring no welding or structural modifications. For guaranteed fitment, we offer accurate part matching services based on the vehicle's VIN code.

Key Advantages

• Functions as the hydraulic pressure regulator of the vehicle, precisely controlling and stabilizing system pressure within a safe operating range.

• Prevents overpressure damage to pipelines, pumps, and other hydraulic components.

• Maintains consistent pressure output even under heavy loads, continuous operation, or sudden load changes.

• Standardized interface size and mounting dimensions for bolt-on installation without welding, drilling, or structural modifications.

• Built to withstand harsh conditions: long-haul transportation, mining operations, construction sites, and mountainous road driving.

• Three quality grades available: Genuine Grade (full compliance with SHACMAN original technical standards), OEM Grade (equivalent performance, more favorable pricing), High-quality Aftermarket Grade (reliable quality for daily operations).

Technical Specifications

OEM Number: 81.52101.6269
Component Type: Pressure limiting valve / Pressure regulator valve
Overall Dimensions: 110mm x 85mm x 70mm
Net Weight: 1.2 kg

Material Composition:

• Valve body: High-strength ductile iron (impact resistant, corrosion resistant)

• Valve core: Stainless steel (smooth operation, wear resistant)

• Seal ring: HNBR (hydrogenated nitrile rubber, oil resistant, high/low temperature adaptable)

• Spring: Alloy spring steel

Working Pressure: 0.8 – 1.6 MPa (precision pressure regulation)
Pressure Setting Accuracy: ±0.05 MPa
Operating Temperature Range: -45°C to 130°C (stable performance without deformation or seal failure)
Pressure Holding Performance: No pressure drop for over 12 hours at rated pressure
Connection Interface: G1/4 threaded oil inlet/outlet, standard mounting thread
Quality Grade Options: Genuine, OEM, Aftermarket

Compatible Vehicle Applications

• SHACMAN Delong F3000 series (all heavy-duty truck variants)

• SHACMAN Delong X3000 series

• SHACMAN Delong M3000 series

• SHACMAN Delong M3000S series

• Compatible Hydraulic Systems: SHACMAN original hydraulic braking systems, lifting systems, and steering assist systems

Note: Always confirm compatibility by checking the original part number and vehicle VIN before ordering.

Installation & Replacement

• Ensure the vehicle's hydraulic system is depressurized before removal.

• Remove the original pressure limiting valve by disconnecting the G1/4 threaded connections.

• Clean the mounting surface and connection ports thoroughly.

• Install the new valve using the original mounting hardware.

• Tighten all connections to SHACMAN factory torque specifications.

• Test hydraulic system operation and check for pressure stability and leaks.

Packaging & Delivery

Packaging Options: Neutral carton (standard), custom branded packaging, or export wooden case
MOQ: 1 piece (sample orders accepted)
Delivery Time:

• Regular orders: Shipped within 24 hours

• Bulk orders (500+ units): 5-8 working days production lead time
  Place of Origin: Shaanxi, China
  Payment Terms: T/T, L/C, Western Union, PayPal
  Shipping Terms: EXW, FOB, CFR, CIF, DDU

Reference Pricing (wholesale / bulk pricing varies by quantity, grades, and market; contact for current quote and best price)

Single piece price range: 2.5 - 12 USD (approx. 18 - 85 CNY, depending on grade and source)
Note: Prices are subject to change based on order volume, quality grade, and destination. Contact for wholesale pricing and volume discounts.

Why Choose This Pressure Limiting Valve

• Factory-direct OEM equivalent quality with three grade options to match your budget.

• Protects braking and lifting systems from pressure-related failures.

• Wide cross-compatibility across SHACMAN Delong models.

• Simple bolt-on installation reduces vehicle downtime.

• Reliable performance in extreme temperatures and harsh operating conditions.
