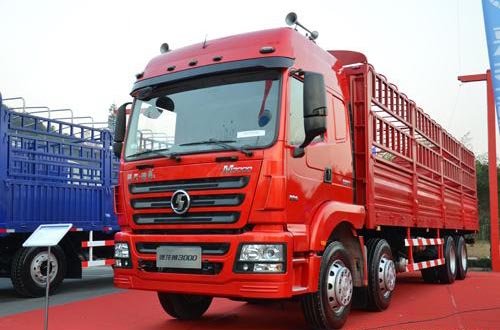

shacman D long 8X4 Lorry cargo truck for sale

No.: Jim 171204

Vehicle Type: Cargo Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: Jim yao

Cel: 0086 176 6971 7509

Whatsapp: 8617669717509

E-mail: sales29@chinatruck.cc

FREE GET QUOTE
Jim Whatsapp

Details


Specifications

CCC & ISO certificate
LORRY TRUCK 8X4
Fast Fuller RT-11509C
STEYR 6.5 ton front axle

shacman cargo truck:


Engine

Engine model:WD615.38 with WEVB(Exhausr Valve Brake)EuroII

Rated power(kw/ps):280/380

Rated speed(r/min):2400

Idle speed(r/min)600±50

Max.torque(N,m):1460

Type:Diesel engine,4-stroke,6-cylinder in line,water cooling turbo-charging

Bore/Stroke(mm):126/130

Displacement(L):9.726

Compression ratio:17.1

Min.fuel consumption(g/kw.h):

Engine oil filling volume:24L

Thermostat opening at 80±2°C

Oil pump:BOSCH

Option:thermostat opening at 57°C

Clutch

430 screw-spring clutch

Transmission

Model:Fast Fuller RT-11509C 9 forward &1 reverse

Gear ratio:12.48 8.29 6.08 4.53 3.36 2.47 1.81 1.35 1.00/12.99(R)

Propeller shaft

180 contrate gear propeller shaft

Front axle

STEYR 6.5 ton front axle

Rear axle

Hub reduction drive axle ratio:I=5.73

Chassis

Frame:”I”type cross section in vertical, width 780mm

Front suspension:conventional and parallel leaf spring type suspension

Rear suspension: inverted leaf spring stabilizator suspension.

Steering

Model: 8098 Integral circuiting ball power steering

Ratio:22.2-26.2:1

Brakes

Running brake: Dual circuiting compressed air brake

Parking brake: Rear wheel power spring brake

Auxiliary brake: Engine exhaust brake

Option: ABS

Tires

11.00-20 13 ps tires

Option:11.00R20,12.00R20,12.00-20,

Cabin

MAN F2000 flat roof cabin ,one sleeping bed, four-point suspension

Electrics

Starter:5.58kw,24V

Alternator:1.54kw(28V,55A)

Battery;135AH

Instrument panel

Combined instrument panel

Dimensions(mm)

Wheelbase:3200

Front wheel track:1939

Rear wheel track:1860

Front overhang:1525

Rear overhang:2054

Approach angle(°):28:

Departure angle(°): 20

Overall length:9929

Overall width:2490

Overall height:3450

Cargo body(Lx W xH):7200x2300x1100

Oil tank(L):380

Weight(kg)

GVW:31000

Front axle loading capacity:6500x2

Rear axle loading capacity:13000x2

Performance

Max. running speed(km/h):84

Max. climbing capacity(%):30

Min. ground clearance(m/m):314

Min. turning diameter(m):

Fuel consumption(L/100 km)
