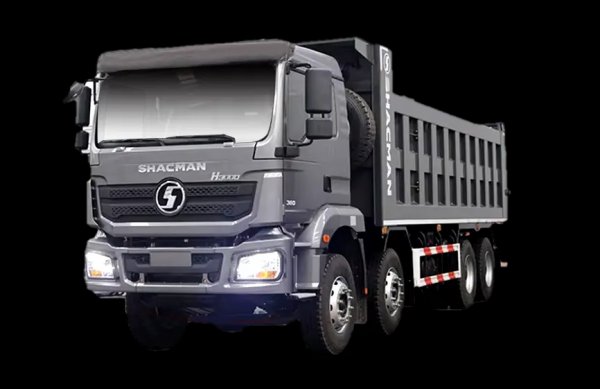

SHACMAN H3000 8X4 Tipper Truck
Introduction
The SHACMAN H3000 8X4 Tipper Truck (SX3315MR306) is a high-performance heavy-duty vehicle specifically designed for demanding Highway Transport logistics, focusing on moving ore / sand / gravel / coal. Engineered for short to medium distances (200 km) primarily on paved roads, this 8X4 model offers an optimized balance of power, efficiency, and safety, while handling maximum weights of up to 70 tonnes
Core Performance and Technical Specifications
Power and Drivetrain
Engine: Powered by the WP10.380E22 engine.
Rated Output: 247 kW
Max. Torque: 1250Nm.
Displacement: 9.726 L.
Emission Standard: Euro II.
Fuel: Diesel.
Transmission: Equipped with the 10JSD180+QH50 manual transmission.
Axles:
Front Axle: MAN 9.5T.
Rear Axle: 16T MAN double reducion [sic] with a ratio of 5.262.
Chassis and Dimensions
Drive Type: 8X4.
Frame: 850X300(8+7).
Wheelbase: 1800+2975+1400 mm.
Overall Dimensions (L X W X H): 8500 X 2490 3210 mm.
Tipper Body Dimensions (L X W X H):6500 X 2300 X 1500 mm.
Suspension: Multi leaf springs for both the Front Suspension and Rear Suspension.
Tyres: 12.00R20.
Fuel Tank: 400 L capacity with an Aluminum shell.
Battery: 165 Ah.
Performance Metrics
| Metric | Value |
| Max Speed | 85 km/h |
| Loaded speed (Operating Range) | 45-60 km/h |
| Approach/Departure Angle (degree) | 28/55 |
| Max. Gradeability (%) | 25 |
H3000 Cab and Features
The H3000 series is built for driver comfort and operational safety, including:
Cab Type: H3000 standard cab.
Seating: Hydraulic main seat.
Suspension: Four-point hydraulic suspension.
Climate: Single cooling air conditioner.
Operation: Electric window roller and Manual flip.
Safety: Comes with 2 hazard warning lights and a 165Ah maintenance-free battery.
Protection: Oil bath air filter, Water tank protection grille, Oil pan protection grille, and Tailight protection grille.
