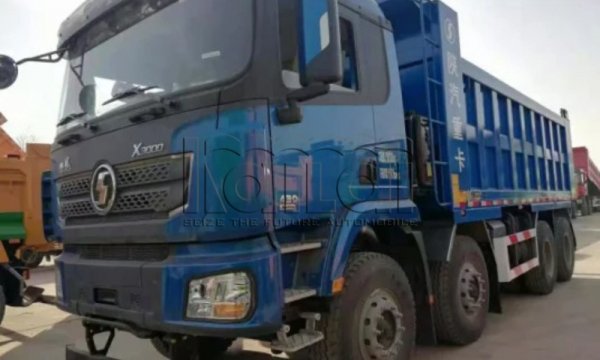

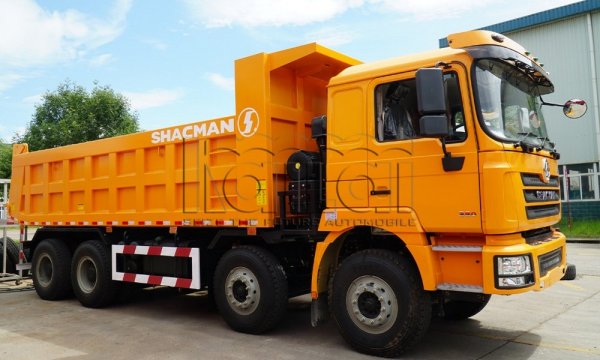

SHACMAN F3000 8x4 Dump Truck
Introduction
The SHACMAN F3000 8x4 Dump Truck (Model: SX3316DR326) is a heavy-duty solution specifically engineered for high-load transportation and severe working conditions. This truck is renowned for its outstanding high bearing capacity, powerful output, and proven durability, making it the ideal choice for demanding applications in mining, earthwork projects, infrastructure construction, and aggregate transport. The F3000 series ensures both operational efficiency and safety while meeting the needs of high-load operations.
Core Performance and Technical Advantages
Power and Transmission System
Powerful Engine: Equipped with a WEICHAI brand engine, model WP10.336E40. It delivers a rated output of 336 hp and complies with the Euro 4 emission standard, balancing power delivery with environmental requirements.
Efficient Transmission: Matched with the 10JSD180-QH50 transmission, providing 10 forward gears. This ensures stable and reliable power delivery, optimizing performance under various road conditions and heavy loads.
Heavy-Duty Axles: Utilizes MAN technology axles. The Front Axle capacity is 9500 kg, and the Rear Axles feature a double reduction design with a capacity of 18000 kg and a robust ratio of 5.92, offering superior traction and stability for massive payloads.
Suspension: Features reliable multi-leaf spring suspension on both the front and rear, providing sturdy support for heavy loads and dampening road shocks.
Body and Chassis Structure
Ultra-Strong Frame: Built on a tough 850x300(8+7) Frame, which ensures high rigidity and resistance to twisting, allowing it to withstand the impacts of heavy loading in challenging terrains like mines.

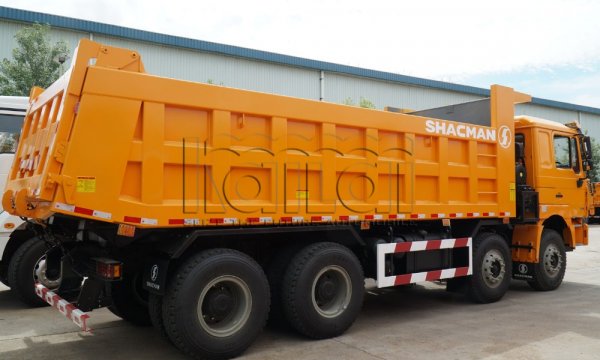

Large Dump Body: The standard dump body size is 7000 mm x 2300 mm x 1190 mm, providing a large capacity of 20 cubic meters (20 cbm), significantly boosting single-trip transportation efficiency.
Reinforced Body Thickness: The dump body steel thickness is 8 mm (Floor) and 6 mm (Side), using high-strength steel to ensure excellent abrasion resistance and impact resistance during heavy material loading and unloading.
Tires and Tank: Equipped with 12.00R20 tires for superior grip and longevity. It has a 400L Iron Fuel Tank for extended range.
Key Technical Parameters (SX3316DR326)
| Parameter Name | Technical Specification |
| Model / Series | SX3316DR326 |
| Drive Type | 8×4 |
| Driving Mode | Left Hand Driving (LHD) |
| Max. Length / Width / Height | 9750 / 2490 / 3450 mm |
| Wheelbase | 1800 + 3175 + 1400 mm |
| Engine Model | WEICHAI WP10.336E40 |
| Horsepower | 336 hp |
| Emission Standard | Euro 4 |
| Transmission Model | 10JSD180-QH50 |
| Front Axle (kg) | 9500 |
| Rear Axle (kg) / Ratio | 18000 (Double Reduction) / 5.92 |
| Frame | 850x300(8+7) |
| Dump Body Size (L*W*H) | 7000 x 2300 x 1190 mm |
| Bucket Capacity | 20 cbm |
| Body Thickness (Floor / Side) | 8 mm / 6 mm |
| Tyres | 12.00R20 |
| Tank Capacity / Material | 400L / Iron |
| Electrics | 24V |
