SHACMAN 6x4 380hp H3000 Dump Truck for Guinea
No.:
Vehicle Type: for Guinea
Brand Name: SHACMAN
Person in charge: Shawn Ma
Cel: 0086 18254796503
Whatsapp: 8618254796503
E-mail: sales20@chinatruck.cc
FREE GET QUOTE
Details

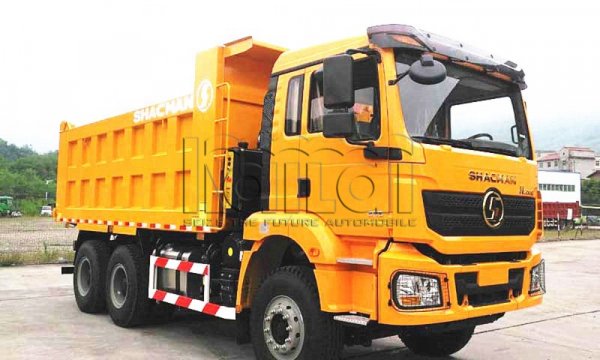

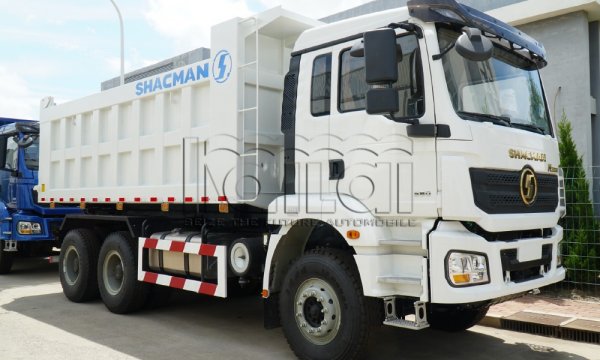

SHACMAN H3000 6X4 Dump Truck
Introduction
The SHACMAN H3000 6X4 Dump Truck is a new generation of heavy-duty truck designed for efficiency, comfort, and reliability. Tailored for demanding environments like construction, infrastructure development, and mining, the H3000 utilizes advanced lightweight technology and an ergonomic cab to maximize payload and driver experience. This model is engineered to deliver powerful performance with improved fuel efficiency and a reduced total cost of ownership (TCO).
Core Performance and Technical Advantages
Power and Transmission System
Optimized Engine: Powered by the Weichai WP10 series engine, rated for approximately 340 hp (based on available 6x4 data), providing strong torque and reliable power output for heavy-duty hauling.
High-Efficiency Gearbox: Equipped with the proven FAST 10-speed (10JSD180) manual gearbox, ensuring smooth, precise shifting and efficient power transfer under varied driving conditions.
MAN Technology Axles: Features a 9.5 Ton MAN front axle and 16 Ton MAN double reduction rear axles (common in SHACMAN 6x4 configurations) with a high speed ratio (e.g., 5.92 or similar) to ensure exceptional traction and load stability.
Robust Suspension: Built with front and rear multi-leaf springs, designed to support high static and dynamic loads typical of dump truck operations.
H3000 Chassis and Cab Features
Lightweight Design: The H3000 series is optimized for low curb weight, allowing for increased legal payload and better fuel economy. The structure maintains high strength through the use of advanced materials.

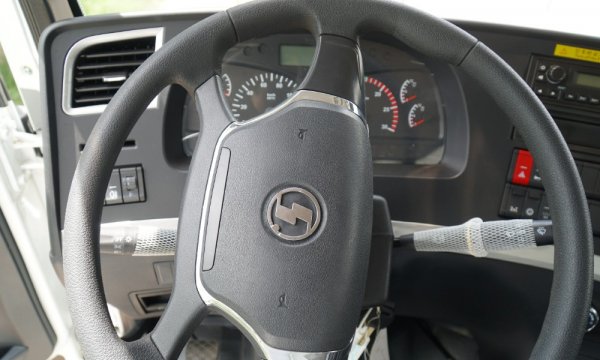

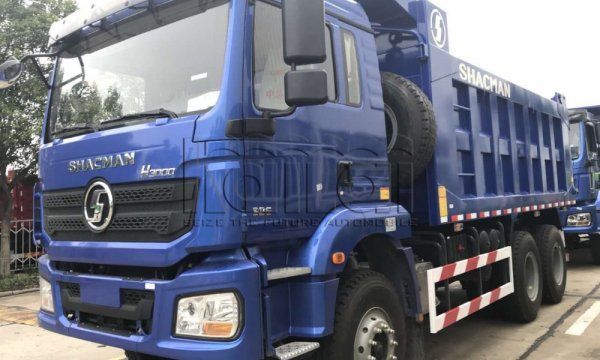

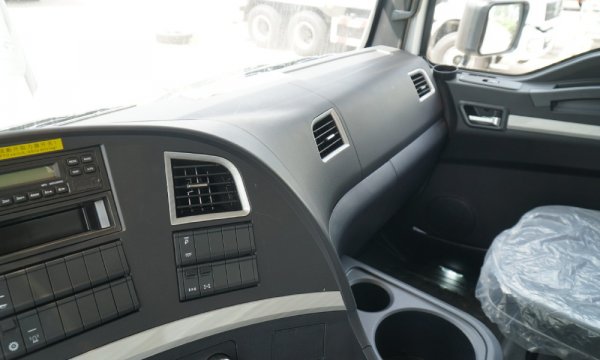

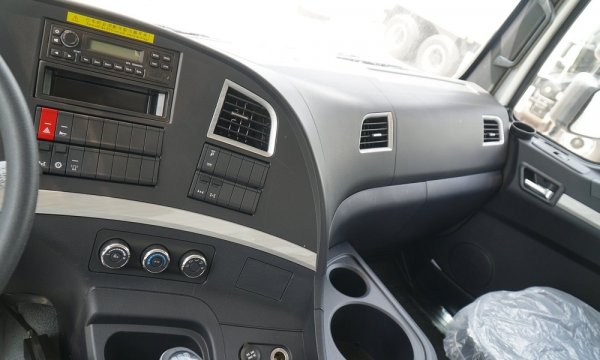

Modern H3000 Cab: Features a high-roof cab with four-point hydraulic suspension, prioritizing driver comfort and reducing fatigue during long shifts.
Driver Comfort: Includes Air Conditioning and a sleeper bed (based on typical configurations) to ensure a comfortable working environment.

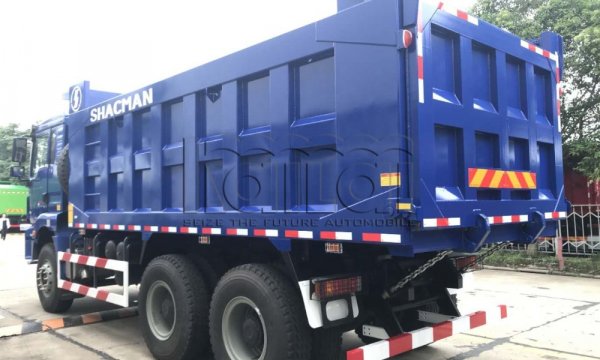

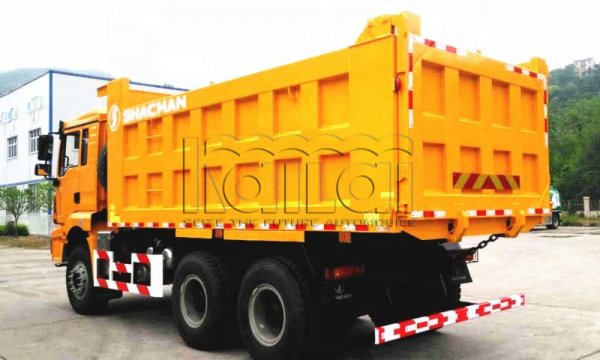

Dump Body: The chassis is prepared for a large dump body, typically sized around 5400 mm x 2300 mm x 1500 mm (approx. 18.6 cbm), with reinforced steel thickness (e.g., Bottom 8mm, Side 6mm) for durability.
Key Technical Parameters (Estimated 6x4 Configuration)
| Parameter Name | Technical Specification |
| Drive Type | 6×4 |
| Driving Mode | Left Hand Driving (LHD) |
| Engine Model | WEICHAI WP10.340E22 |
| Horsepower | 340 hp |
| Emission Standard | Euro 2 (or higher based on market) |
| Transmission | FAST 10 Speeds (10JSD180) |
| Front Axle (kg) | 9500 (MAN Technology) |
| Rear Axle (kg) / Ratio | 16000 (Double Reduction) / 5.92 |
| Wheelbase (mm) | 3575 + 1400 |
| Curb Weight (kg) | Approx. 12100 |
| Total Mass (kg) | 25000 |
| Max. Speed | 77 km/h |
| Tyres | 12.00R20 |
| Fuel Tank Capacity | 400L |
| Cab | H3000 High Roof, Hydraulic Suspension |
Contact Information
Please contact us if you are interested in the price and further information regarding the SHACMAN H3000 6X4 Dump Truck!
