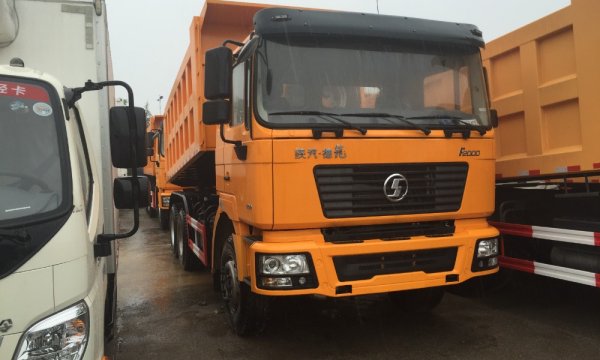

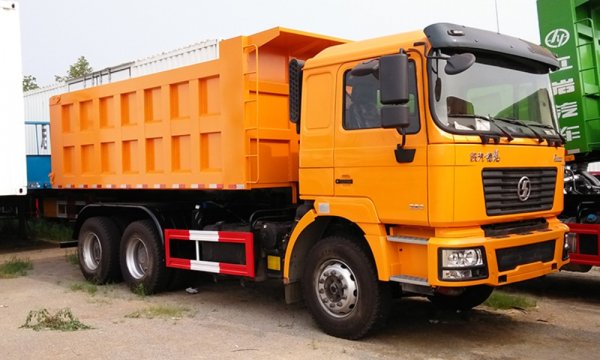

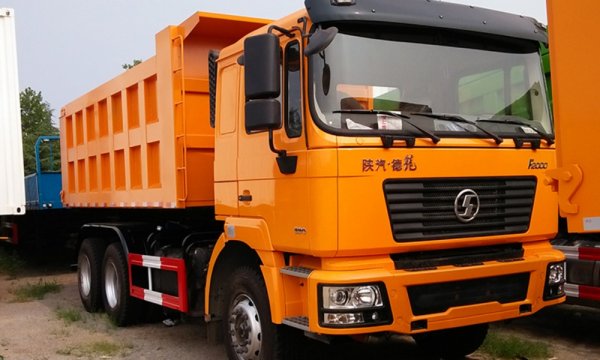

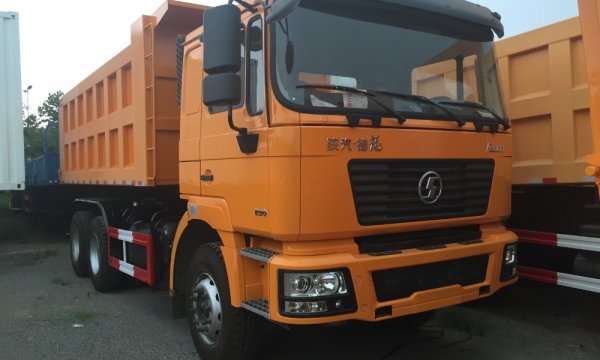

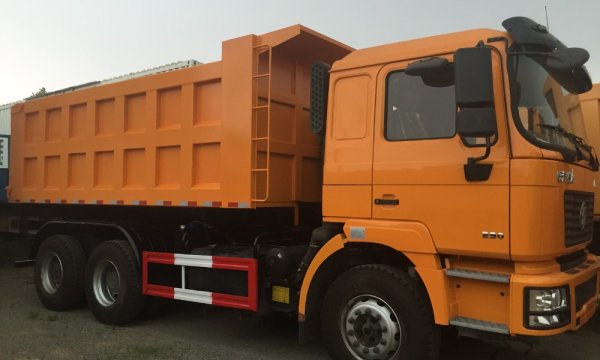

SHACMAN F2000 6x4 Dump Truck

Model: SX3251DM384

The SHACMAN F2000 6x4 Dump Truck is a heavy-duty workhorse designed for construction, mining, and bulk material transport, offering a blend of robust military heritage, advanced MAN technology, and proven durability. This model is engineered to handle even the toughest demands and is a flagship export product with a strong track record across numerous global markets. The F2000 features a comfortable F2000 flat cabin equipped with a sleeper and air conditioning (A/C), which helps to minimize driver fatigue and maintain productivity in varied climate conditions. Its strong, lightweight high-strength frame and optimized design contribute to superior load-bearing capacity and a high attendance rate, ensuring maximum economic benefit for the user.

The F2000 6x4 Dump Truck is powered by the reliable WEICHAI WD615.50 diesel engine, which is known for its durability, strength, and optimized fuel consumption. The engine’s high torque output at low RPM is critical for construction and mining applications that require superior climbing ability and rapid acceleration. Power is efficiently managed through a FAST brand manual transmission and heavy-duty axles utilizing Steyr and MAN technology, providing stable performance and smooth power delivery across rugged terrains.

Key Features

Robust Body: Features a durable cargo box with a floor thickness of 8 mm and side thickness of 6 mm for heavy-duty load protection and impact resistance.
Safety Technology: Utilizes WEVB engine exhaust braking patented technology, which increases braking efficiency by over 55%, enhancing operational safety.
High Payload Capacity: Equipped with Hande technology axles (7.5 Ton Front, 13 Ton Rear) and a robust chassis built for heavy-duty haulage.
Driver Comfort: The cab is designed with four-point hydraulic suspension and a hydraulic chair for the driver, significantly improving ride stability and reducing posture fatigue on rough roads.

Technical Specifications

*Chassis* *parameters*
Chassis model		SX3251DM384	Chassis brand	Shacman
Overall dimensions		8329x2500x3450 mm	Wheel base	3800+1350mm
Cab	Configuration	F2000 flat cabin with one sleeper, with A/C
	Color	Yellow/ or optional
Engine	Model	WD615.50
	Emission	Euro 2
	Type	6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, exhaust valve brake, direct injection, diesel engine
	Rated power	290hp
	Max Torque	1160N.m/1100~1600(r/min)
Tire	Size	12.00R22.5
	Number	10+1
Clutch	Φ430MM diaphragm clutch
Fuel tank	380L fuel tank
Front axle	Hande 7.5 Ton front axle, Man technology, drum brake
Rear axle	Hande 13 Ton double reducer axle, Styre technology, drum brake, main reduce+wheel reducer. Both axle differential lock & wheel differential lock have
Drive form	6x4
Suspension	Leaf springs, front 10 pieces, rear 12 pieces
Rated voltage	24V
Transmissions	Gearbox 9JS135, 10 speed forward 1 reverse.
Steering device	ZF technology
Steering wheel	Left hand drive
ABS	Without

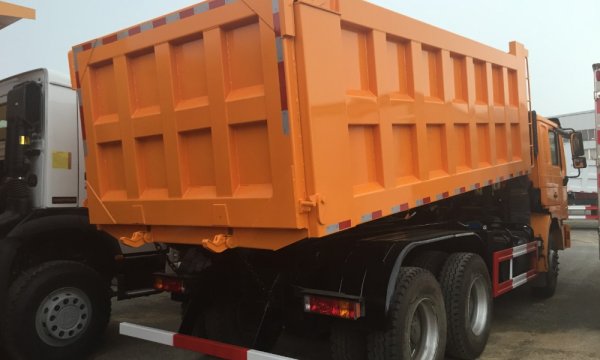

Body	Inner size(mm):5400x2300x1500, capacity: 18.6CBM
Thickness of body steel (mm)	Floor 8 side & back 6mm
Tipping type:	Middle Lifting system (as following presentation)
