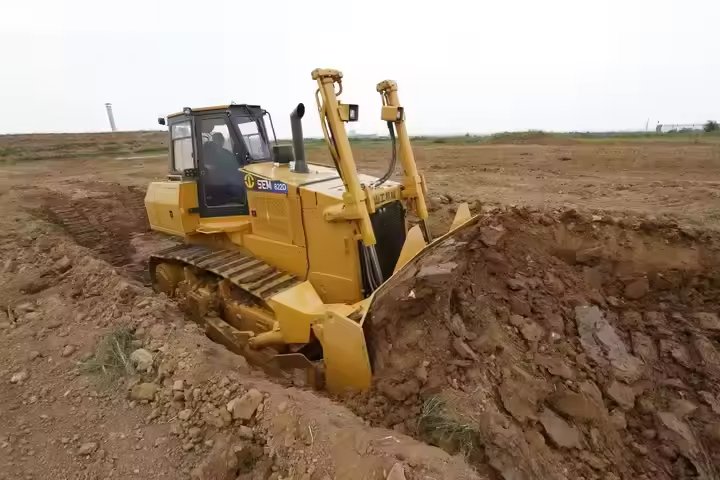

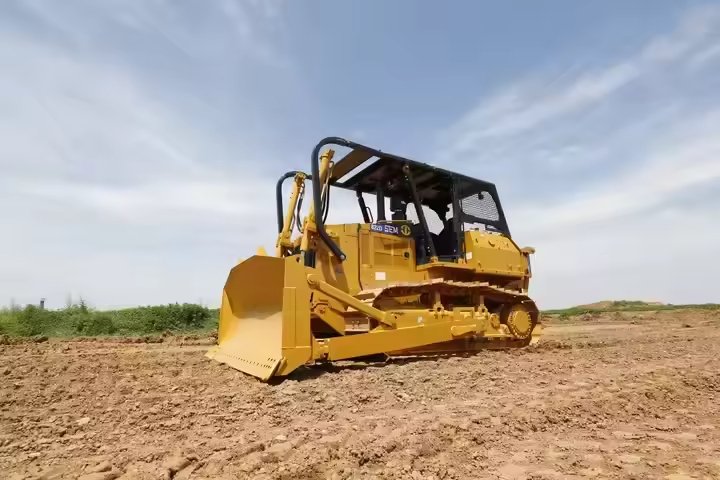

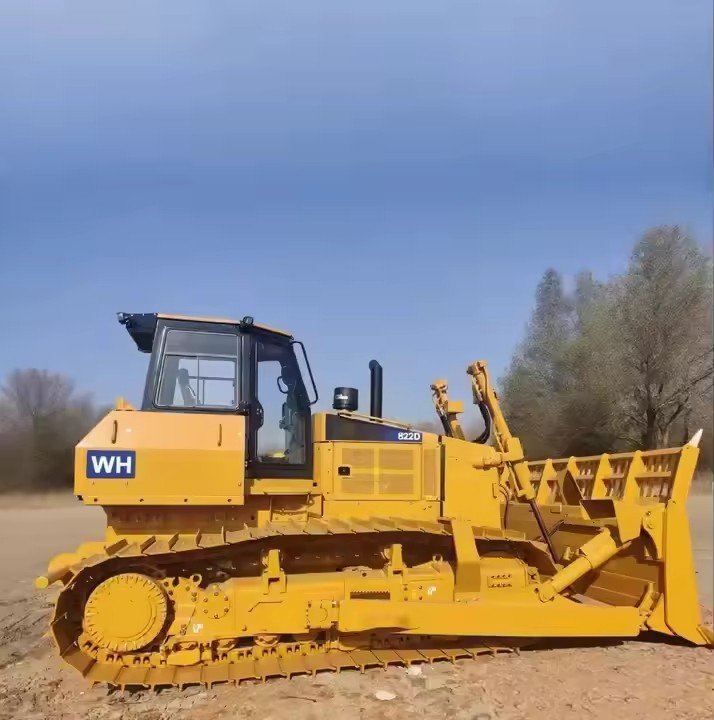

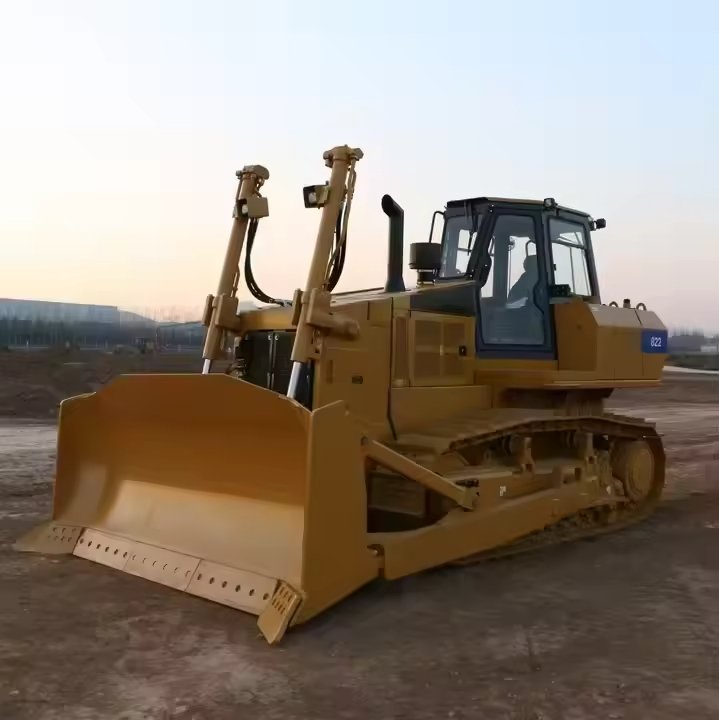

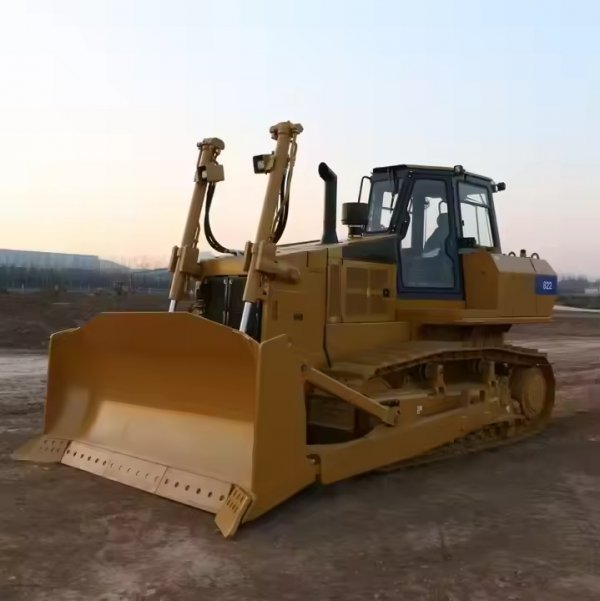

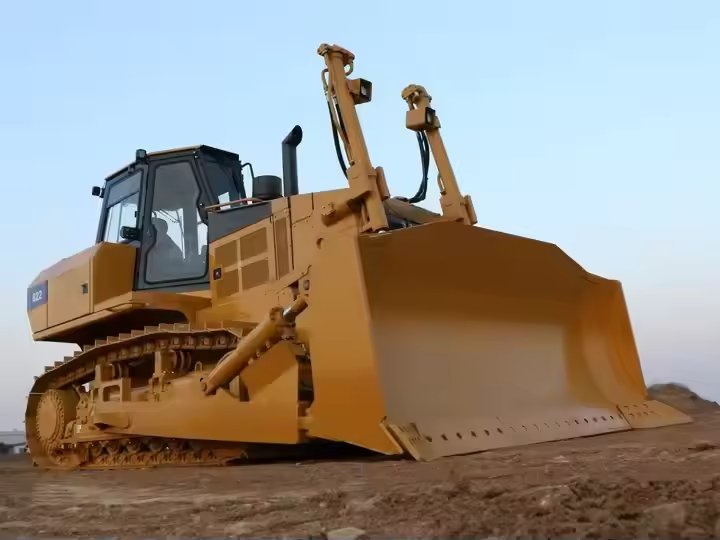

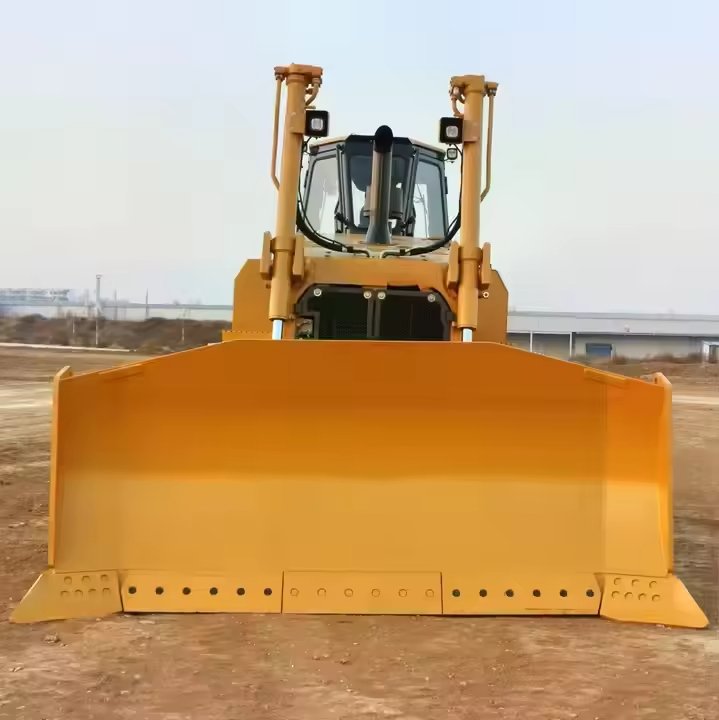

Advanced SEM822D Full-Hydraulic Bulldozer with Customizable Ripper and Blade
No.:
Vehicle Type: Excavator
Brand Name: SHACMAN SAGMOTO
Person in charge: William Du
Cel: 8619050562894
Whatsapp: 8619050562894
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Product Description – SEM822D Full-Hydraulic Bulldozer
| Parameter | Value |
|---|---|
| Model | SEM822D |
| Operating weight | 24 000–26 520 kg (depending on blade & ripper) |
| Engine | Weichai WD12G240E206, 175 kW / 235 HP, 8.7 L, Tier II / Euro III |
| Ground pressure | 71.2 kPa (SU blade + ripper) |
| Ground clearance | 400 mm |
| Blade type & capacity | SU blade 6.4 m³, S blade 5.8 m³, optional coal / forestry blades |
| Blade width / height | 3 660 mm / 1 520 mm (SU) |
| Ripper options | Three-shark multi-shank ripper, single-shank ripper |
| Max digging depth (ripper) | 860 mm |
| Max rimpull | 350 kN |
| Transmission | Dual-path hydrostatic, infinitely variable 0–10 km/h |
| Steering | Hydrostatic, minimum radius 4 215 mm |
| Gradeability | 30° |
| Track shoe width | 560 mm (standard), 915 mm (LGP) |
Key Features
Hydrostatic drive – German pump & motor, stepless speed, 60 % less maintenance
Three-shark ripper – 3-shank heavy-duty rear ripper for hard rock / frozen ground
SU blade – combines straight-blade precision with U-blade capacity
Ergonomic cab – A/C, ROPS/FOPS, multifunction joystick, cruise control
Modular final drive – planetary + spur gear, lifetime sealed
Applications
Quarry overburden removal
Road construction & widening
Landfill site levelling
Forestry & wetland projects
