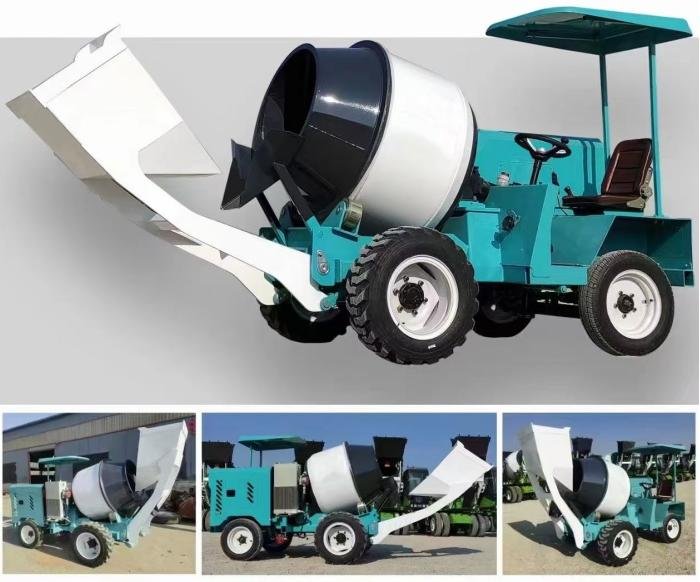

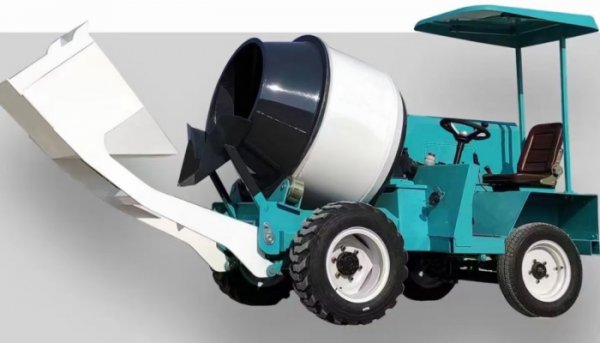

LUZUN 0.5m³ Mini Self-loading Concrete Mixer Truck for Sale
No.: KL250529WJX1
Vehicle Type: Concrete Mixer Truck
Brand Name: LUZUN
Person in charge: Stacy Wong
Cel: 8617657099215
Whatsapp: 0086 17657099215
E-mail: sales5@chinatruck.cc
FREE GET QUOTE
Details
LUZUN 0.5m³ Mini Self-loading Concrete Mixer Truck for Sale
Key Features:
✅All-in-One Operation--Handles loading, mixing, transporting, and discharging independently, eliminating the need for multiple machines.
✅Compact & Maneuverable--Small size (ideal for 0.5m³ batches) allows easy operation in confined spaces like village roads and backyard constructions.
✅Self-Loading & Water Supply--Built-in loading system and external water pump ensure continuous operation near any water source.
✅270° Discharge Rotation--Flexible discharge angle adapts to various job site conditions.
✅Easy to Operate--Simple controls allow quick training, making it suitable for small contractors and rural builders.
Specifications:
| Item | Description | Parameters |
| Overall information | Vehicle size | 4200*1600*2350 |
| Wheelbase | 1500mm | |
| Curb weight | 1860kg | |
| Drive mode | Belt drive | |
| Maximum speed | 20km/h | |
| Maximum climbing grade | 30 degrees | |
| Minimum turning radius | 4000mm | |
| Minimum ground clearance | 150mm | |
| Engine | Model | Changchai single-bar engine |
| Rated power | 16kw | |
| Gearbox | Model | Manual transmission |
| Gear | 3 forward 1 reverse | |
| Hydraulic system | Reducer | F-K100 |
| Double pump | 50/32 | |
| Motor | Cycloid 125 | |
| Maintenance filling amount | Fuel tank | 18 liters |
| Total hydraulic system capacity | 20 liters | |
| Engine oil | 3.5 liters | |
| Mixing and unloading | Drum geometric volume | 700L |
| Drum rotation speed | 18-20 rpm | |
| Concrete output | 0.5 cubic meters/tank |
The LUZUN 0.5m³ Mini Self-Loading Concrete Mixer Truck is the perfect choice for small-scale construction projects, especially in rural areas, narrow worksites, and tight spaces. Combining automatic loading, mixing, and discharging in one compact machine, it maximizes efficiency while minimizing labor and costs.
Interested in this model? Contact us for pricing and configuration options!
