Hot sale SHACMAN F2000 6X4 8-10m3 CONCRETE MIXER TRUCK
No.: Cynthia93
Vehicle Type: Concrete Mixer Truck
Brand Name: SHACMAN
Person in charge: Cynthia Sun
Cel: 8617669717525
Whatsapp: 8613396363431
E-mail: sales2@chinatruck.cc
FREE GET QUOTE
Details

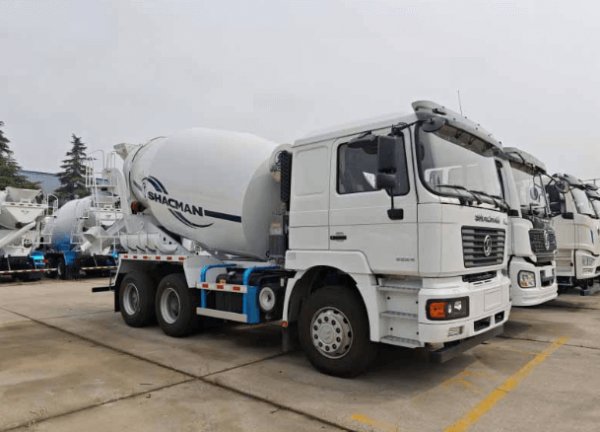

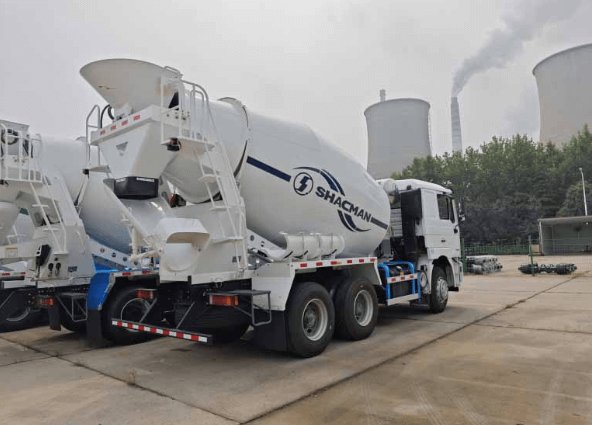

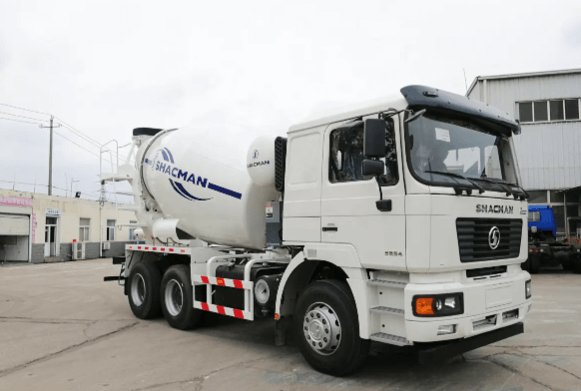

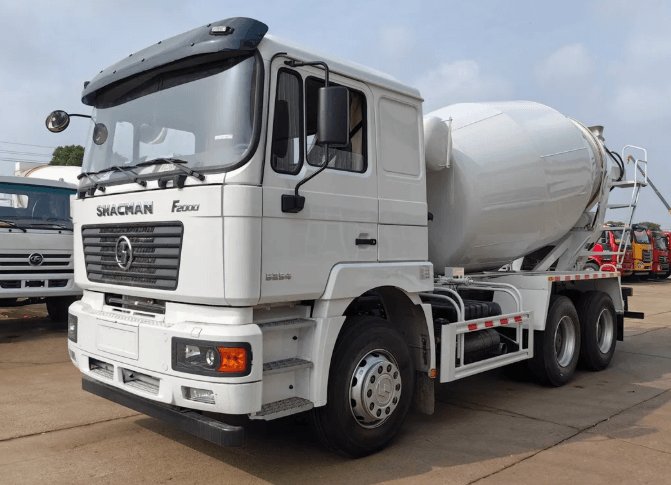

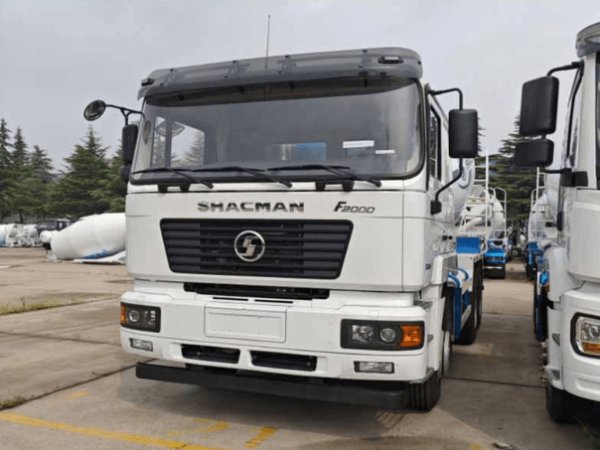

SHACMAN F2000 6X4 8-10m3 CONCRETE MIXER TRUCK
The SHACMAN F2000 concrete mixer truck cab features a left-hand drive design, making it suitable for right-hand drive vehicles in all countries. The cab is equipped with a sleeper berth and air conditioning, providing the driver with a comfortable working environment and ample rest space to reduce driver fatigue. Both the upper and lower cabs are equipped with three-section foot pedals for added convenience for operators.

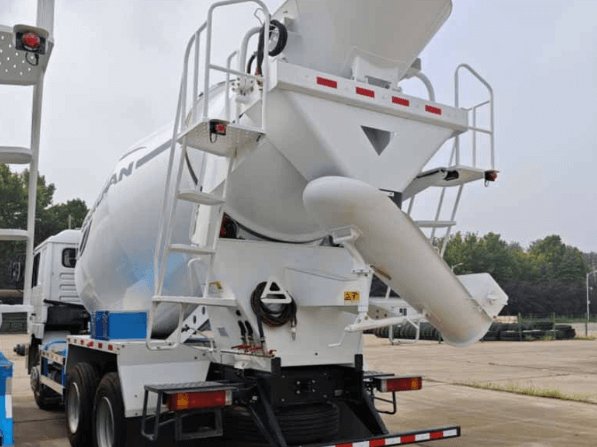

The three main components of a concrete mixer truck are the hydraulic pump, the motor, and the reducer. The hydraulic pump converts engine power into hydraulic energy through the hydraulic system, and then transmits this hydraulic energy to the motor via oil pipes. The motor converts the hydraulic energy into kinetic energy, driving the reducer to rotate, thereby rotating the mixing drum. These components work together to ensure the efficient and safe operation of the mixer truck.
Driving type | 6x4（LHD） | ||
Wheel base | 3350+1350mm | ||
Max . speed | 90km/h | ||
Engine
| Model | WP10.340E22 | |
Emission Standard | Euro 2 | ||
Displacement | 9.726L | ||
Rated output power | 340HP | ||
Transmission | Model | RTD11509C | |
Shift mode | Manual | ||
Front axle | MAN 7.5T | ||
Rear axle | 13T STR Double stage 5.73 | ||
Frame | 850×300（8+7） | ||
Fuel tank | 380L Iron fuel tank | ||
Wheels and tires | 12R22.5 (wheel rim decorative cover) | ||
Cab | Extended flat top cab | ||
Upbody | 10m3 | ||
Basic configuration
| 1.Hydraulic driver's seat 2. elastic headrests 3. four-point hydraulic suspension 4. 2013 standard rearview mirrors 5. hot-zone climate control 6. Jack Cell technology compressor 7. manual window regulator 8. manual sunroof 9. manual tilt-and-turn function 10. telescopic shaft control 11. domestic six-channel ABS 12. standard air filter 13. copper water tank 14. fiberglass bumper 15. front underrun protection 16. rear underrun protection 17. driving recorder 18. 165Ah maintenance-free battery 19. cruise control system 20. speed limiter 90km/h 21. seatbelt reminder 22. reflective vest 23. SHACMAN logo 24. all-English signage 25. old-style interior | ||
