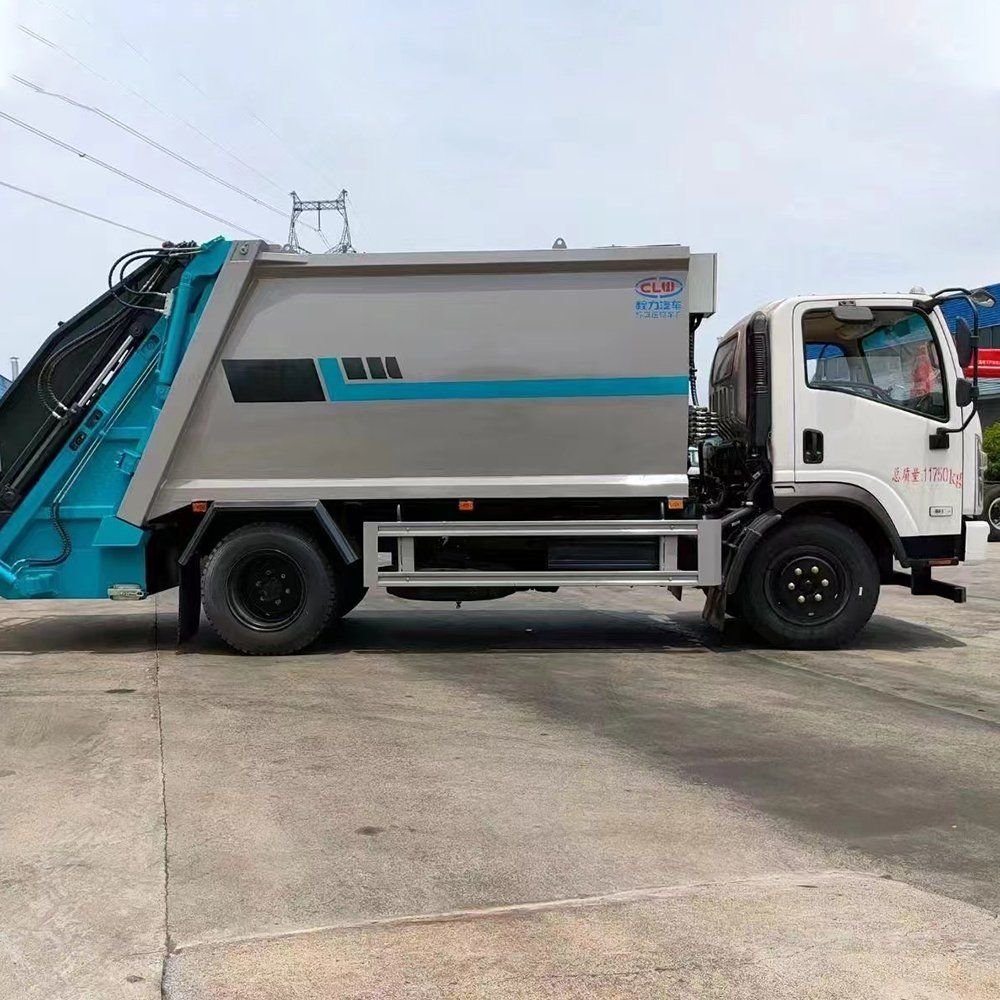

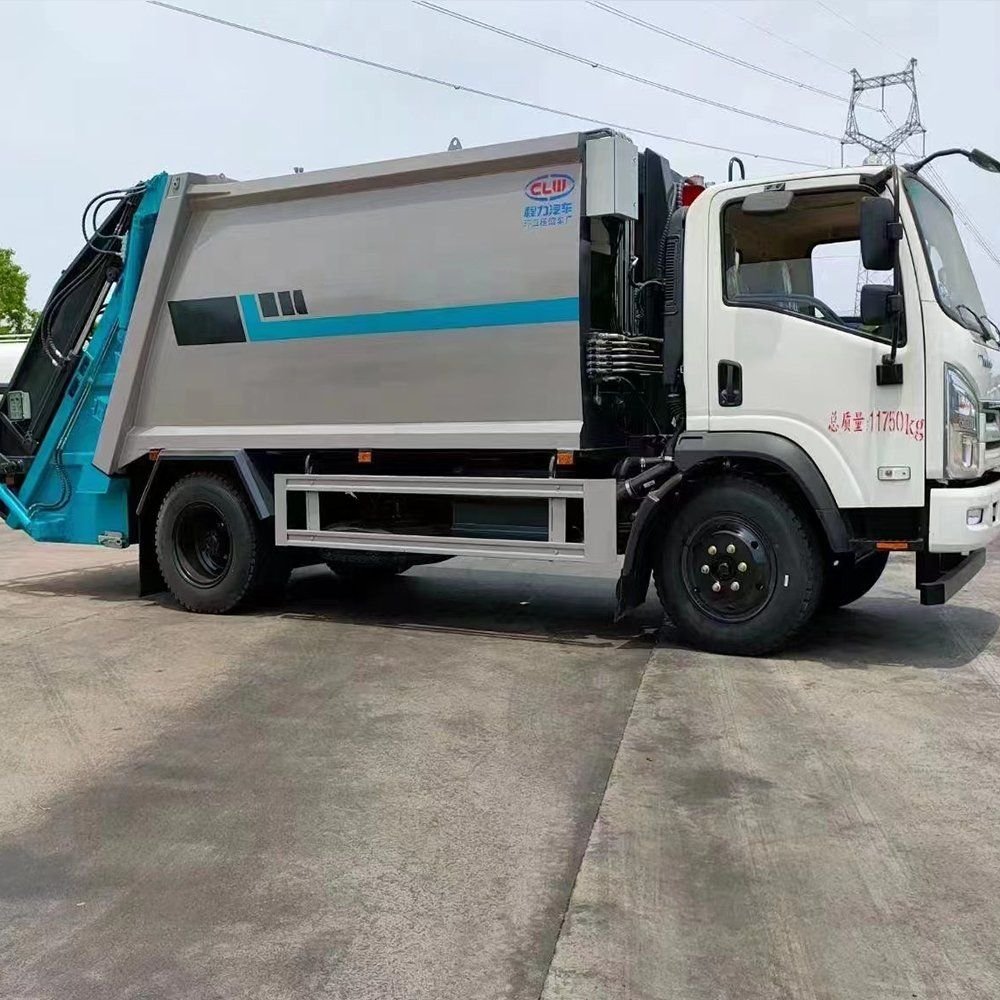

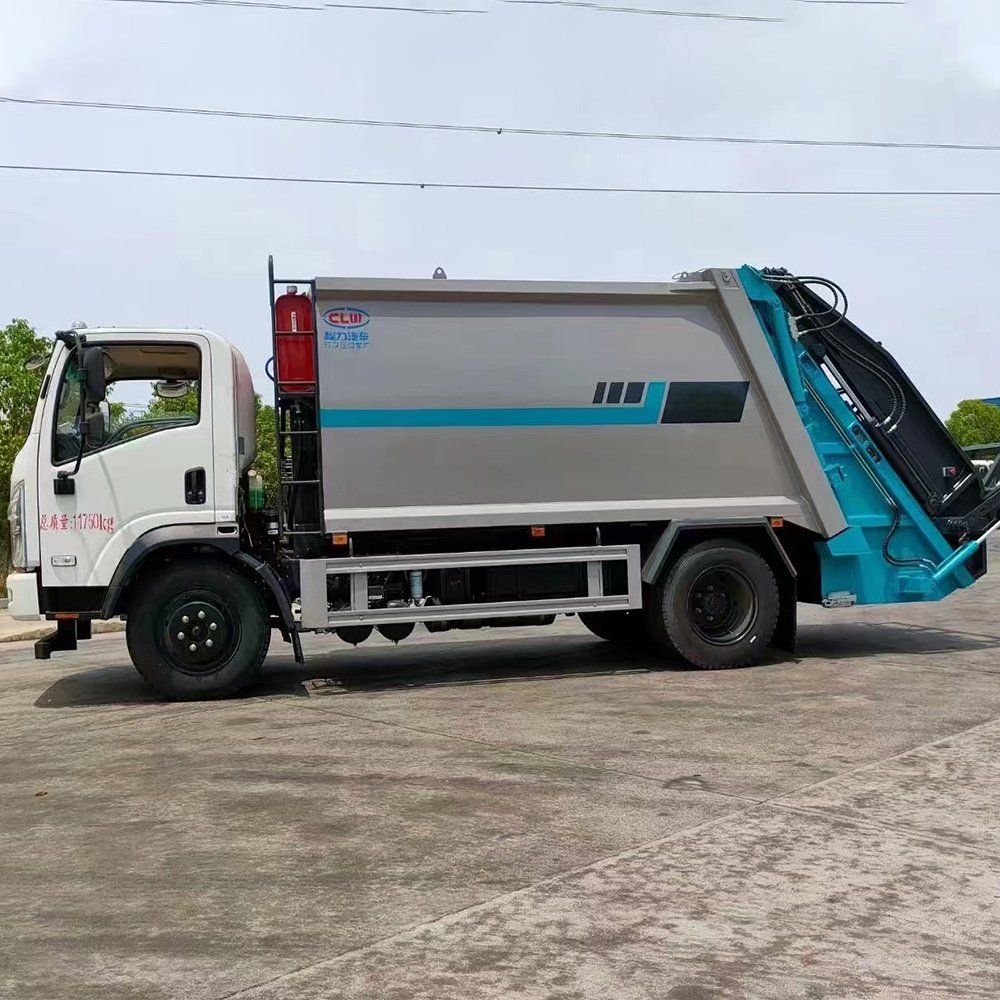

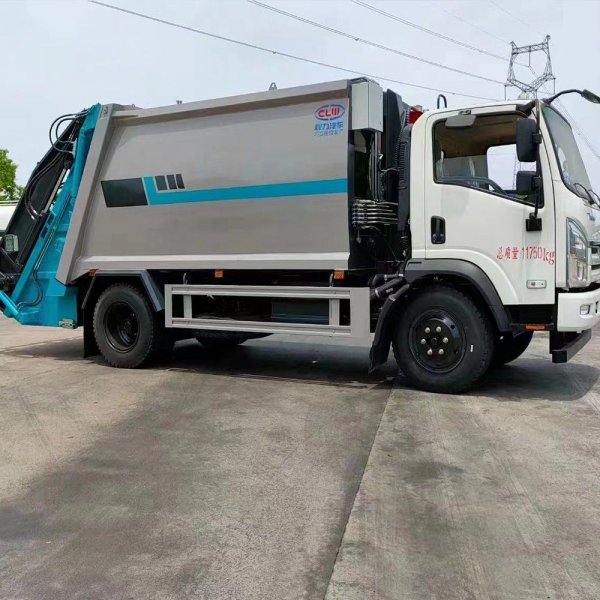

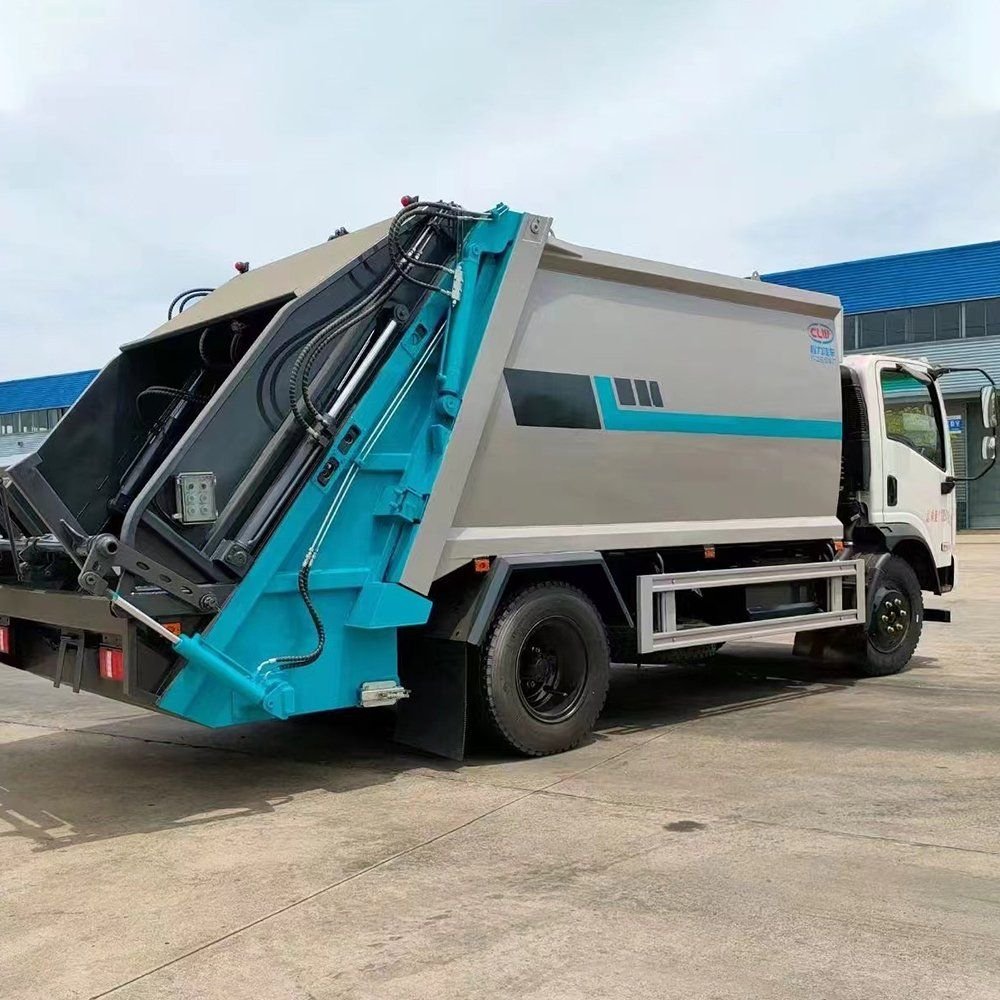

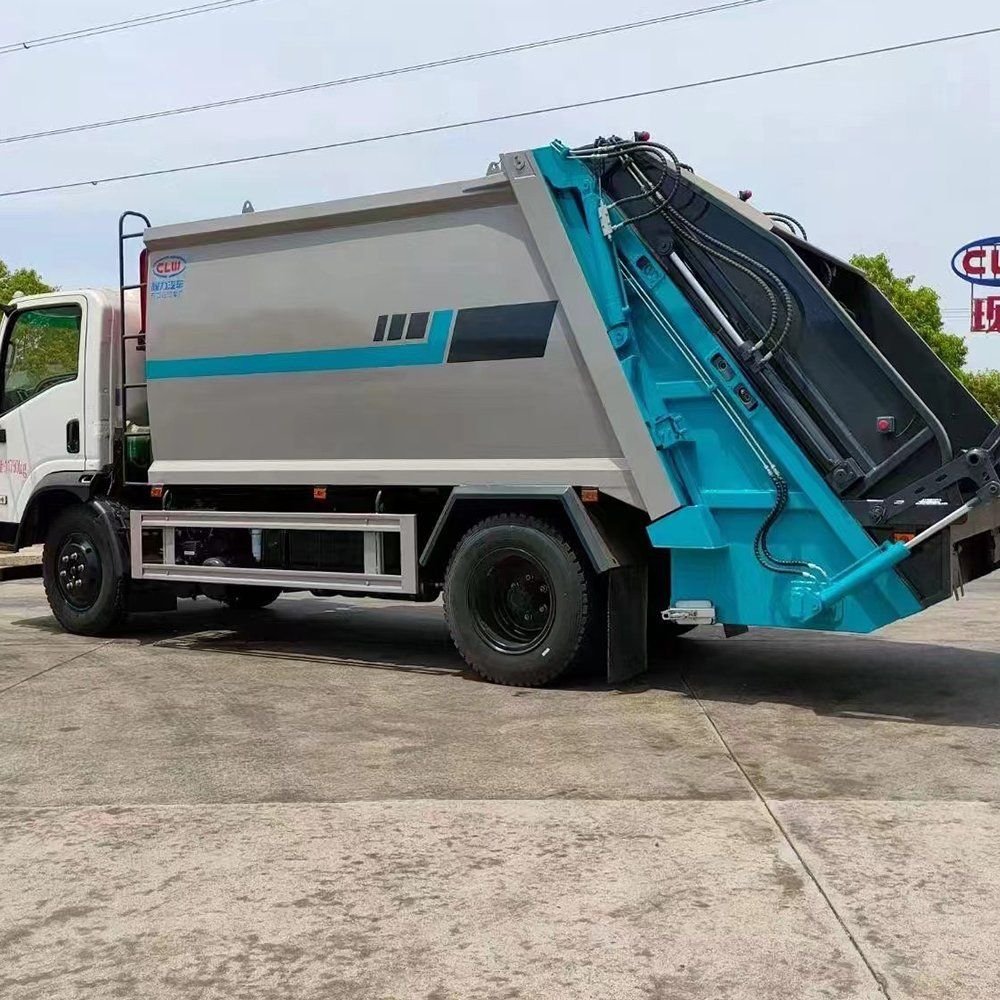

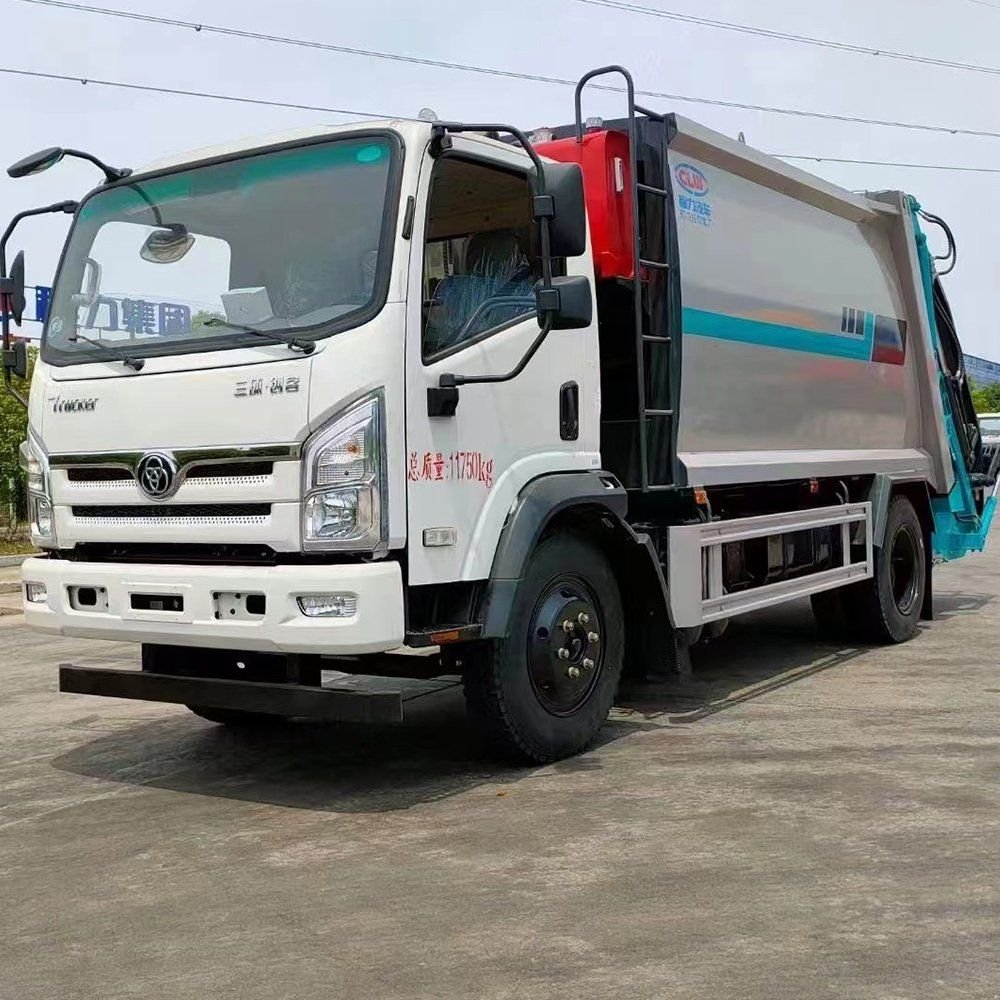

Kailai Tri-Ring CL5120ZYS6BHQ 4×2 12m³ Euro-VI Compactor Garbage Truck - 110-147kW, 8-Gear, Full-Hydraulic, PLC One-Button, 240L Rear Lifter, Global Export
No.:
Vehicle Type: Garbage Truck
Brand Name: KAILAI
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Kailai Tri-Ring 4×2 12m³ Euro-VI Compactor Garbage Truck - 110-147kW, 8-Gear, Full-Hydraulic, PLC One-Button, 240L Rear Lifter, Global Export
Key Features

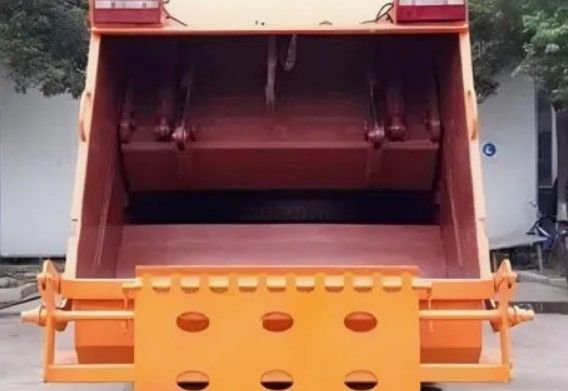

12m³ sealed bin: wall 4mm, floor 5mm, compression density 0.6-0.8t/m³, cycle ≤30s, unload ≤60s
Euro-VI power: Yuchai/Yunnei 110-147kW (2.5-4L), 8-speed manual, T3 flat-top cab, Bluetooth, laminated glass, electric doors/windows, central locking, multifunction wheel
Heavy-duty chassis: 250×65×230(6.5+5)mm frame, 8/10+7 leaf springs, 4.875 ratio, 8.25R20-16PR tyres, drum brakes with ABS

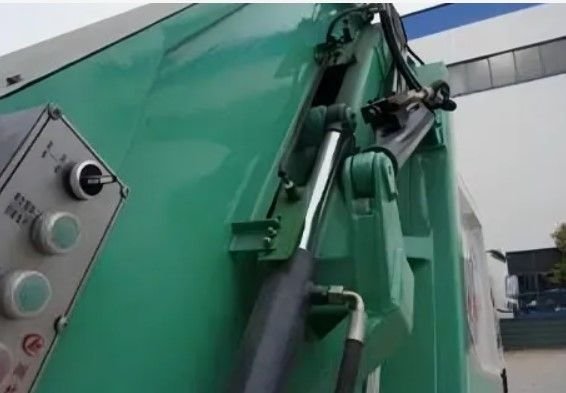

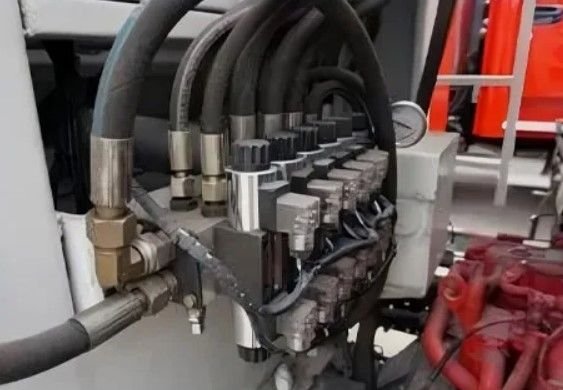

Full-hydraulic system: multi-way valve, oil cylinders, back-pressure & balance valves, no sewage leakage
Siemens PLC: one-button auto + manual dual operation boxes (cab & rear left/right), LED work lamp
Global specs: 24V dual 100Ah batteries, spring parking brake, triangular warning sign, tool kit, side-mounted spare tyre
Kailai 12-month warranty, CCC/ISO9001, fast 20-day production, DDP sea/air worldwide
Specifications Summary
| Item | Specification |
|---|---|
| Model | CL5120ZYS6BHQ |
| Drive | 4×2, LHD/RHD optional |
| GVW | 11,750kg |
| Curb weight | 7,300–7,700kg |
| Dimensions | 7575/7855×2380×2900mm |
| Wheelbase | 3800mm |
| Engine | 110–147kW Euro-VI (Yuchai/Yunnei) |
| Gearbox | 8-speed manual |
| Front axle | 2,500kg drum |
| Rear axle | 7,200kg drum, 4.875 ratio |
| Tank volume | 12m³ |
| Compression cycle | ≤30s |
| Unload time | ≤60s |

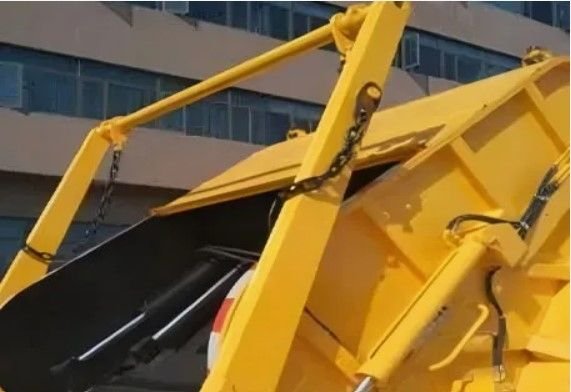

| Lift mechanism | Rear 240L bin flip |
| Operation | Siemens PLC, one-button + manual dual boxes |
| Warranty | 12 months |
Usage & Safety
Pre-start check oil, air, hydraulic levels; confirm bin is empty before compression.
Never exceed 0.8t/m³ density; use balance valve to prevent sudden drop during unloading.
Clean sewage tanks after each shift; grease bin runners weekly.
Contact us for pricing and configuration options！
