Kailai Gamma 1.6L G4FC Complete Engine Assembly - 153Nm/4200rpm, Euro V, 64kg - Fits Hyundai/Kia i30, K2, Solaris, Verna - OEM Replacement
No.:
Vehicle Type: Engine parts
Brand Name: gamma
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details

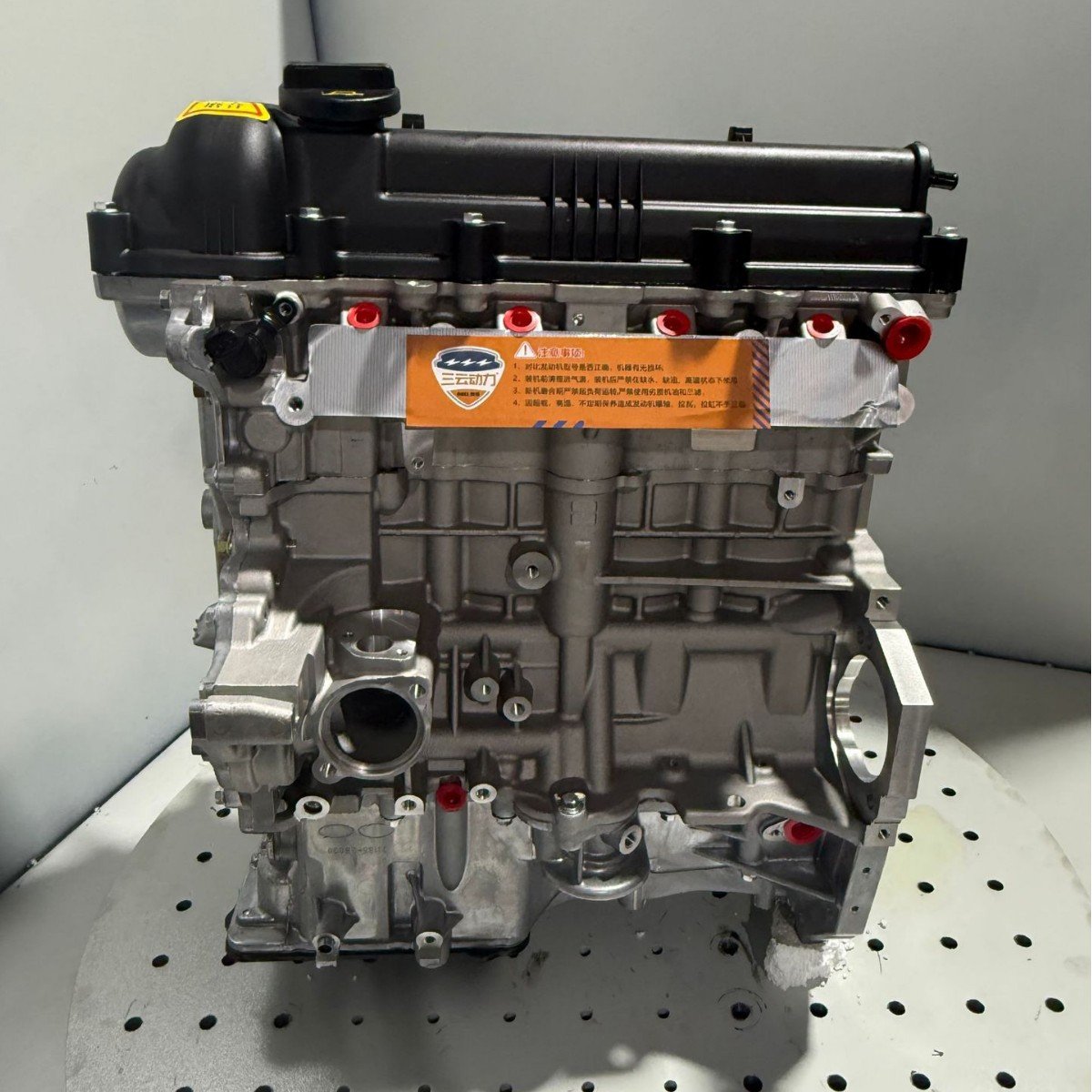

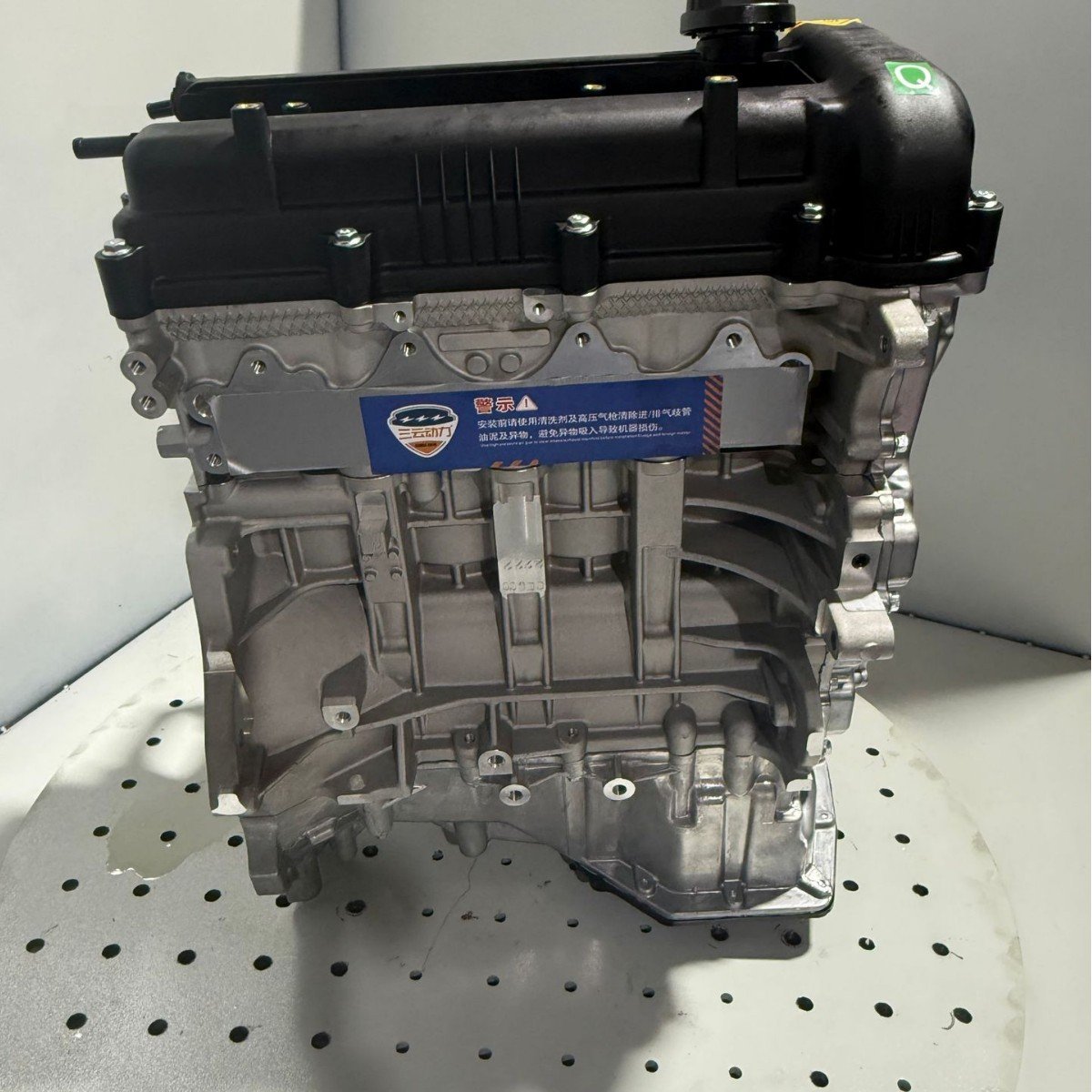

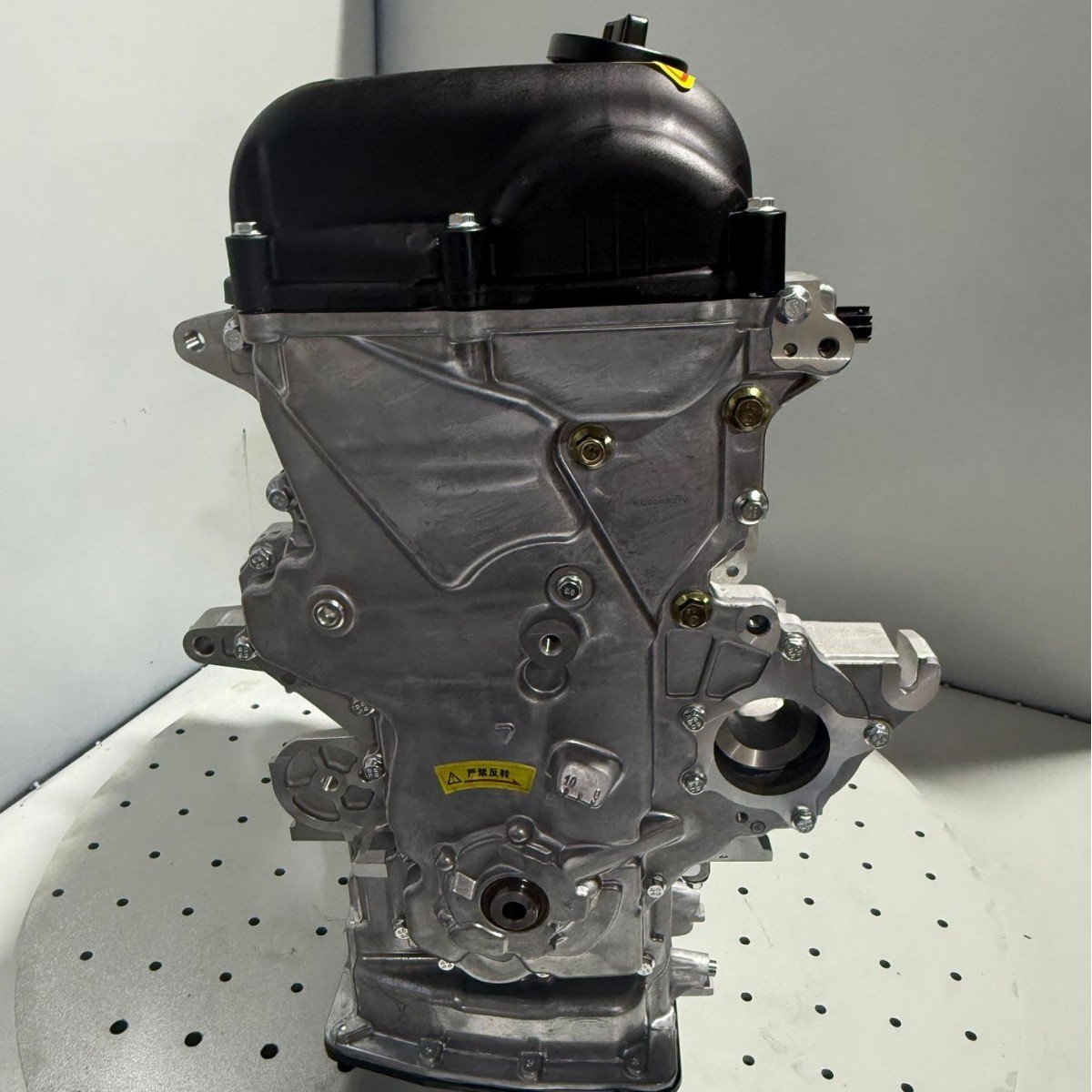

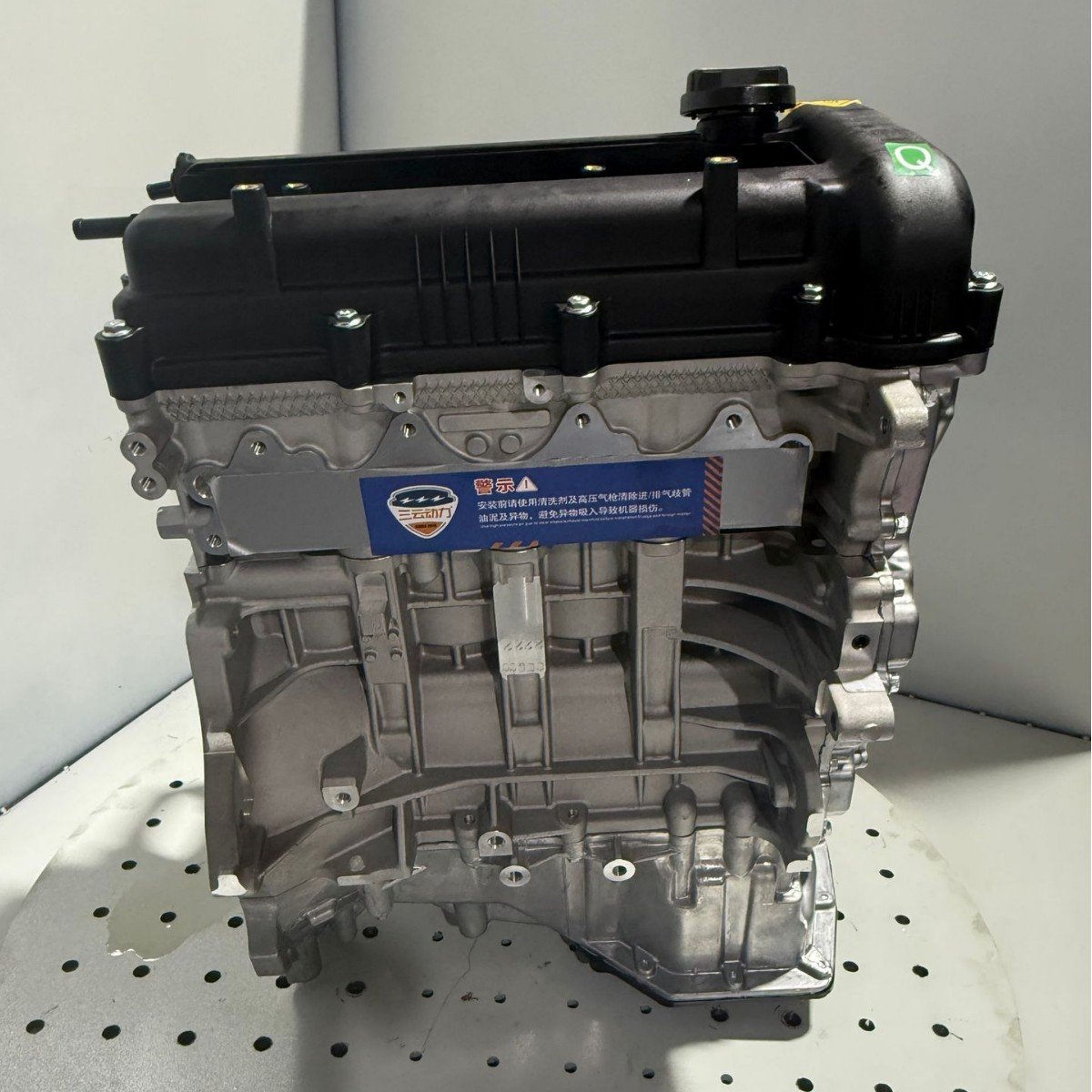

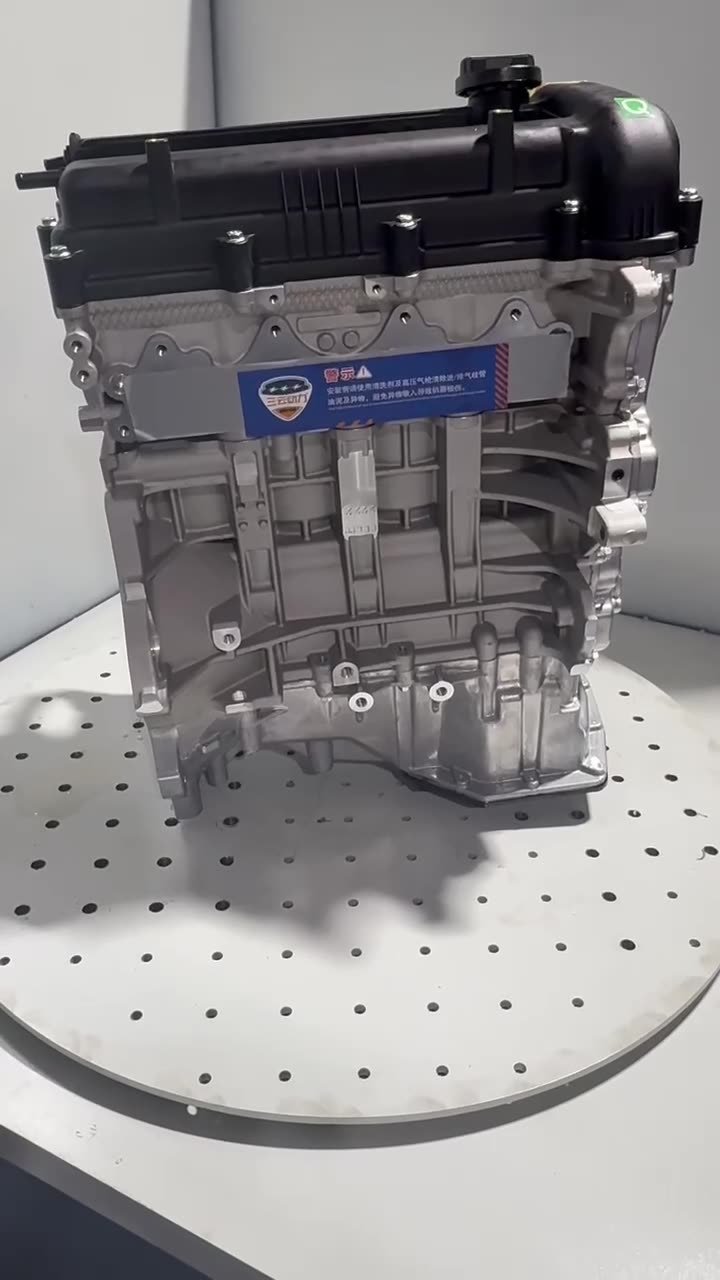

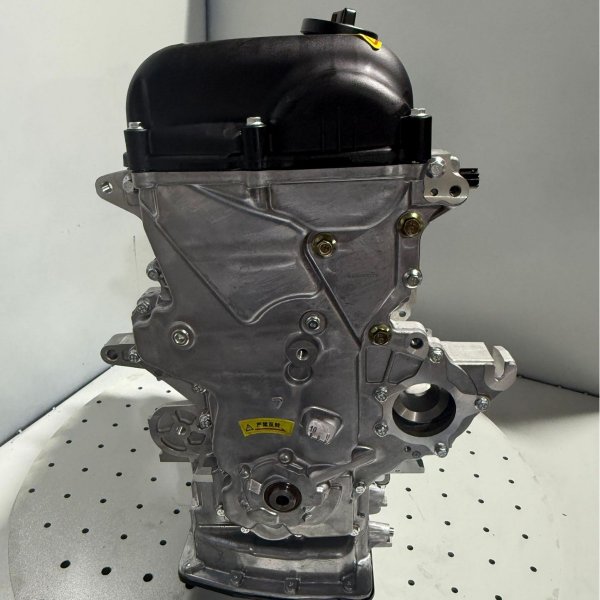

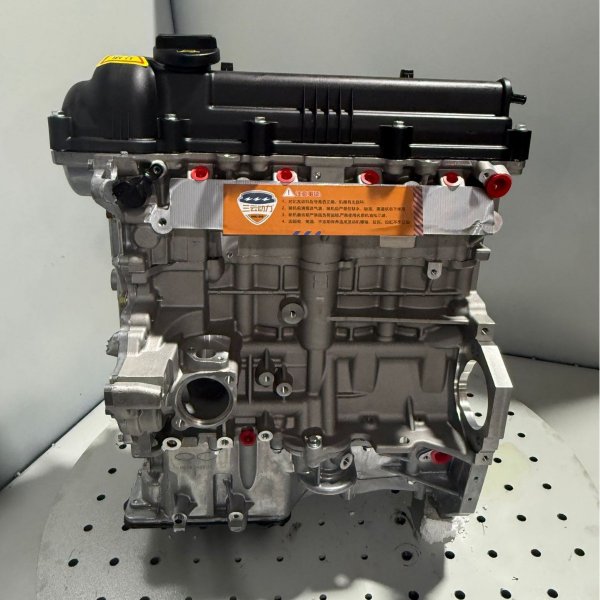

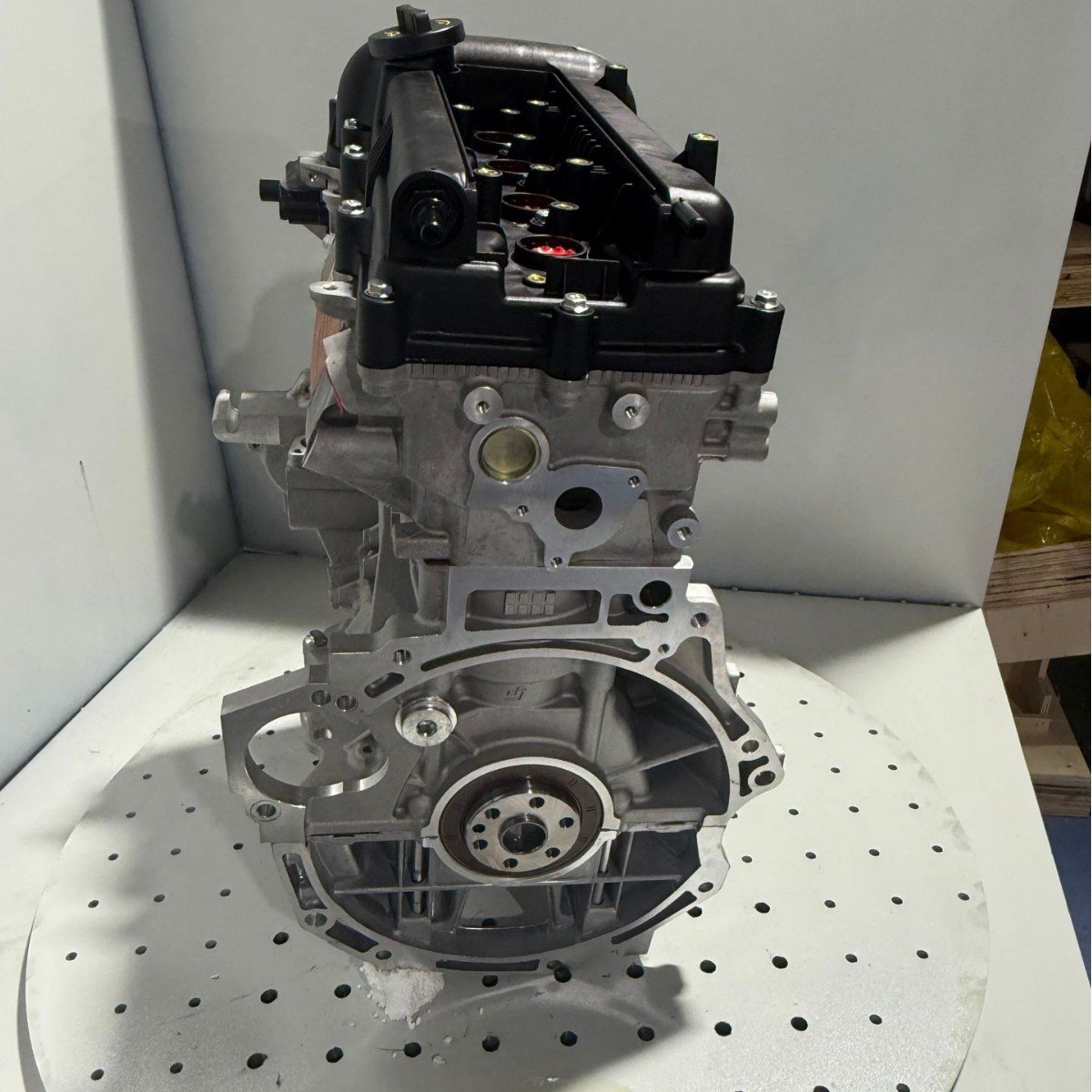

Kailai Gamma 1.6L G4FC Complete Engine Assembly - 153Nm/4200rpm, Euro V, 64kg - Fits Hyundai/Kia i30, K2, Solaris, Verna - OEM Replacement
Key Features
Brand-new complete engine (no core needed) - 山东三云 OEM spec, Kailai global distribution
Gamma II 1.6L inline-4, 16-valve DOHC, aluminium block & head, 10.5:1 compression
Power: 77kW @ 6000rpm, torque 153Nm @ 4200rpm - ideal for city & highway fuel economy
Euro V emissions - EGR, close-coupled cat, 230-250g/kWh BSFC - passes EU V & China V inspection
Manual-transmission version - includes clutch housing, flywheel, starter, alternator, intake/exhaust manifolds, injectors, ECU, wiring harness - bolt-in & start
Max input speed 6800-7000rpm - suitable for MT & CVT conversions
Dry weight 64kg - 43L fuel tank, 600-800rpm idle, valve clearances 0.20-0.25mm IN / 0.25-0.30mm EX
Fits: Hyundai i30, K2, Solaris, Verna, Accent, Elantra 2010+ manual gearbox - direct replacement, no machining required
Kailai 12-month unlimited-km warranty, global DDP shipping, technical support & parts supply
Specifications
| Parameter | Value |
|---|---|
| Engine code | G4FC (Gamma 1.6) |
| Displacement | 1591cc |
| Cylinders / valves | Inline-4, 16V DOHC |
| Bore × stroke | 77 × 85.4mm |
| Compression ratio | 10.5:1 |
| Max power | 77kW (103HP) @ 6000rpm |
| Max torque | 153Nm @ 4200rpm |
| Emission standard | Euro V |
| Fuel system | MPI, 43L tank |
| Idle speed | 600-800rpm |
| Valve clearance IN/EX | 0.20-0.25 / 0.25-0.30mm |
| Max input speed | 6800-7000rpm |
| BSFC | 230-250g/kWh |
| Dry weight | 64kg |
| Transmission | Manual (MT) - dry single-plate clutch |
| Package | Plywood crate + anti-rust film |
Installation & Safety
Check engine mounts, clutch, radiator, ECU pin-out before installation
Use 5W-30 API SN oil, replace every 10,000km
Torque flywheel bolts 65Nm + 90°, cylinder-head bolts 25Nm + 90° + 90°
