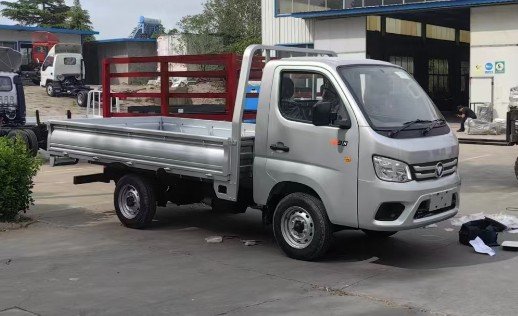

Foton TM1 Fence truck - Reliable 3T Cargo Truck with Euro II Emission Standard
No.:
Vehicle Type: mini flat truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8619050562894
Whatsapp: 8619050562894
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Product Description – FOTON TM3 Fence Truck
| Parameter | Value |
|---|---|
| Model | FOTON TM3 Fence Truck |
| Drive type | 4×2 |
| GVW / payload | 5 000 kg / 3 000 kg |

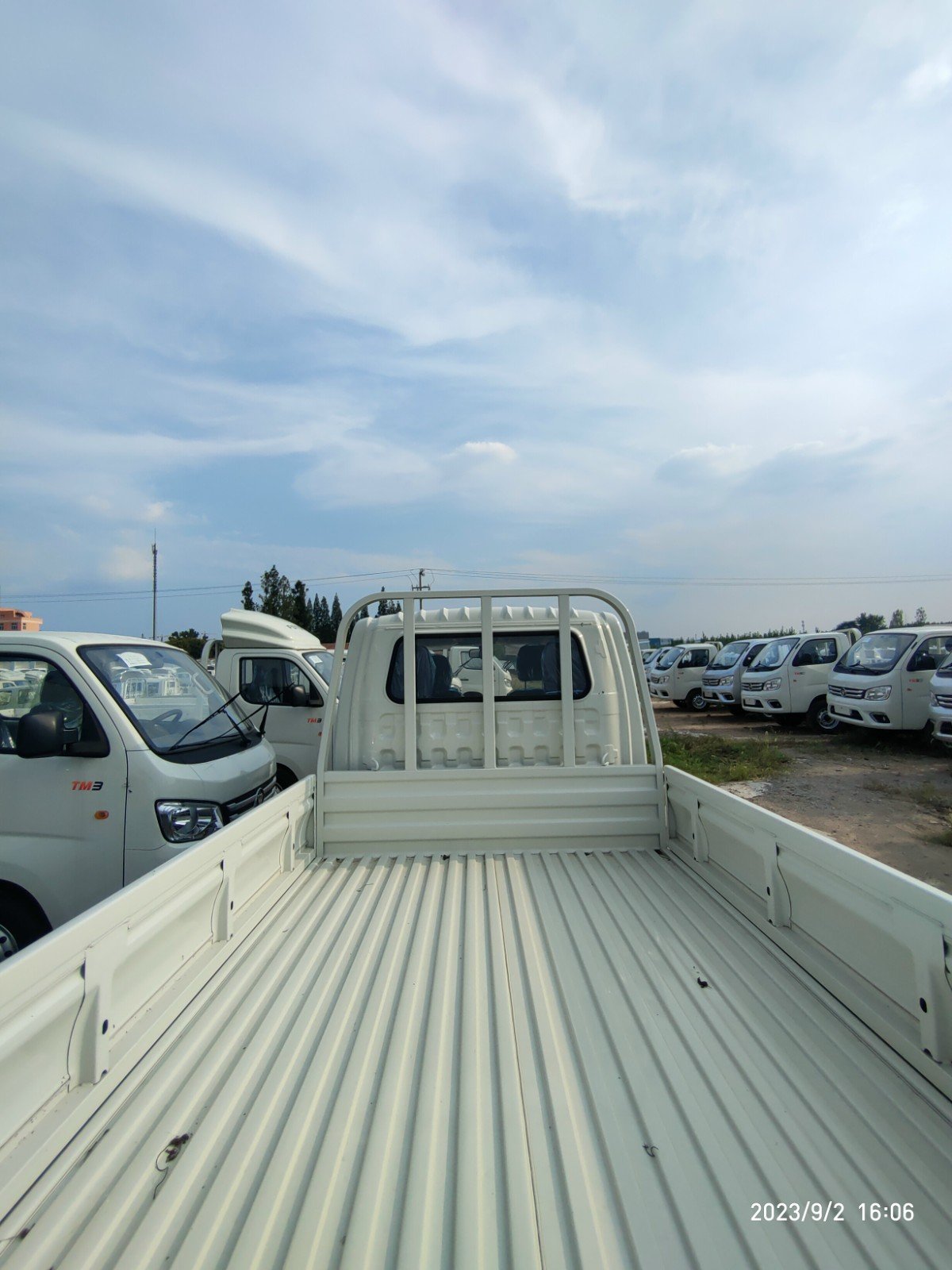

| Cargo body | 4 050 × 1 750 × 1 750 mm, 5.96 m³ |
| Side walls | Drop-side fence, bottom 5 mm / side 3 mm |
| Engine | Yunnei D19TCIE3, 85 kW / 115 HP, Euro II |
| Torque | 450 N·m @ 1 400–2 600 rpm |
| Transmission | 5G32 (5-speed) |
| Wheelbase | 3 360 mm |
| Axles | 1.5 T front / 3.5 T rear, ratio 4.33 |
| Suspension | Reinforced leaf springs, hydraulic dampers |
| Brakes | Air + ABS + EBD |
| Tires | 185R15-8PR, 6+1 spare |
| Fuel tank | 60 L |
| Cabin | Single row, A/C, power steering |
| Overall dimensions | 5 927 × 1 725 × 1 980 mm |
| Year | 2024 |
| Color | Optional |
Key Features
Urban-friendly size – 5.9 m overall length, 5.6 m turning radius
Euro II diesel – low-cost fuel, no urea, easy service
High-strength fence – 1.5 m drop-sides, quick side loading
ABS+EBD brakes – safe wet-road stopping
Multi-function ready – flatbed, box, or refrigerated swap body
Applications
Urban & rural logistics (drinks, fruits, hardware)
Construction site feed & removal
Municipal refuse & recycling
Global Delivery
CE certified, 25–35 days sea freight worldwide.
