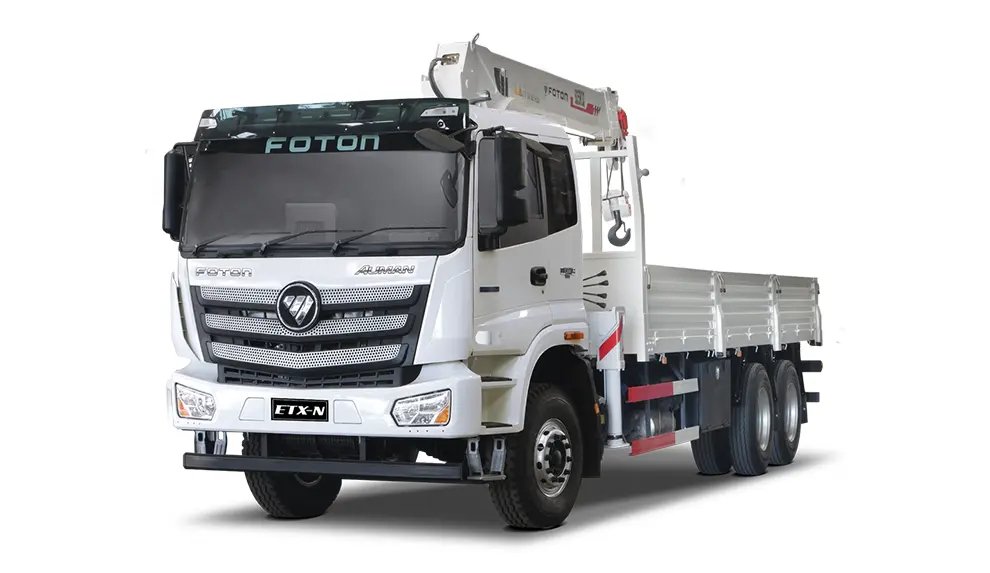

Foton ETX-N 6×4 Crane Truck 6300kg Lifting Capacity 10.5L Cummins Engine 44T Payload
No.:
Vehicle Type: Crane
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Technical Specifications
1. Chassis & Powertrain
Category | Specification |
|---|---|
Drive Configuration | 6×4 |
Engine Model | Cummins ISGe4-350 |
Displacement | 10,500 cc |
Power Output | 350 HP (257 kW) |
Transmission | 9-speed manual |
Max Payload | 44,000 kg |
Tires/Wheels | 12R22.5 (10+1 configuration) |
Fuel Tank | 400L |
2. Crane System
Model | SQ3.2SK2Q | SQ3.2ZK2 | SQ2SK2Q | SQ2ZK1 |
|---|---|---|---|---|
Max Lift Capacity | 3,200 kg | 3,200 kg | 2,100 kg | 2,000 kg |
Max Lifting Moment | 6.72 t·m | 6.72 t·m | 4.2 t·m | 3.2 t·m |
Max Extension | 8,000 mm | 7,500 mm | 8,000 mm | 5,000 mm |
Max Height | 9,000 mm | 9,000 mm | 10,000 mm | 6,500 mm |
Rotation Angle | 360° | 370° | 360° | 370° |
Crane Weight | 1,105 kg | 1,150 kg | 818 kg | 608 kg |
Installation Space | 850 mm | 850 mm | 850 mm | 680 mm |
Key Features
Power & Stability
•
Cummins ISGe4-350 Engine: 350HP/1,400Nm torque for rugged terrain.
•
Reinforced Outriggers: 4 hydraulic stabilizers (2.5m span).
•
High-Strength Boom: WGJ785 steel construction (6-section telescopic).
Precision Control
•
360° Rotation: Full-circle operation (SQ3.2SK2Q/SQ2SK2Q models).
•
Load Moment Indicator (LMI): Real-time overload protection.
•
Proportional Hydraulics: Rexroth valves for smooth lifting/lowering.
Durability & Safety
•
12R22.5 Off-Road Tires: 20-ply rating for mud/gravel.
•
Frame Construction: B610L alloy steel (879mm width).
•
Safety Systems: Automatic boom lock + emergency descent valve.
Performance Metrics
Task | SQ3.2SK2Q | SQ3.2ZK2 |
|---|---|---|
Lift 3T @ 5m Radius | 45 sec | 48 sec |
Max Reach @ 1T Load | 8m | 7.5m |
Stow/Deploy Time | ≤90 sec | ≤85 sec |
Applications
Wind Turbine Maintenance: Blade/power unit handling.
Construction Sites: Precast concrete installation.
Mining Operations: Machinery relocation.
Emergency Services: Disaster recovery lifting.
