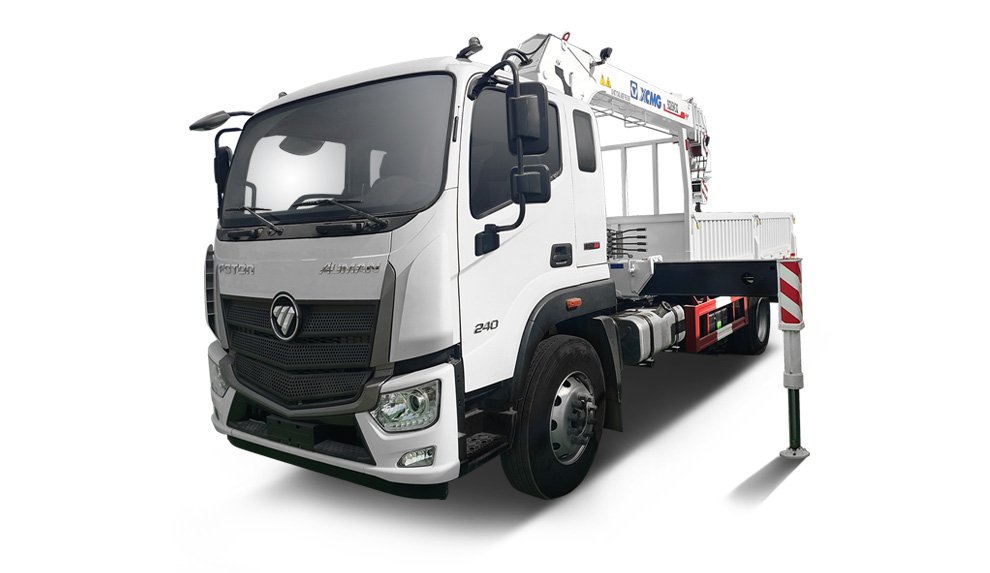

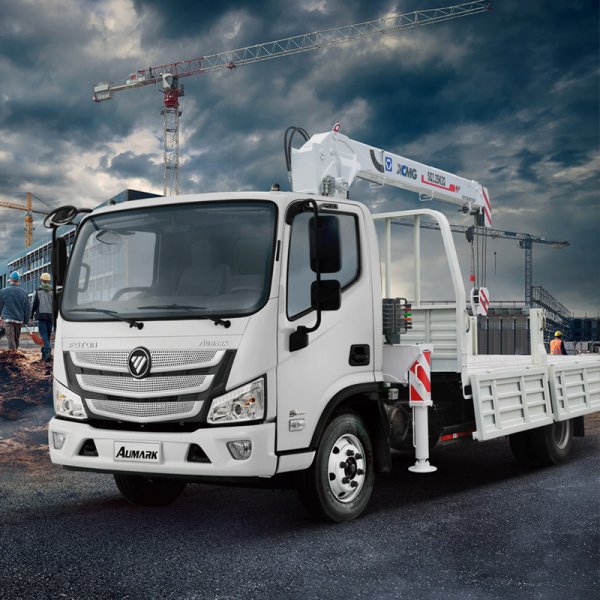

Foton EST-M 220HP 15T Payload 3.2T Lift Diesel Truck Crane
No.:
Vehicle Type: Crane
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
1. Chassis & Powertrain
Category | Specification |
|---|---|
Engine | Cummins ISB6.7-220 |
Displacement | 5,900 cc |
Power Output | 220 HP @ 2,500 rpm |
Transmission | 6-Speed Manual |
Payload Capacity | 15,155 kg |
Tires/Wheels | 11R22.5 (6+1 configuration) |
Max Speed | 90 km/h |
Fuel Tank | 200L |
2. Crane Models Comparison
Model | Max Lift | Lift Moment | Max Reach | Max Height | Rotation | Weight |
|---|---|---|---|---|---|---|
SQ3.2SK2Q | 3,200 kg | 6.72 t·m | 8,000 mm | 9,000 mm | 360° | 1,105 kg |
SQ3.2ZK2 | 3,200 kg | 6.72 t·m | 7,500 mm | 9,000 mm | 370° | 1,150 kg |
SQ2SK2Q | 2,100 kg | 4.2 t·m | 8,000 mm | 10,000 mm | 360° | 818 kg |
SQ2ZK1 | 2,000 kg | 3.2 t·m | 5,000 mm | 6,500 mm | 370° | 608 kg |
Key Features
Power & Precision
ISB-220 Engine: Turbocharged 220HP with 700Nm torque.
•
Rexroth Hydraulics: Smooth proportional control for precise lifts.
•
360°/370° Rotation: Full-circle flexibility (model-dependent).
Durability & Safety
•
High-Strength Boom: WGJ685 steel (5-section telescopic).
•
Load Moment Indicator (LMI): Prevents overload accidents.
•
Stabilizers: Hydraulic outriggers with 2.2m span.
Efficiency
•
Fuel Economy: ≤18L/100km (optimized for urban duty cycles).
•
Rapid Deployment: Crane ready in ≤90 seconds.
Performance Metrics
Task | SQ3.2SK2Q | SQ3.2ZK2 |
|---|---|---|
Lift 2T @ 4m Radius | 40 sec | 42 sec |
Max Reach @ 1T Load | 8m | 7.5m |
Stow/Deploy Time | ≤90 sec | ≤85 sec |
Applications
Construction: Precast concrete installation, steel erection.
Utilities: Transformer/pole handling.
Logistics: Machinery loading/unloading.
Emergency: Debris clearance, rescue operations.
