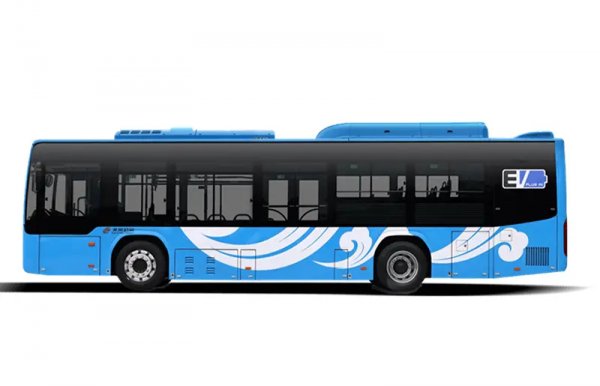

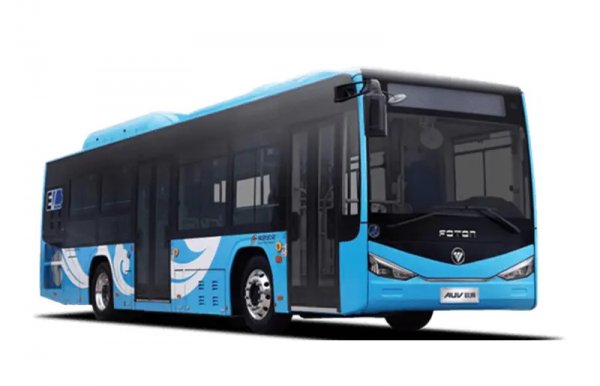

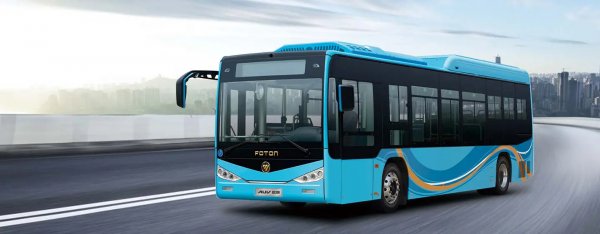

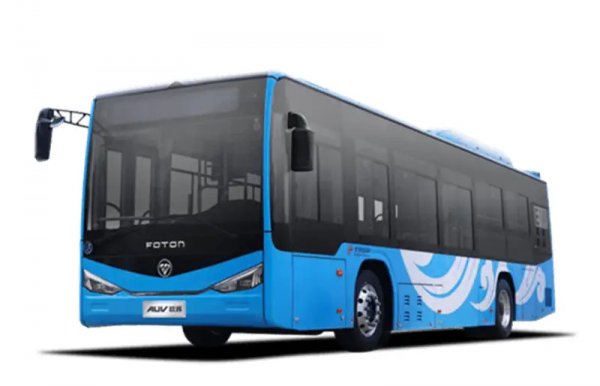

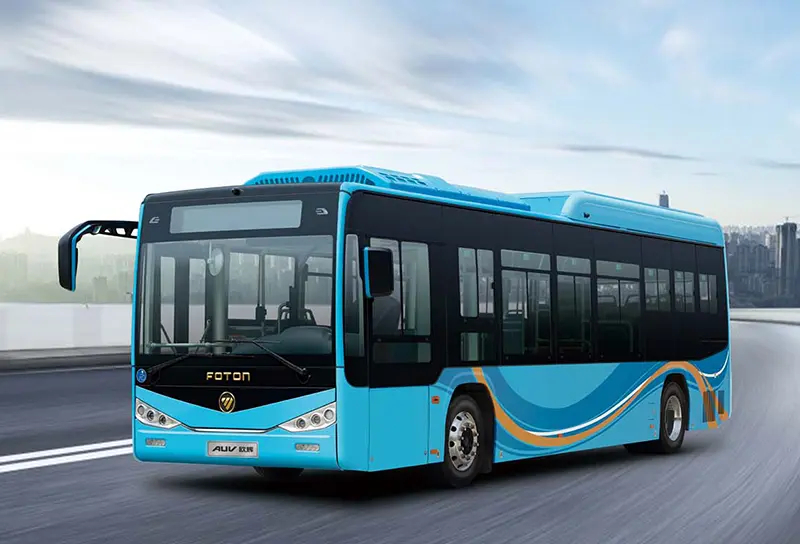

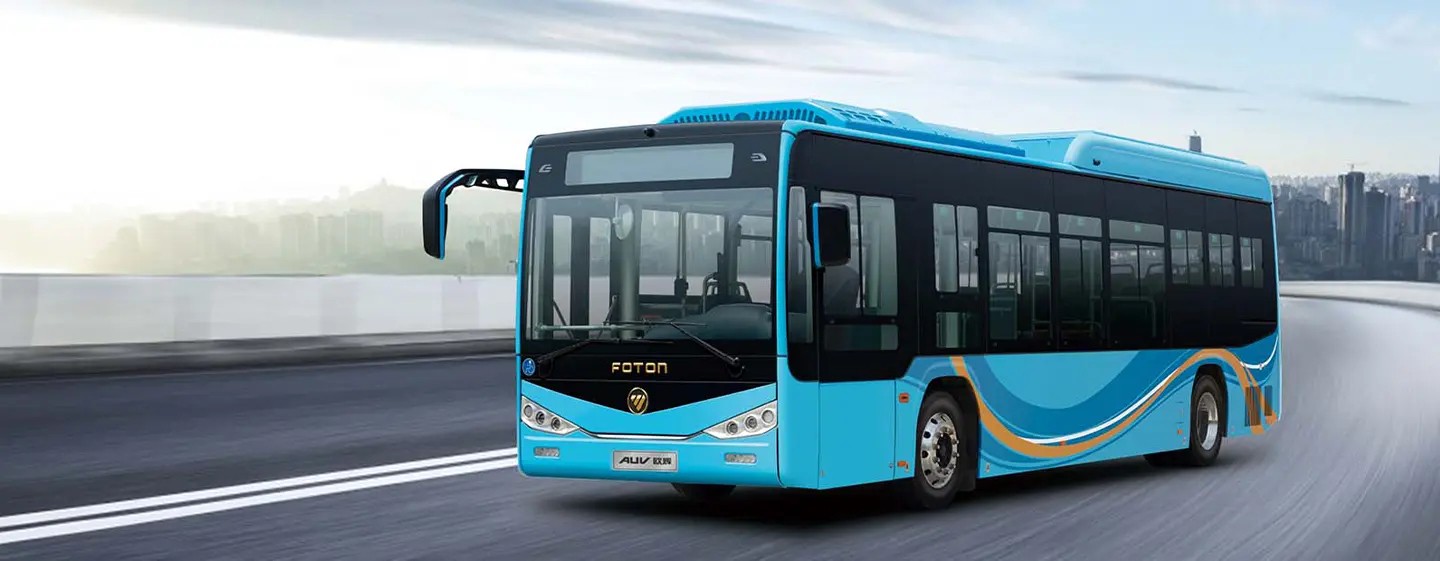

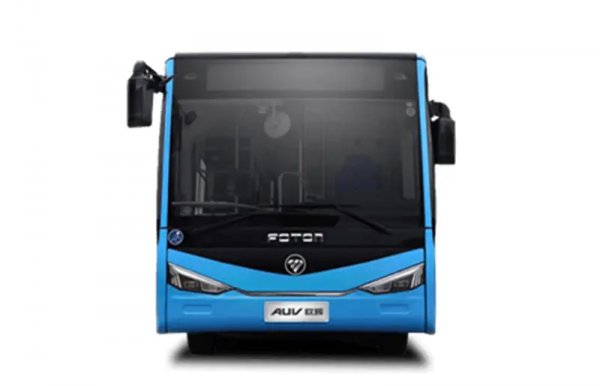

Foton BJ6109 Electric City Bus | 10.5m Zero-Emission Transit | 578km Range
No.:
Vehicle Type: City Bus
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Technical Specifications
Category | Specification |
|---|---|
Dimensions (L×W×H) | 10500 × 2550 × 3220 mm |
Wheelbase | 5650 mm |
Gross Vehicle Weight | 18000 kg |
Seating Capacity | 90 passengers (20-37 seated) |
Battery Capacity | 326.73 kWh (LiFePO4) |
Range | 578 km (@ 40km/h equal speed) |
Motor Power | FTTB120F (240 kW peak) |
Max Speed | 69 km/h (electronically limited) |
Charging Time | 2.5 hrs (DC fast charging) |
Suspension | Full air suspension |
Core Technologies
•
Battery System:
•
LiFePO4 chemistry (3,000+ cycles)
•
IP68 waterproof/dustproof protection
•
e-AIR intelligent thermal management (±1°C control)
•
Powertrain:
•
Permanent magnet synchronous motor (240kW peak)
•
Regenerative braking recovers 20% energy
•
Safety & Comfort:
•
ABS + EBD braking system
•
33,000 kcal/h electric A/C with PM2.5 filtration
•

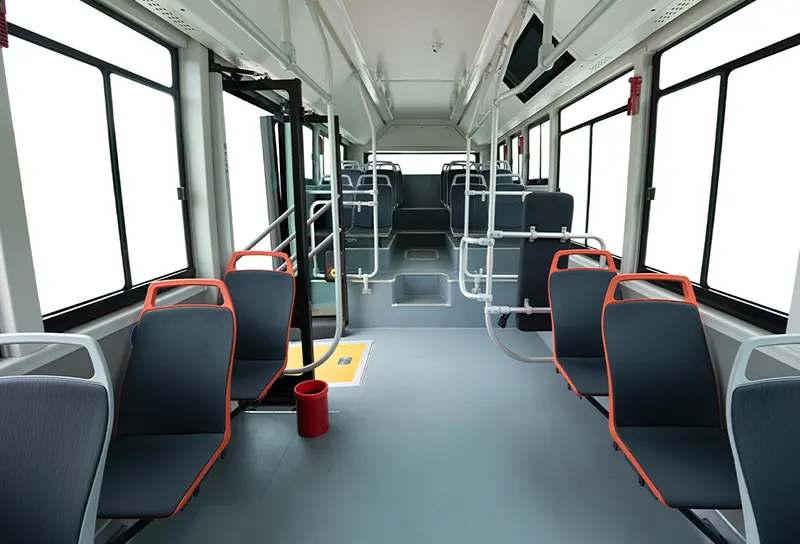

Low-floor design (340mm entry height)
Operational Advantages
•
Ultra-Low TCO:
•
50kWh/100km energy consumption
•
40% lower operating costs vs diesel buses
•
Smart Connectivity:
•
Real-time battery monitoring
•
Remote diagnostics via 4G/5G
•
OTA firmware updates
•
Durability:
•
QStE700TM high-strength steel frame
•
Corrosion-resistant aluminum body panels
Certifications & Compliance
•
China GB/T 34013-2017
•
UNECE R100/R136
•
CE/UKCA marking (EU/UK markets)
After-Sales Support
•
Warranty: 5-year battery / 3-year whole vehicle
•
Service Network: 200+ certified centers globally
•
Emergency Support: 24/7 technical hotline
Applications
•
Urban public transit routes
•
Airport terminal shuttles
•
University campus circulators
•
Tourist city hop-on/hop-off services
