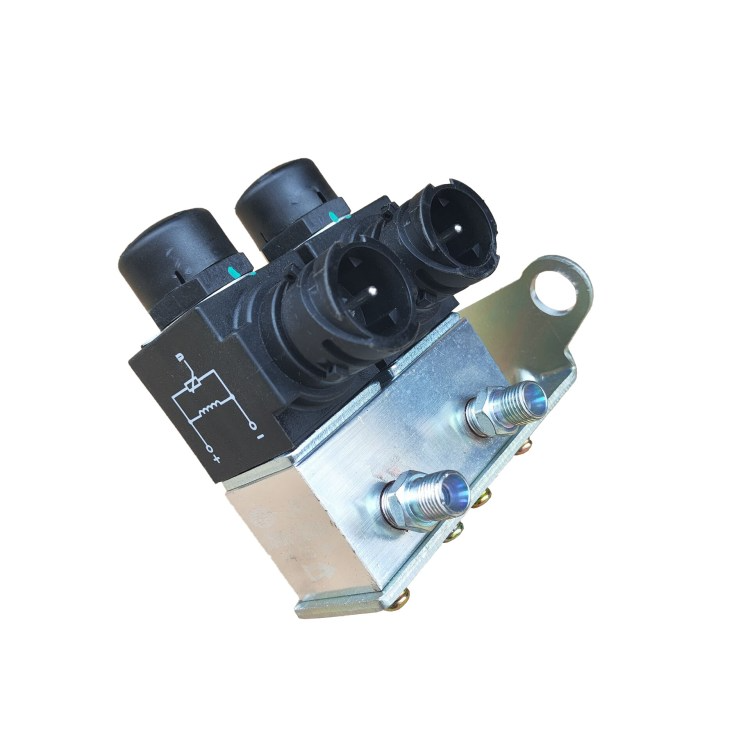

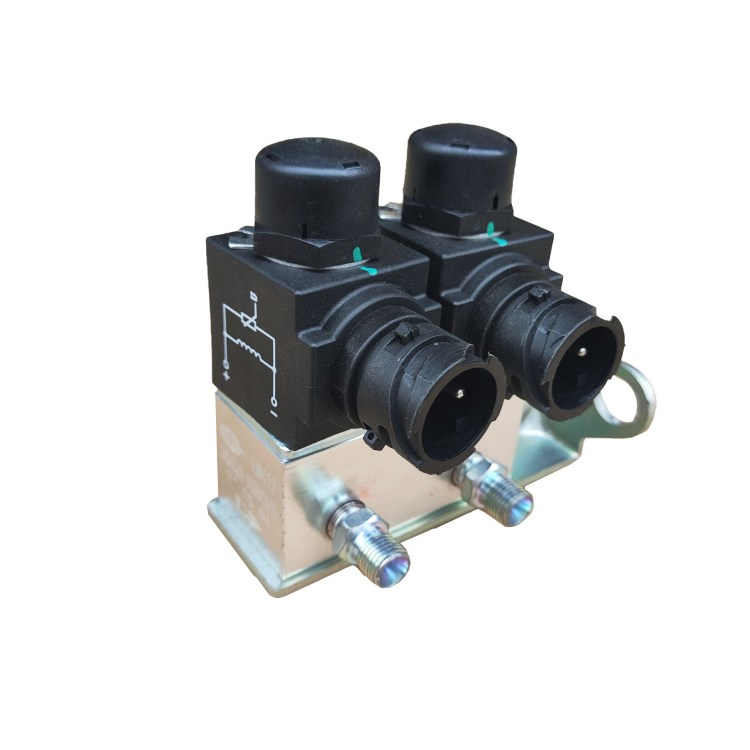

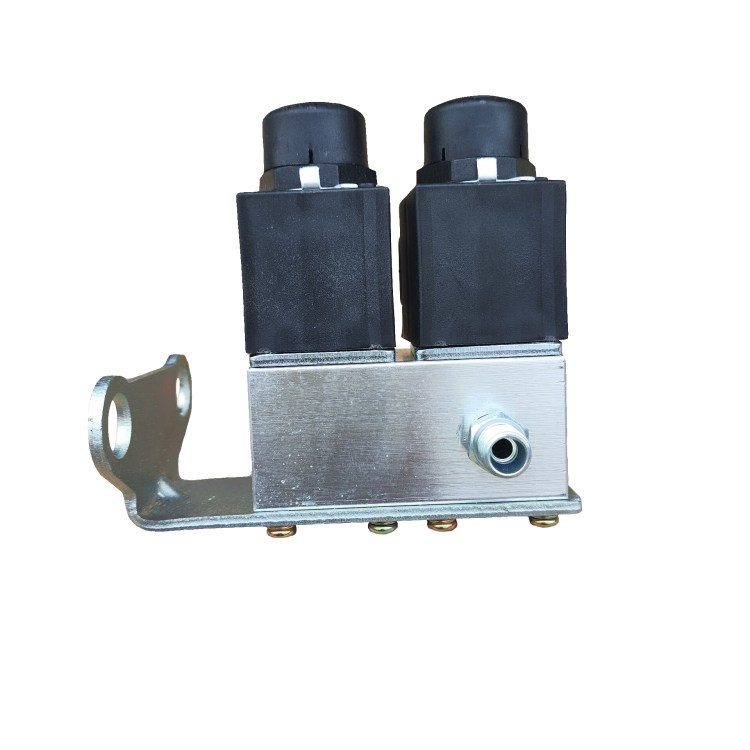

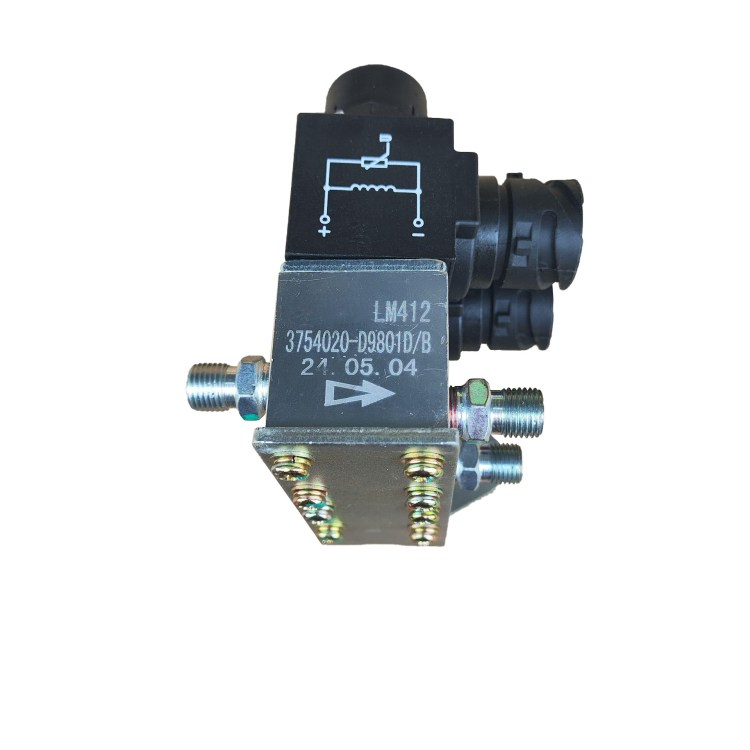

Product Name: FAW Jiefang Double Solenoid Valve Assembly with Bracket
OEM Number: 3754020-D9801D
Brand: FAW Jiefang (First Automobile Works)
Compatible Vehicle Series: FAW Jiefang J6, J6P, JH6, J5P Aowei, Qingdao Jiefang series heavy duty trucks
Application: Pneumatic control systems, including air brake system, clutch booster control, suspension leveling, and other pneumatic actuator control functions

Overview

The FAW Jiefang double solenoid valve assembly with OEM number 3754020-D9801D is a genuine FAW original equipment pneumatic control component. This dual solenoid valve integrates two independent solenoid valve units into a single compact assembly, complete with a purpose-designed mounting bracket. Used extensively in FAW Jiefang heavy duty truck pneumatic systems, it controls the flow of compressed air to various pneumatic actuators including brake chambers, clutch boosters, and suspension components. The assembly is designed as a direct replacement for original equipment, requiring no modifications for installation.

Key Advantages

Genuine FAW Jiefang original specification double solenoid valve assembly.

Integrated dual valve design combines two solenoid valves in one housing, saving space and simplifying pneumatic circuit layout.

Includes a robust mounting bracket for secure attachment to the vehicle chassis.

Provides precise and reliable pneumatic control for brake systems, clutch actuation, and other vehicle functions.

Direct bolt-on replacement for the original part, eliminating the need for cutting or adapting pneumatic lines.

Manufactured to meet FAW Jiefang original equipment quality standards for long service life.

Wide compatibility across multiple Jiefang heavy truck series.

Technical Specifications

OEM Number: 3754020-D9801D
Component Type: Double solenoid valve assembly with bracket / Dual solenoid pneumatic valve
Valve Type: Double solenoid / dual electromagnetic pneumatic control valve
Mounting Type: Bracket mounted (included)
Compatible Vehicle Series: FAW Jiefang J6, J6P, JH6, J5P Aowei, Qingdao Jiefang
Pneumatic Connection: Standard Jiefang pneumatic fitting interface (as per original design)
Operating Principle: Electromagnetic actuation for pneumatic circuit control (on/off control for air flow)
Housing Material: High strength aluminum alloy or engineered plastic (as per original specification)
Seal Material: NBR (oil resistant, temperature resistant)
Included Components: Dual solenoid valve body, integrated wiring harness or terminals, mounting bracket assembly
Solenoid Type: Cartridge type direct acting solenoid (typical for Jiefang OEM design)

Material Composition

Valve Housing: High strength aluminum alloy or engineered polymer (original FAW specification)
Valve Core and Internal Components: Stainless steel and wear resistant engineering plastics
Seals and Gaskets: NBR (Nitrile Butadiene Rubber) for air tightness and temperature resistance
Mounting Bracket: Heavy duty stamped steel with anti corrosion black coating
Solenoid Coil: Copper winding with high temperature insulation
Connector: Industry standard two pin or multi pin connector (Jiefang original specification)

Compatible Vehicle Applications

FAW Jiefang J6 series heavy duty trucks (all variants including J6P)
FAW Jiefang JH6 series heavy duty trucks
FAW Jiefang J5P Aowei series
FAW Qingdao Jiefang series
Other FAW Jiefang heavy duty truck models equipped with dual solenoid valve pneumatic control systems

Note: Always confirm compatibility by checking the original part number 3754020-D9801D and vehicle VIN before ordering. This valve assembly may also be listed as 电磁阀及附带支架总成 in FAW parts catalogs.

Installation and Replacement

Ensure the vehicle's pneumatic system is fully depressurized before starting work. Disconnect the vehicle battery negative terminal.

Locate the original solenoid valve assembly. Note the exact position of pneumatic line connections and electrical connector orientation. Take reference photos if necessary.

Disconnect the electrical connector from the old solenoid valve. Carefully remove the pneumatic lines from the valve ports. Label each line to ensure correct reconnection.

Remove the mounting bolts securing the old valve bracket to the chassis. Remove the complete old assembly.

Position the new double solenoid valve assembly with bracket in the original mounting location. Secure the bracket using original bolts and torque to FAW Jiefang factory specifications.

Reconnect the pneumatic lines to the correct ports as labeled. Ensure all connections are tight and properly seated to prevent air leaks.

Reconnect the electrical connector. Reconnect the vehicle battery.

Start the engine and allow the air system to reach operating pressure. Check all pneumatic connections for leaks using soapy water or leak detection spray.

Test the function of the solenoid valve by operating the corresponding vehicle controls (brake pedal, clutch, etc.) and listening for proper valve actuation.

Packaging and Delivery

Packaging: Standard export carton with foam padding or bubble wrap to protect the valve and bracket during transit

MOQ: 1 piece (sample orders accepted)

Delivery Time: Regular orders shipped within 24 to 48 hours. Bulk orders require 5 to 10 working days production lead time

Place of Origin: China

Payment Terms: T/T, L/C, Western Union, PayPal

Shipping Terms: EXW, FOB, CFR, CIF, DDU

Why Choose This Solenoid Valve Assembly

Genuine FAW Jiefang original specification, ensuring exact fitment and reliable performance.

All-in-one design with bracket simplifies replacement and reduces installation time.

Eliminates the need for separate valve and bracket sourcing; complete assembly ready to install.

Restores proper pneumatic system function, ensuring reliable brake and control system operation.

Proven reliability in FAW Jiefang heavy truck applications, subject to original equipment quality testing.
